Precision Engineering Facility Closure – Haas CNC Mills, Lathes, & Workshop Equipment

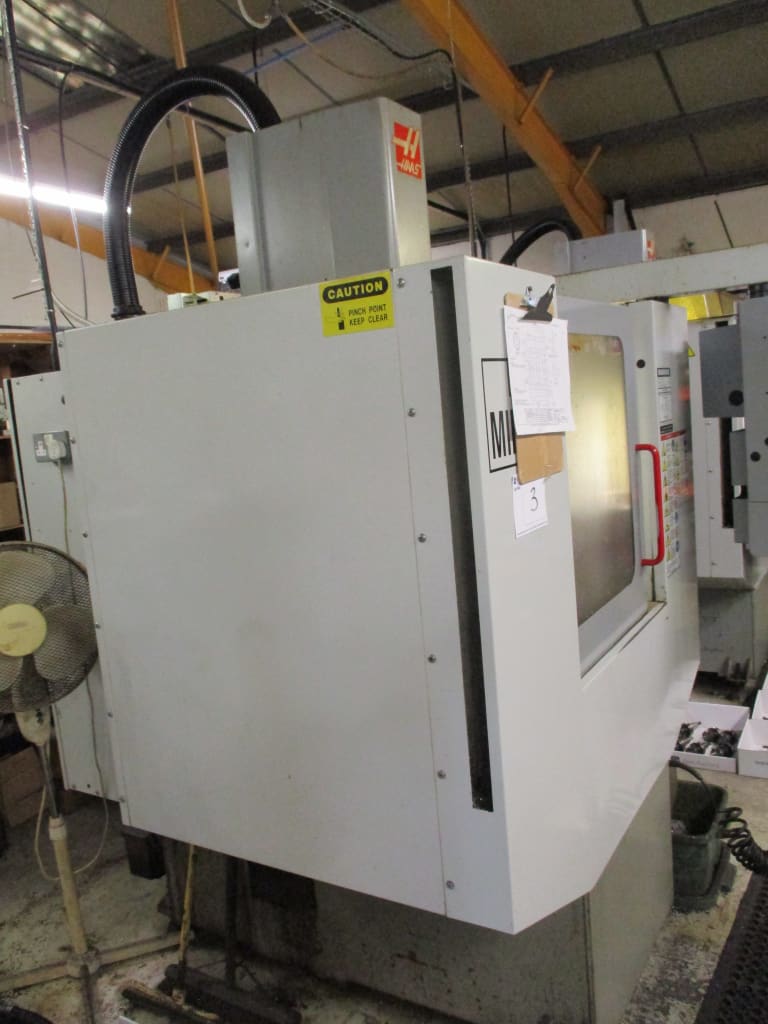

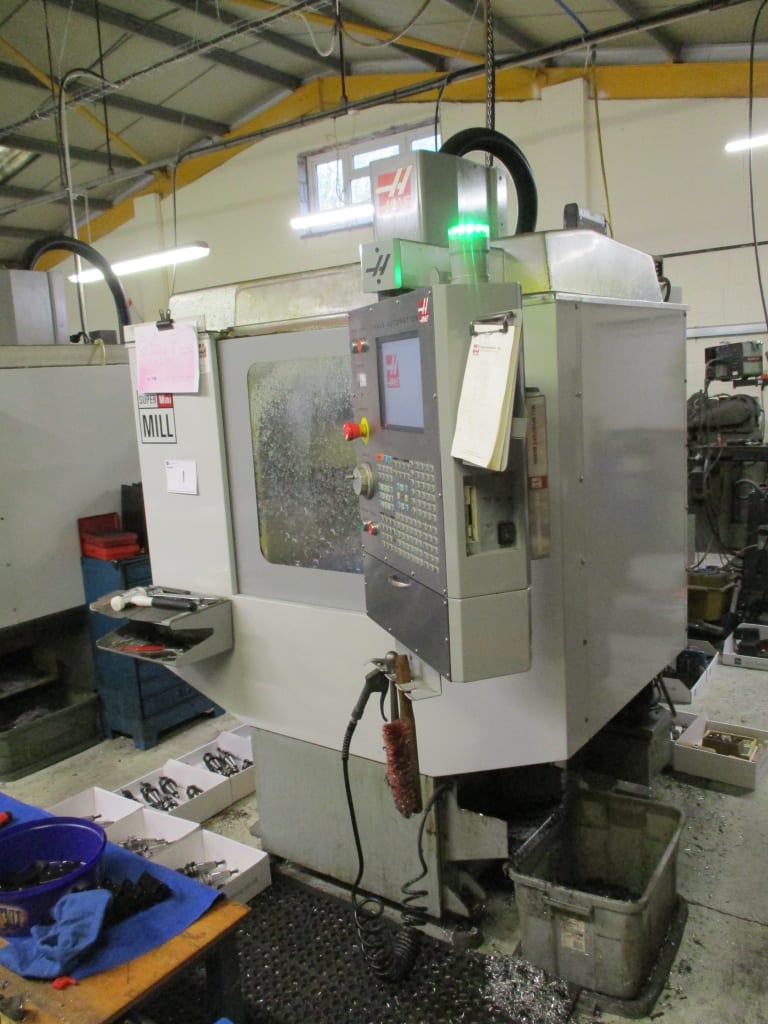

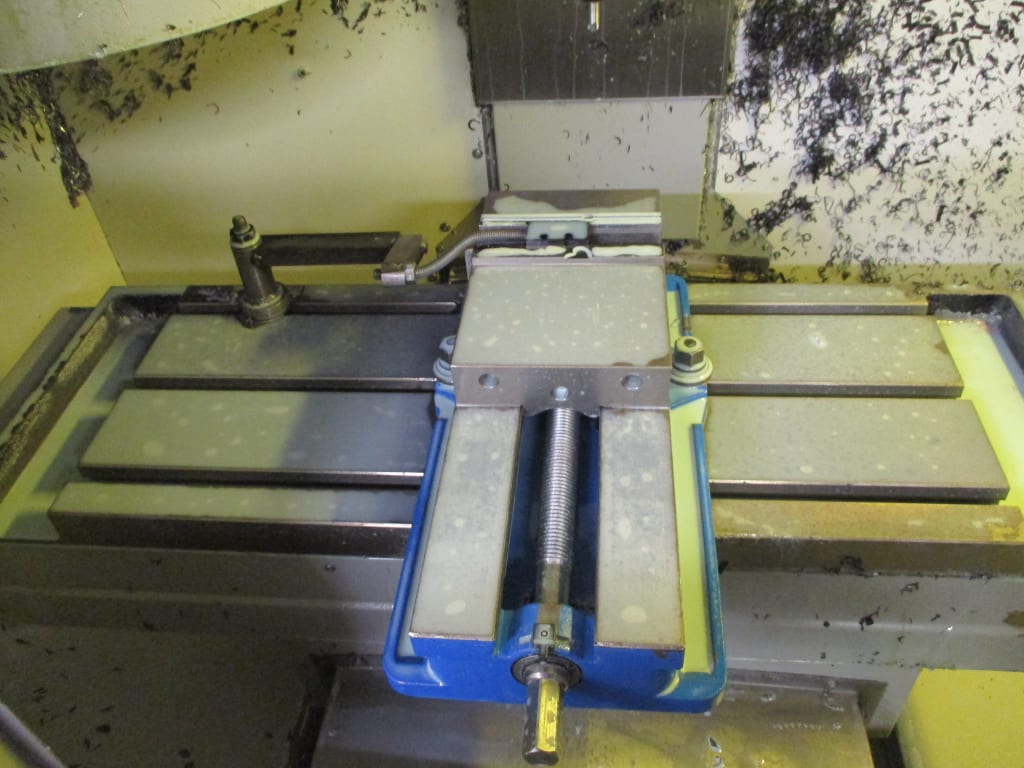

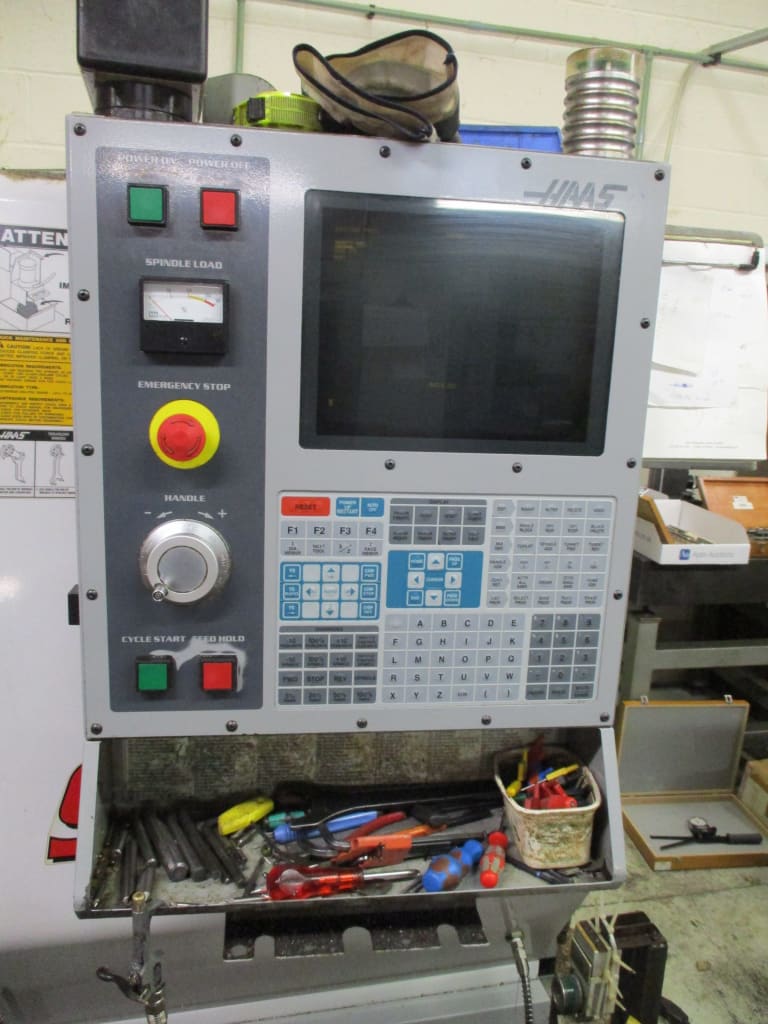

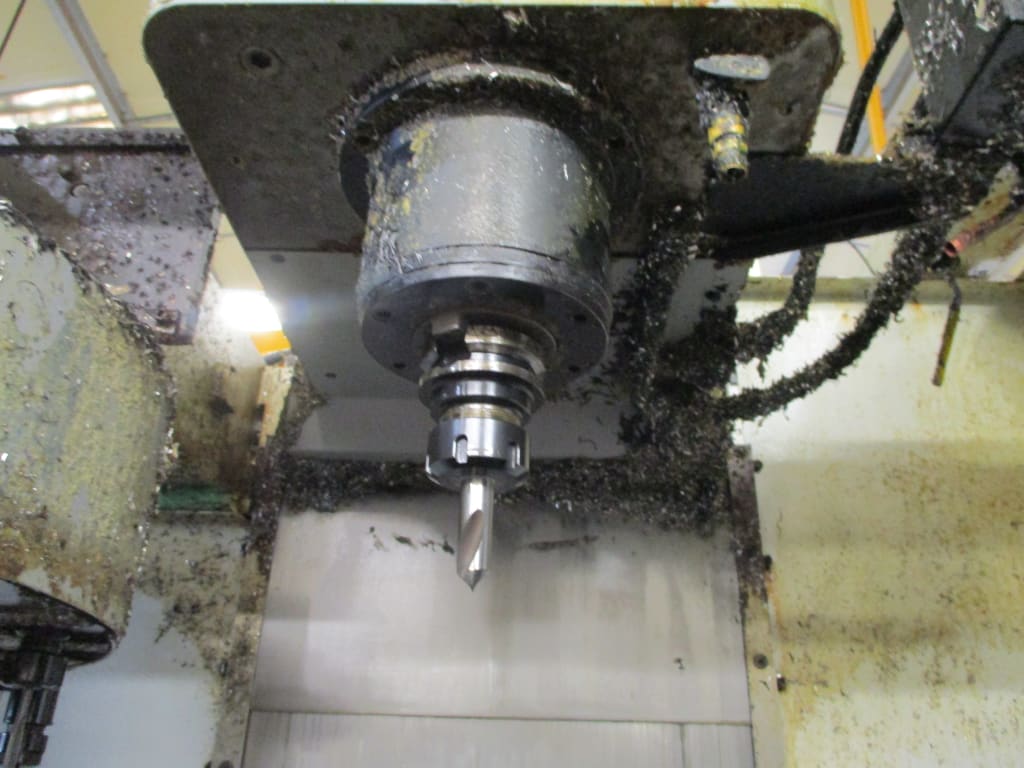

Table Dimensions 914mm x 305mm with (3) T Slots. Max Table Load 227kg. 'X' Axis Approx 405mm, 'Y' Axis Approx 305mm, 'Z' Axis Approx 250mm. BT40 Spindle Taper. Spindle Speeds 0-10,000 RPM. Spindle Motor 11.25kW. Spindle Nose to Table Min/Max Approx 102mm/350mm. 10 Station ATC. S/No. 1060226.

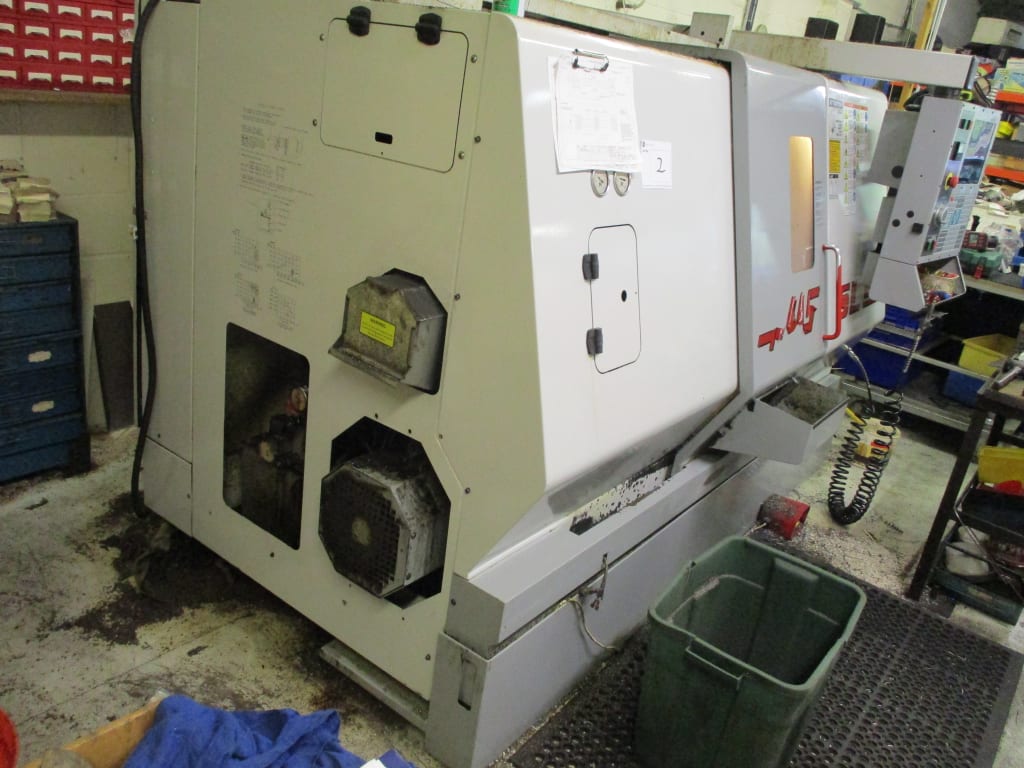

3 Jaw Ø160mm Power Chuck. Swing Over Bed Ø450mm. Max Turning Ø220mm. Max Turning Length 200mm. Spindle Nose A2-5. Spindle Speeds 30-4,500 RPM. Through Spindle Bore Ø35mm. 12 Position Turret. Tailstock Quill Ø80mm, Morse Taper 4. S/No. LH 1119011-004.

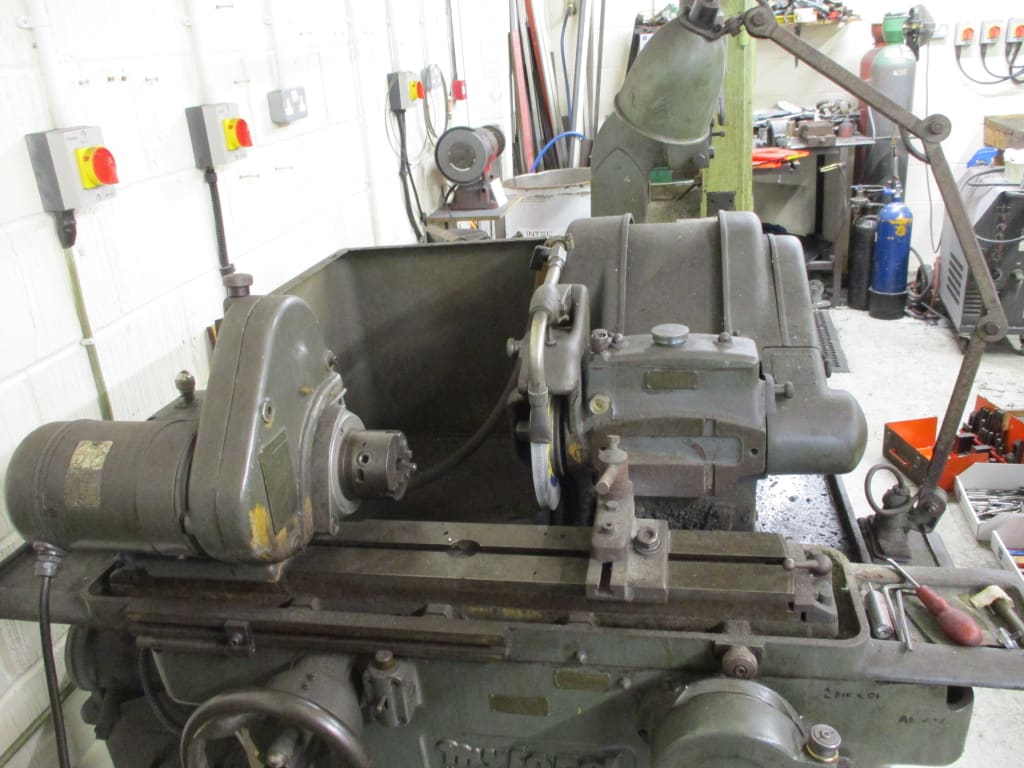

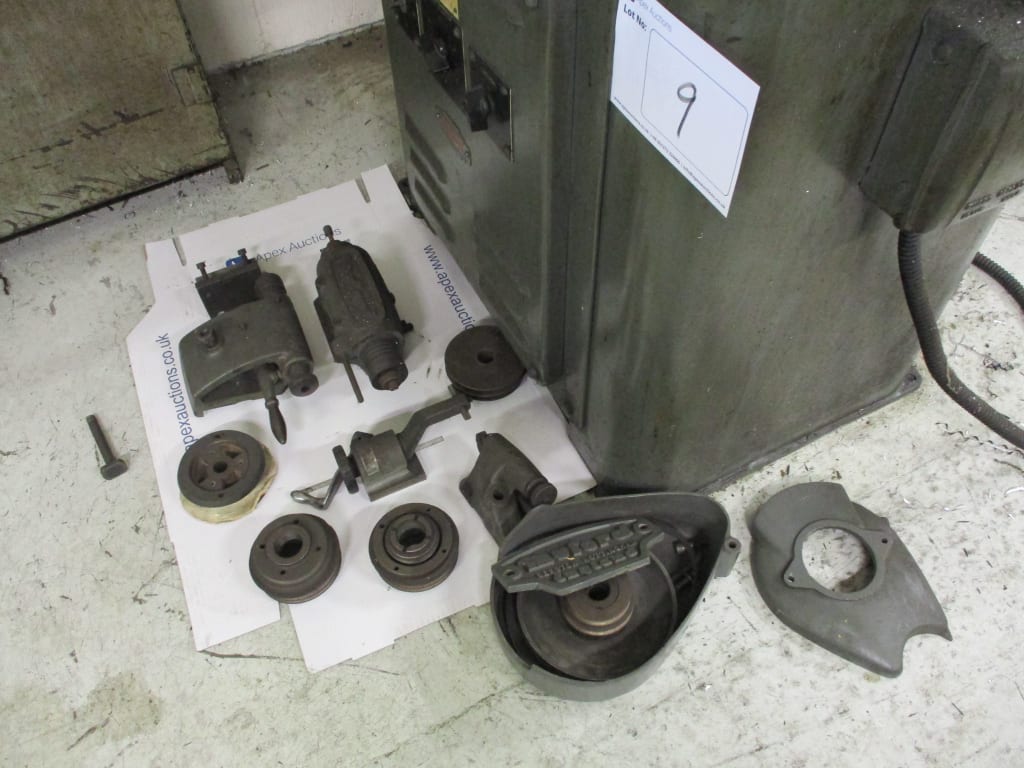

Capacity Approx Ø125mm Swing Over Bed x 300mm Between Centres. Max Ø75mm Can Be Ground. Maximum Longitudinal Table Travel Approx 300mm. Ø180mm 3 Jaw Chuck. Workhead Speeds 75-780 RPM (6 Speed). Grinding Wheel Dimensions Ø254mm x 12.5mm (25mm) x Ø76.2mm Bore. Includes Grinding Attachments, Light, Wheel Dresser, Collet Chuck & Collets.

Rise & Fall Drill Head. 8 Gear 300-8,000 RPM. Chuck Capacity 0-5/16". Size of Table Approx 540mm x 200mm. S/NO. 4757.

Belt Width 150mm. Disc Ø225mm. Power Supply 240 Volt.

2,750 RPM Spindle Speed. Power Supply 415 Volt, 3 Phase.

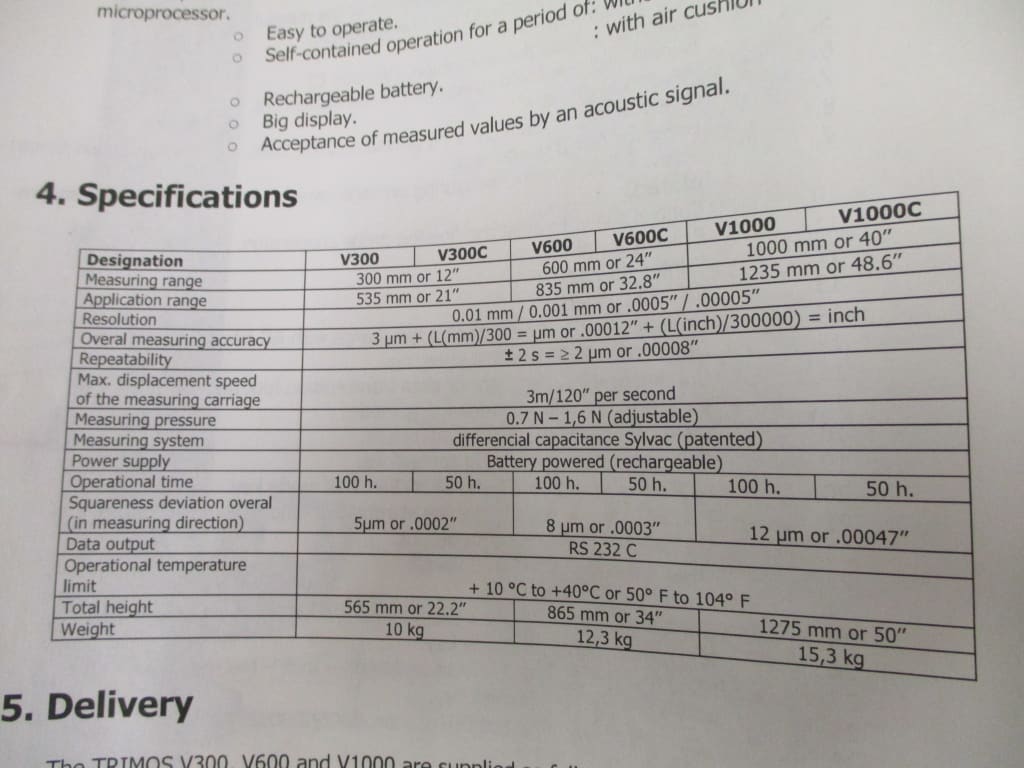

Maximum Measurement 600mm. With Trimos 722M Setting Block.

Includes Indexable Inserts.

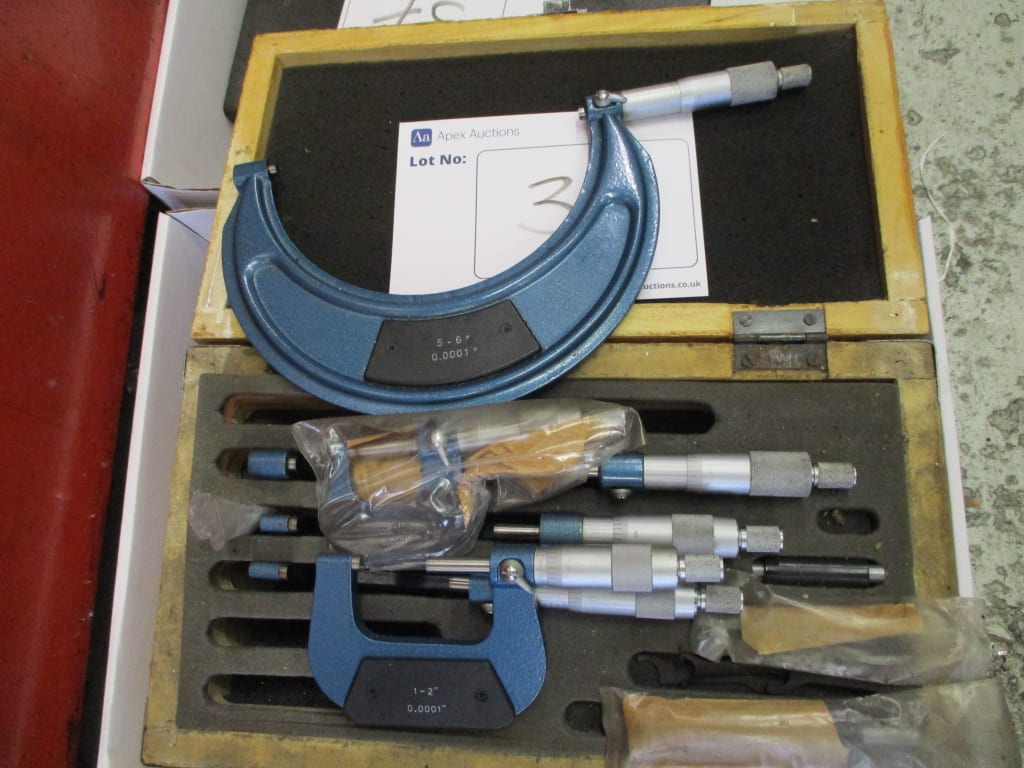

Range from 0-1" up to 5"-6".

Comprising (1) 3220-50, (1) 3220-75 & (1) 3220-100 Caliper Jaw Inside Micrometers.

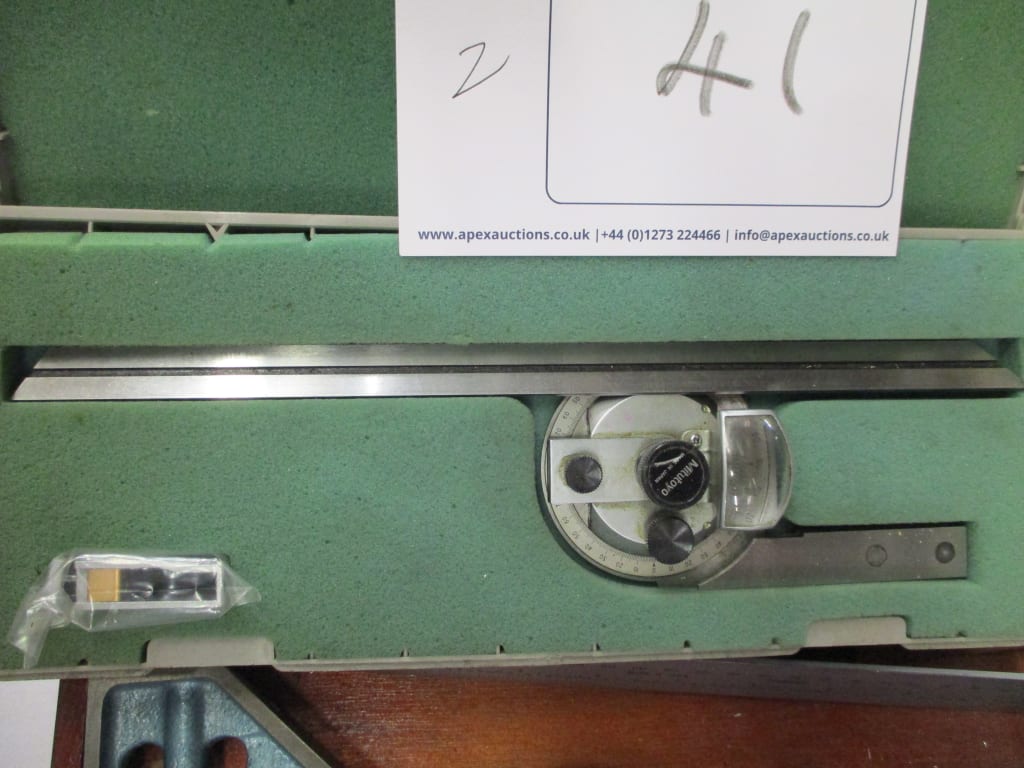

Comprising: (1) Roebuck Universal Combination Set with 300mm Steel Rule. (1) Mitutoyo 187-908 Universal Bevel Protractor.

Comprising: (4) Assorted Kennedy Thread Repair Kits & (1) Armstrong Wire Thread Repair Kit.

With 113.003mm Setting Ring in Wooden Box.

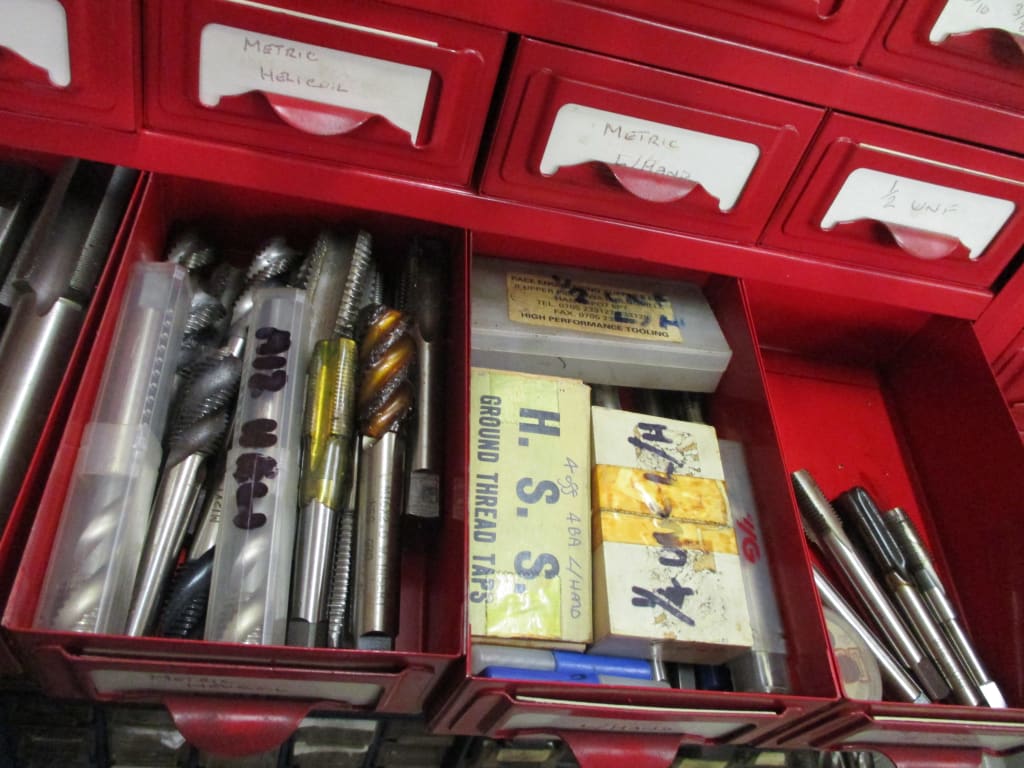

Contents Include HSS Imperial Threading Taps - BA, Whitworth, BSF & BSP Threads. Assorted Helicoil Rethreading Taps & HSS Circular Split Dies.

Dimensions 460mm x 300mm x 100mm.

Dimensions Approx 610mm x 455mm x 120mm.

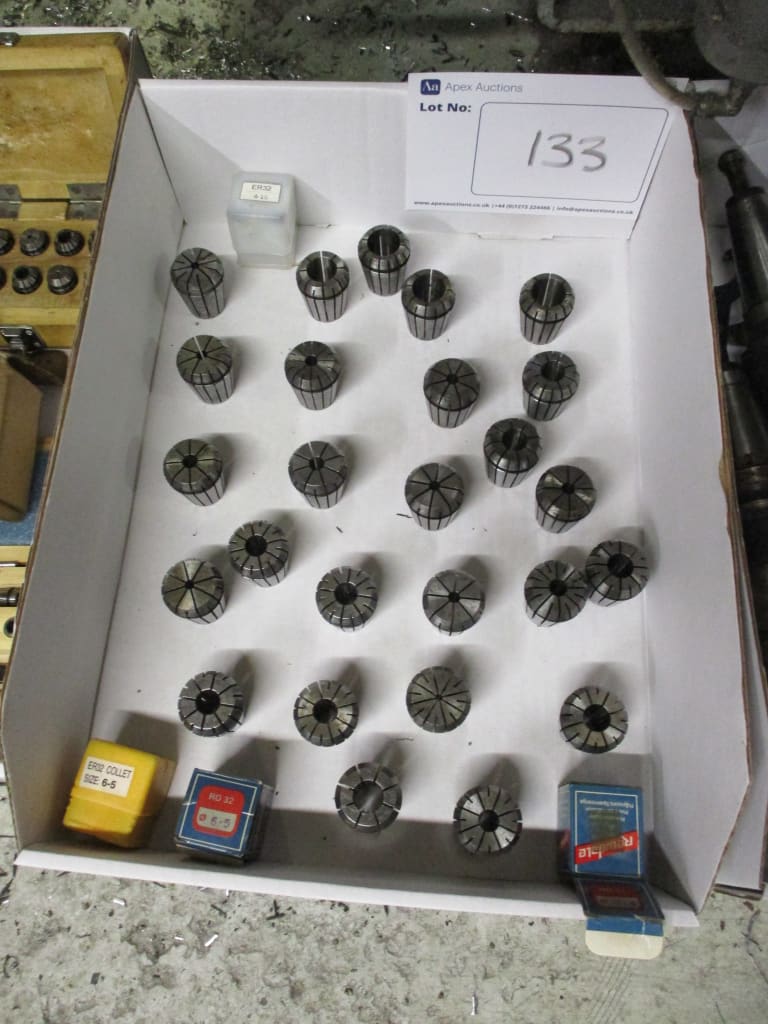

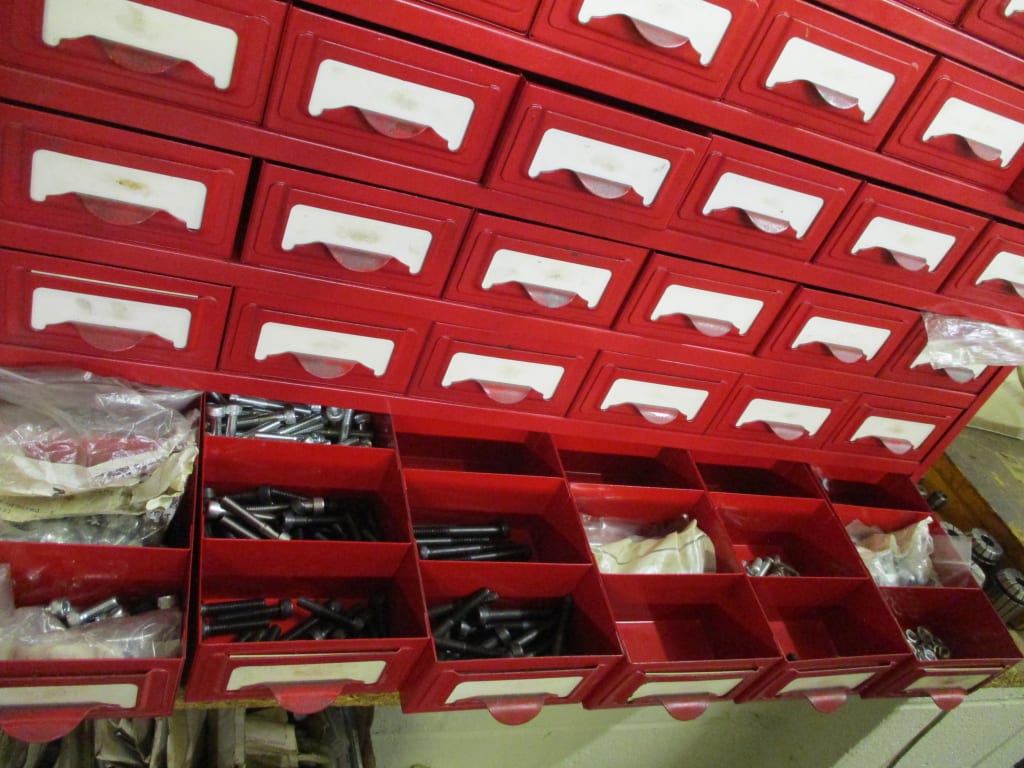

Contents Include Indexa ER32 Collets. Assorted Fasteners.

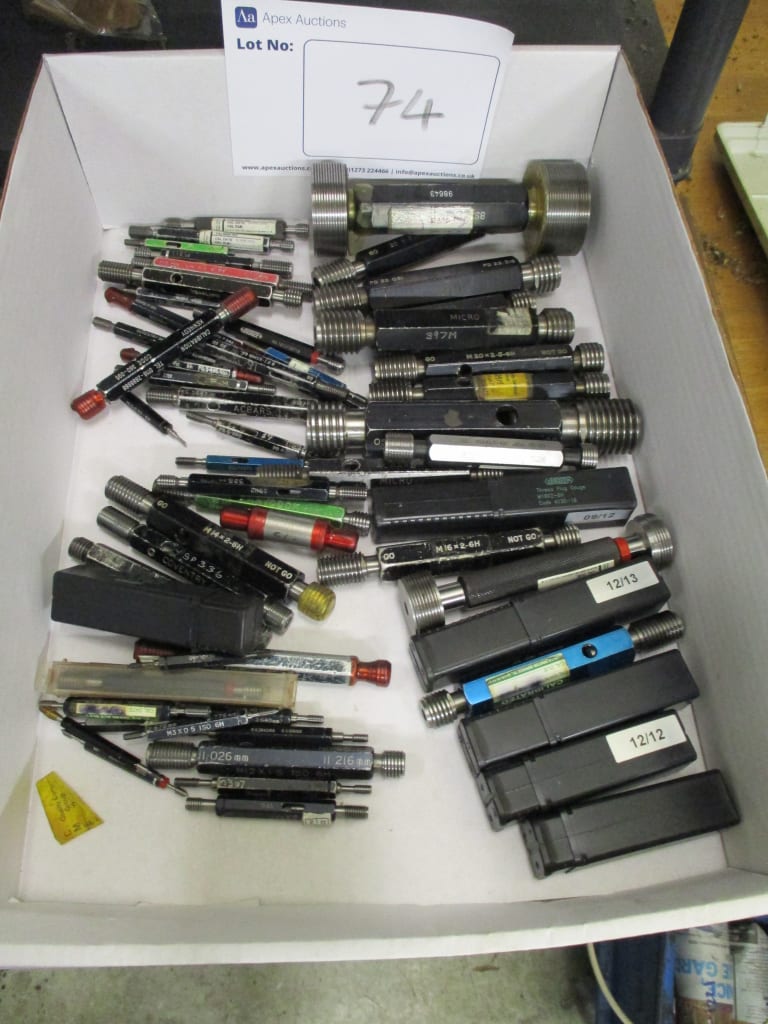

Dimensions Approx 900mm x 300mm x 1900mm High. Contents Include Industrial Springs, Screw Plug Gauges, Screw Ring Gauges, Electrical Comsumables, Shaviv & Noga Deburring Blades & Holders.

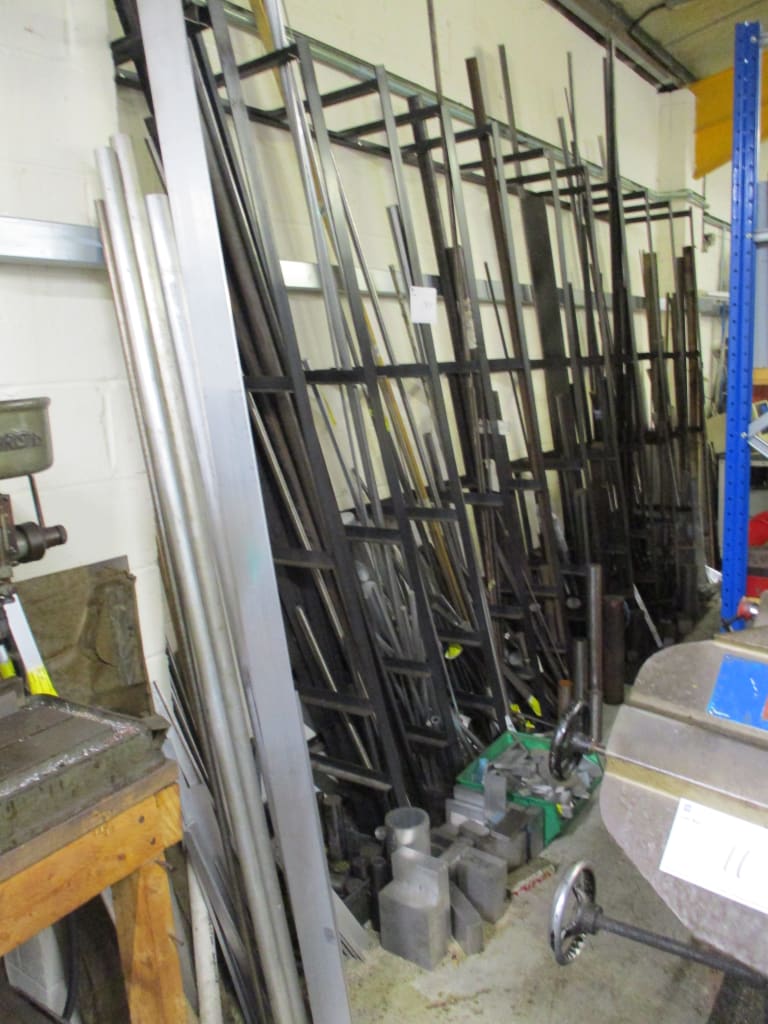

Dimensions of Racking Approx 3,800mm Long x 2,500mm High. Steel Stock Includes Mild Steel Round Bar & Aluminium Angle Bar.

Dimensions Approx 1,920mm x 760mm x 930mm With Record No. 3 Vice.

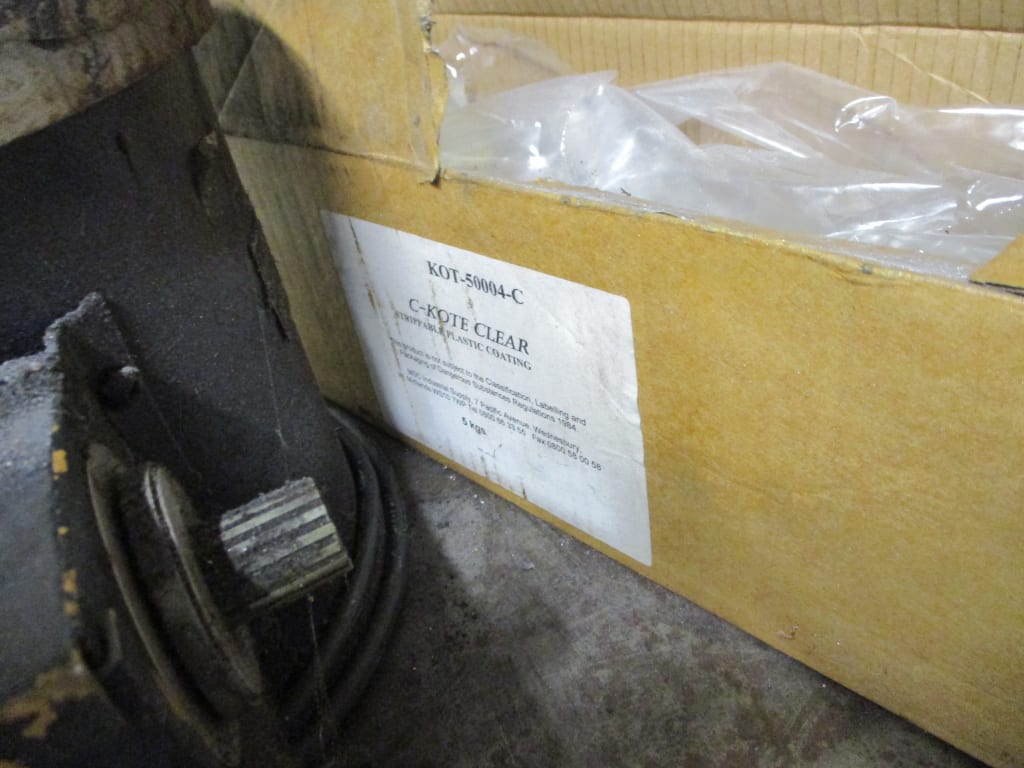

240 Volt Power Supply. Small Quantity of Hot Dip Coating.

Including Side & Face Cutters, Convex Cutter (Unused) & Slitting Saws.

Including Lathe Dead Centres & Clarkson Autolock Spanners.

Dimensions Approx 610mm x 455mm x 1780mm with 3 Shelves.

Dimensions Approx 1,470mm x 700mm x 810mm.

Dimensions Approx 1,180mm x 635mm x 875mm.

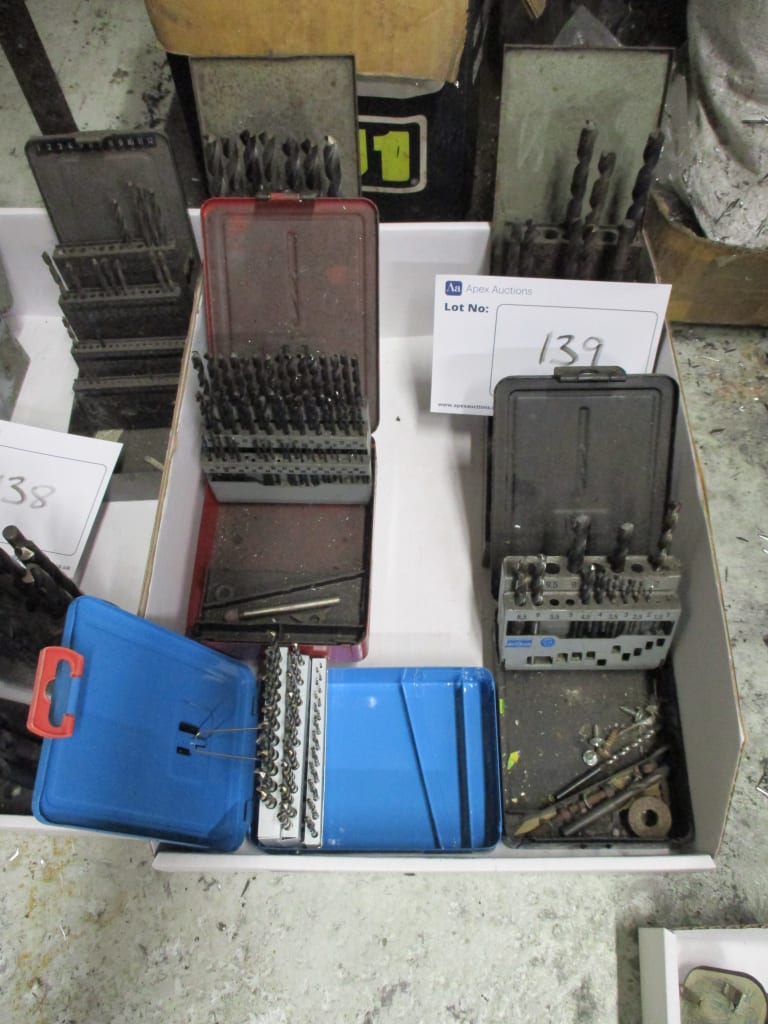

Metric, Imperial & Number Type Straight Shank Drills.

Metric Straight Shank Drills.

Metric Straight Shank Drills & Micro Drills.

Metric Straight Shank Drills, Number Drills & Micro Drills.

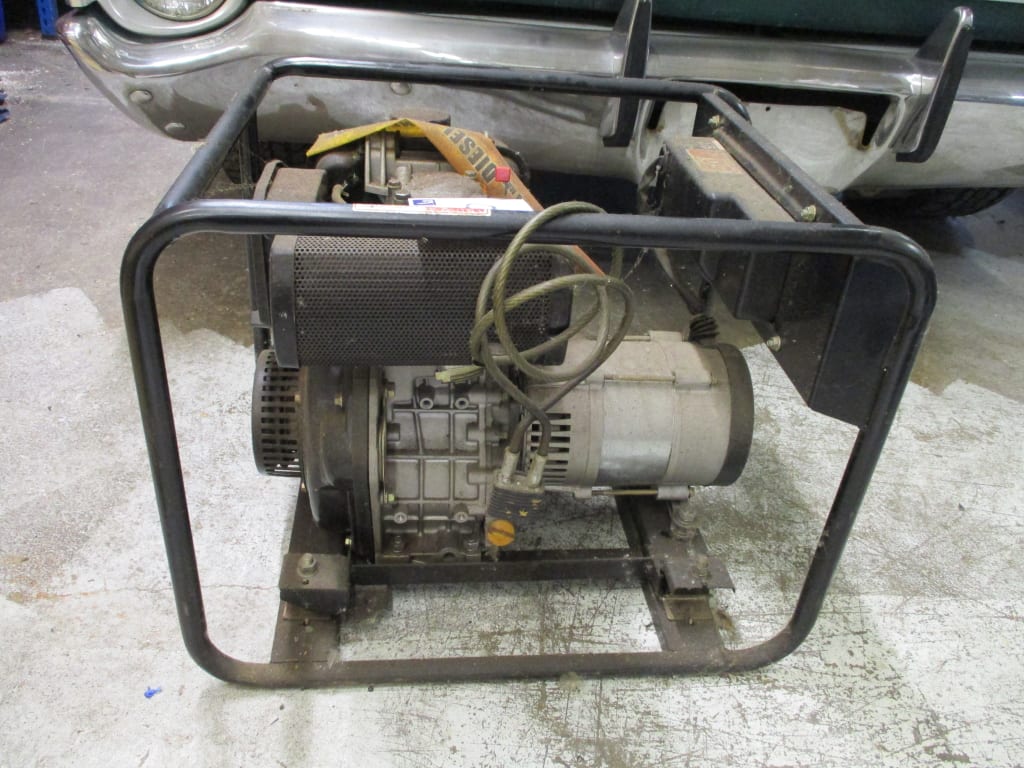

UD170 Engine.

Including: HSS Cobalt Milling Cutters, Die Stocks & Threading Taps.

300mm Screen. LPH-100 Lamp. Table Dimensions 370mm x 100mm with Single T Slot.

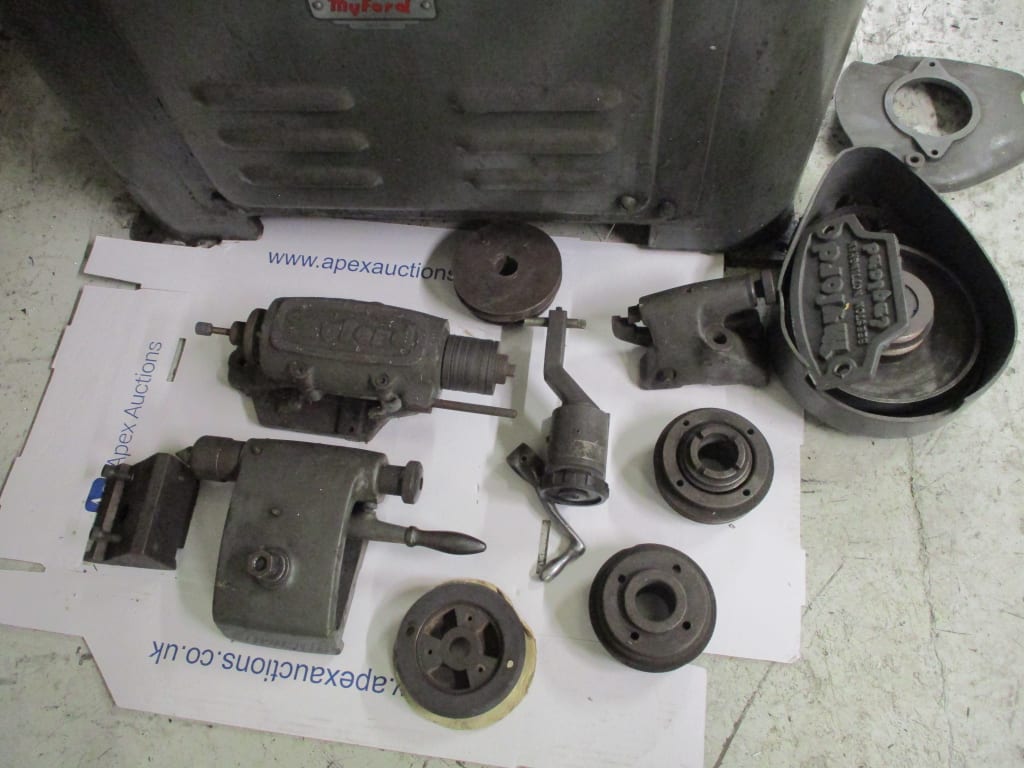

To Suit Myford Cylindrical Grinder & Jones/Shipman Grinder

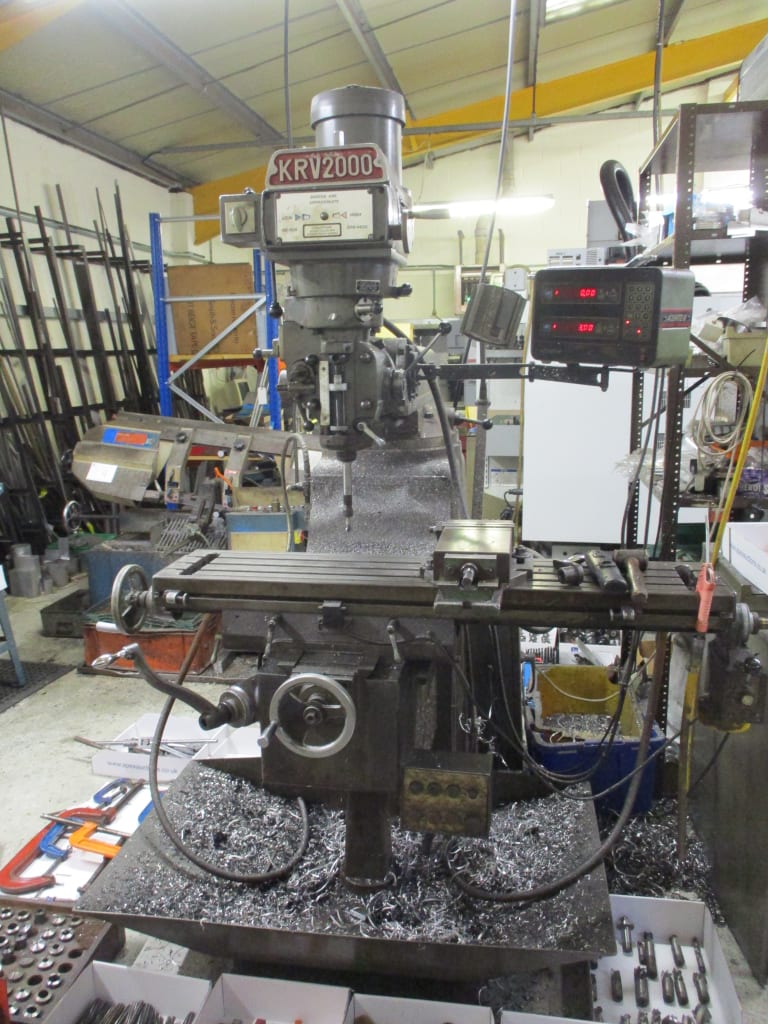

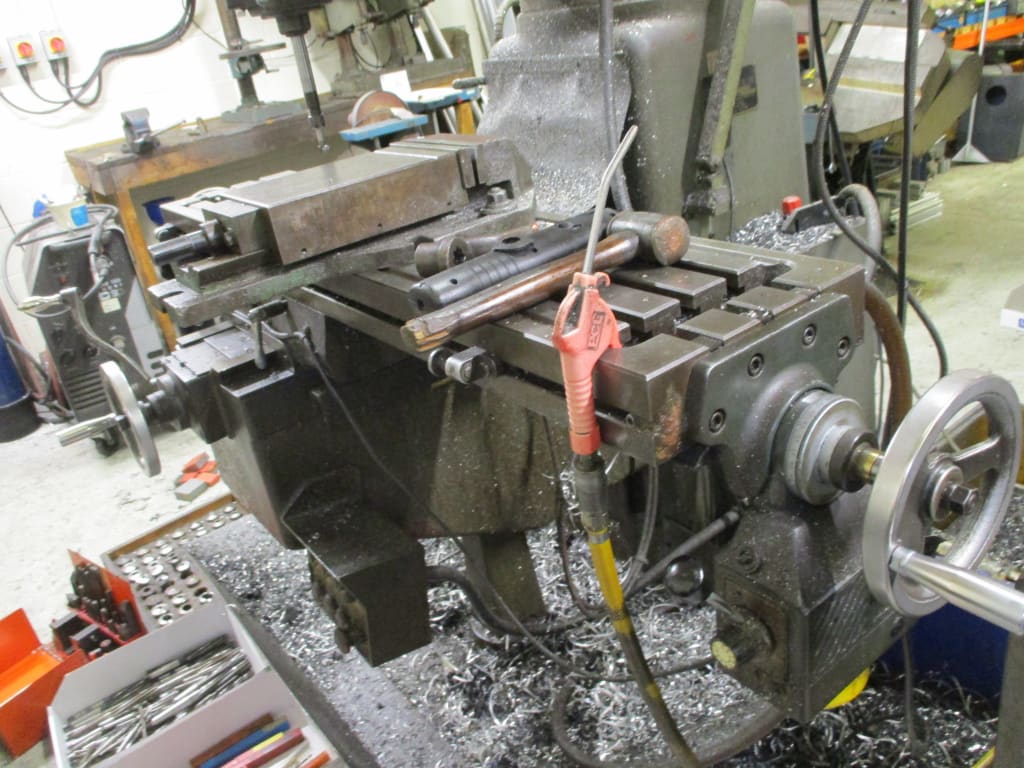

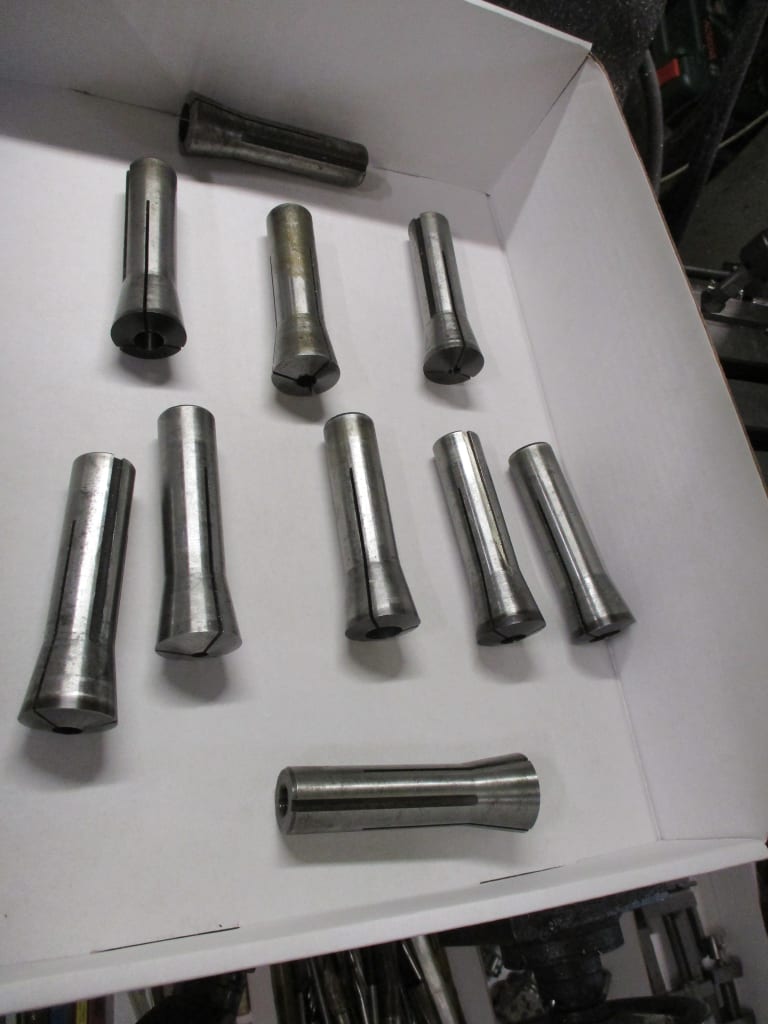

Table Dimensions 1,270mm x 250mm. Table Traverse Approx 750mm. Cross Traverse Approx 325mm. Vertical Traverse Approx 380mm. Spindle Speeds 60-4,200 RPM. R8 Spindle Taper. Variable Speed Head. Align AL-100 Power Feed. Machine Light, Swarf Tray, (1) 160mm Width of Jaw Machine Vice. Quantity of R8 Taper Collets. S/No. 3688.

Distance Between Centres 1,270mm. Swing Over Bed Approx Ø375mm. Spindle Speeds (16) 25-2,000 RPM. Spindle Bore Ø54mm. Tailstock 4MT. D16 Chuck Mounting. 7.5 HP Main Motor. Ø 250mm 3 Jaw Manual Chuck. Ø350mm Face Plate. Quick Change Toolpost. Memolo Transformer Unit. Quantity of Assorted Quick Change Toolposts & Chuck Jaws. Machine Light. S/No. 6/0049/27024.

Cutting Range: Round 280mm, Square 260mm, Rectangular 250mm x 280mm. Sawblade Speeds 21, 28, 42, 62 & 84 Metres/Minute. 650mm Working Height. Adjustable Vice. Automatic Bar Feed. Parts Counter. Blade Size 3,660mm x 25mm. S/No. 14801095.

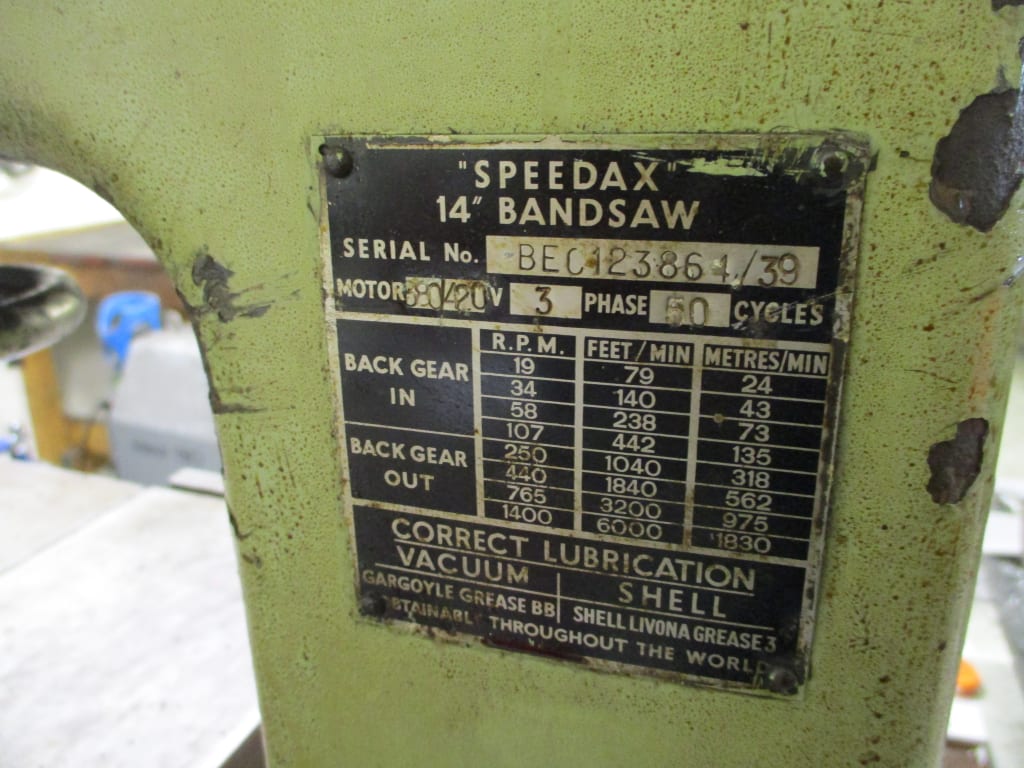

Dimensions of Table 460mm x 460mm. Throat Depth 350mm. 19-1,400 RPM. 24-1,830 Metres/Minute Cut. S/No. BEC123864/39.

Capacity 3/32" - 1.1/4" with 6 Jaw Chuck. Point Angle 40-180°. Clearance Angle Approx 0-18°. Mounted on Single Door Steel Cabinet.

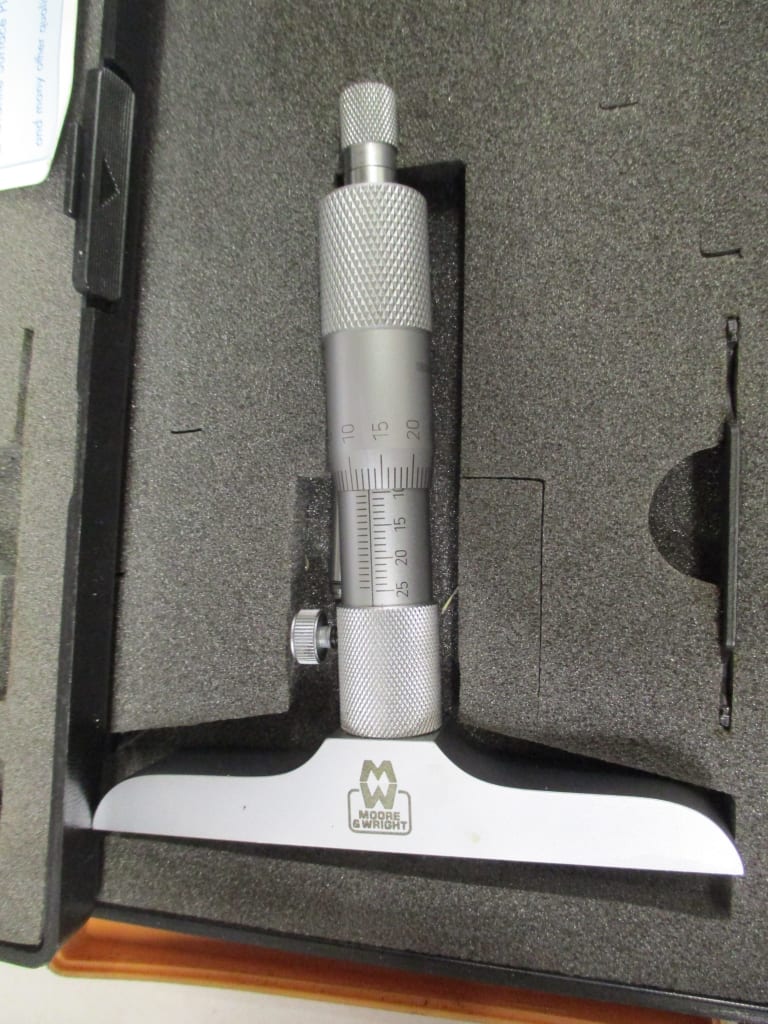

Comprising: (2) Moore & Wright 0-25mm Depth Micrometers & (1) Mitutoyo Depth Micrometer with Interchangeable Rods.

Inserts Included

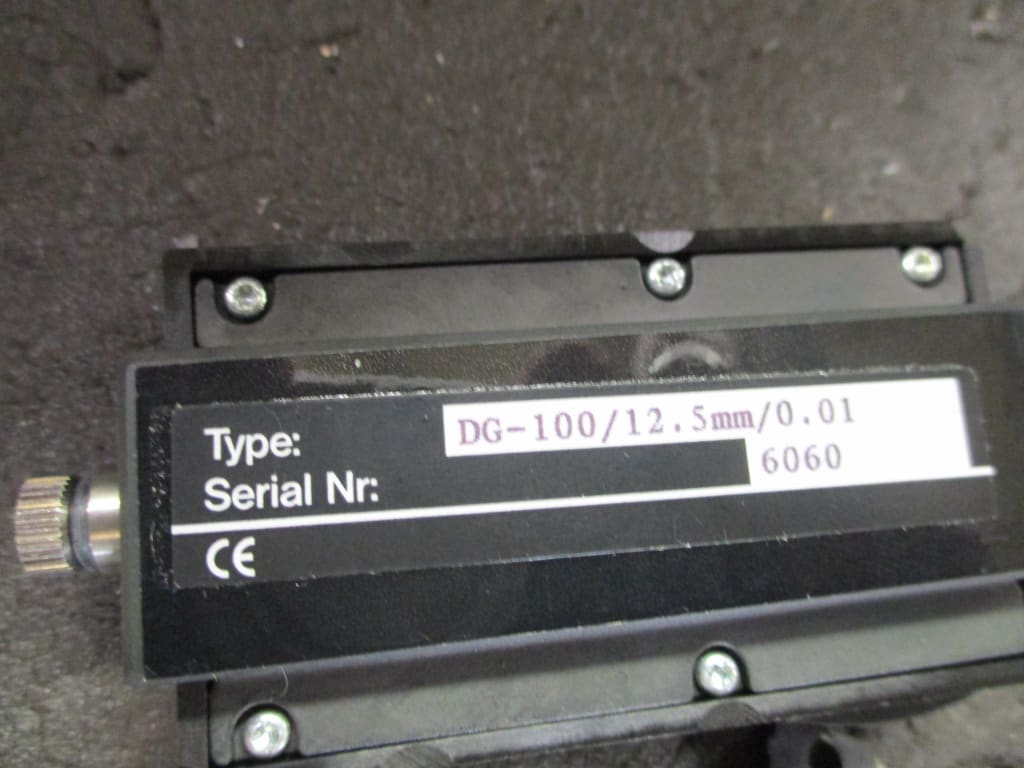

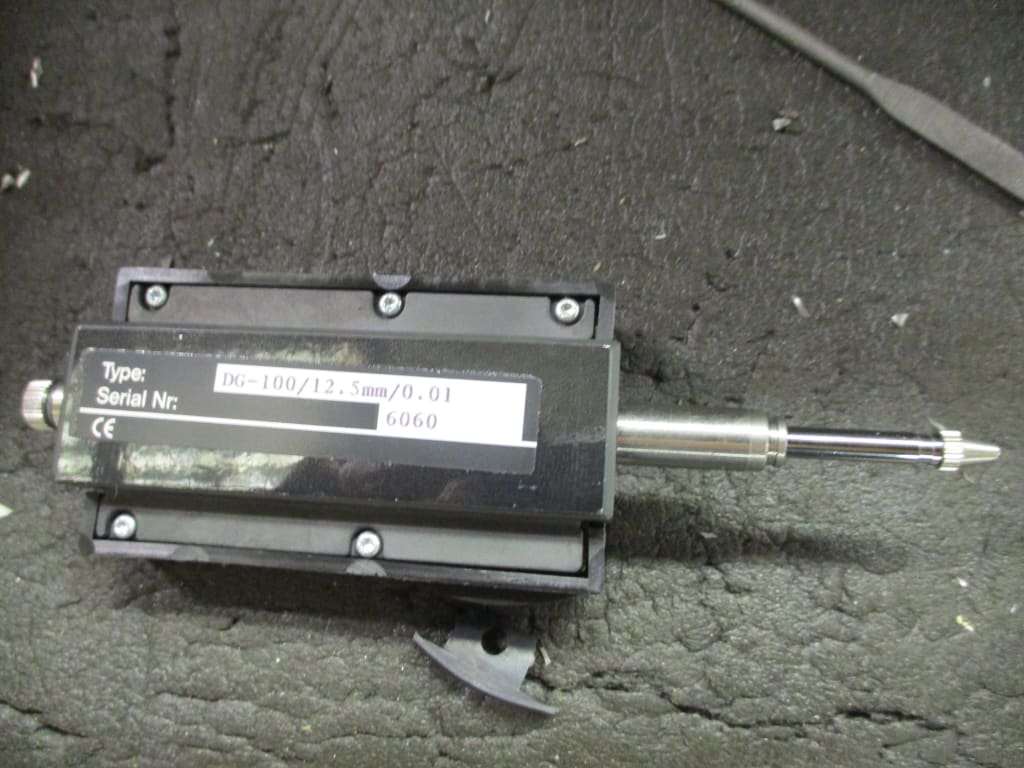

0-100mm Range x 12.5.

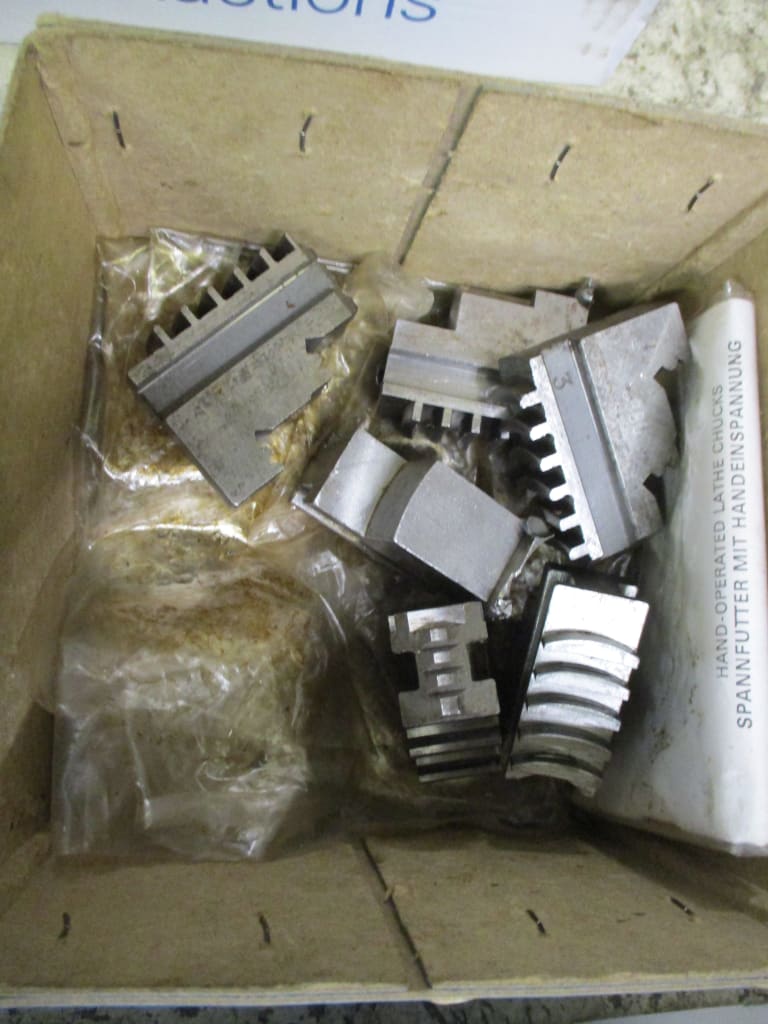

Including: 80mm 3 Jaw Lathe Chuck. 125mm 3 Jaw Lathe Chuck. Assorted Soft Jaws.

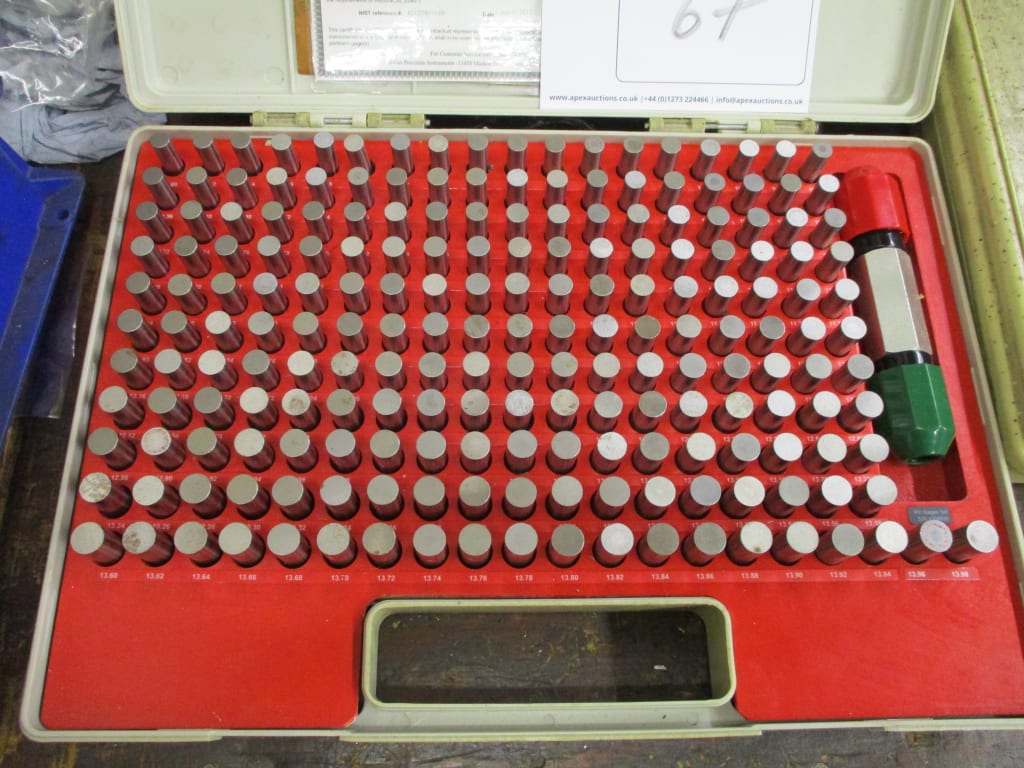

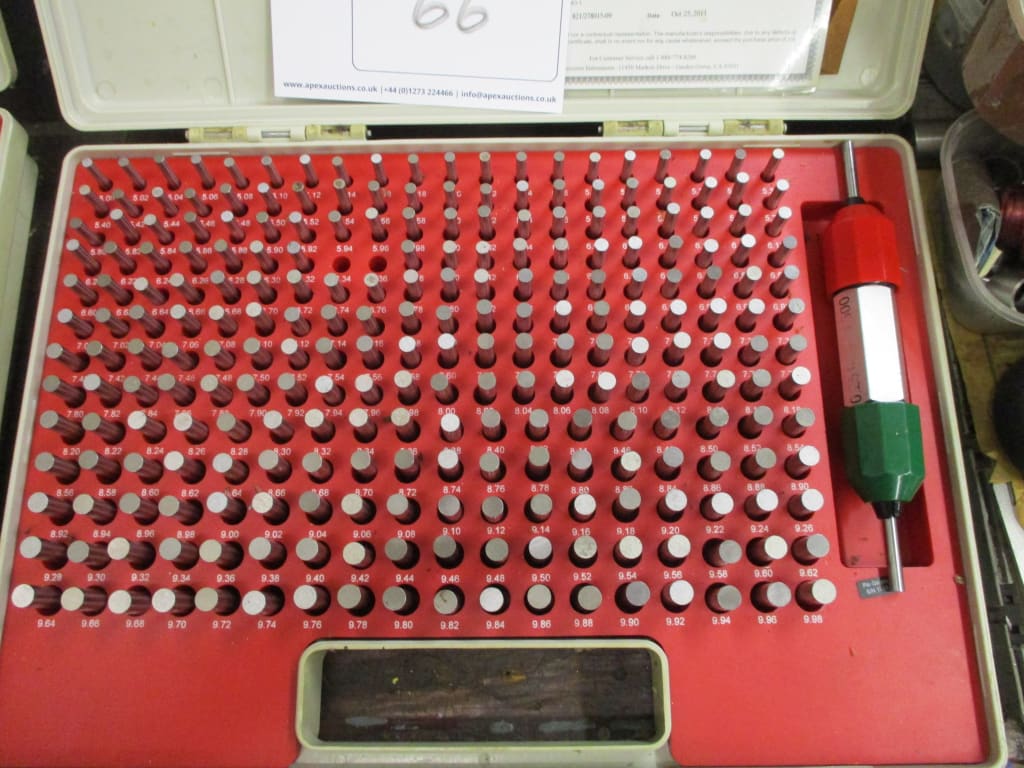

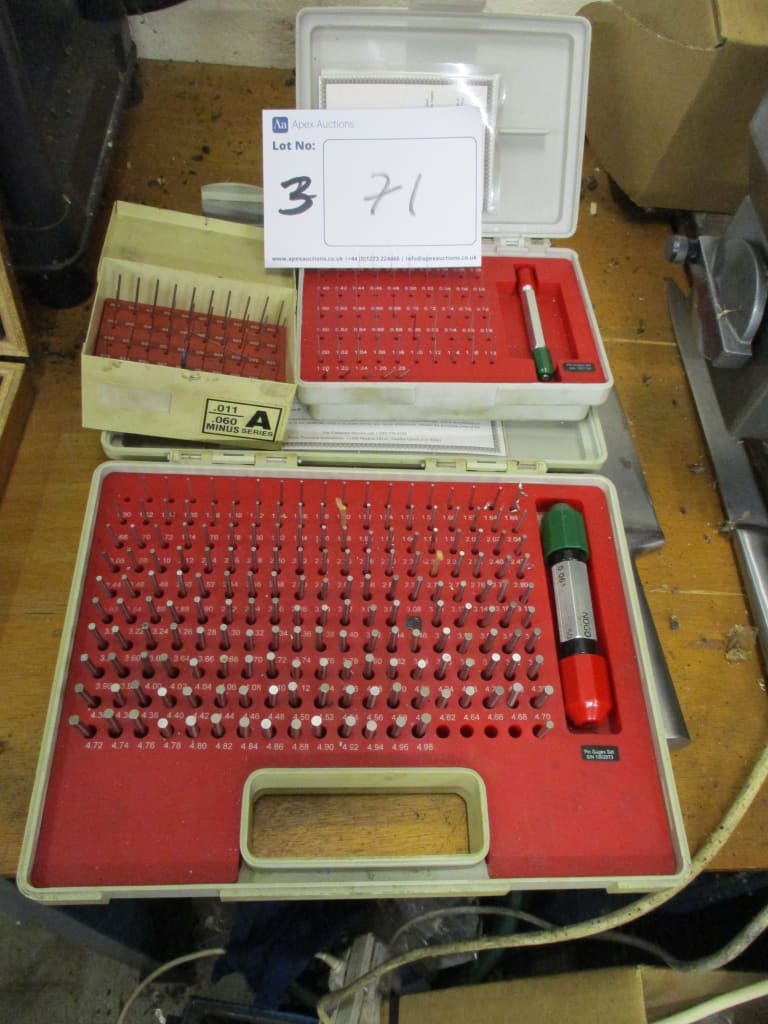

Comprising: (1) 1.32mm-4.98mm Pin Gauge Set. (1) .014mm - .060mm Pin Guage Set. (1) .020mm - 1.28mm Pin Gauge Set.

Comprising: (1) SPI 0-6"/150mm Digital Vernier. (1) Moore & Wright 0-300mm/12" Digital Vernier. (1) 0-300mm/12" Digital Vernier. (1) Time 0-250mm/10" Thread Gauge Digital Caliper.

Comprising: (1) SPI Digital Protractor (Unused). (1) Short Brothers Set of Gauges for Rivet Snaps.

Including: Sine Bar (As New) & V Blocks.

Contents Include HSS Imperial Threading Taps - UNC, UNJF & UNS Threads. HSS Circular Split Dies.

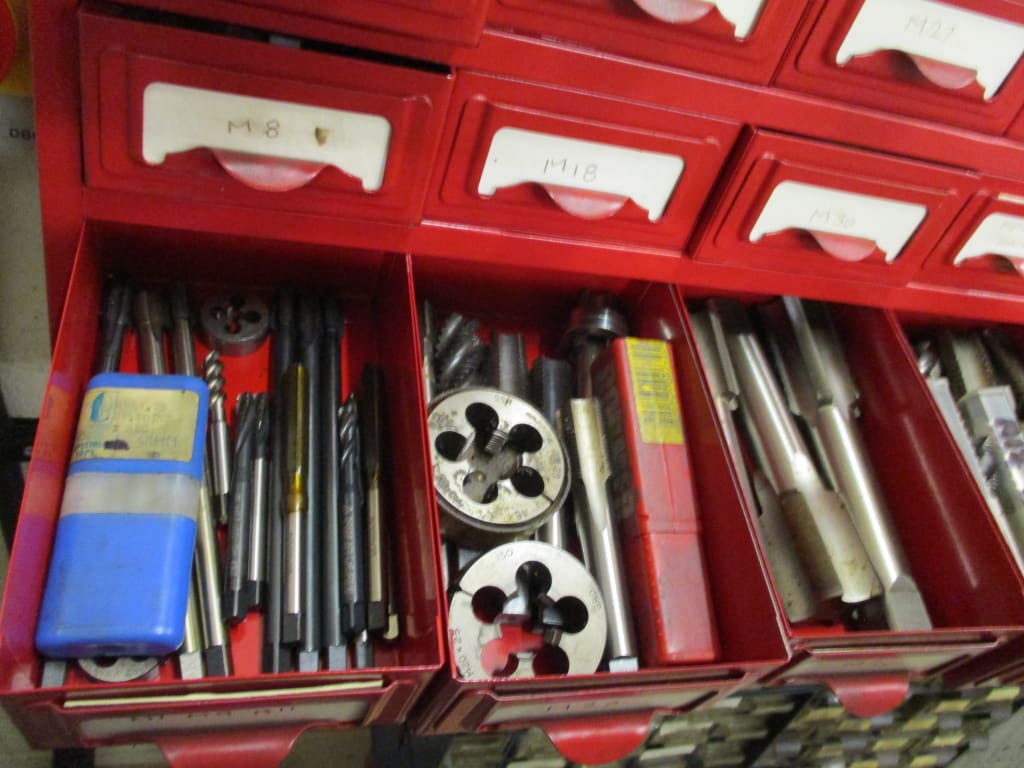

Contents Include HSS Metric & UNF Threading Taps. Circular Split Dies.

Dimensions 900mm x 900mm x 145mm.

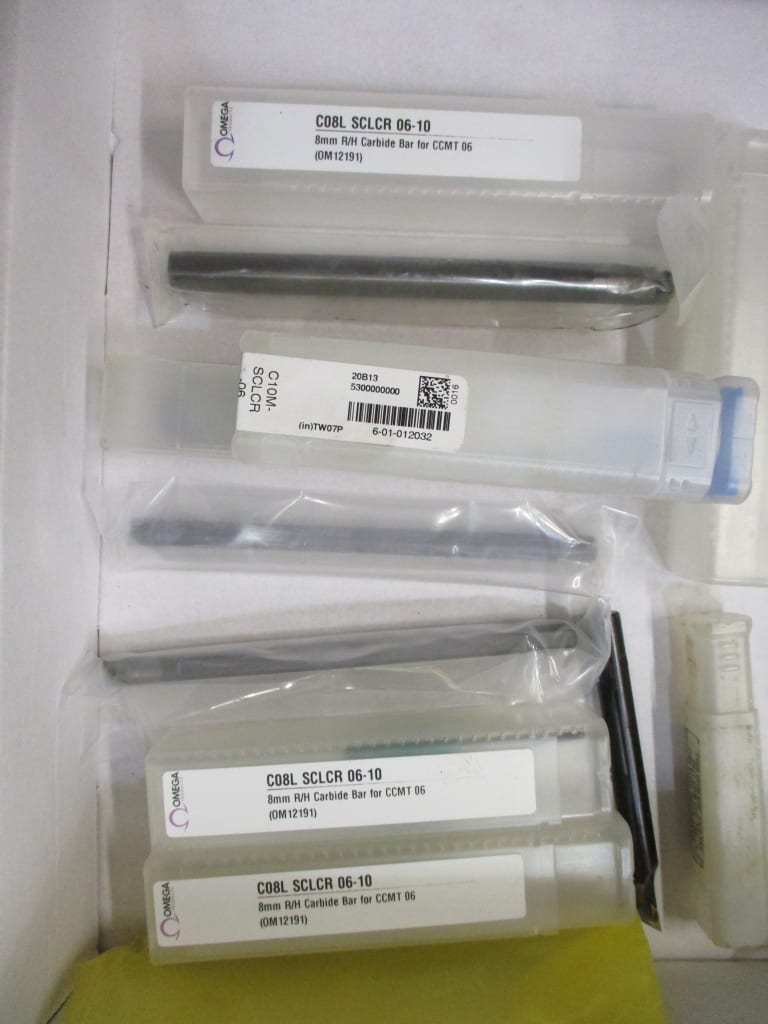

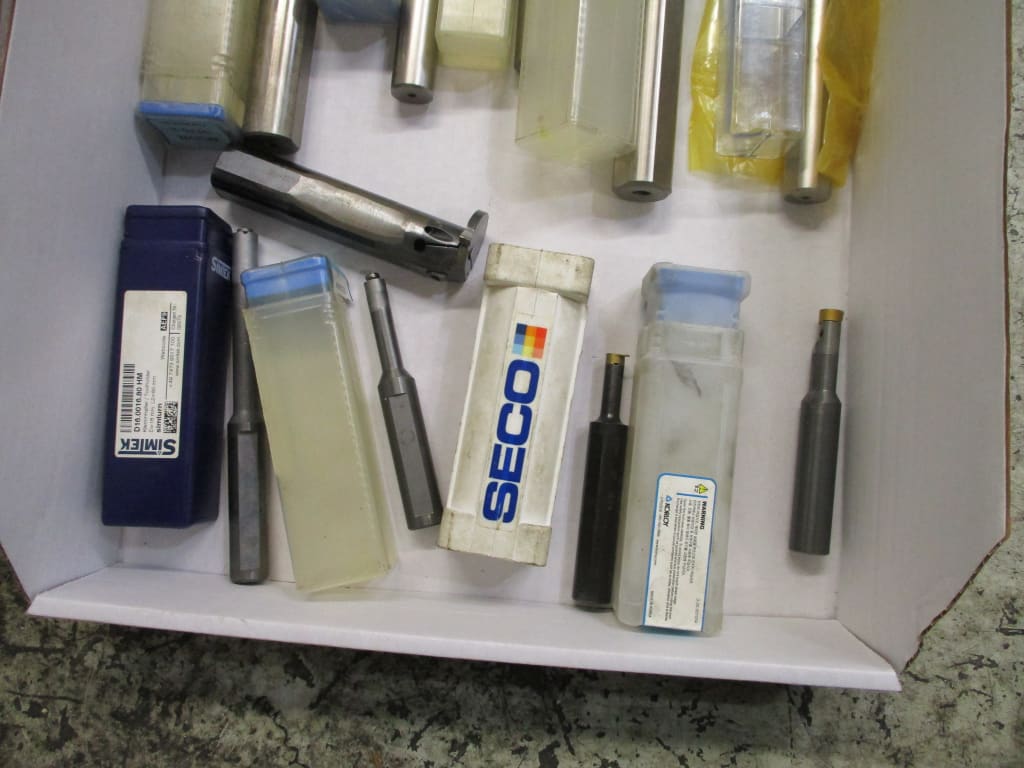

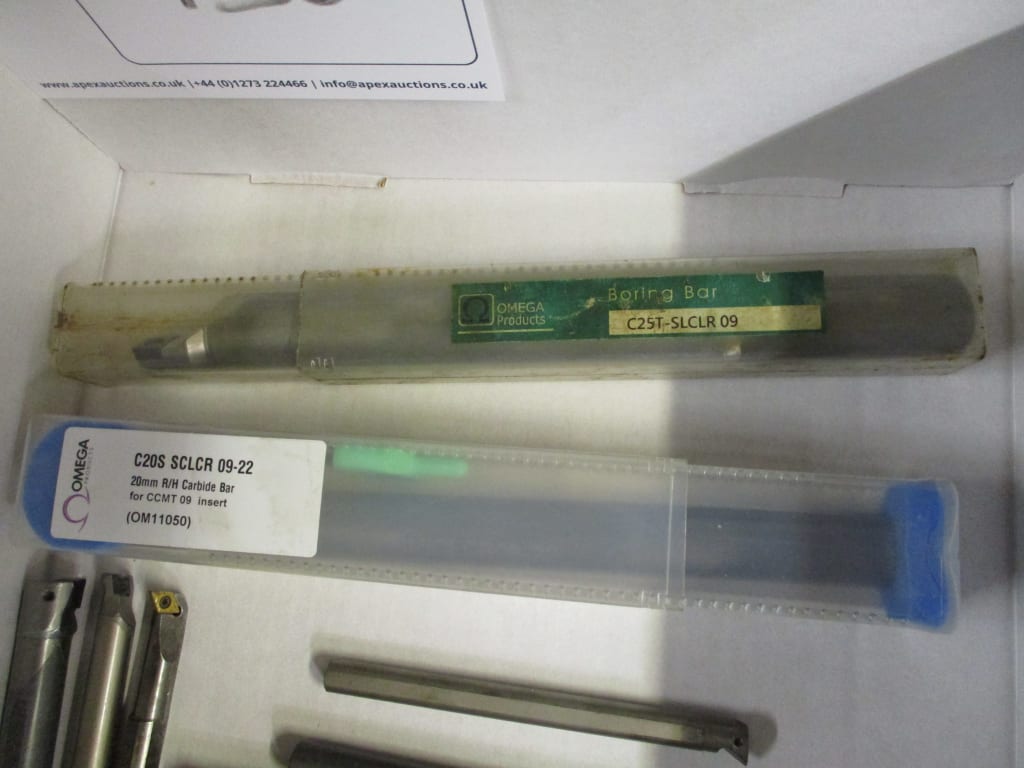

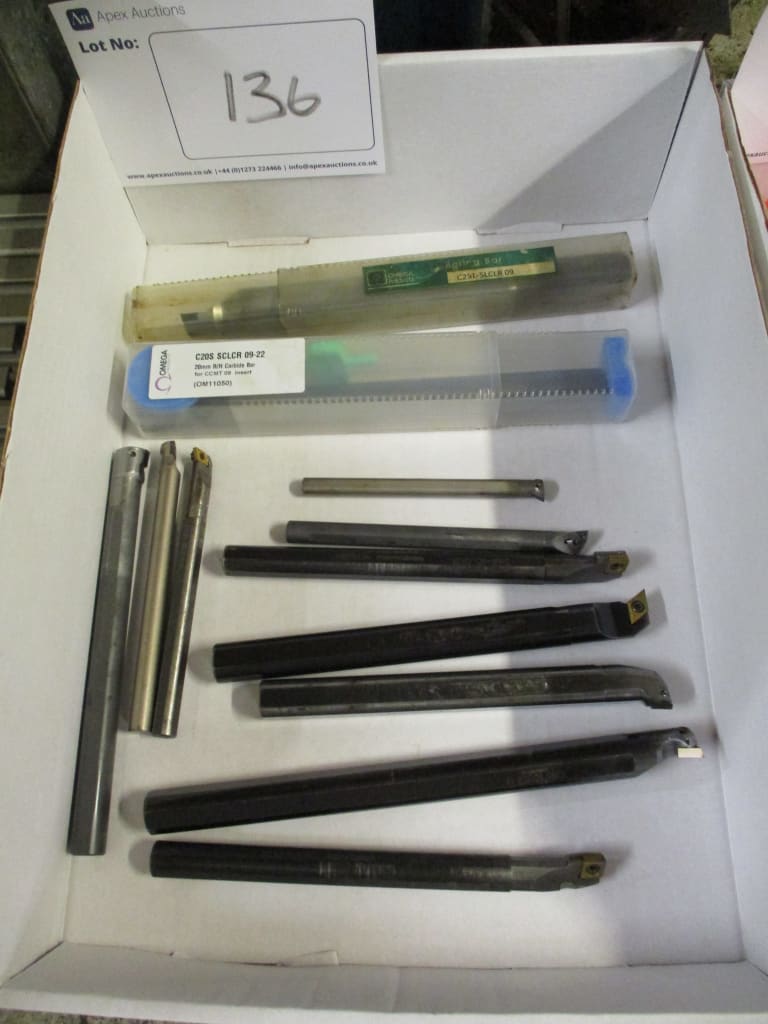

Including Horn Indexable Carbide Grooving & Boring Bars. Indexable Carbide Threading Inserts.

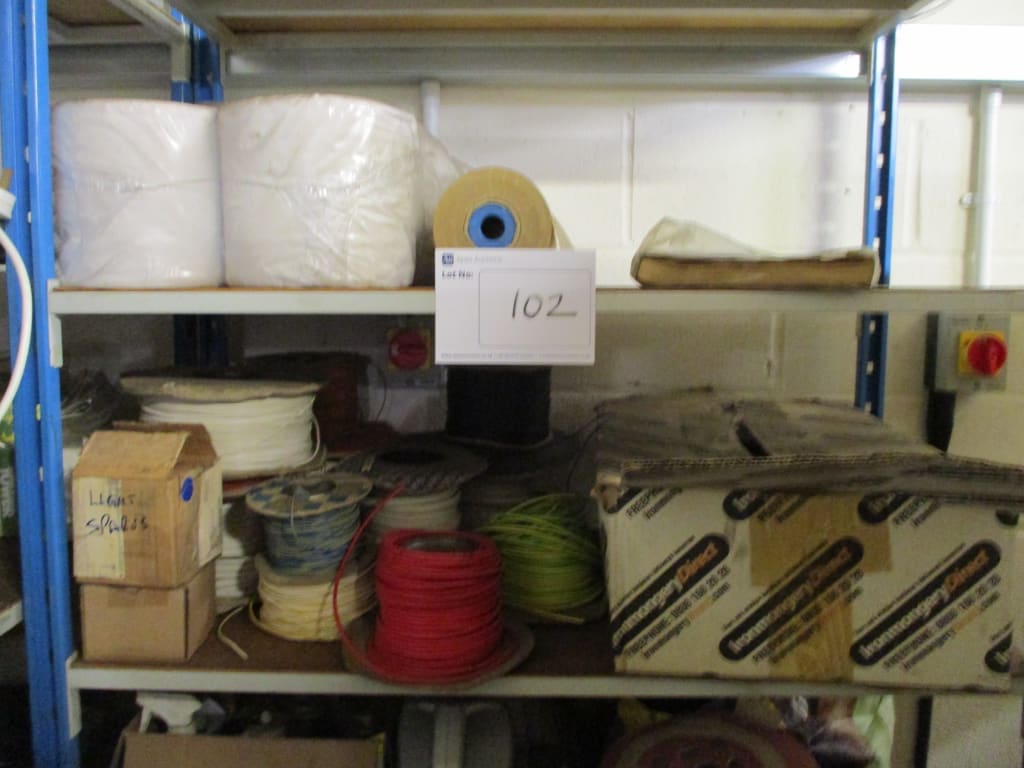

Dimensions of Each Rack Approx 1,000mm x 500mm x 900mm. Contents Include Electric Fan, Electrical Cable, Assorted Lubricants.

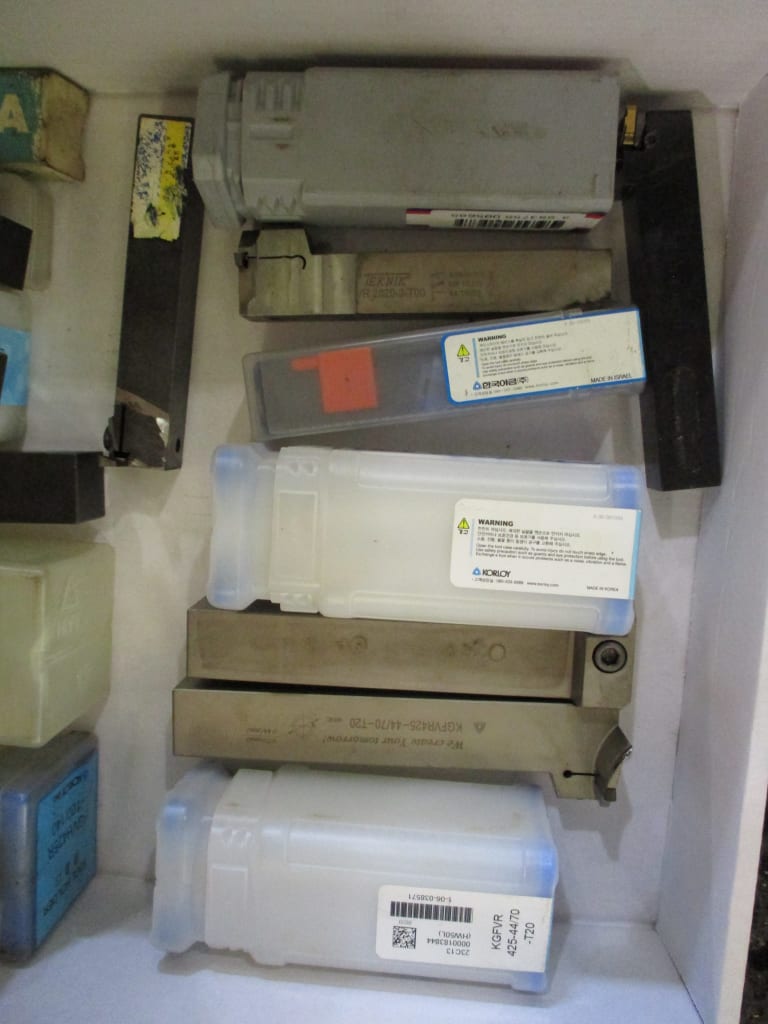

Turning & Parting. Some with Indexable Carbide Inserts.

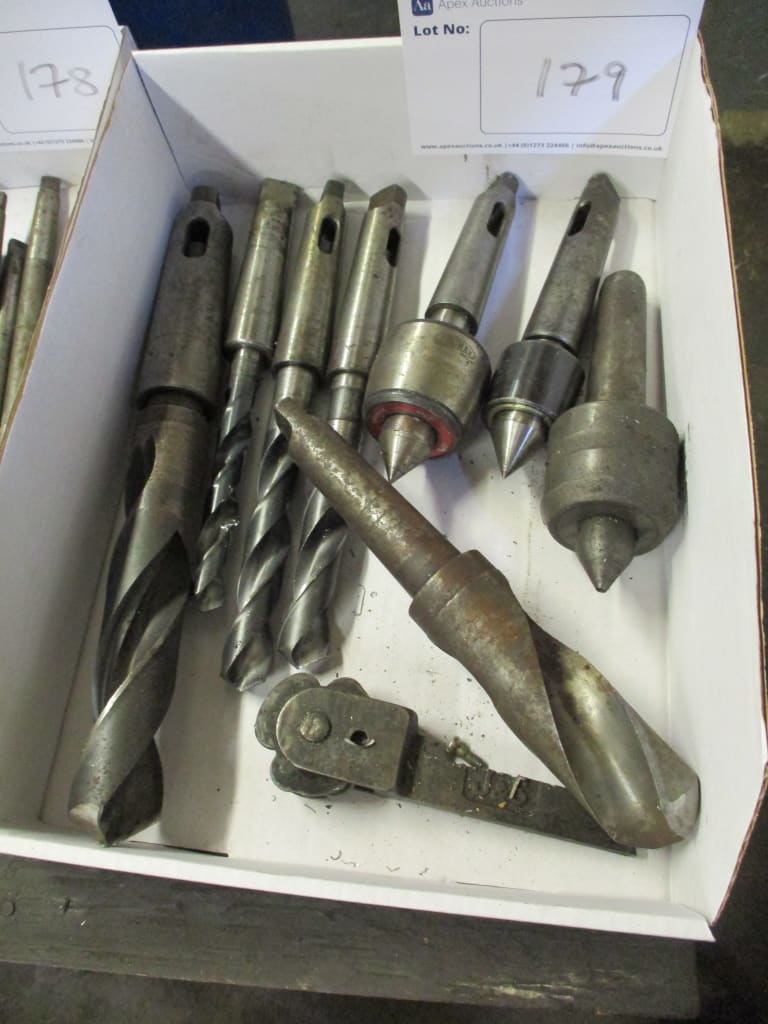

Including Assorted Live Centres, Drill Sleeves & Lathe Knurl Holder

Dimensions Approx 1,440mm x 710mm x 800mm.

Dimensions Approx 1,260mm x 690mm x 950mm.

Can be used on both lot 3 & 4

Metric, Imperial & Number Type Straight Shank Drills.

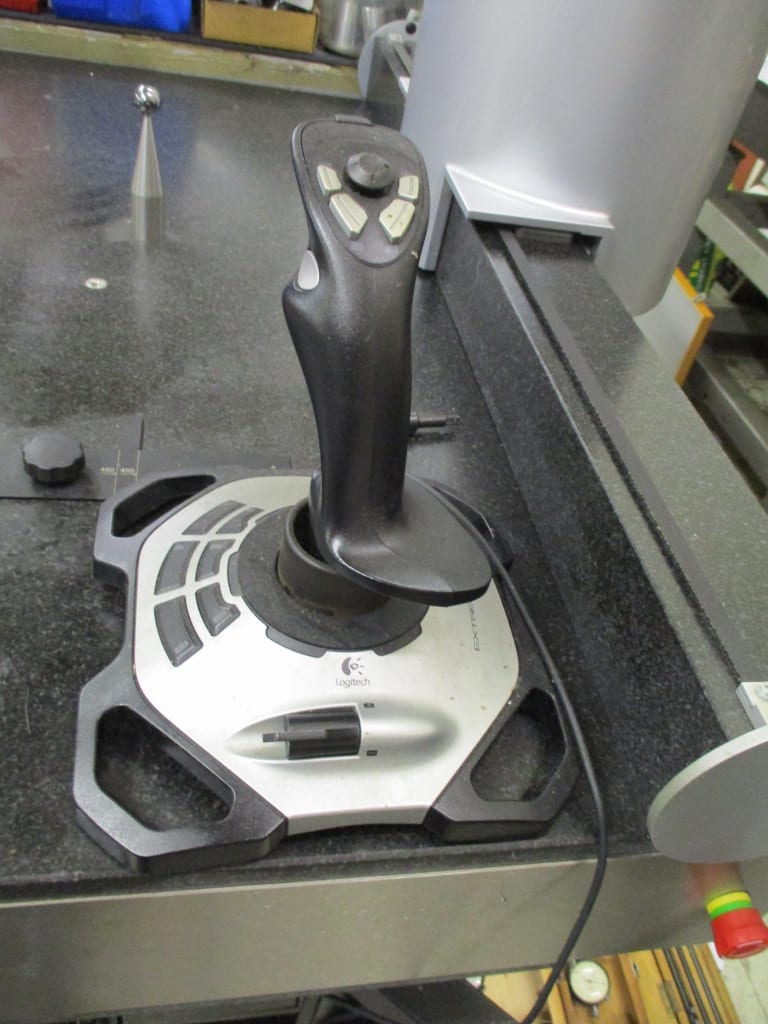

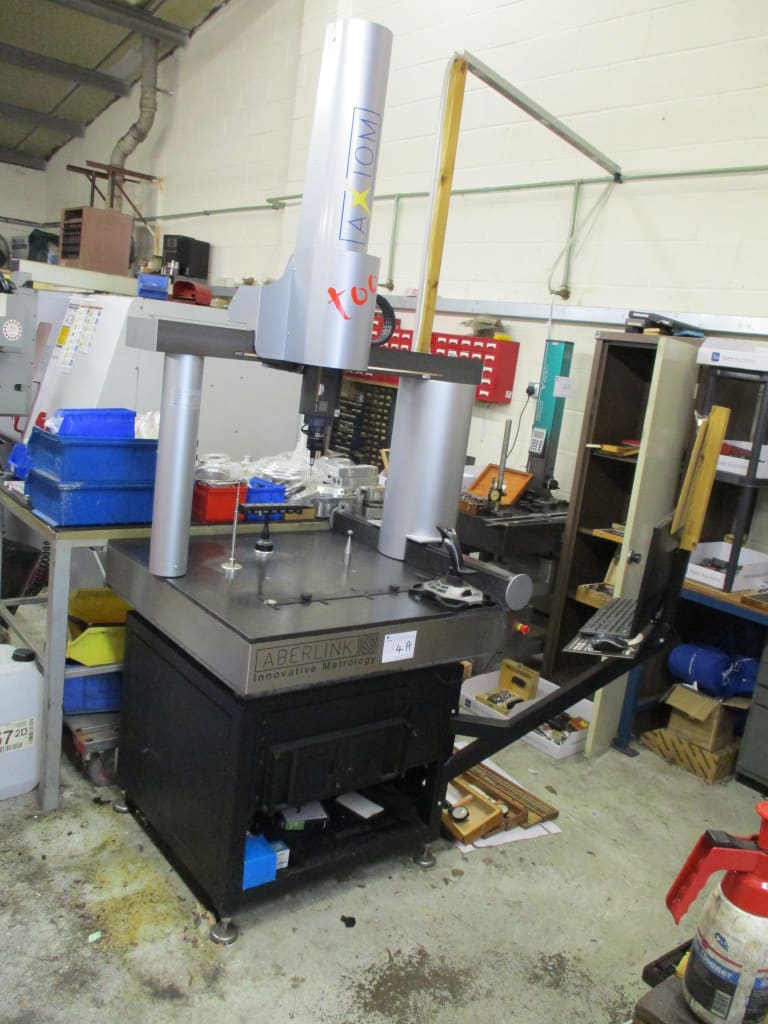

Axis Travel X'=Approx 640mm, 'Y'=Approx 600mm, 'Z'=Approx 500mm. Aberlink CNC 3D MK4 Geometric Measurement Software. Size of Granite Table Approx 900mm x 950mm. Power Supply 240 Volt. S/No. 15154.

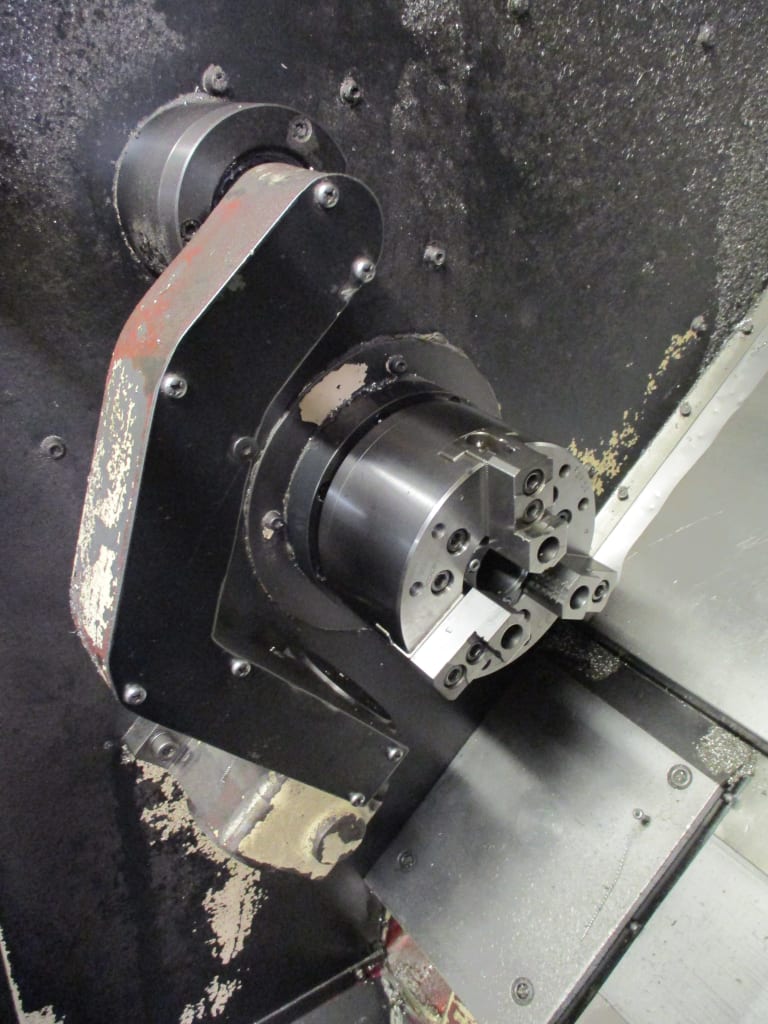

Turning Length Approx 500mm. Turning Ø260mm. Swing Over Cross Slide Ø240mm. Spindle Nose A2-6. Ø50mm Through Spindle. Maximum Spindle Speed 4,000 RPM. Spindle Motor Power 14.9kW. 10 Station ATC. Kitagawa B-208, 200mm 3 Jaw Power Chuck. S/No. 64012.

Table Dimensions 914mm x 305mm. Axis Travel 'X'=406mm, 'Y'=305mm, 'Z'=254mm. 4th Axis Interface. BT40 Spindle Taper. Spindle Speeds 0-6,000 RPM. Spindle Motor 5.6kW. 10 Station ATC. S/No. 28036.

Table Dimensions 910mm x 356mm. Axis Travel 'X'=508mm, 'Y'=406mm, 'Z'=508mm. 4th Axis Interface. BT40 Spindle Taper, Spindle Speeds 0-7,500 RPM. 20 Station ATC. S/No. 16915.

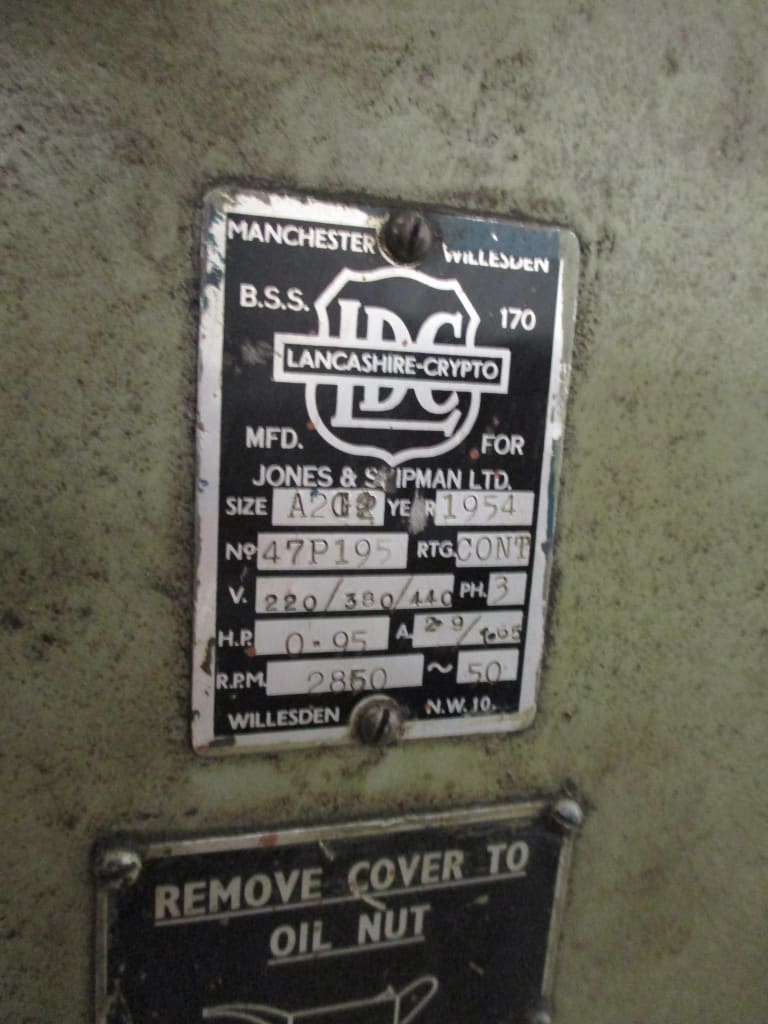

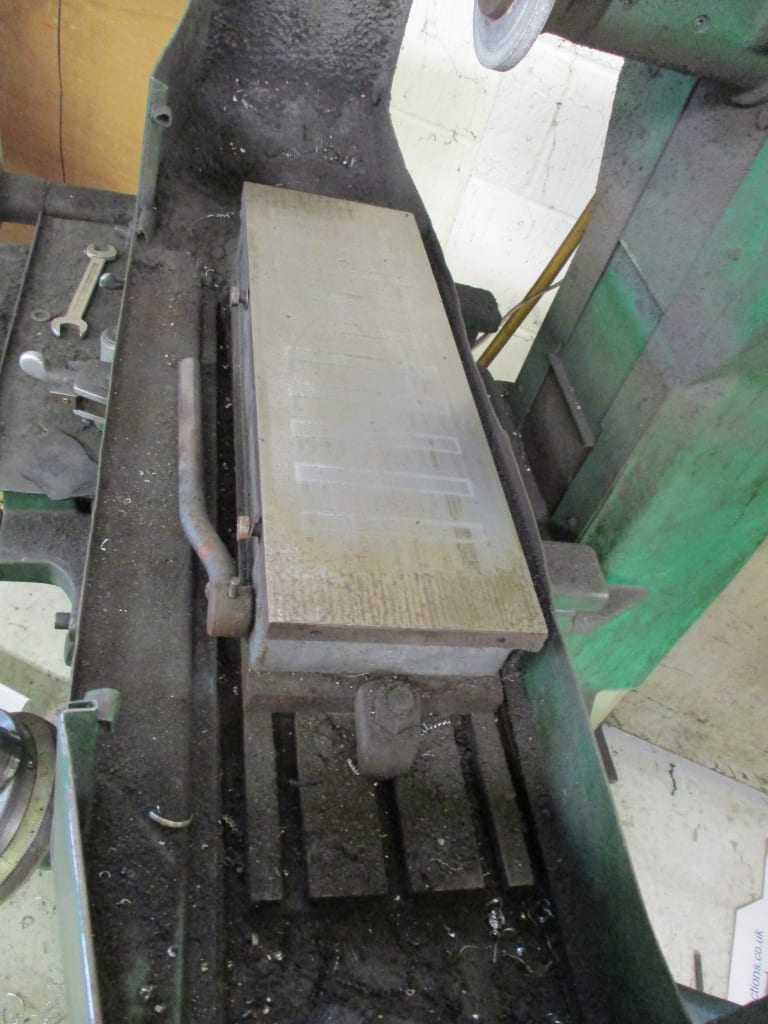

Working Surface of Table 457mm x 153mm. Longitudinal Travel Approx 450mm. Wheel Speed 2,850 RPM. Magnetic Chuck Dimensions Approx 450mm x 150mm. Wheel Dimensions Ø175mm x 13mm x Ø31.75mm Bore.

Throat Approx 5", Daylight Maximum 8".

5/8" Drill Capacity. Morse Taper 2 Spindle.

Table Dimensions Approx 300mm x 200mm with 4 T Slots. Approx 300mm Daylight. Rise & Fall Tank.

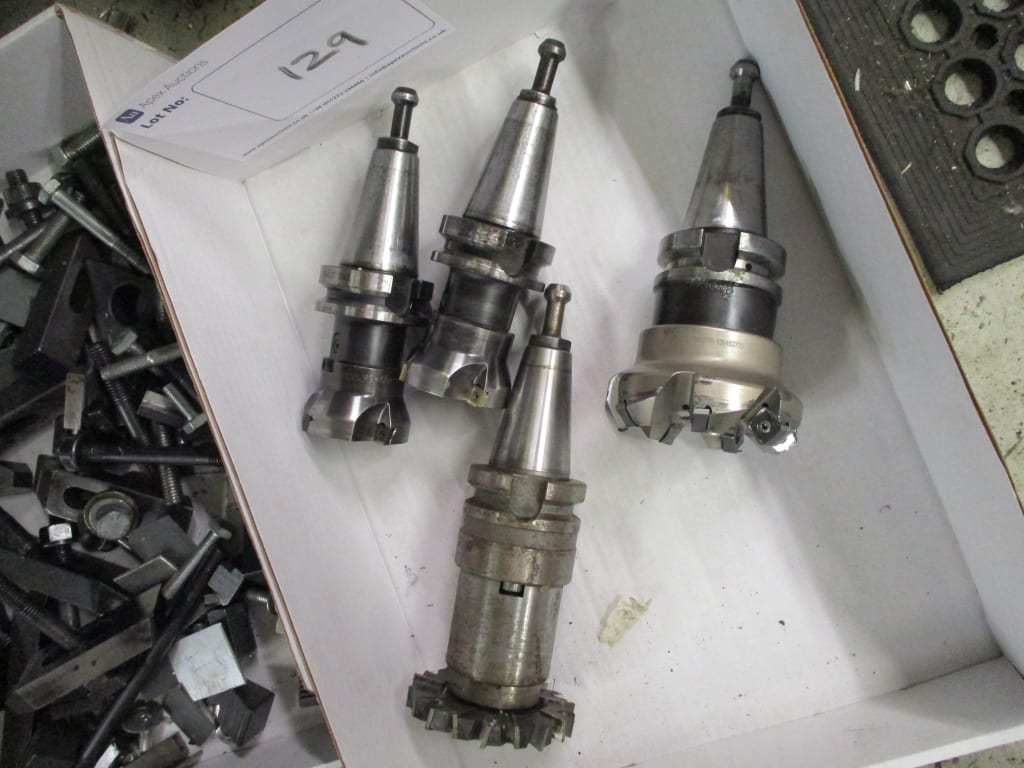

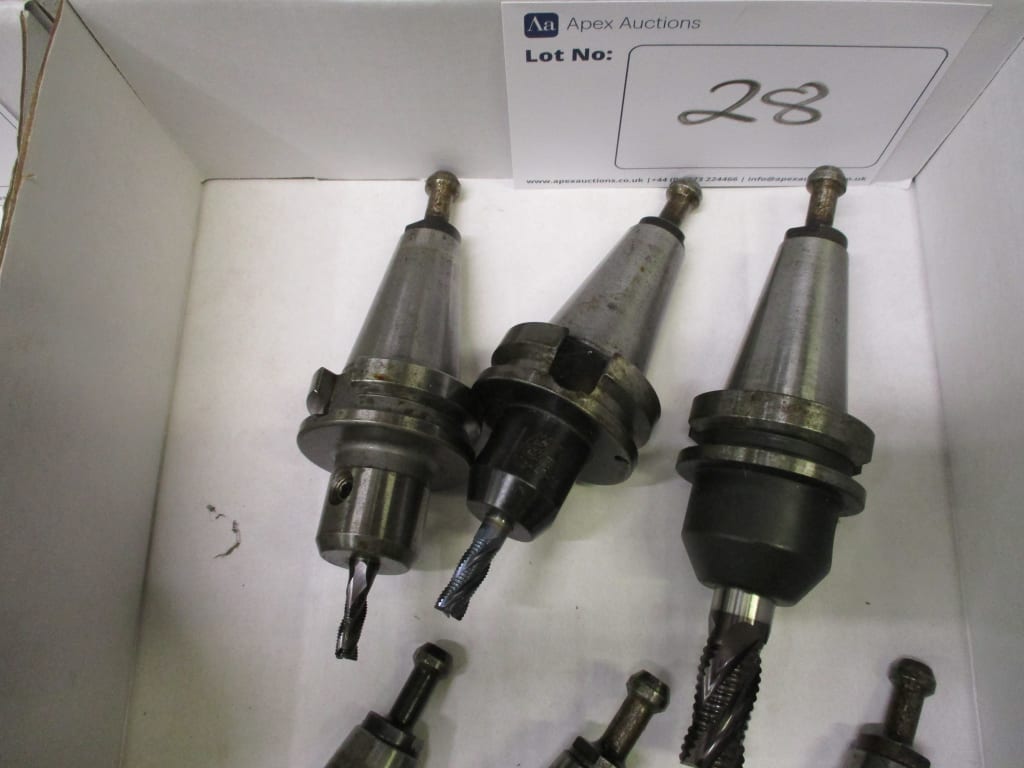

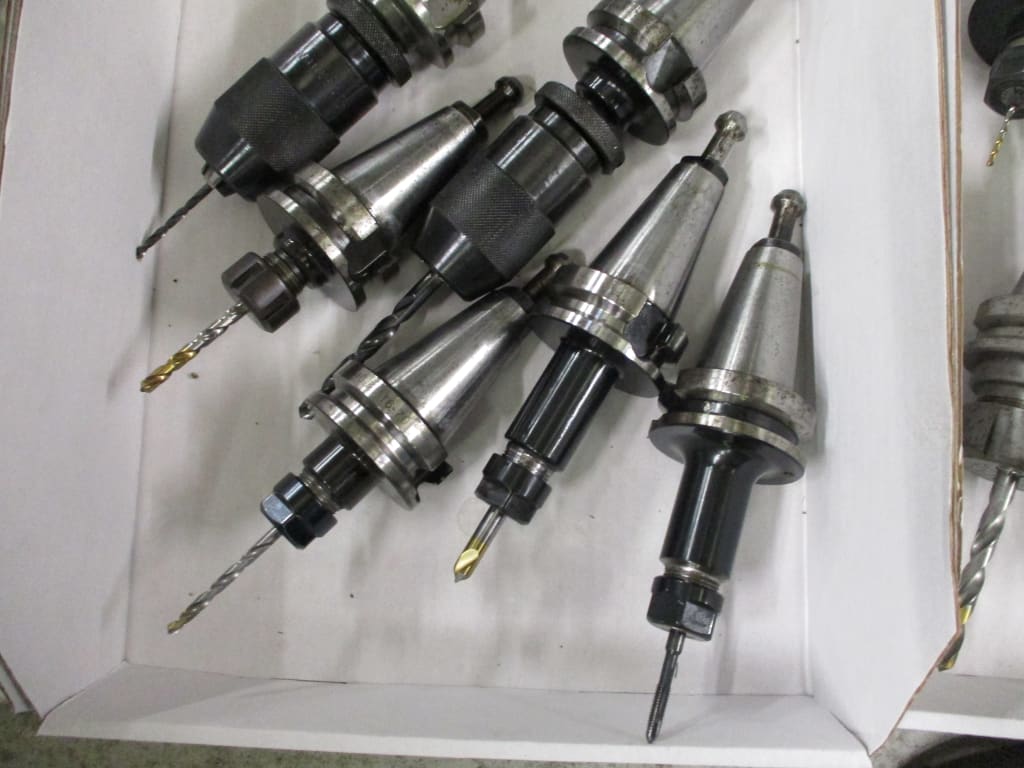

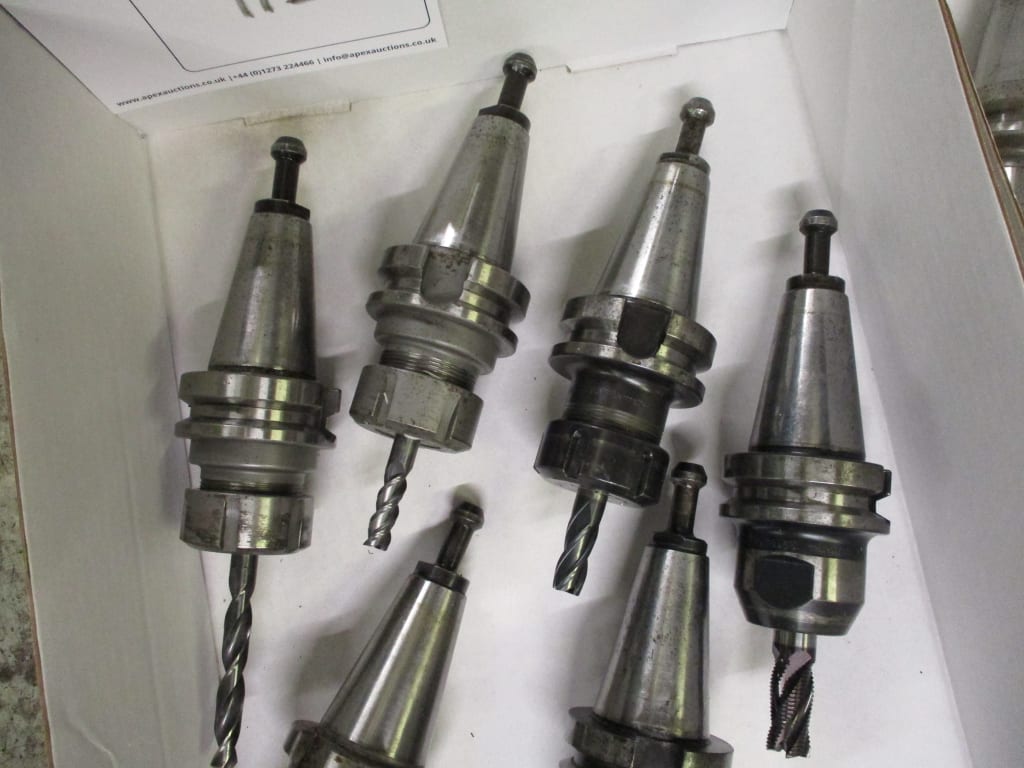

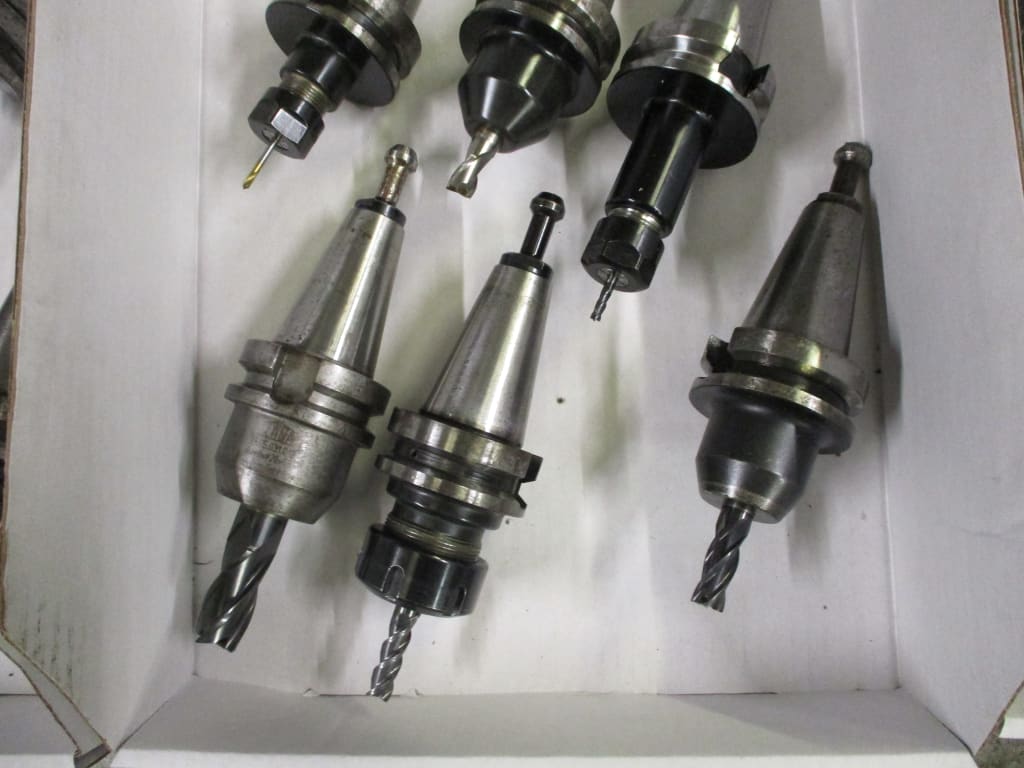

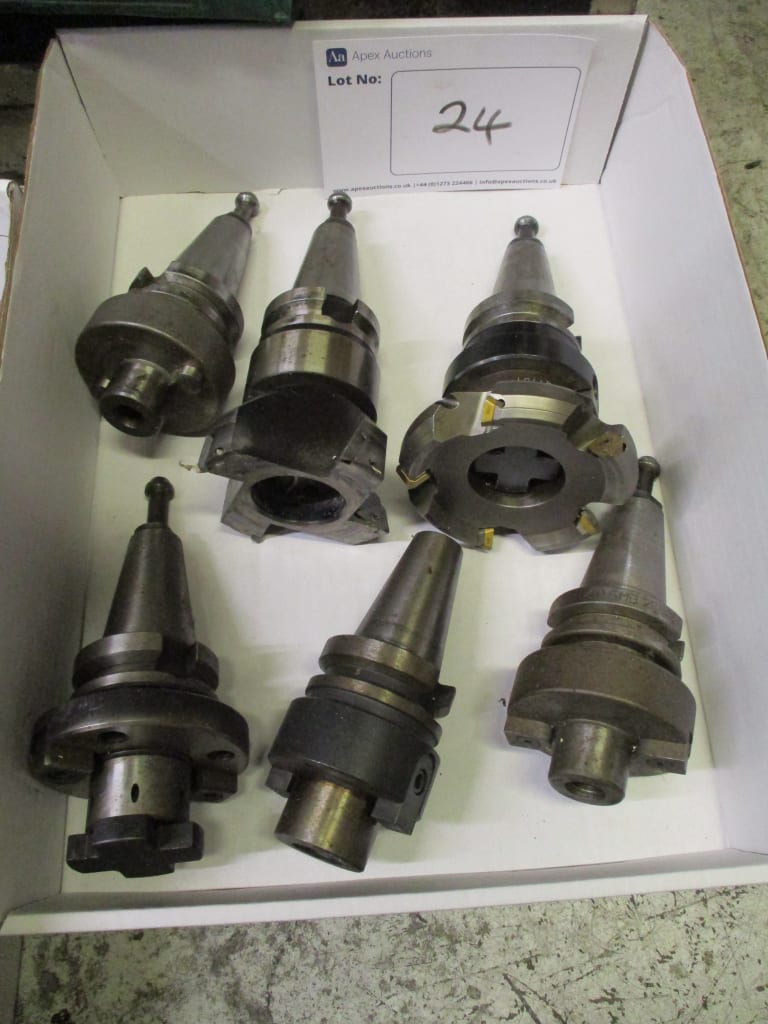

Including (1) Unused BT40 32 60C Arbor.

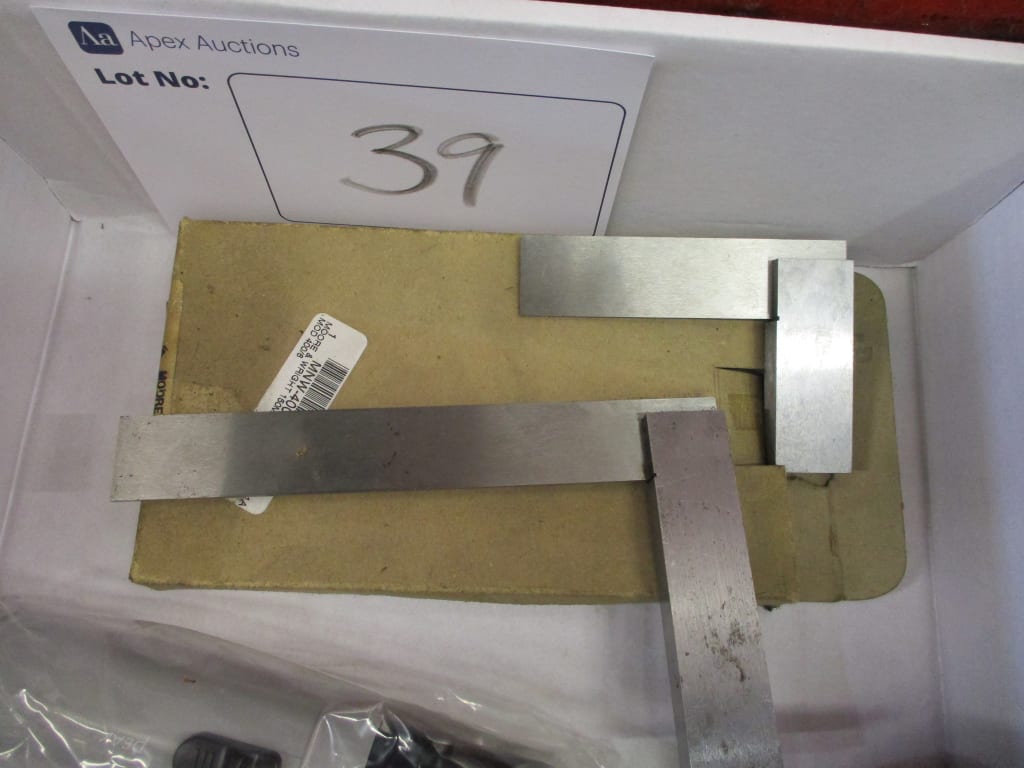

Including Mitutoyo & Mercer Dial Gauges, Dial Test Indicators, Engineer Squares, Bowers Digital Depth Gauge.

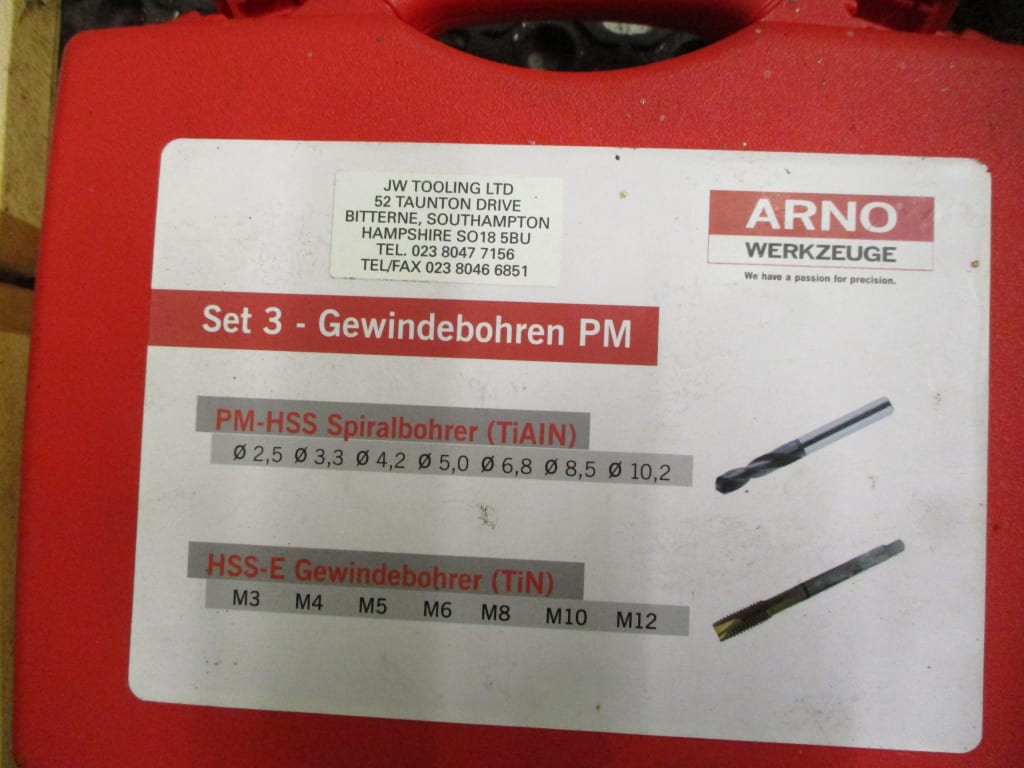

Comprising: (1) Set 4 Arno HSS Metric Drill & Tap Set. (1) Set 3 Arno HSS Metric Drill & Tap Set. (1 Lot) Assorted HSS Screwed Shank Milling Cutters.

Comprising: (1) Moore & Wright 948X Outside Micrometer, 12"-16" Range. (1) 50mm-75mm Outside Micrometer.

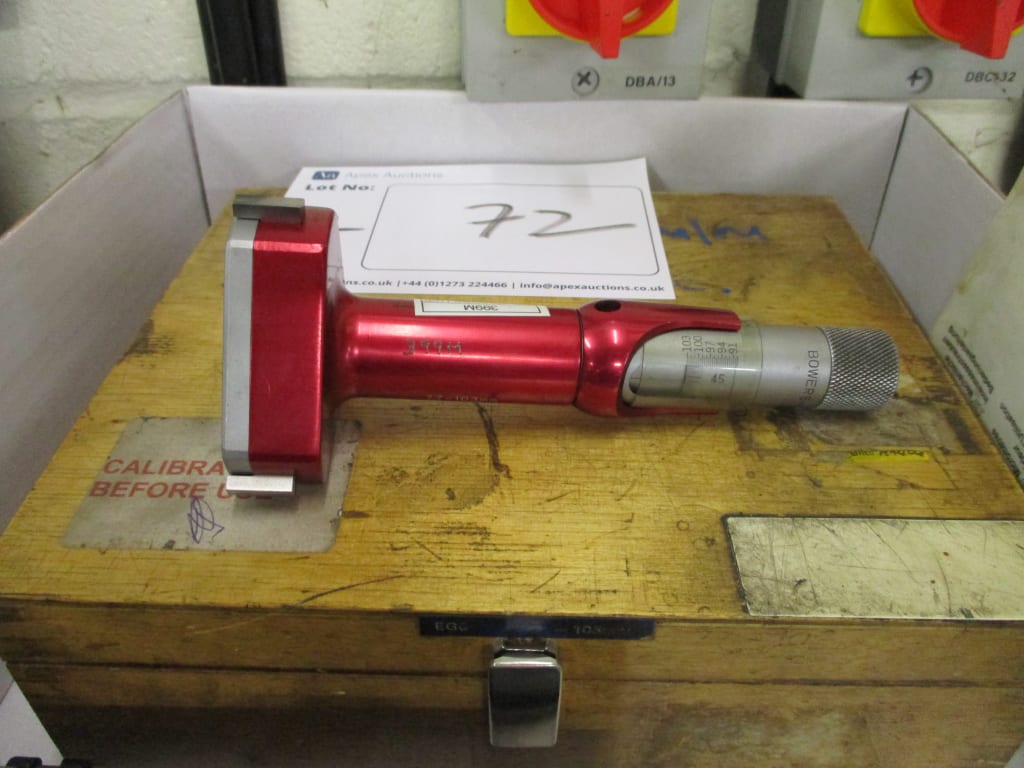

Comprising: (1) Bowers 399M, 77mm - 103mm 3 Point Bore Micrometer. (1) Bowers 394M, 37mm - 51mm Bore Micrometer.

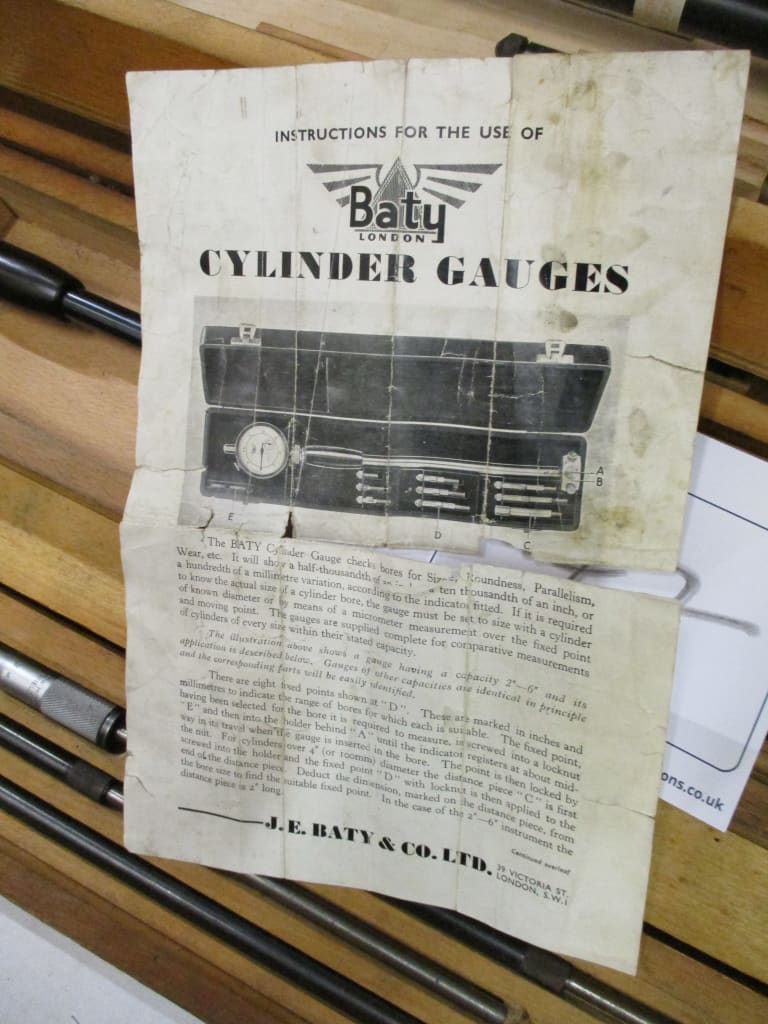

Comprising: (1) Baty 6"-12" Range Cylinder Bore Gauge Set. (1) Baty 2"-6" Cylinder Bore Gauge Set. (1) 300mm - 900mm Moore & Wright Inside Micrometer.

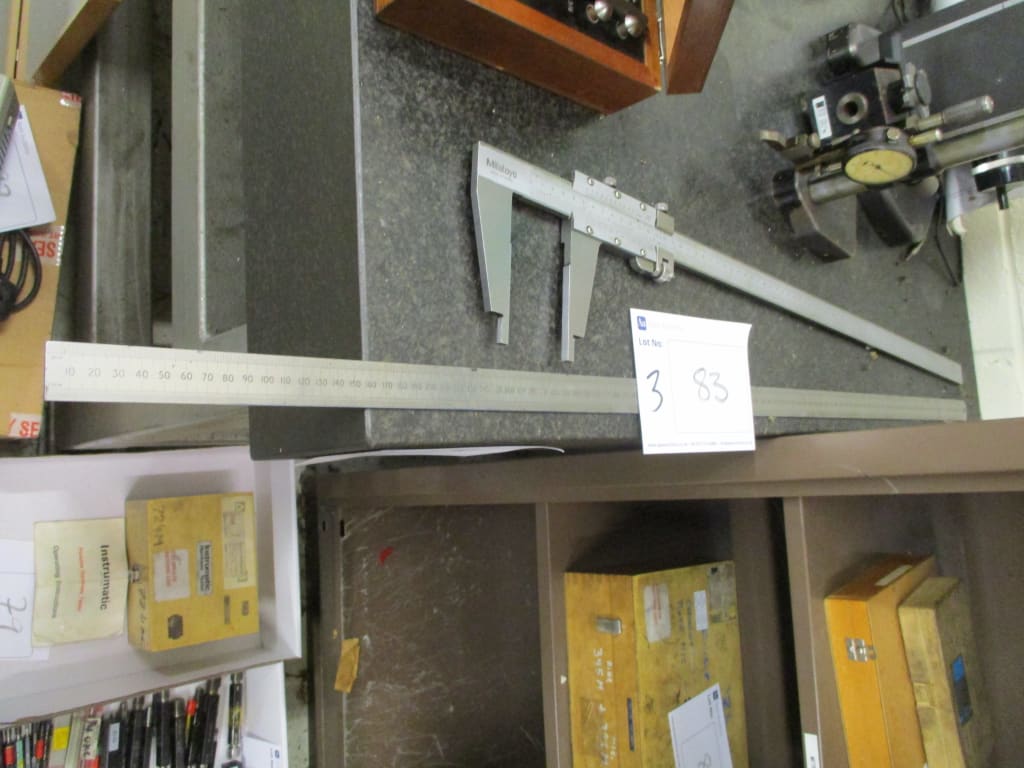

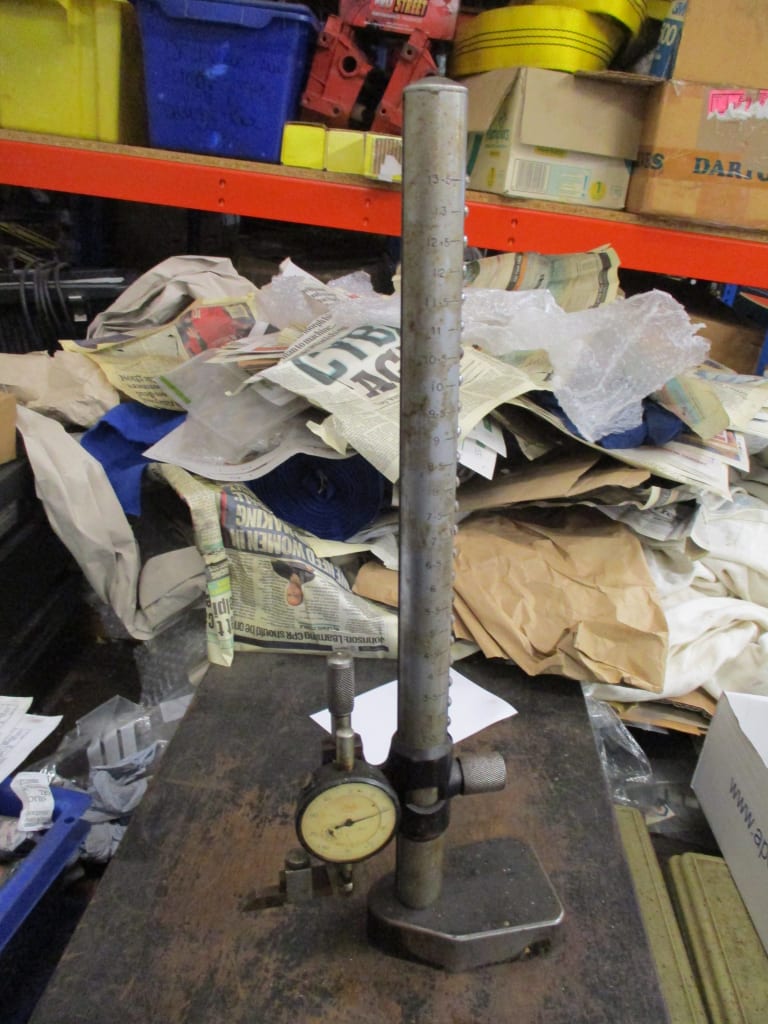

Comprising: (1) Mitutoyo 600mm/24" Vernier Caliper. (1) Rabone Chesterman 39"/1 Metre Steel Rule. (1) Vintage Height Gauge 0-13.5" with Baty Dial.

Including (1) Steel 6 Drawer Cabinet 560mm x 350mm x 760mm. Contents Include Milling Cutters, Fasteners & Indexable Inserts.

240 Volt Power Supply.

Dimensions Approx 500mm x 300mm x 800mm.

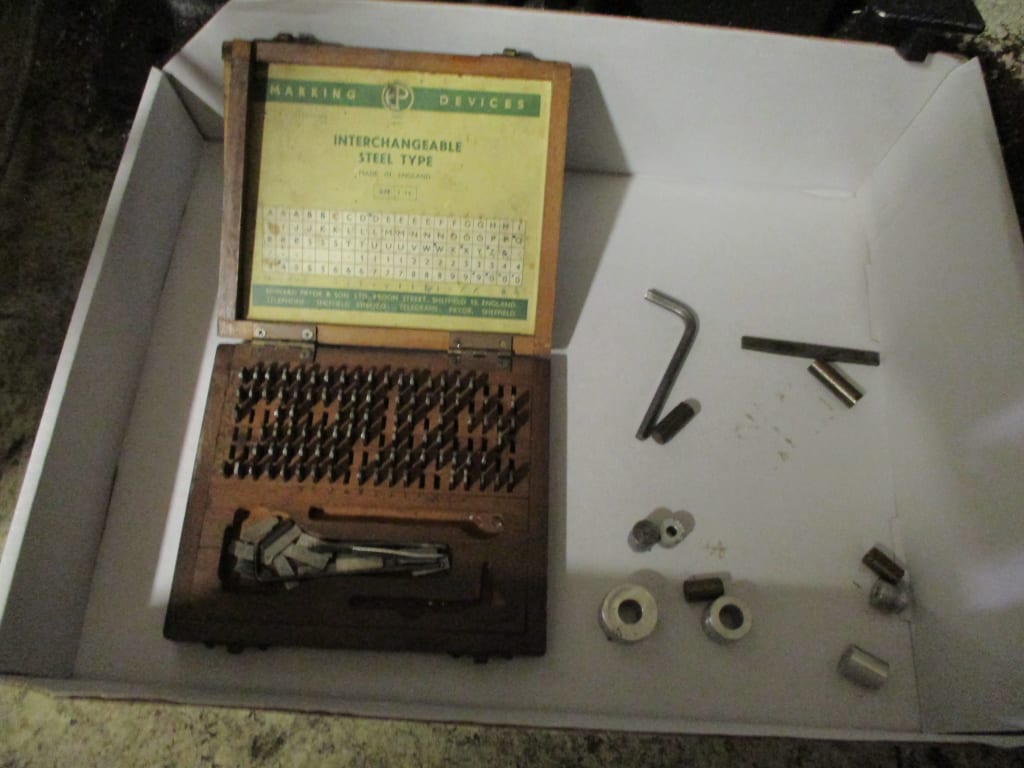

With Interchangeable Steel Types.

Plain & Screw Shank.

Including Assorted Hand Tools - Die Stocks, Hexagon Keys & Adjustable Spanners.

Including R8 Arbors, Drill Chuck, Fly Cutter Holder & Sleeves.

Comprising: (1) 130mm Width of Jaw & (1) 70mm Width of Jaw.

Including Screwed & Plain Shank.

Dimensions Approx 740mm x 390mm x 770mm.

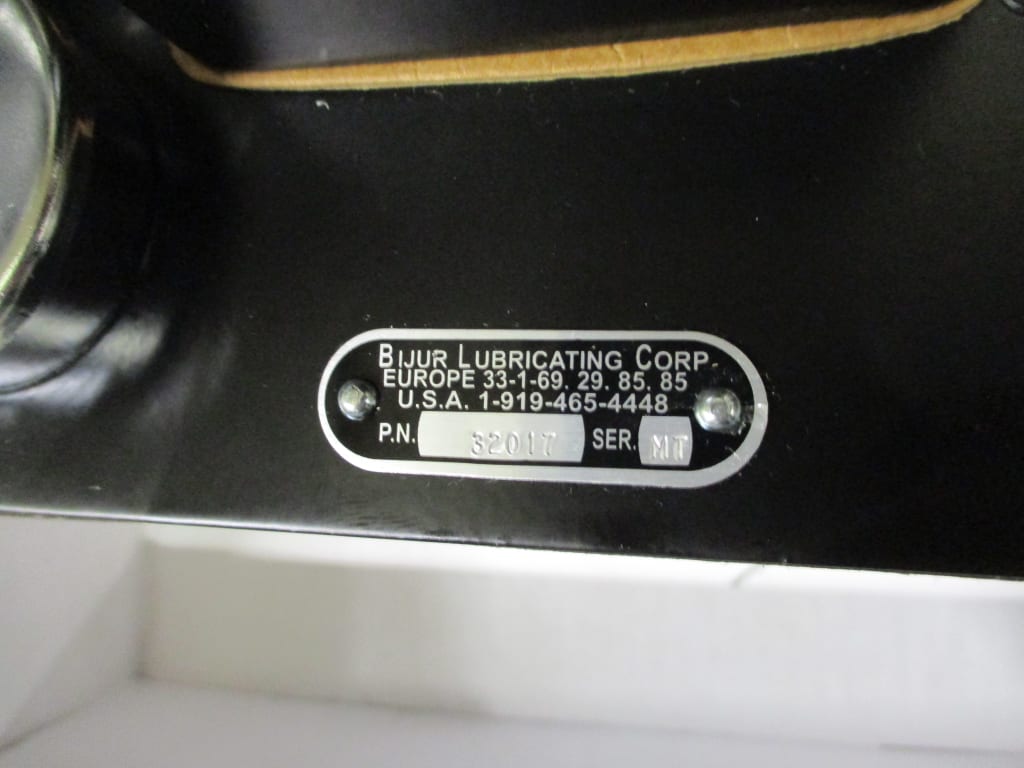

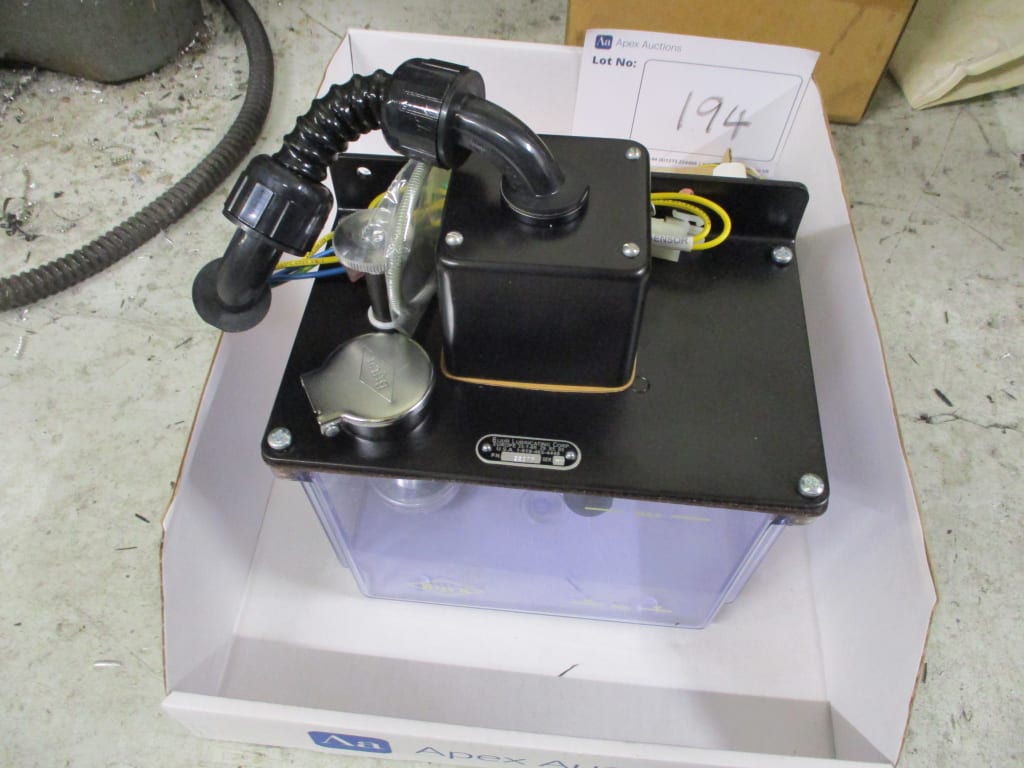

Comprising: (1) Haas/Bijur Lubricating Pump (Unused) & (1) Haas Low Voltage Power Supply (Unused)

Metric Straight Shank Drills & Micro Drills.

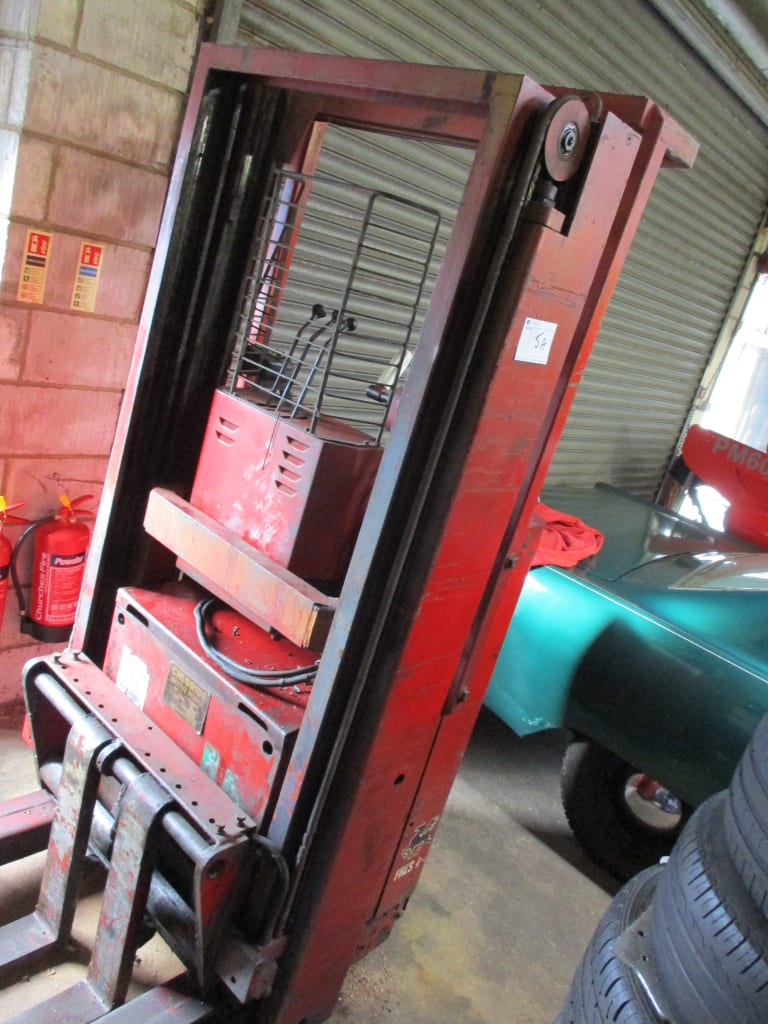

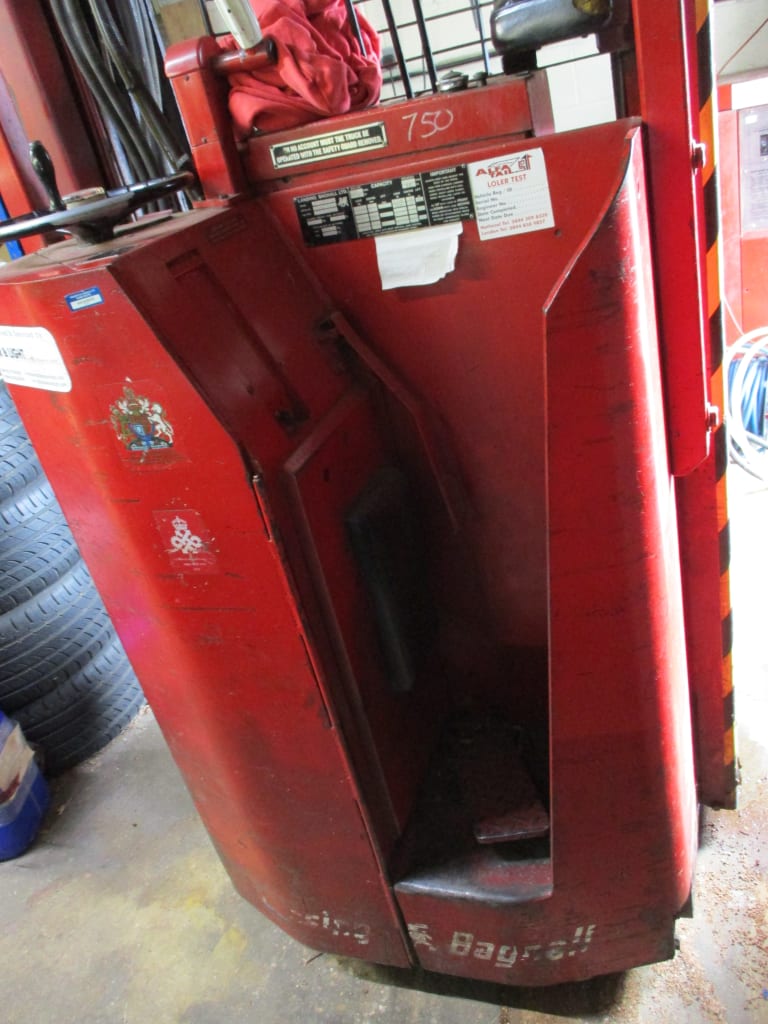

Maximum Lift 120", Minimum Height 86". 2,500 lbs (1,100kg) Capacity Load. 48 Volt. S/No. 5013884. Lansing Bagnall C20 12 44 Charger, 44 Amp. 240 Volt. S/No. 75010008.

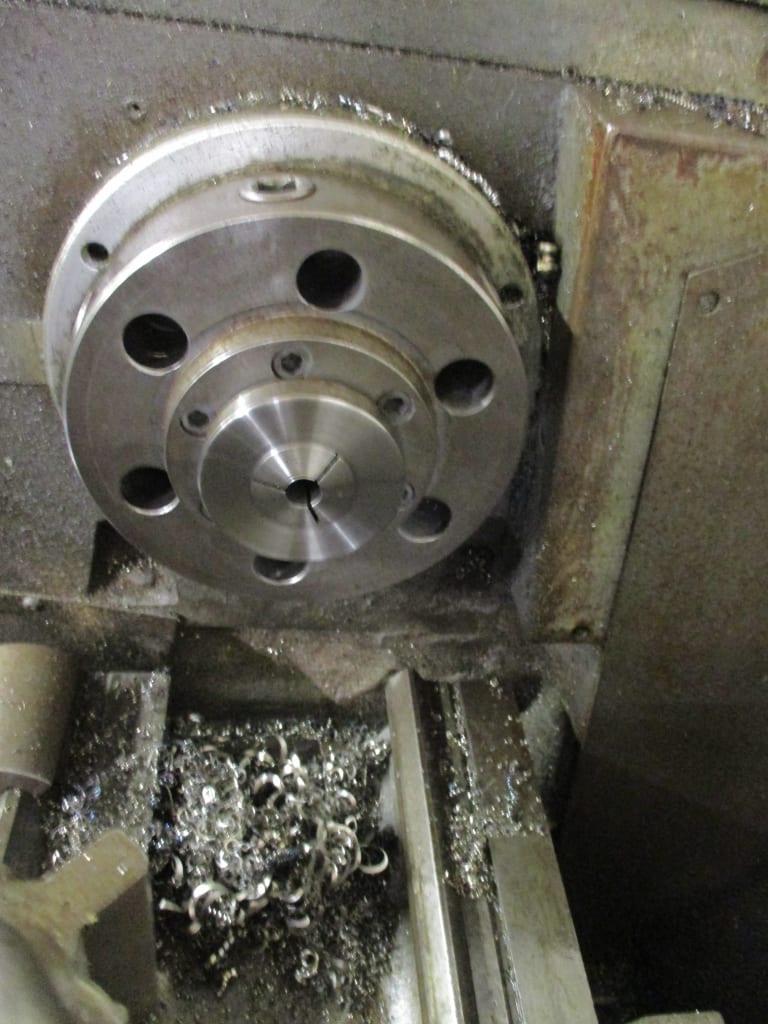

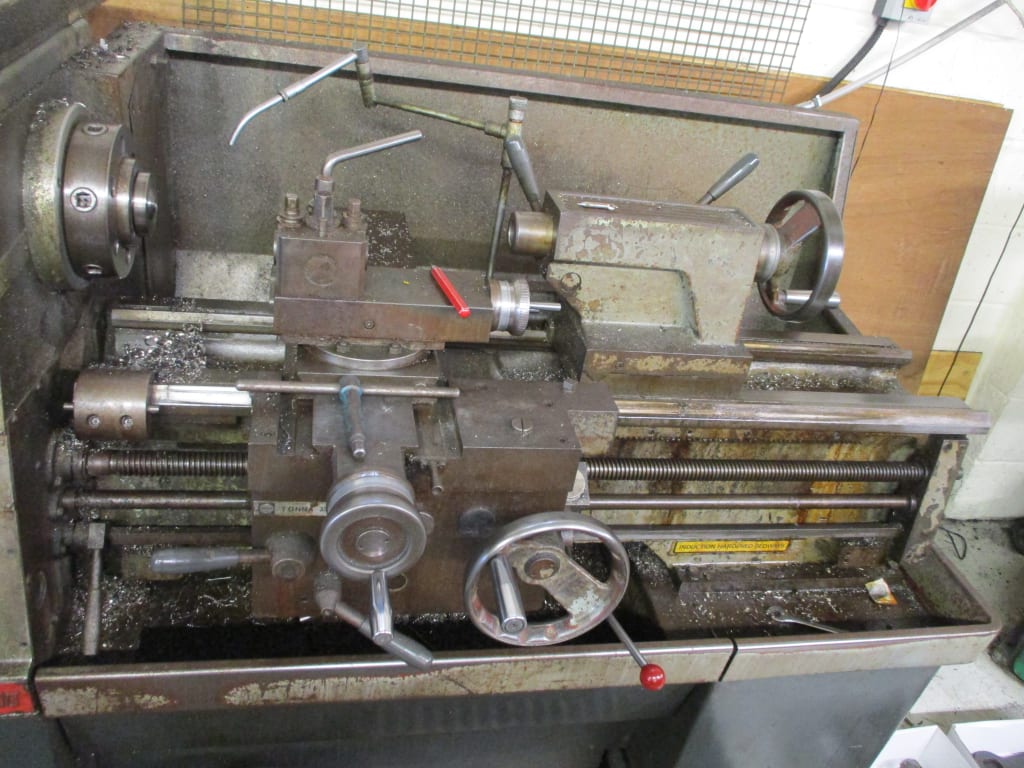

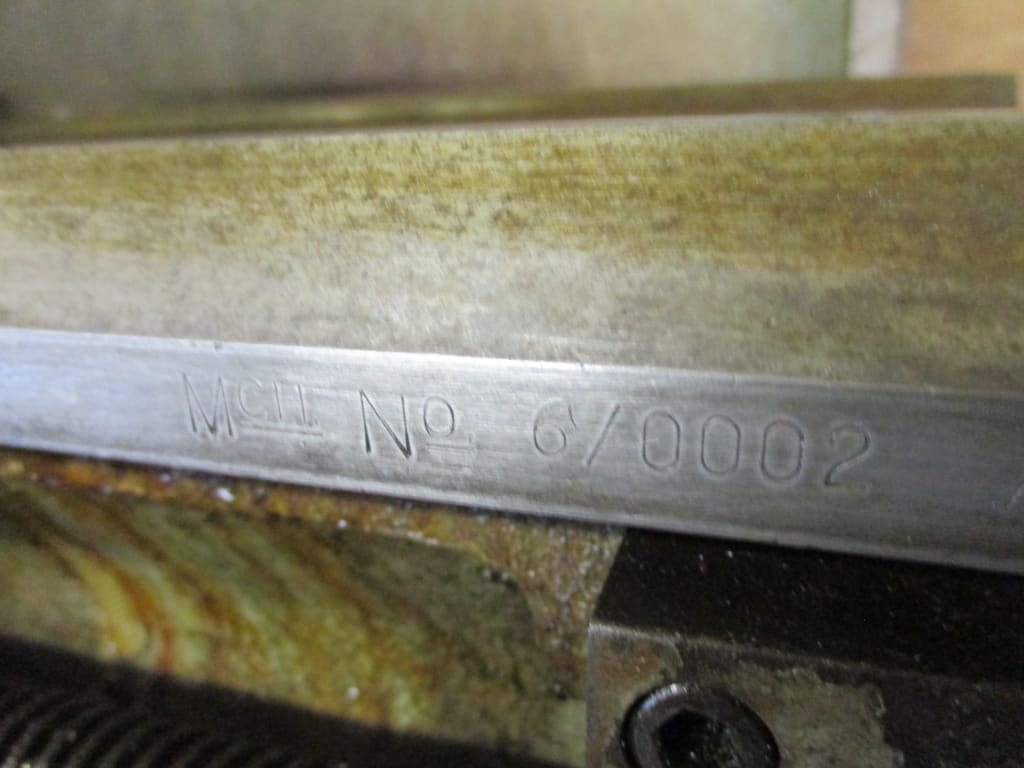

Distance Between Centres Approx 760mm. Swing Over Bed Approx Ø370mm. Spindle Speeds 25-2,000 RPM. Spindle Bore Ø30mm. Quick Change Toolpost. 5C Type Collet & Assorted 5C Collets. Ø550mm Backing Plate. (Approx 10) Assorted Quick Change Toolposts. S/No. 6/0002/00867.

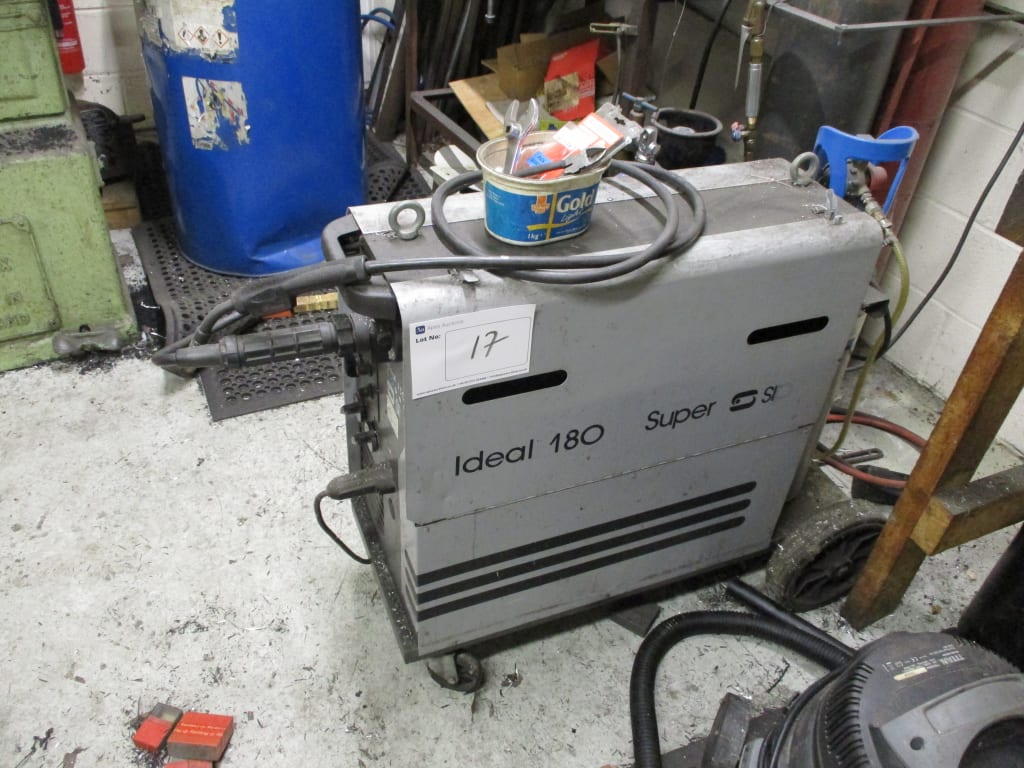

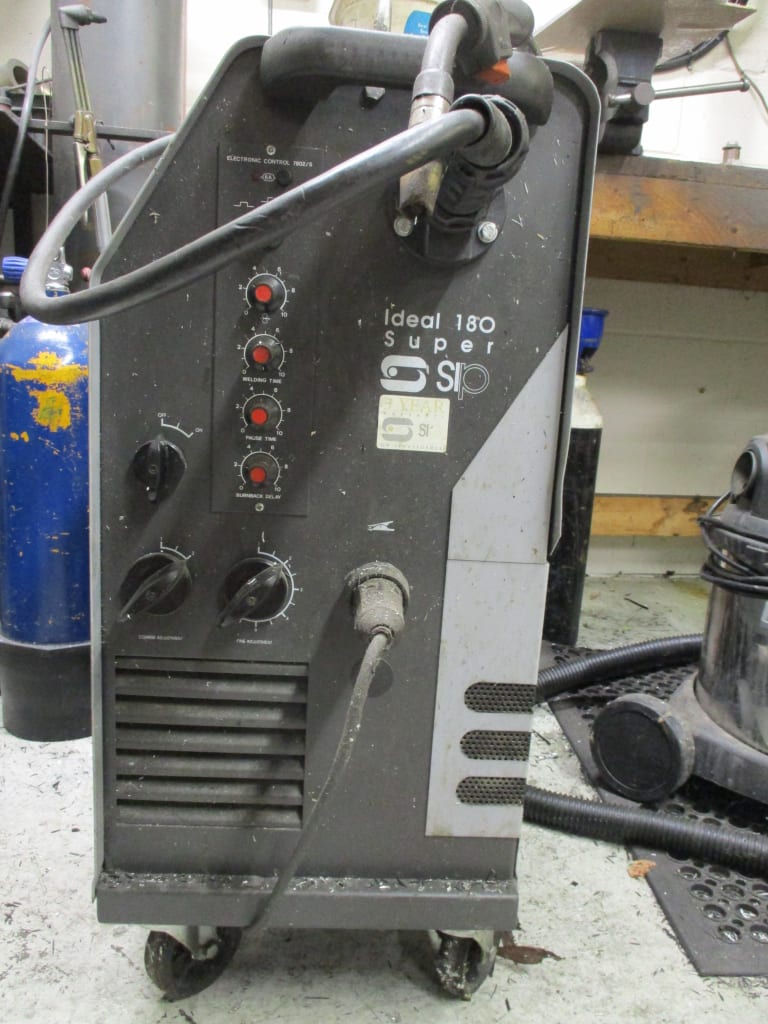

With Torch & Cable Lead. 240 Volt.

1,000 Watt, 240 Volt Power Supply.

Belt Width 150mm. Ø Disc 225mm. Power Supply 240 Volt.

Turning, Threading & Parting Inserts.

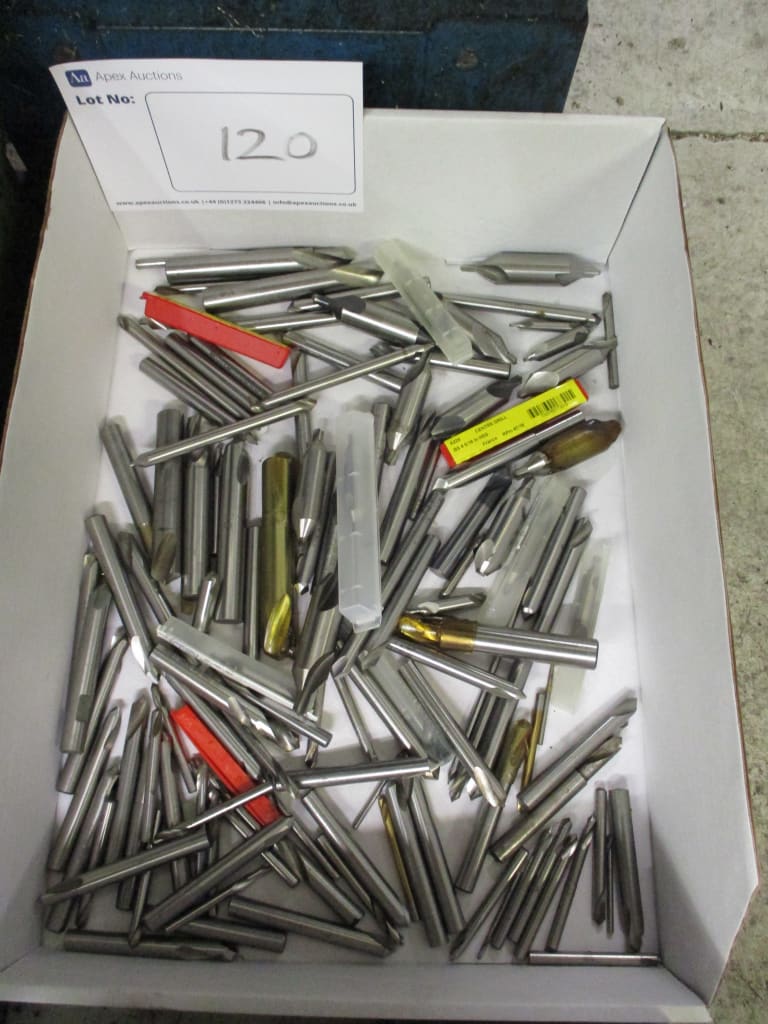

Including Assorted Centres.

0-100mm Range x 12.5.

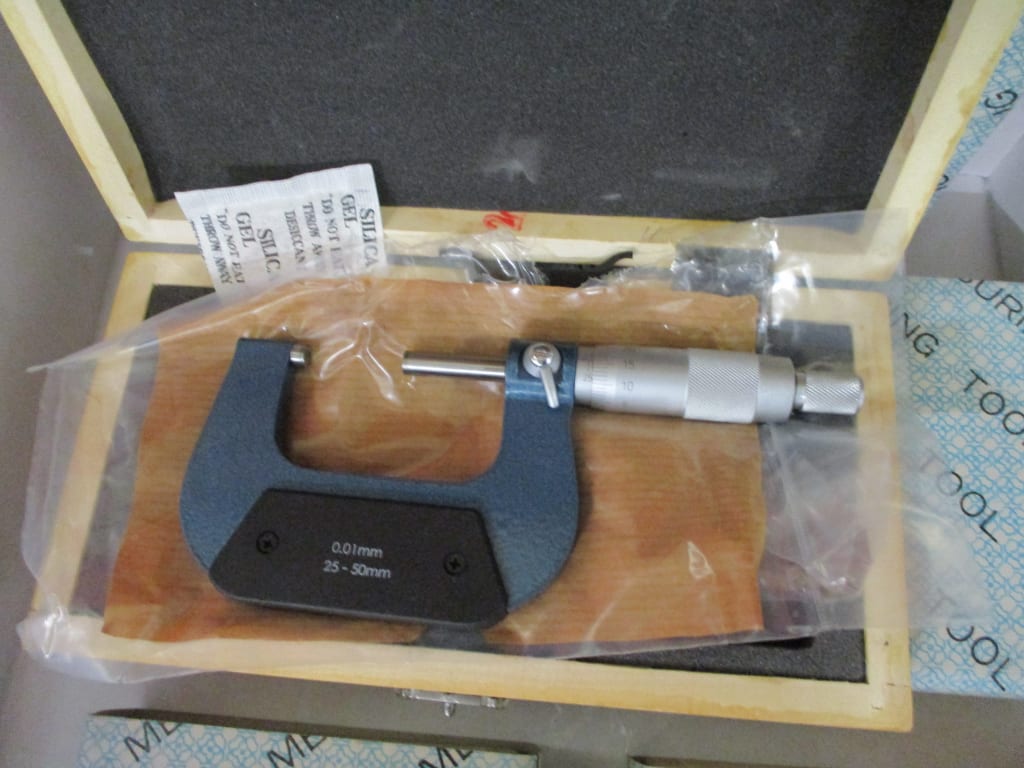

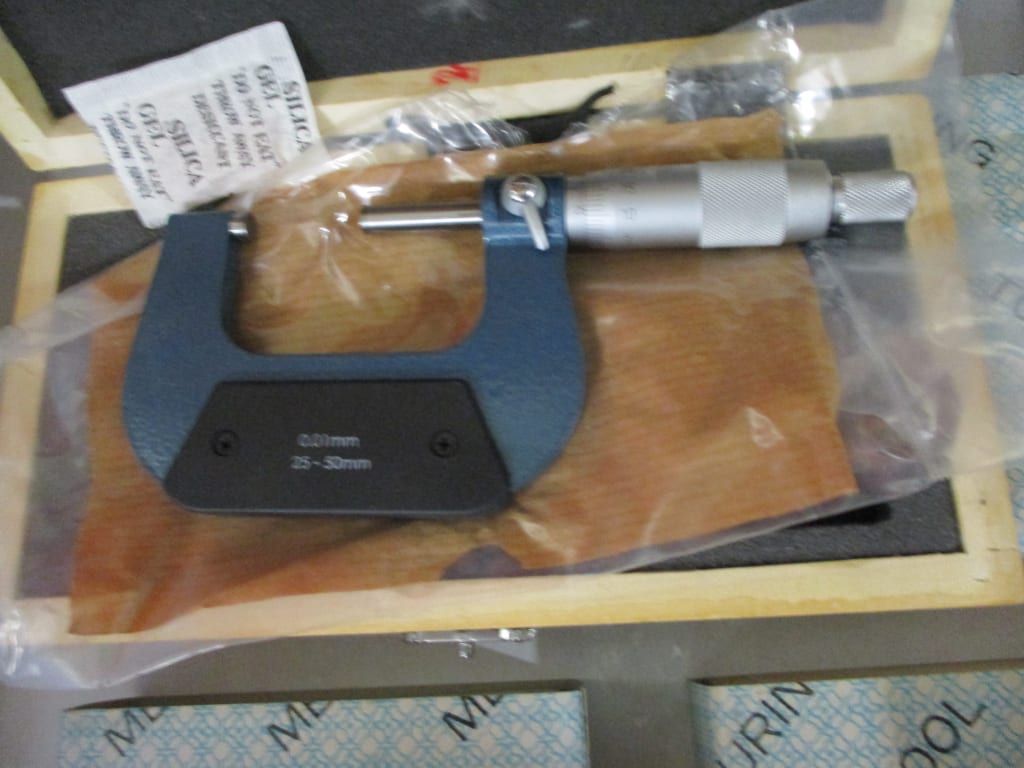

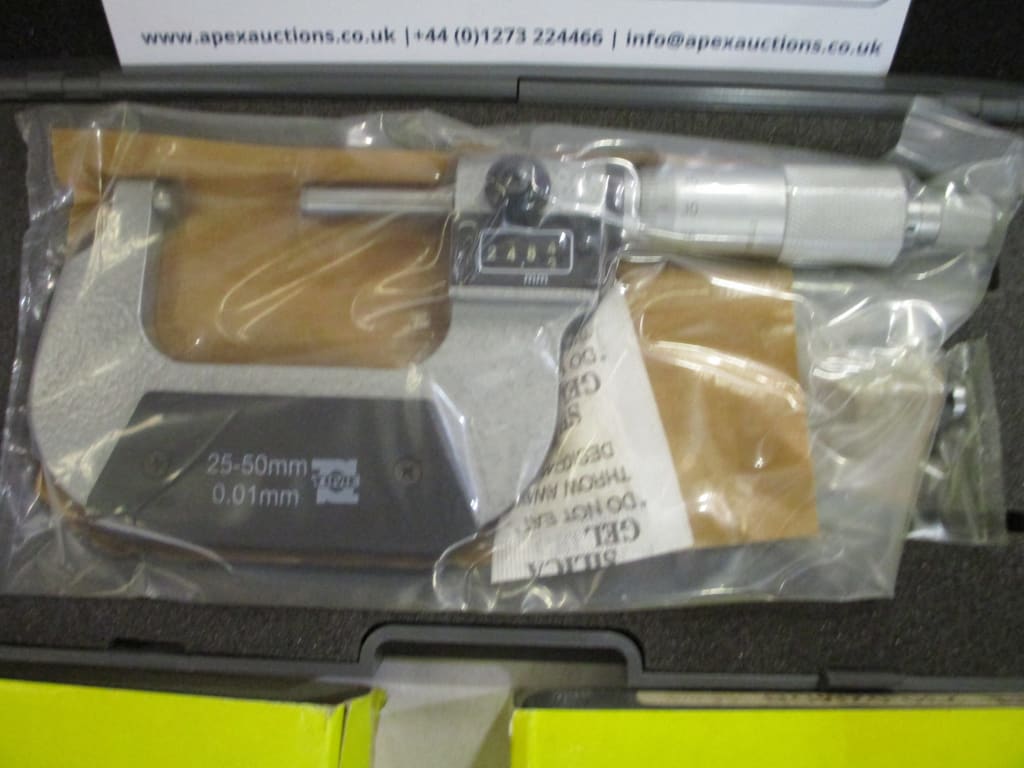

Comprising: (1) 600-1525, 0-25mm Universal Micrometer. (1) 25mm-50mm Outside Micrometer. (1) Mitutoyo 193-144, 75mm-100mm Digit Outside Micrometer.

Comprising: (1) 75mm-100mm Small Measuring Face Digital Outside Micrometer. (1) Mitutoyo 293-766 Digital Outside Micrometer 0-25mm Range.

Including Indexable Toolholders.

Dimensions Approx 500mm x 320mm x 900mm.

Comprising: (1) Li Hsun MT4 Centre & (2) Cutwell MT4 CNC Live Centres (As New)

With Indexable Carbide Inserts.

Dimensions Approx 1,540mm x 760mm x 920mm.

Comprising: (1) 200mm x 170mm, (1) 160mm x 150mm & (1) 230mm x 220mm.

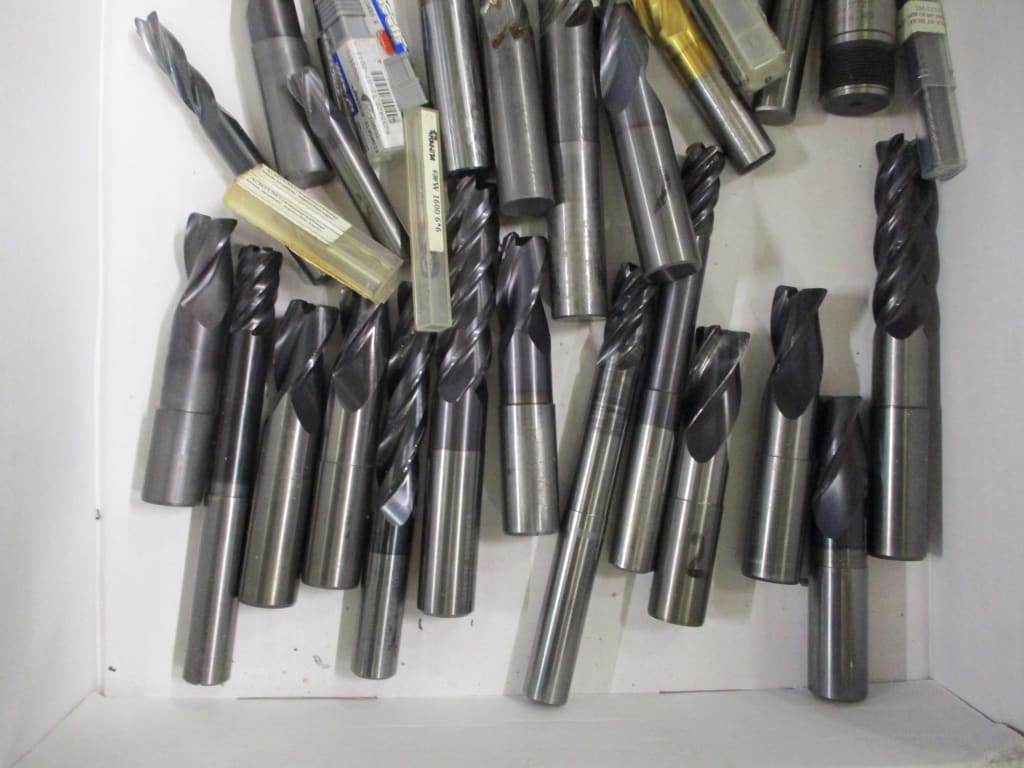

Including Corner Rounding Cutters & Screwed Shank End Mills.

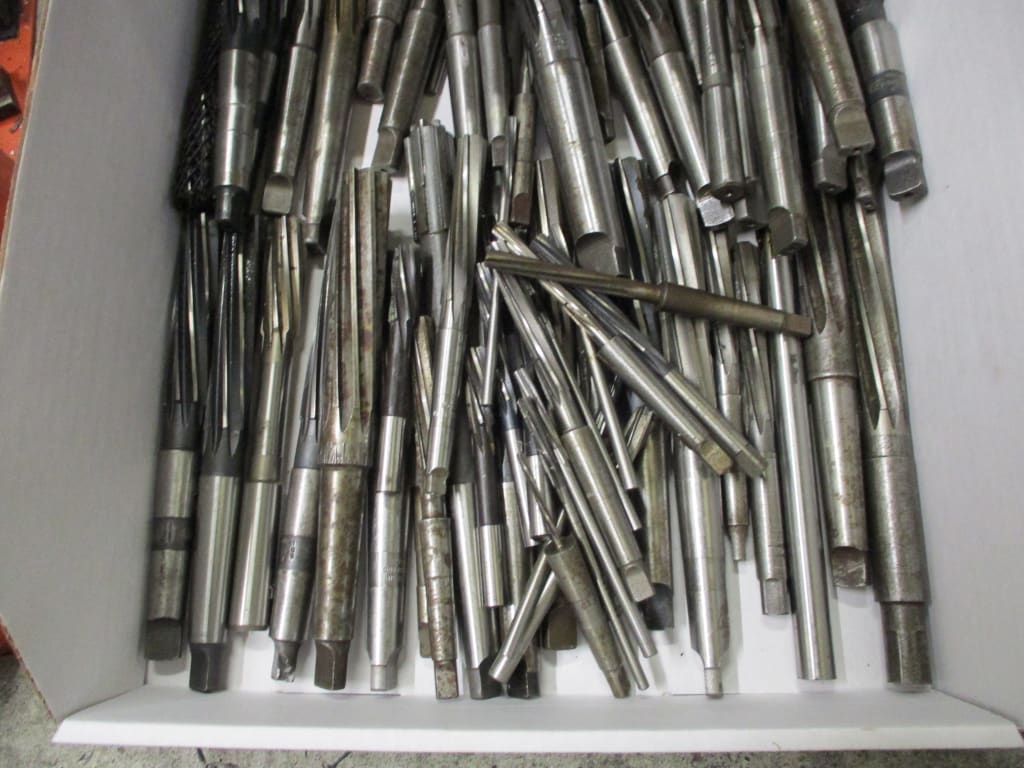

Comprising: (1) Beck Cobalt MTS Adjustable Reamer & (1) Taylor & Jones H13 Adjustable Hand Reamer.

Dimensions Approx 475mm x 320mm x 105mm.

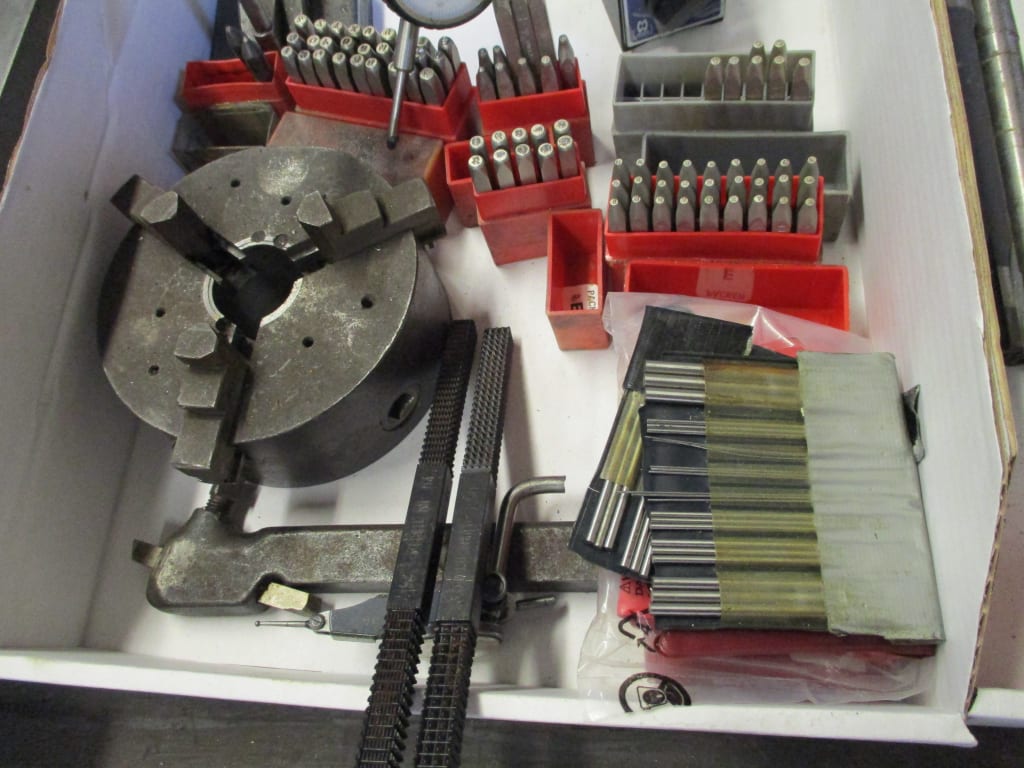

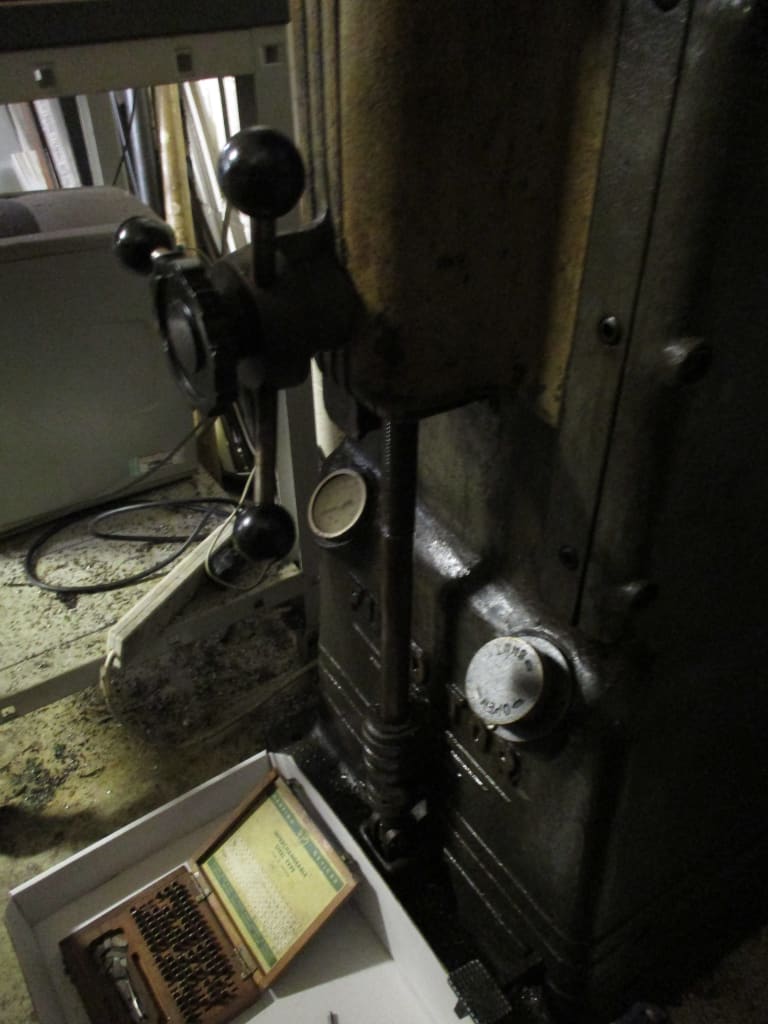

Including Pryor Hand Stamps, Magnetic Base, Dial Test Indicators & Stand, Dial Clock Gauge, Hexagon Keys, Lathe Bit Holder & Thread Restoring Files.

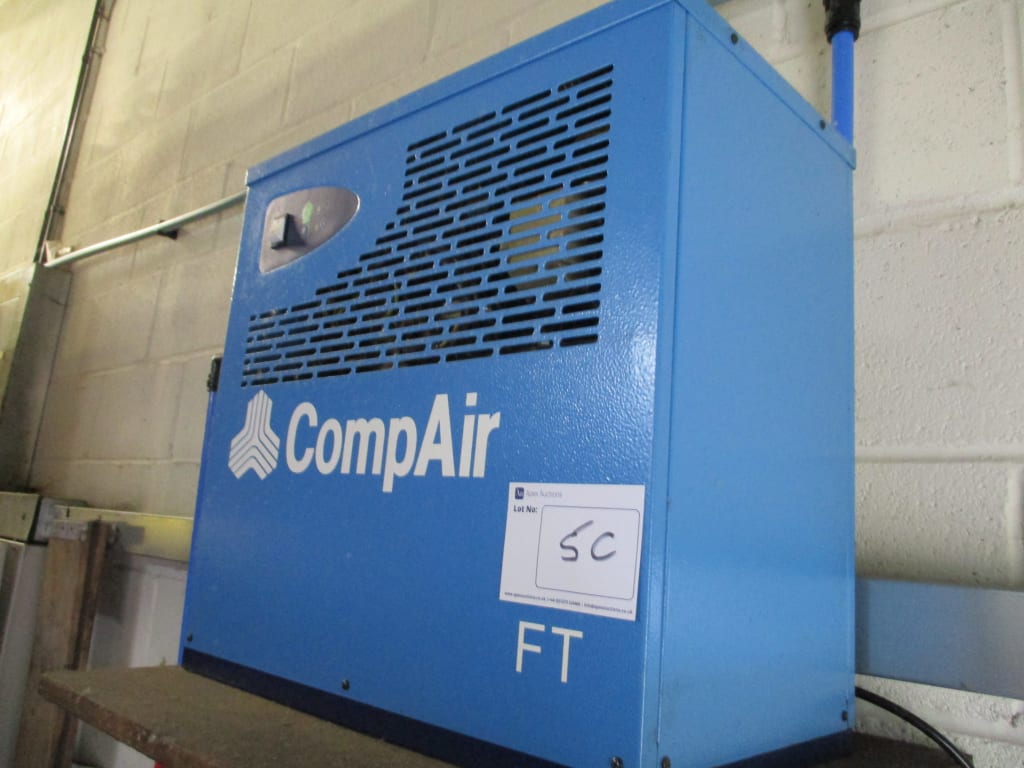

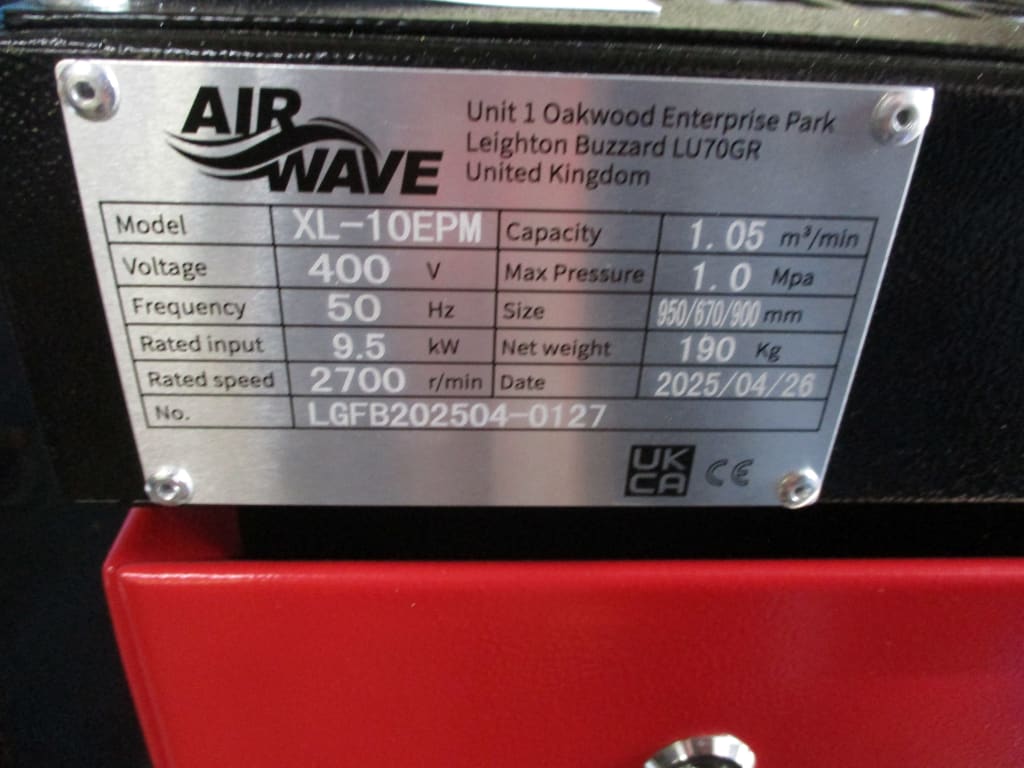

Compressor 400 Volt, 9.5kW, 2,700 RPM. Compare F26M Stand Alone Dryer, Cylinder Mounted, 16 Bar 0-66kW. S/No. 40-10-MA10641.

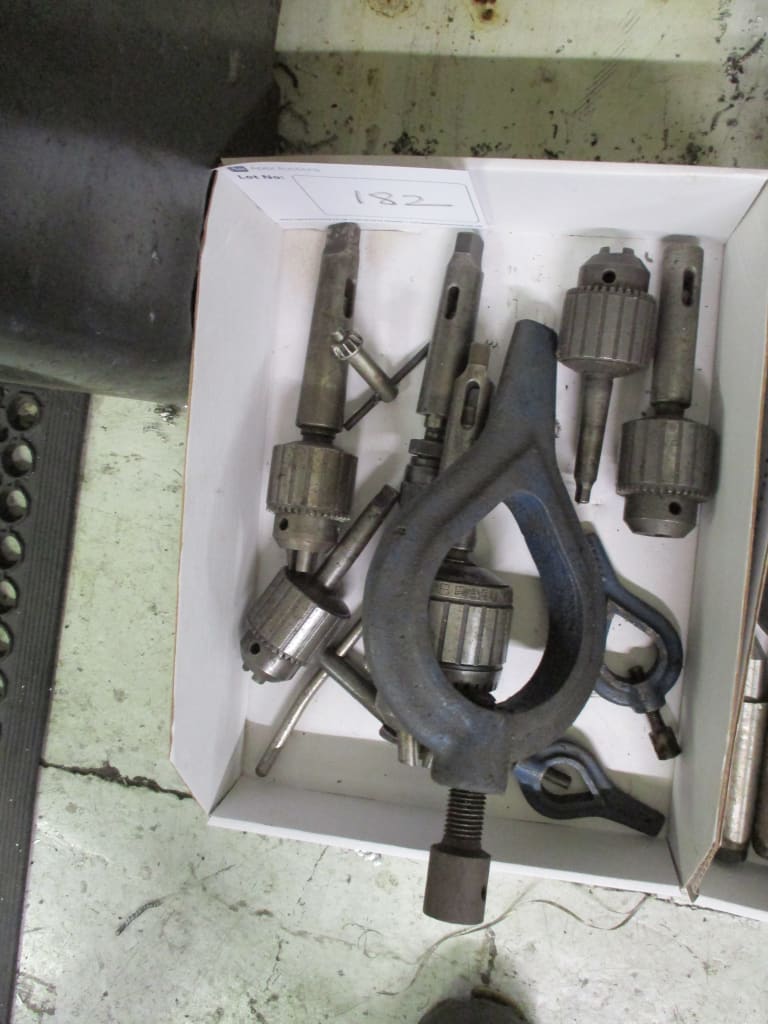

Including Drill Chucks, Drill Sleeves, Lathe Carriers/Drive Dogs.

Dimensions Approx 180mm x 440mm x 855mm. Contents Include Standard Length & Long Series HSS Drills & Keyway Broach.
