Closure of Large International Aerospace Company - Lincoln, UK
Starts: 09 October 2025 at 09:00 BST
Ends: 27 November 2025 at 15:00 GMT
Sale features a Hermle C50 U, Hermle C800U and Hermle C600 U 5 Axis CNC Machining Centres, several Max Mueller MDW 20 CNC slant bed lathes, a variety of VDF Boehringer, Mitutoyo CMM’s, machinery, workshop, inspection and general engineering equipment, with furthers lots to be added. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 29 of 29 lots
- LOT 1
![site]()

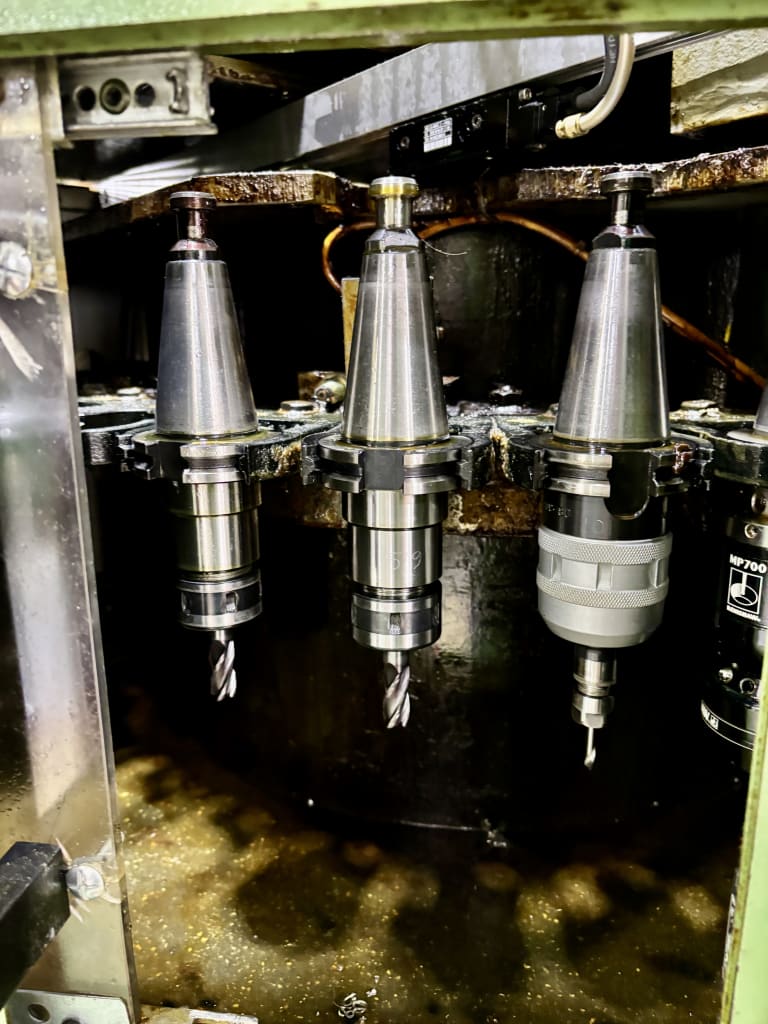

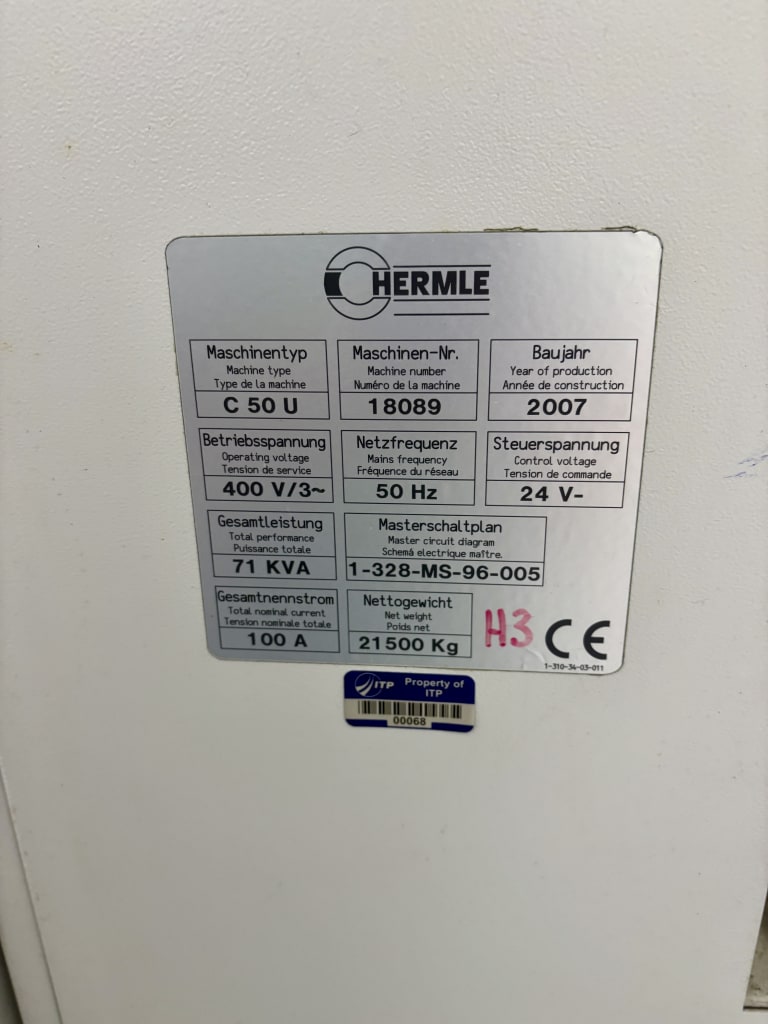

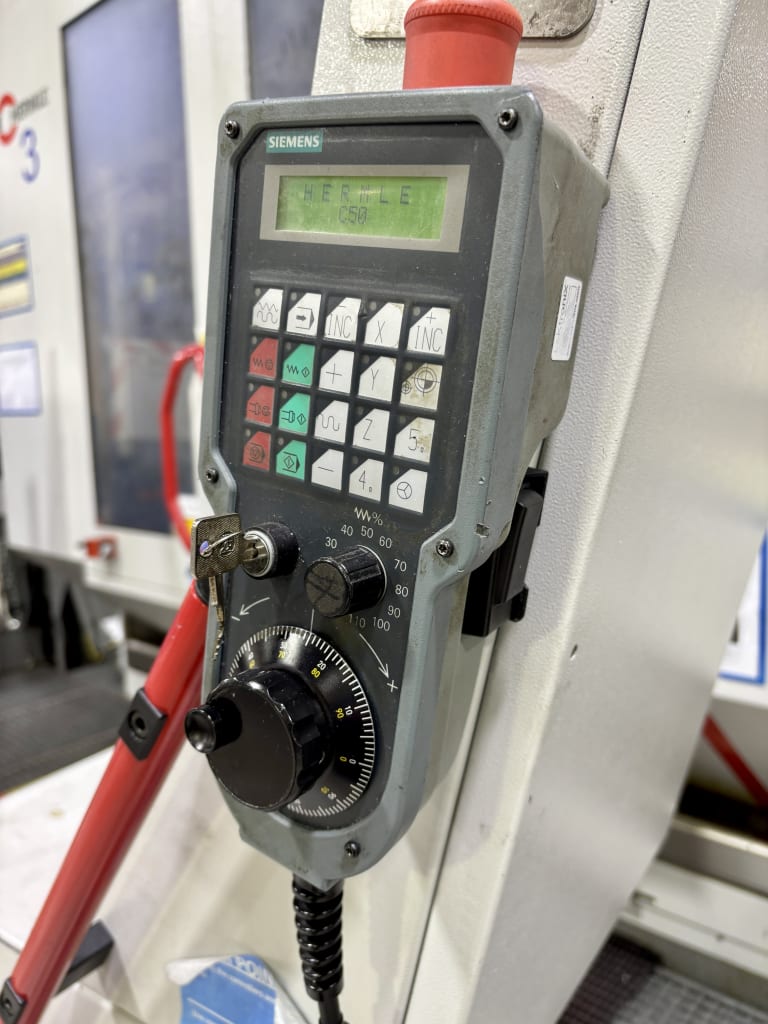

Hermle C50 U 5 Axis CNC Machining Centre With Siemens 840D Control
Table Dimension Ø1,150 x 900mm (9 'T' Slots). Maximum Table Load 2,000kg. Maximum Workpiece Ø1,000 x 810mm High. Axis Travel 'X'=1,000mm, 'Y'=1,000mm, 'Z'=750mm, 'A'=+100/-130°, 'C'=360°. Rapid Traverse 'X'=60m/min, 'Y'=60m/min, 'Z'=55m/min, 'A'=20rpm, 'C'=30rpm. Linear Acceleration 6m/s². Maximum Spindle Speed 12,000rpm. 42 Position ATC. Tool Change Time Chip To Chip (3 Axis) 7sec. Maximum Tool Ø95mm (Ø160mm Non Adjacent Tools), Maximum Tool Length 430mm, Maximum Tool Weight 15kg. S/No.18089 (2007). - LOT 2
![site]()

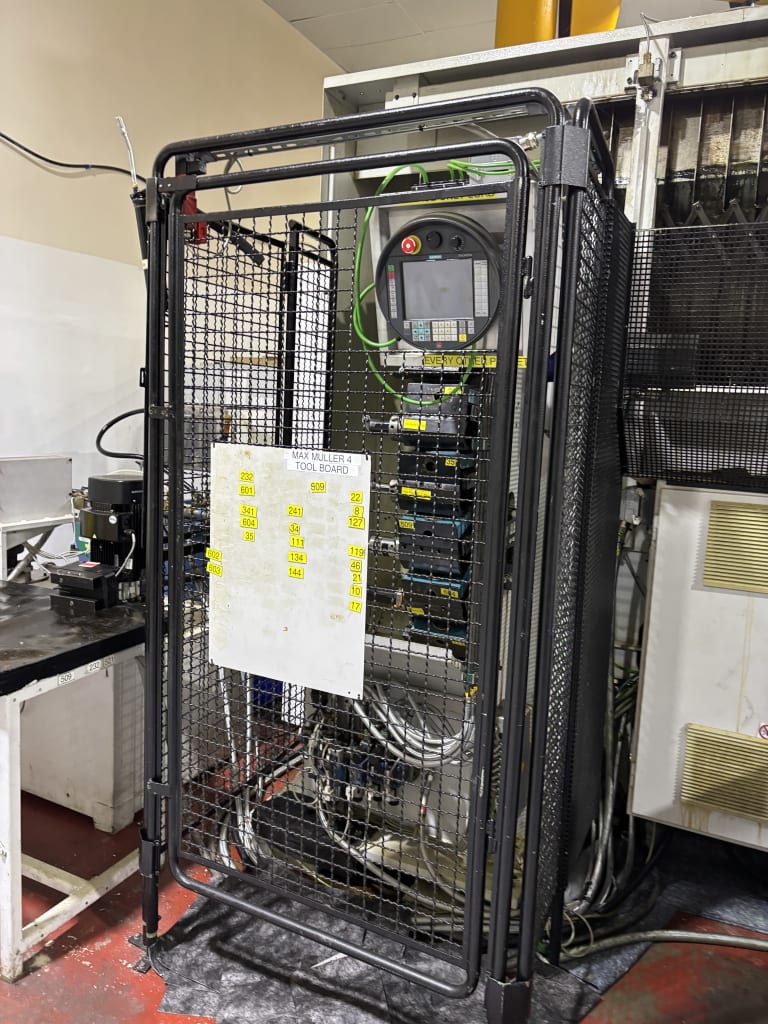

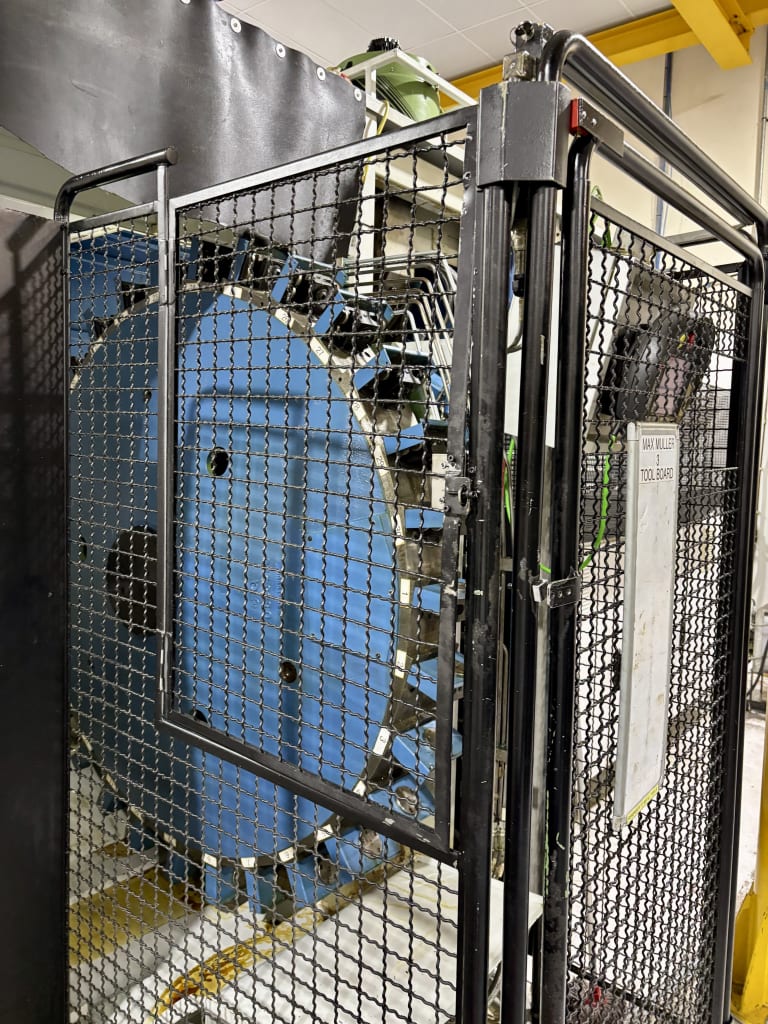

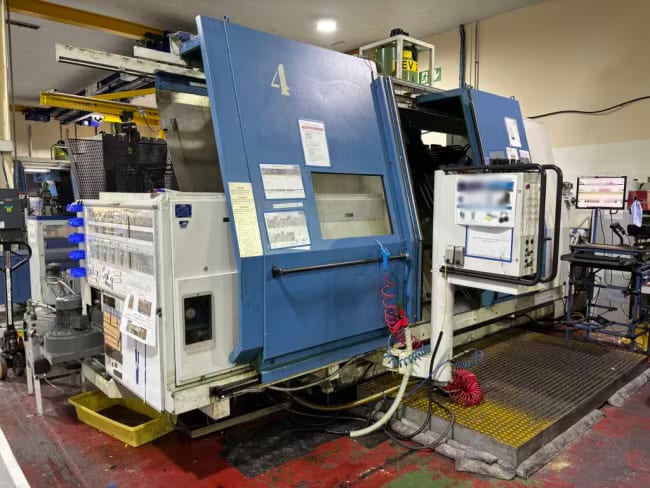

Max Mueller MDW 20 (4) CNC Slant Bed Lathe With Siemens 840D Control

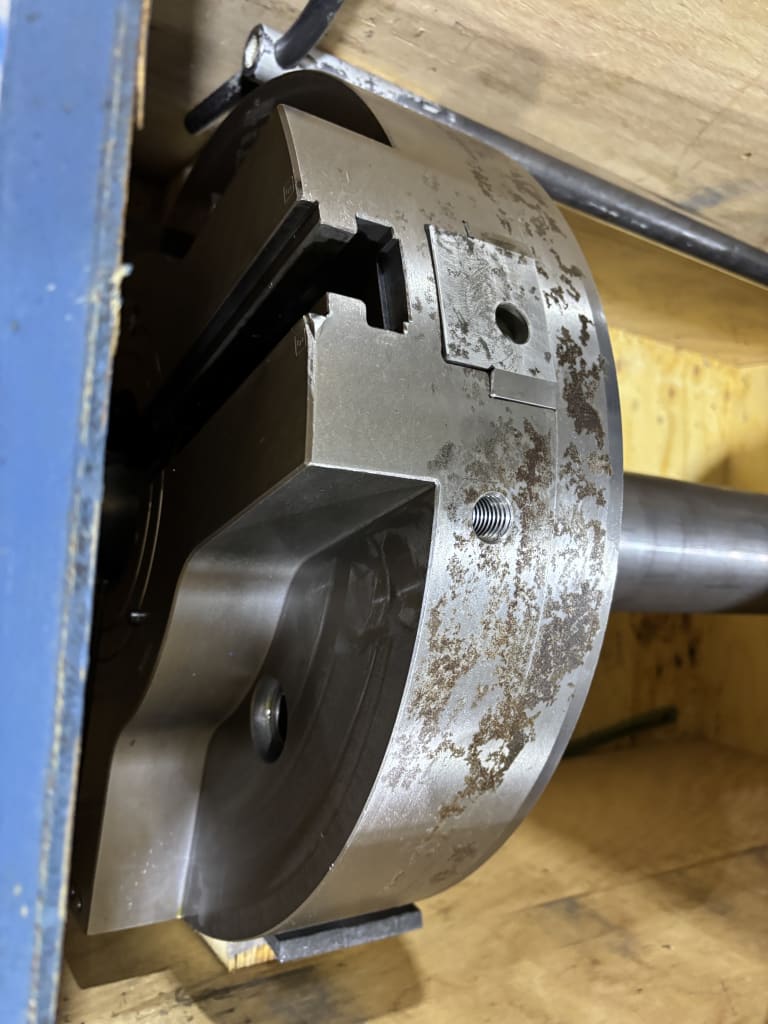

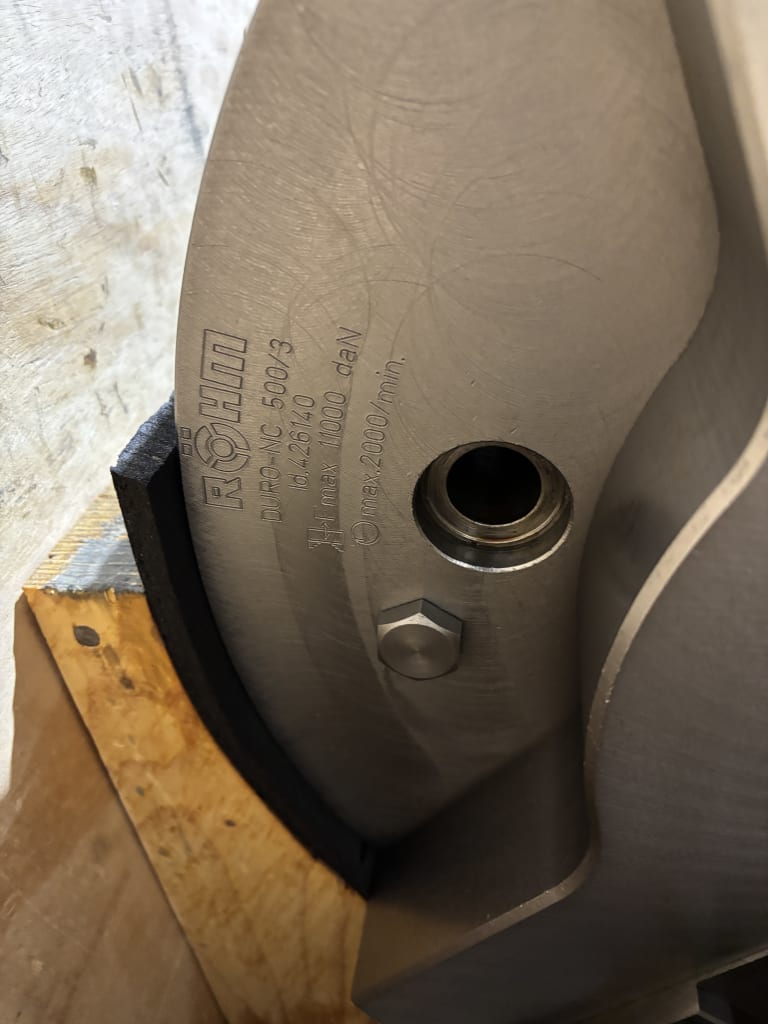

Rohm Duro-NC 500/3 Ø500mm 3 Jaw Power Chuck. Maximum Turning Ø850mm. Maximum Swing Over Cross Slide Ø690mm. Maximum Turning Length 1,500mm. Centre Height 450mm. Maximum Workpiece Weight 800kg. Spindle Bore Ø128mm. Axis Travel 'X'=510mm, 'Z'=1,510mm. Rapid Traverse 'X'=10m/min, 'Z'=10m/min. Maximum Turning Speed 1,950rpm (60kW Motor). 30 Position Carousel. S/No. 504237 (2001). - LOT 3
![site]()

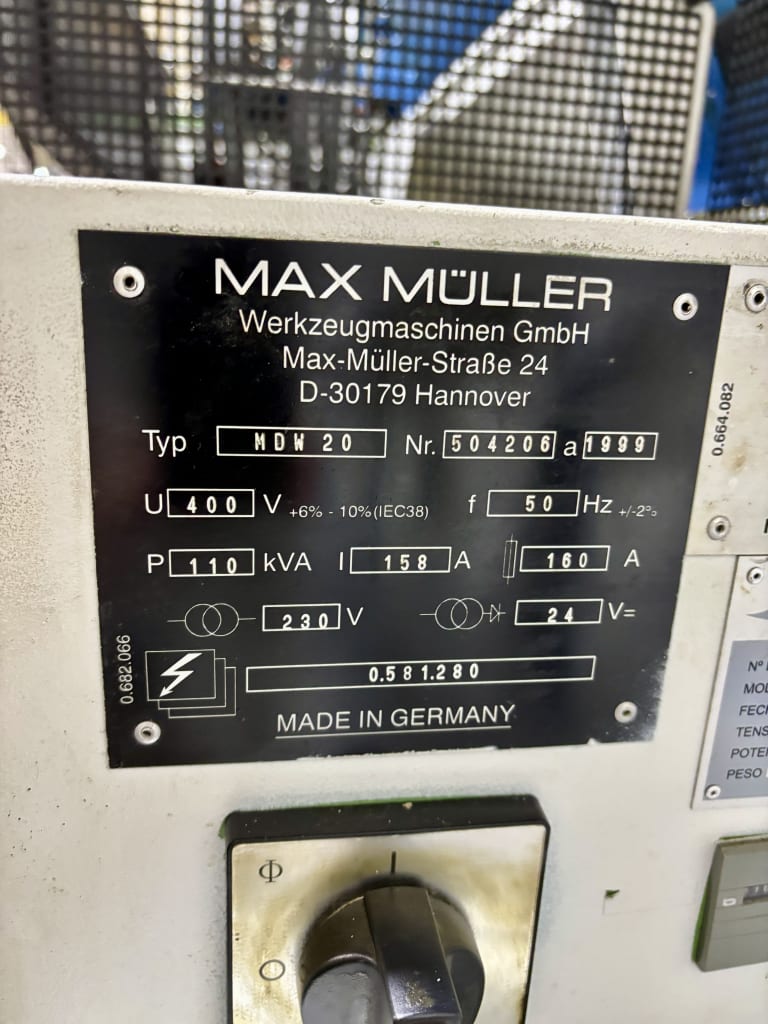

Max Mueller MDW 20 (3) CNC Slant Bed Lathe With Siemens 840D Control
Rohm Duro-NC 500/3 Ø500mm 3 Jaw Power Chuck. Maximum Turning Ø850mm. Maximum Swing Over Cross Slide Ø690mm. Maximum Turning Length 1,500mm. Centre Height 450mm. Maximum Workpiece Weight 800kg. Spindle Bore Ø128mm. Axis Travel 'X'=510mm, 'Z'=1,510mm. Rapid Traverse 'X'=10m/min, 'Z'=10m/min. Maximum Turning Speed 1,950rpm (60kW Motor). 30 Position Carousel. S/No. 504206 (1999). - LOT 4
![site]()
Max Mueller MDW 20 (2) CNC Slant Bed Lathe With Siemens 840D Control
Rohm Duro-NC 500/3 Ø500mm 3 Jaw Power Chuck. Maximum Turning Ø850mm. Maximum Swing Over Cross Slide Ø690mm. Maximum Turning Length 1,500mm. Centre Height 450mm. Maximum Workpiece Weight 800kg. Spindle Bore Ø128mm. Axis Travel 'X'=510mm, 'Z'=1,510mm. Rapid Traverse 'X'=10m/min, 'Z'=10m/min. Maximum Turning Speed 1,950rpm (60kW Motor). 30 Position Carousel. S/No. 504205 (1999). - LOT 5
![site]()
Hermle C800 U 5 Axis Machining Centre With Heidenhain iTNC 530 Control
Table Dimension Ø280mm (4 'T' Slots). Maximum Table Load 300kg. Axis Travel 'X'=800mm, 'Y'=600mm, 'Z'=500mm, 'B'=220° (±110° ), 'C'=360° . Rapid Traverse 30m/min. Spindle Taper ISO 40. Maximum Spindle Speed 12,000rpm. 87 Position ATC. S/No. 15650 (2002). - LOT 6
![site]()
Hermle C600 U 5 Axis Machining Centre With Heidenhain iTNC430 Control
Table Dimension Ø280mm (4 'T' Slots). Maximum Table Load 300kg. Axis Travel 'X'=600mm, 'Y'=450mm, 'Z'=450mm, 'B'=220° (±110° ), 'C'=360° . Rapid Traverse 30m/min. Maximum Spindle Speed 12,000rpm. Spindle Taper ISO 40. 30 Position ATC. S/No. 12859 (1999). - LOT 7
![site]()
Max Mueller MDW 20 (1) CNC Slant Bed Lathe With Siemens 840C Control
Rohm Duro-NC 500/3 Ø500mm 3 Jaw Power Chuck. Maximum Turning Ø850mm. Maximum Swing Over Cross Slide Ø690mm. Maximum Turning Length 1,500mm. Centre Height 450mm. Maximum Workpiece Weight 800kg. Spindle Bore Ø128mm. Axis Travel 'X'=510mm, 'Z'=1,510mm. Rapid Traverse 'X'=10m/min, 'Z'=10m/min. Maximum Turning Speed 1,950rpm (60kW Motor). 30 Position Carousel.. S/No. 504167 (1997). - LOT 8
![site]()

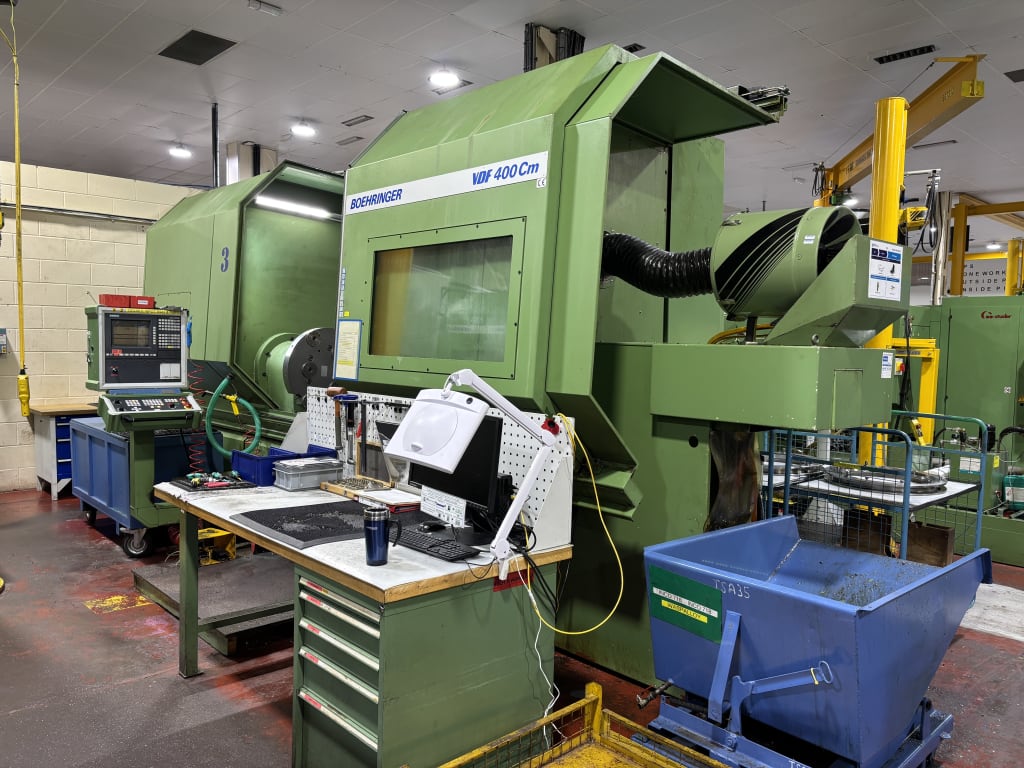

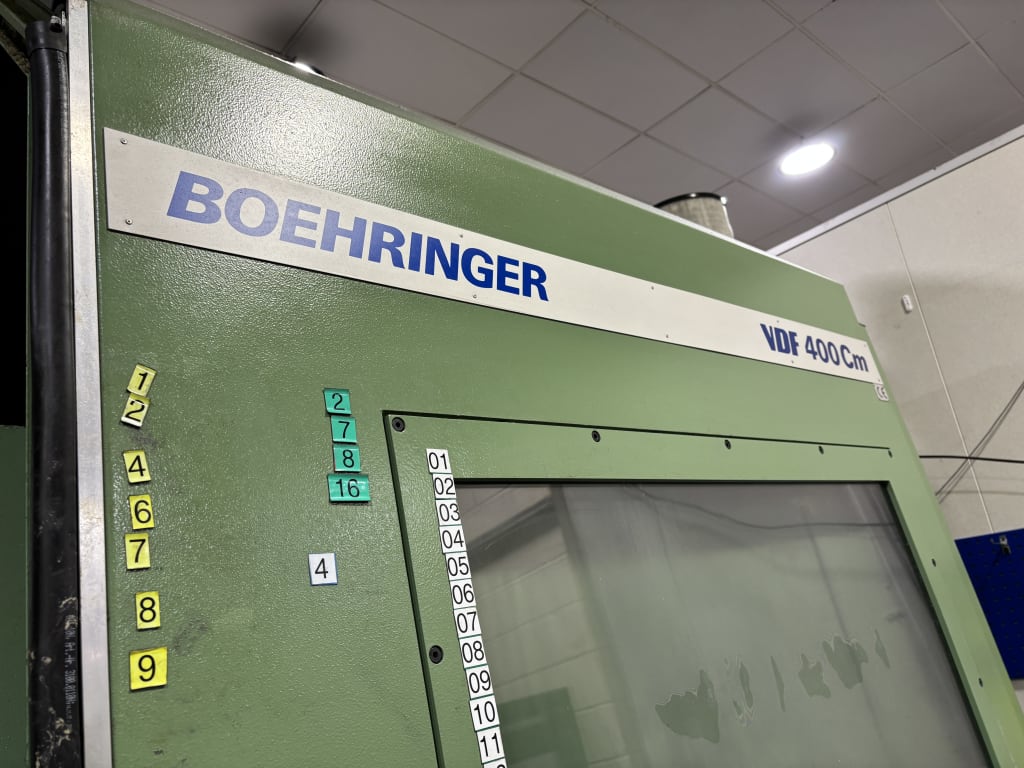

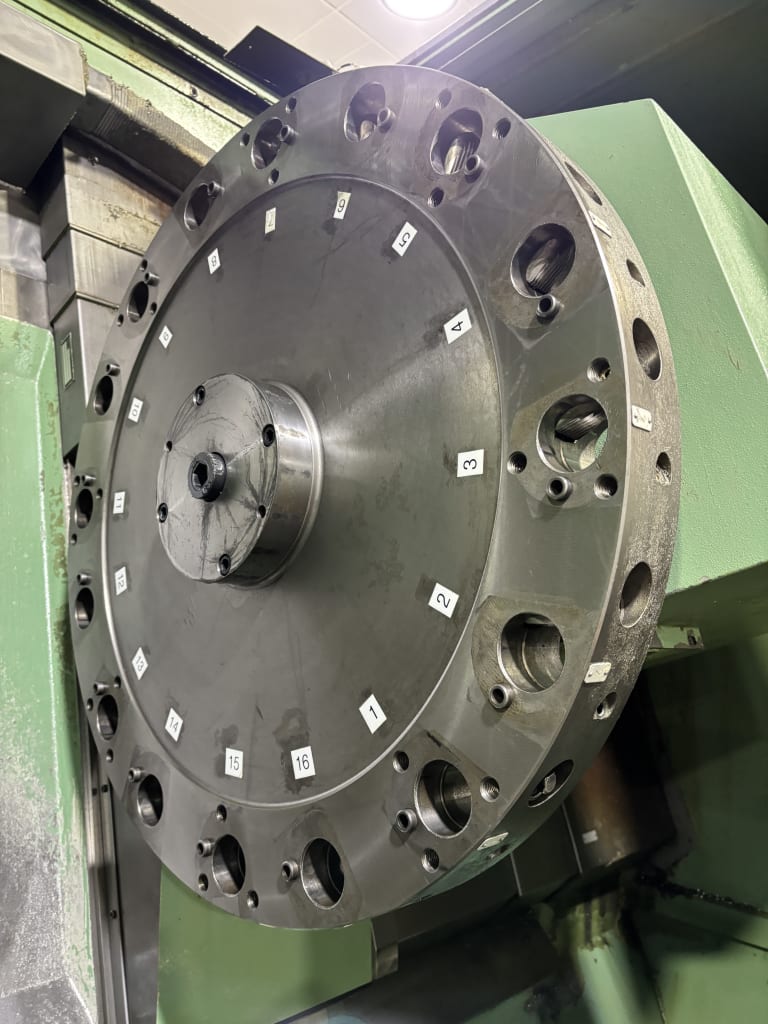

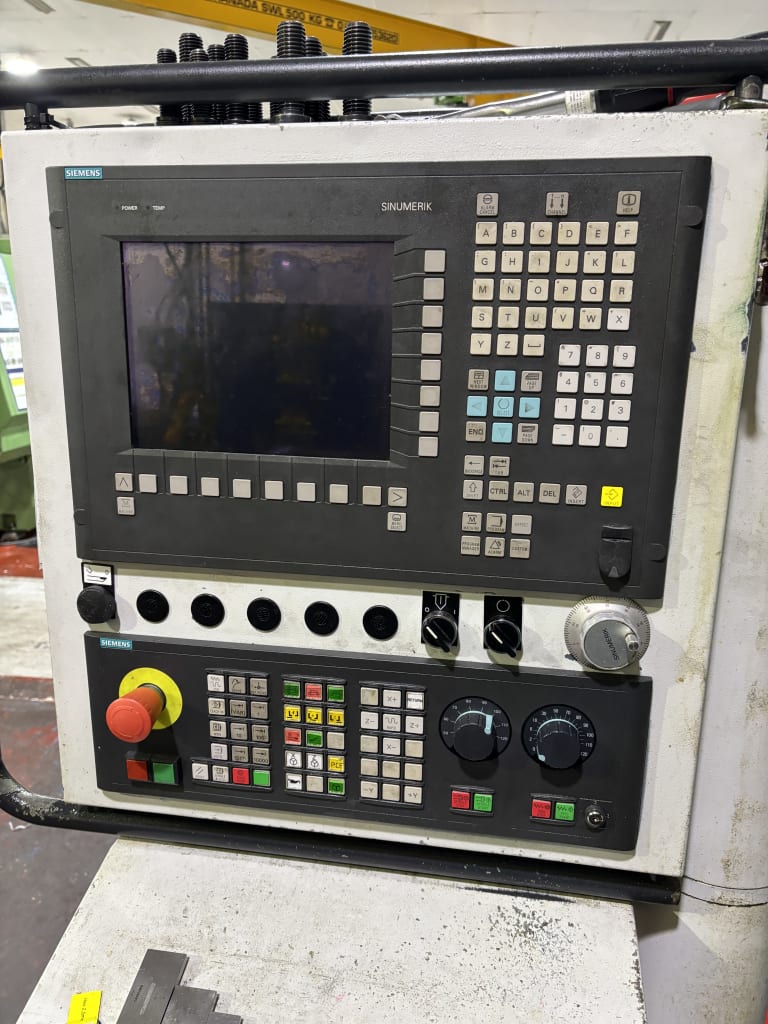

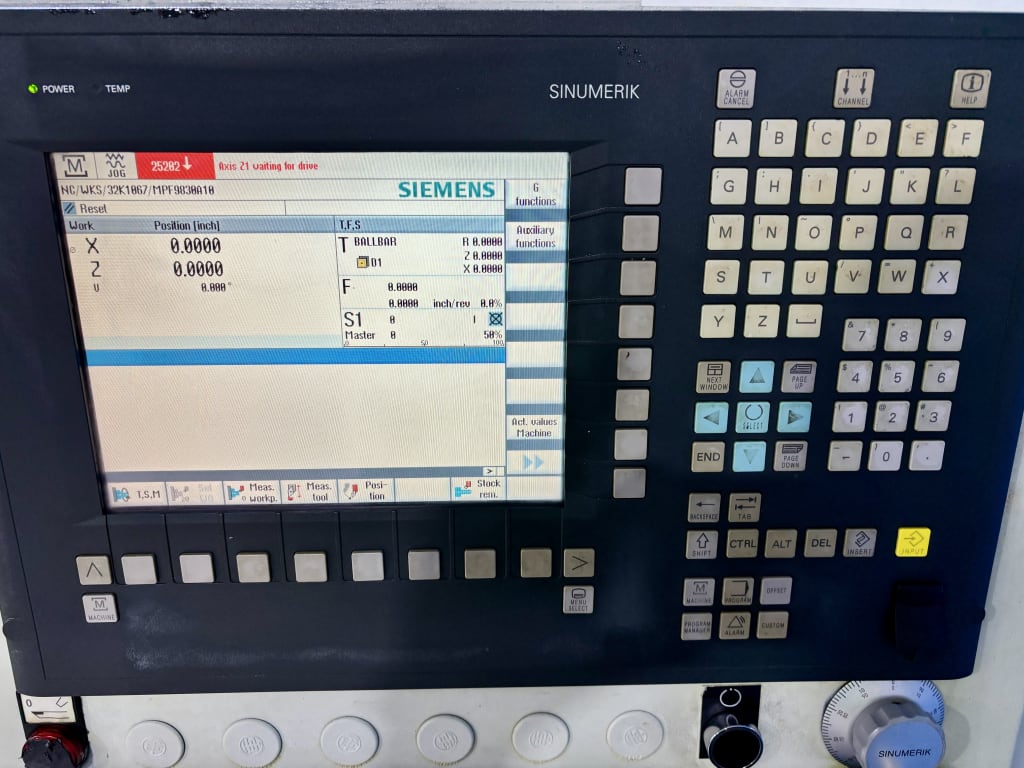

VDF Boehringer 400 CM (4) CNC Slant Bed Lathe With Siemens Sinumerik Control
Ø450mm 3 Jaw Power Chuck. Swing Over Bed Ø750mm. Swing Over Cross Slide Ø700mm. Turning Length 1,500mm. Spindle Bore Ø132m. Axis Travel 'X'=620mm. 16 Station Turret. VDI 50 Toolholders. Maximum Spindle Speed 1,800rpm (53kW Motor). S/No. 1115.5256-25 (2002). - LOT 9
![site]()
VDF Boehringer 400 CM (3) CNC Slant Bed Lathe With Siemens Sinumerik Control
Ø450mm 3 Jaw Power Chuck. Swing Over Bed Ø750mm. Swing Over Cross Slide Ø700mm. Turning Length 1,500mm. Spindle Bore Ø132m. Axis Travel 'X'=620mm. 16 Station Turret. VDI 50 Toolholders. Maximum Spindle Speed 1,800rpm (53kW Motor). S/No. 1115.5232-25 (1999). - LOT 10
![site]()
VDF Boehringer VDF 315CM CNC Slant Bed Lathe With Siemens Control
Turning Ø480mm. Swing Over Bed Ø520mm. Swing Over Cross Slide Ø480mm. Distance Between Centres 1,000mm. Spindle Bore Ø78mm. Axis Travel 'X'=405mm, 'Z'=1,029mm. Maximum Spindle Speed 3,550rpm (43kW Motor). 12 Station Turret. S/No. 1117.7198-26 (1997). - LOT 11
![site]()

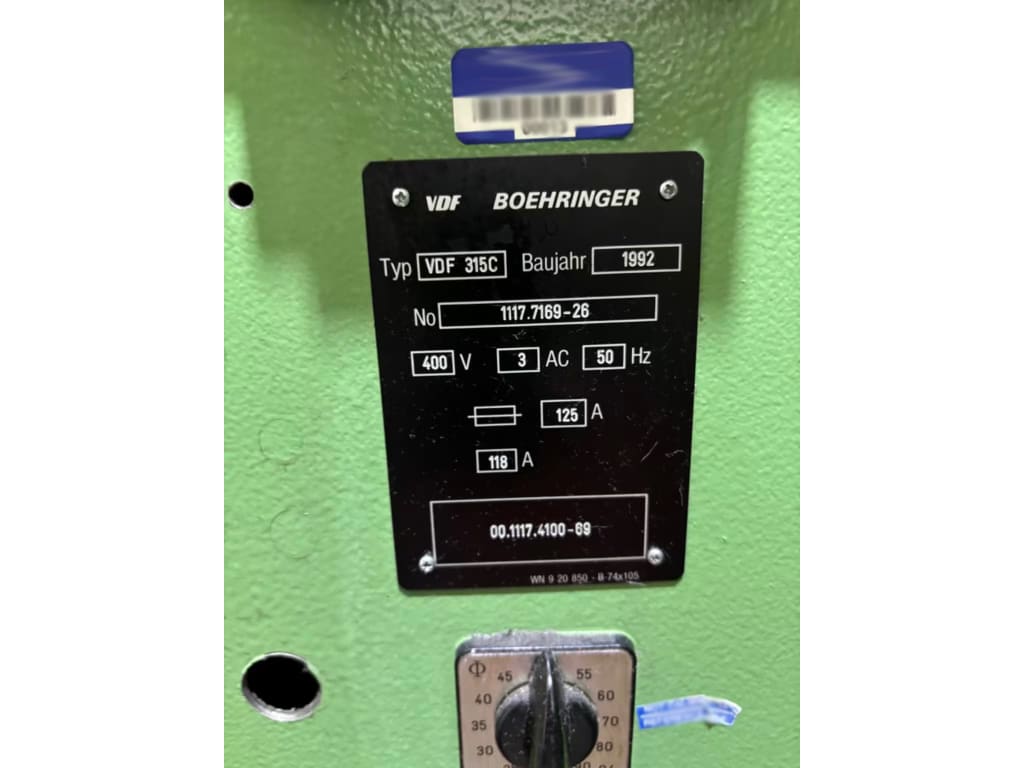

VDF Boehringer VDF 315C CNC Slant Bed Lathe With Siemens Control
Turning Ø480mm. Swing Over Bed Ø520mm. Swing Over Cross Slide Ø480mm. Distance Between Centres 1,000mm. Spindle Bore Ø78mm. Axis Travel 'X'=405mm, 'Z'=1,029mm. Maximum Spindle Speed 3,550rpm (43kW Motor). 12 Station Turret. S/No. 1117.7169-26 (1992). - LOT 12
![site]()

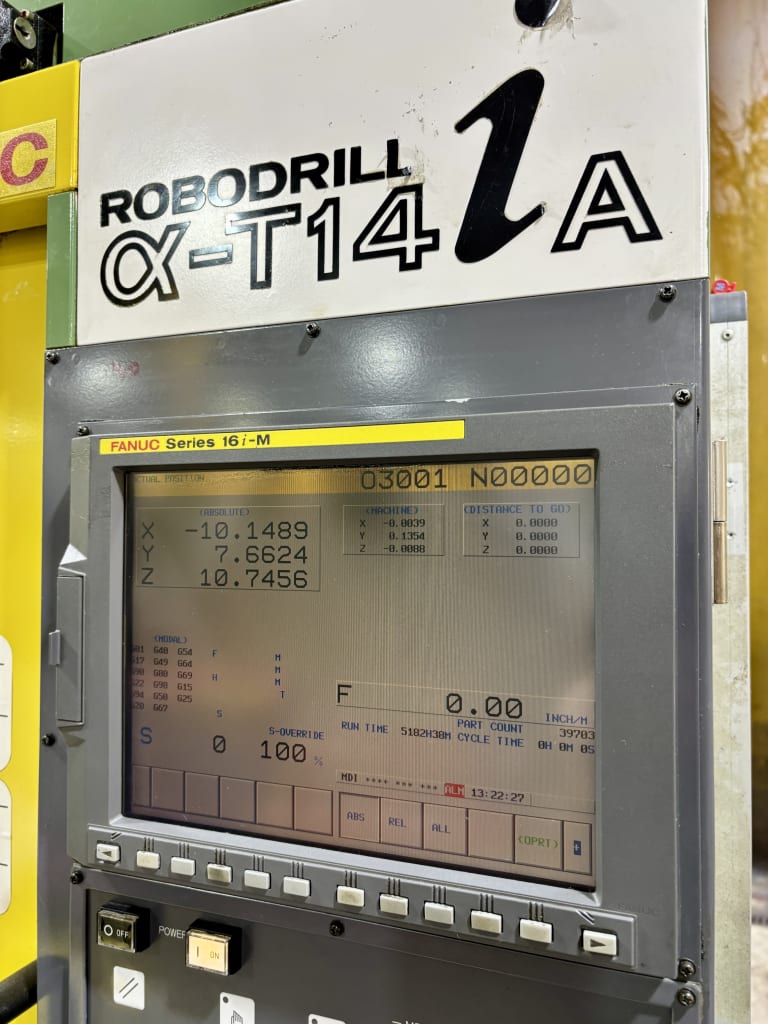

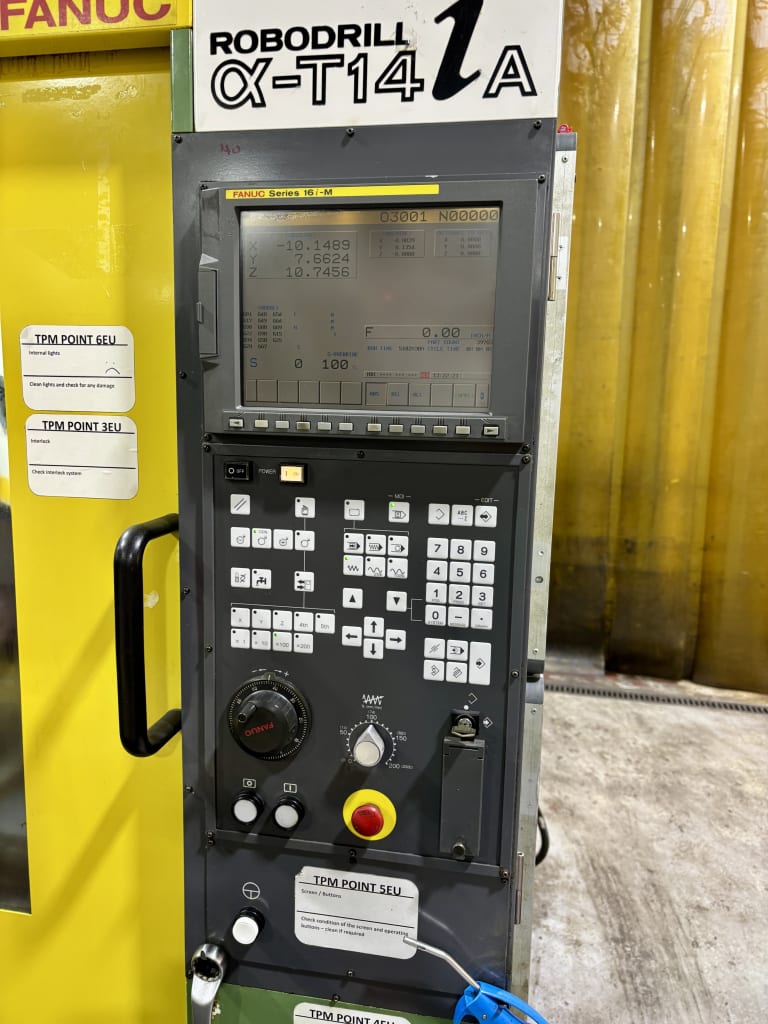

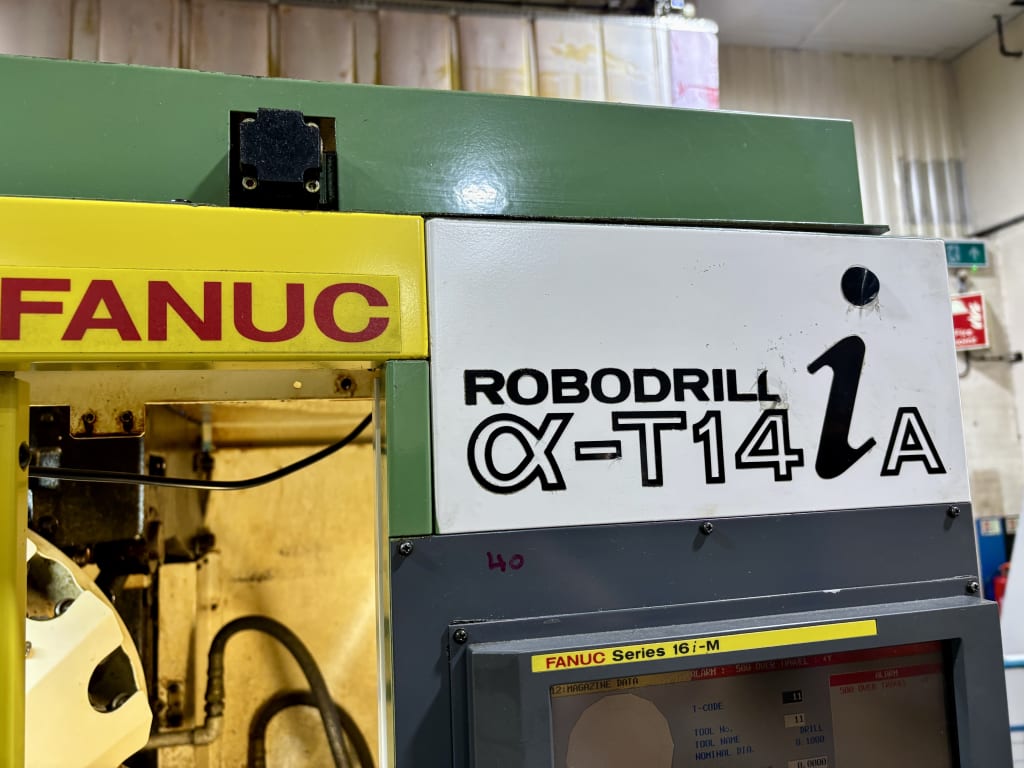

Fanuc Robodrill Alpha T14ia CNC Tapping Centre With Fanuc Series 16i-M Control
Table Dimension 650 x 380mm. Maximum Table Load 200kg. Axis Travel 'X'=500mm, 'Y'=380mm, 'Z'=300mm. Rapid Traverse 48m/min. Maximum Spindle Speed 8,000rpm. 12 Position Tool Turret. Spindle Taper BT30. S/No. P99XTH629 (1999). - LOT 13
![site]()

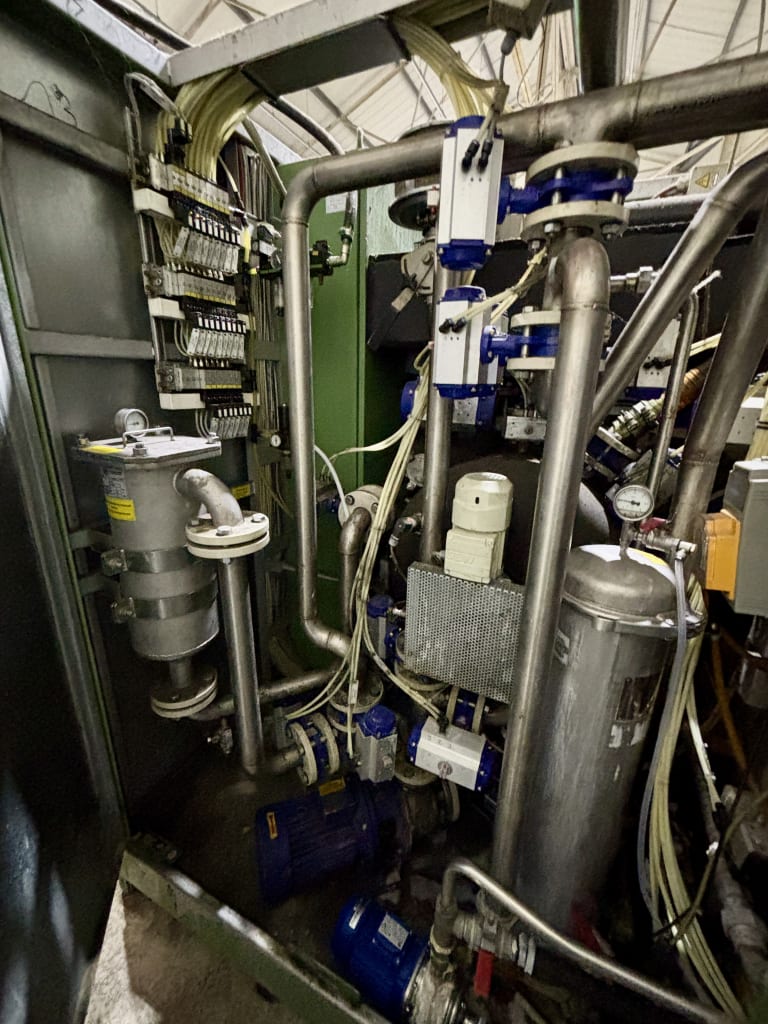

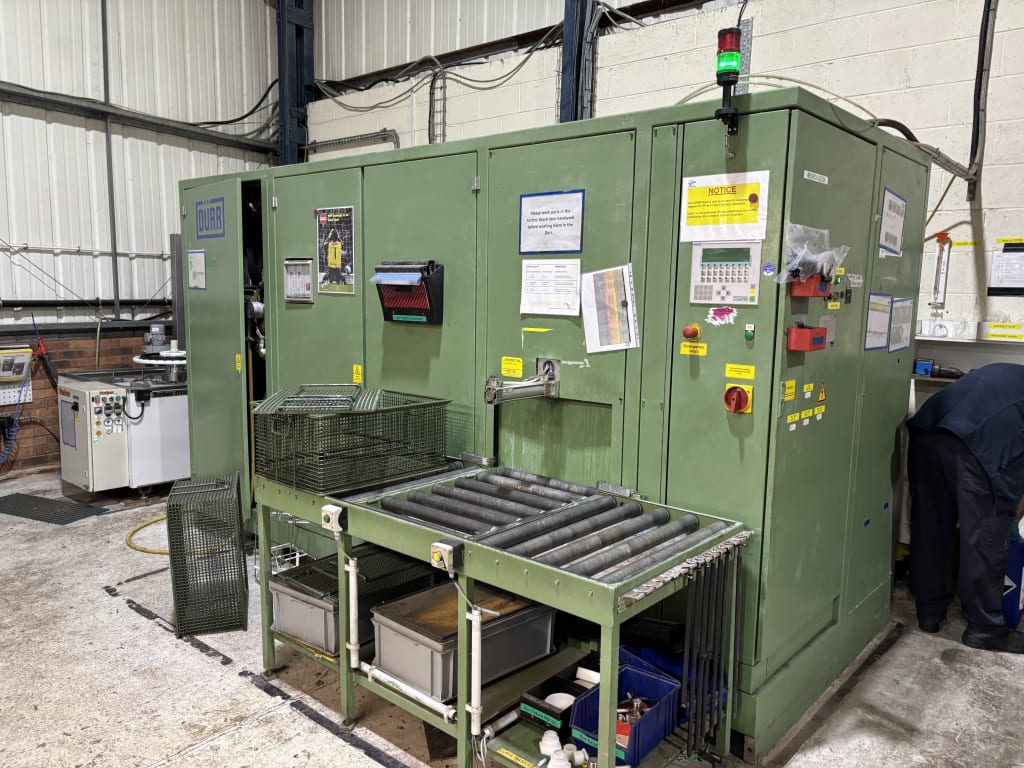

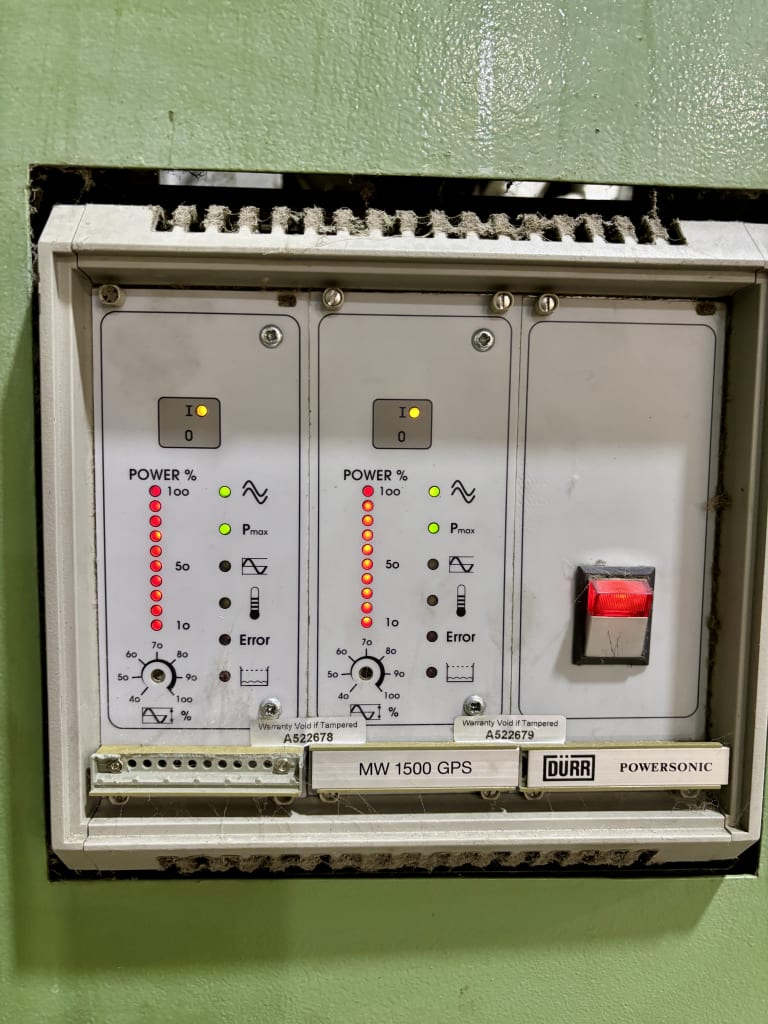

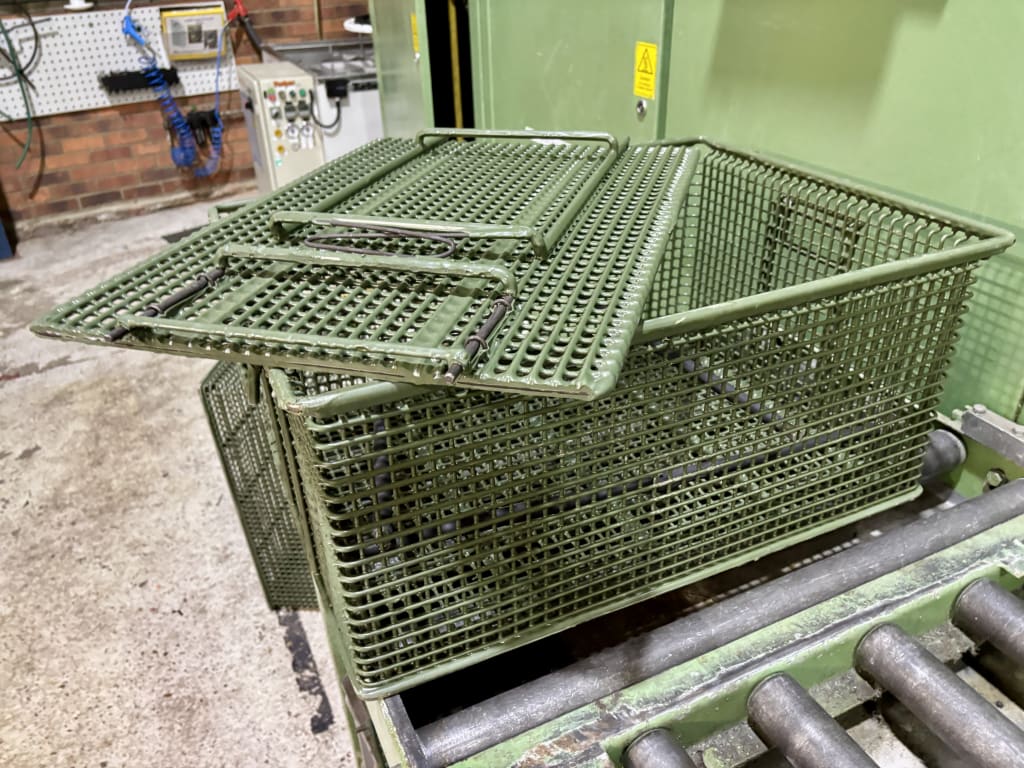

Durr Universal 81W Parts Washer with Siemens Simatic OP17 PLC
Basket Dimension L660 x W480 x H310mm. With Signal Tower. S/No. 13780 (2002). - LOT 14
![site]()

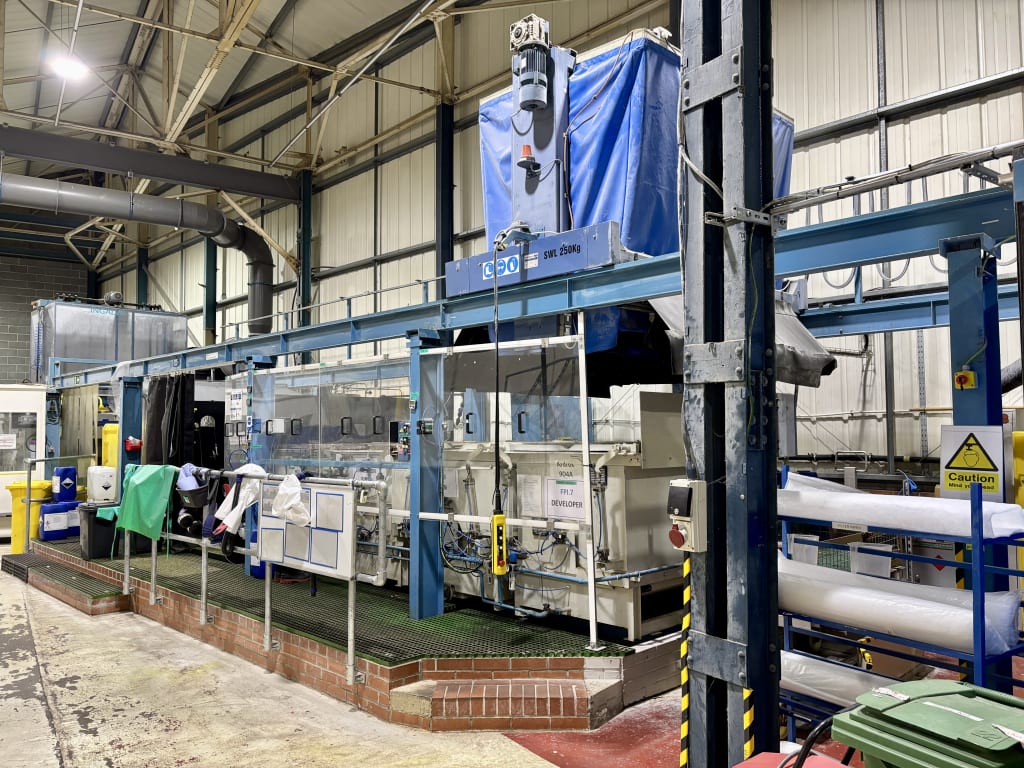

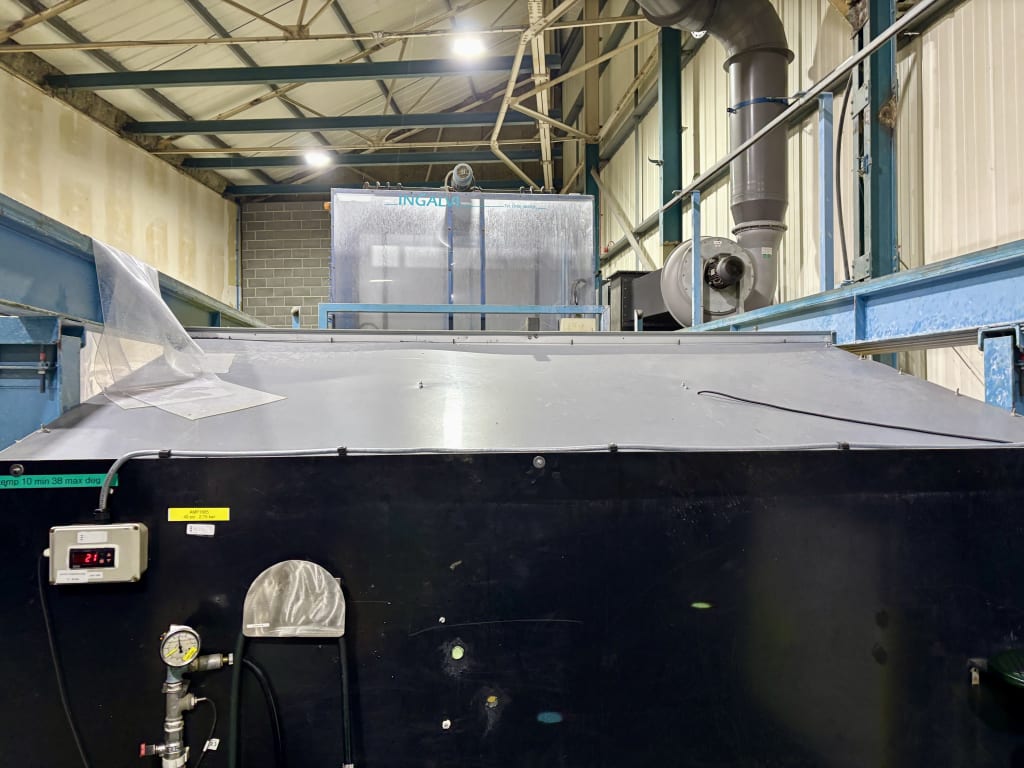

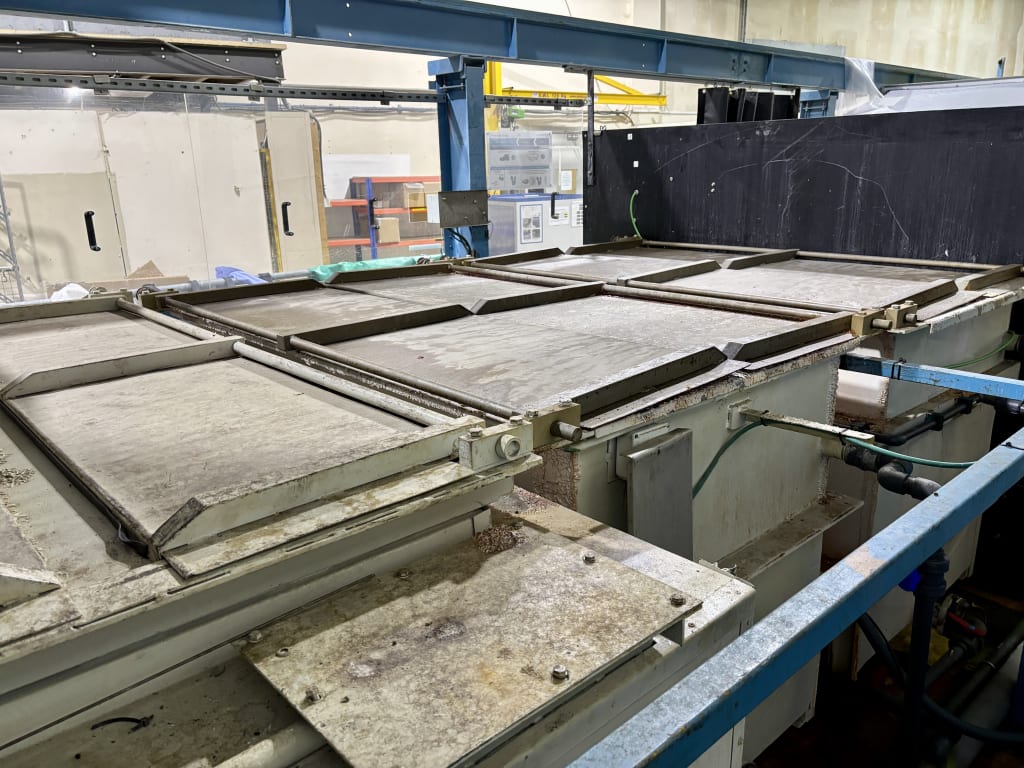

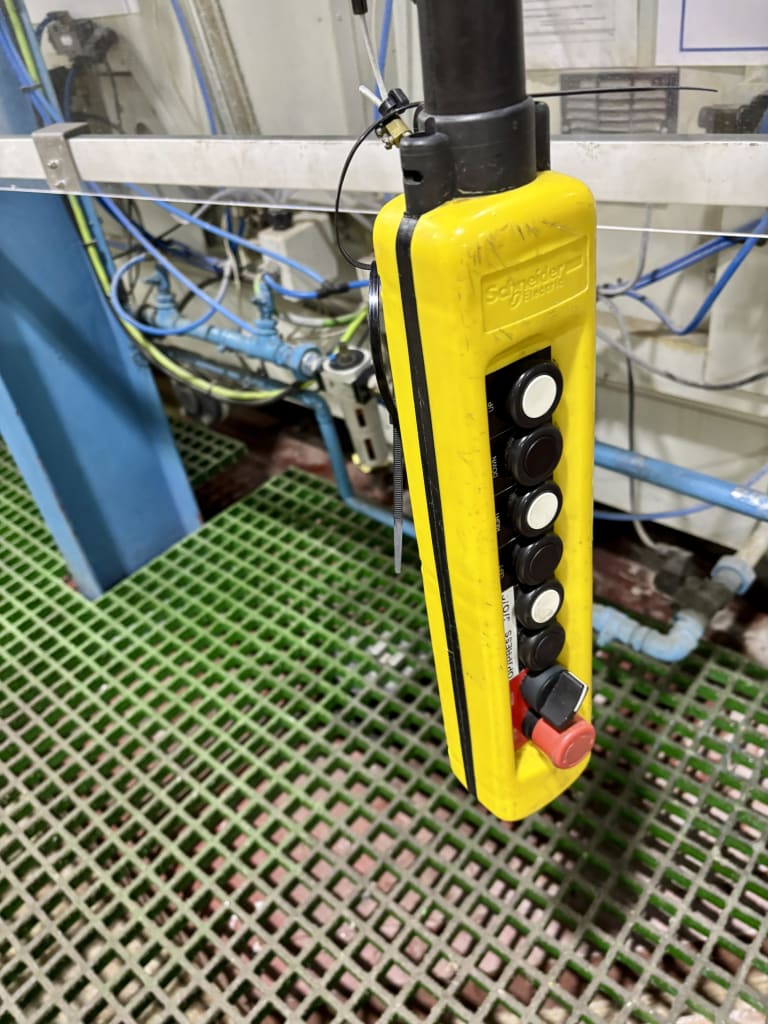

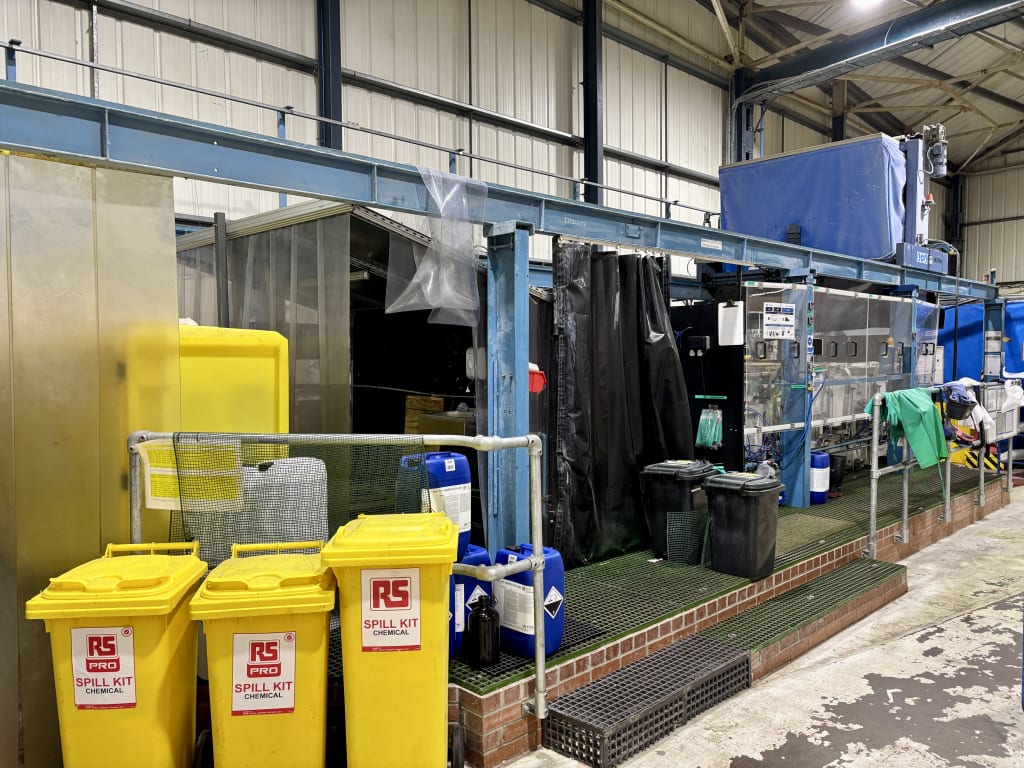

FPI Line - Fluoresent Penetrant Inspection With Gantry Crane
Consisting Of Penetrant Applier Booth, Emulsifier Tank, Rinse Tank, Oven, Developer Tank, Pick Up Station & Inspection Booth. Gantry Crane Capacity SWL 250kg, Approx Span 3m, Length Of Rail 13.5m & Height Under Rail 2.4m. - LOT 15
![site]()

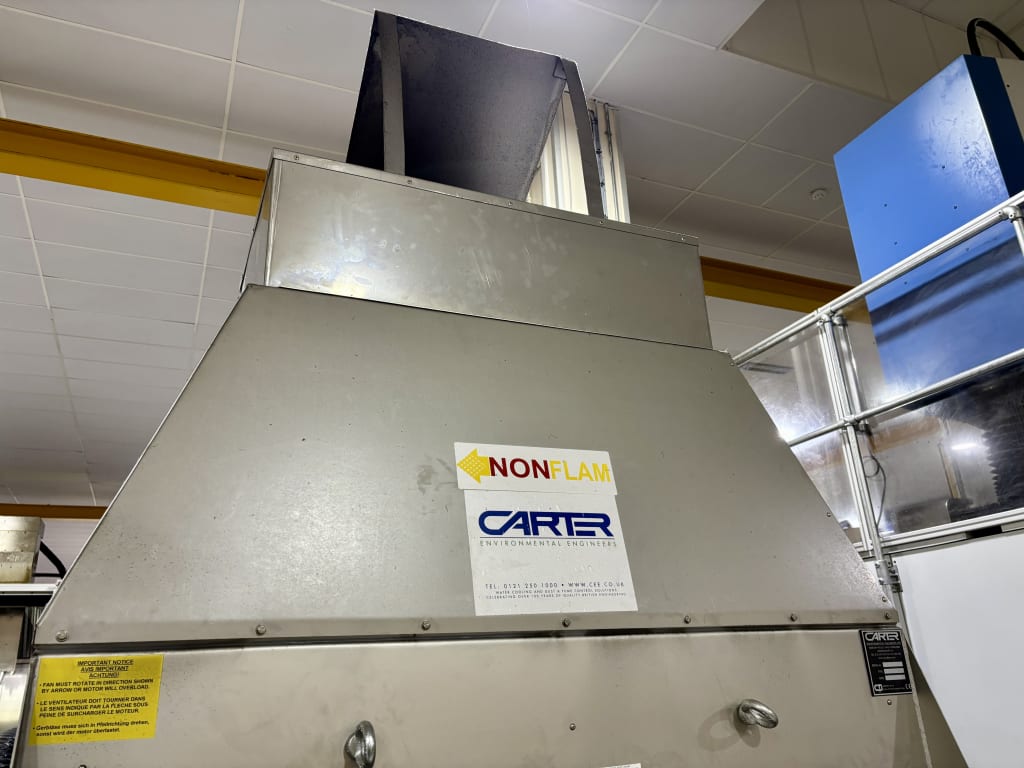

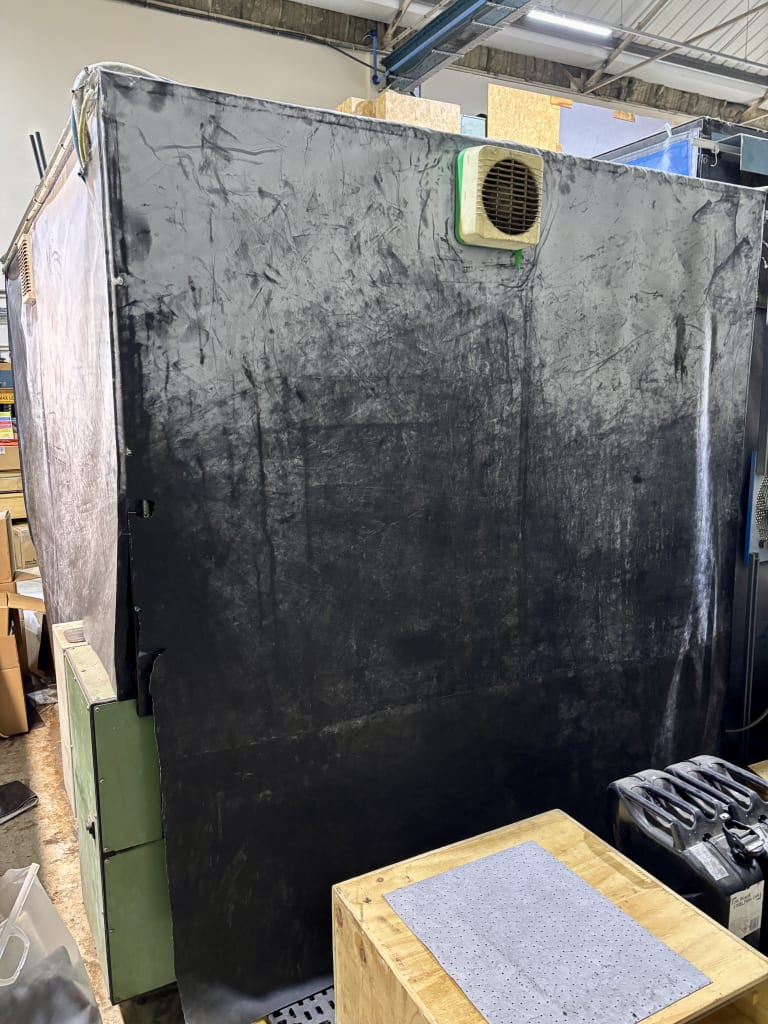

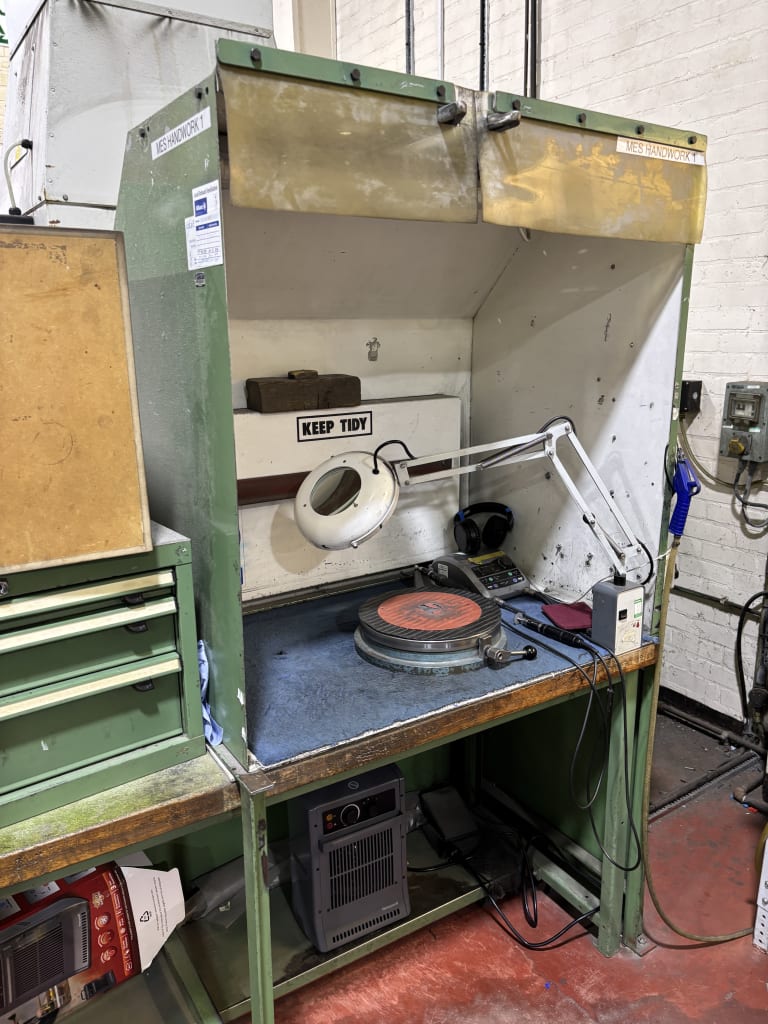

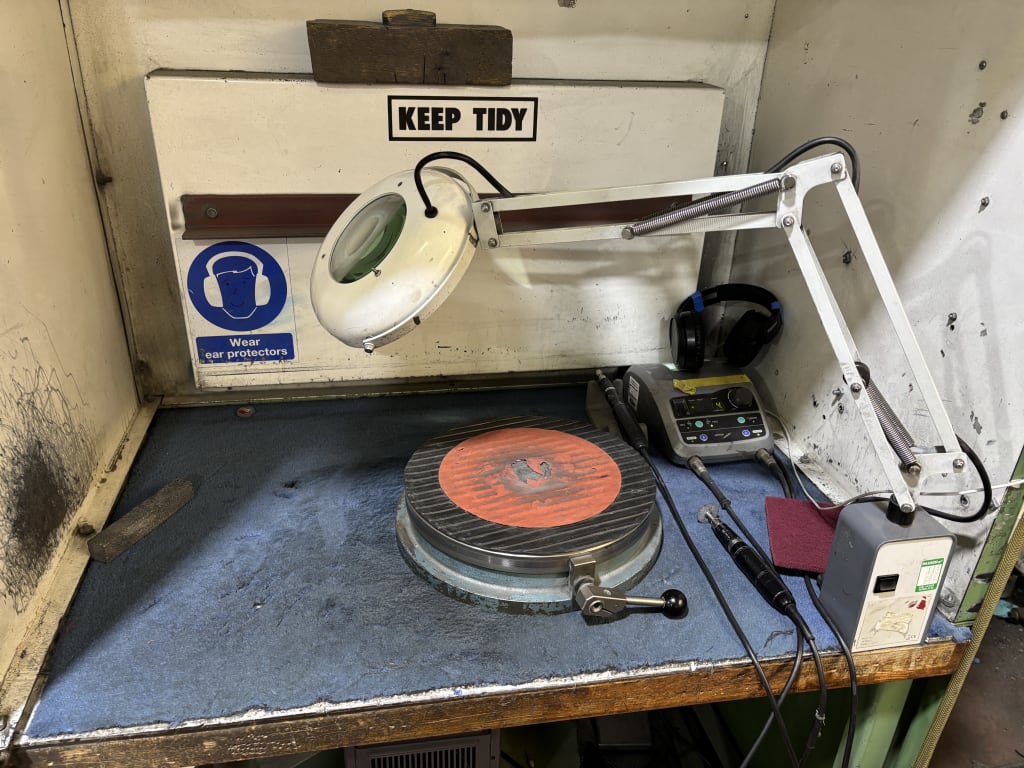

Fettling Booth With Carter Q185/11KW Fume Extraction Unit
Overall Booth Dimensions W1,510 x D1,190 x H2,060mm With Lighting, Mag Lamp & Fume Extraction Arm. Carter Overall Dimensions W1,500 x D1,270 x H2,900mm. S/No.17007 (2017). - LOT 16
![site]()

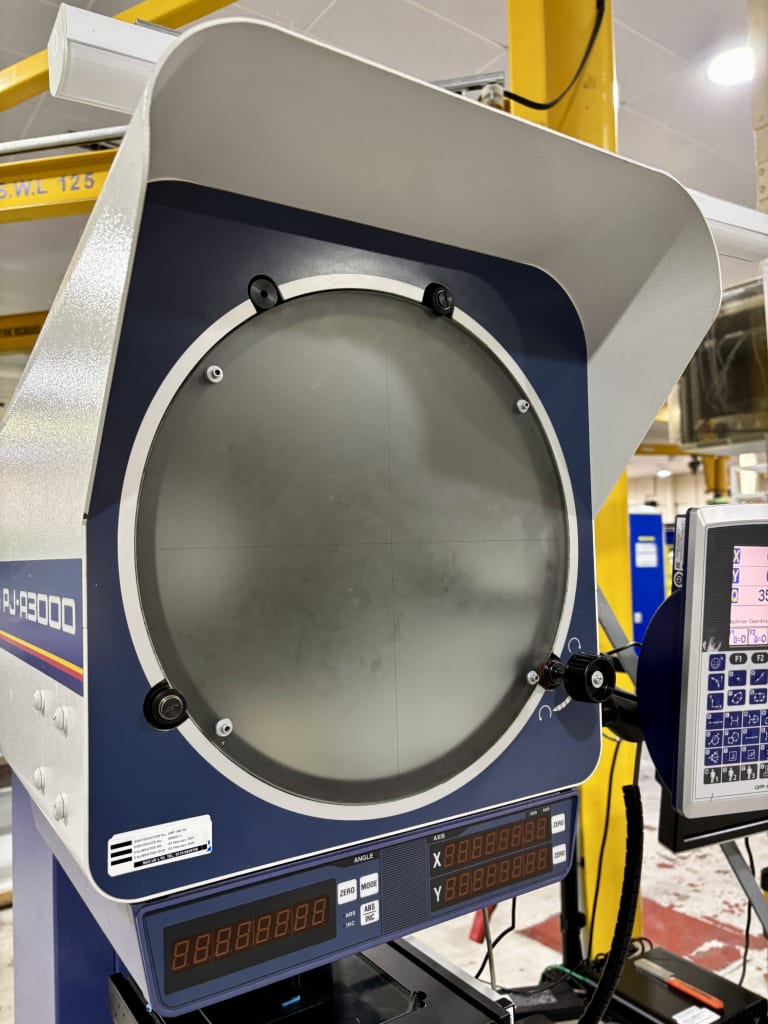

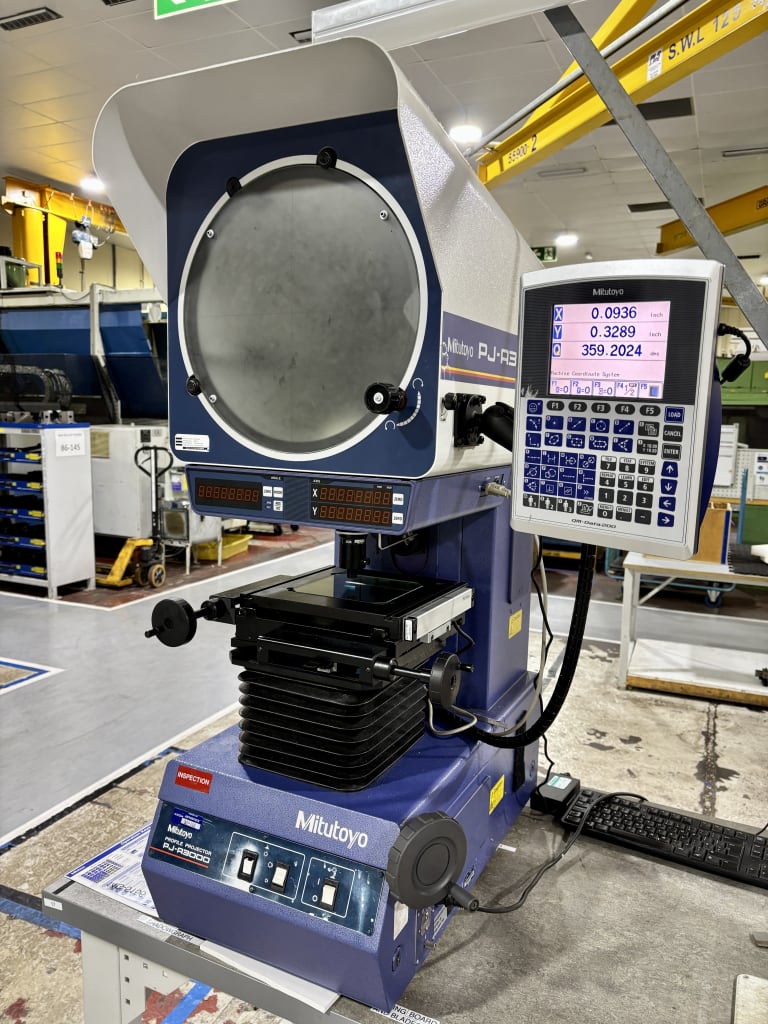

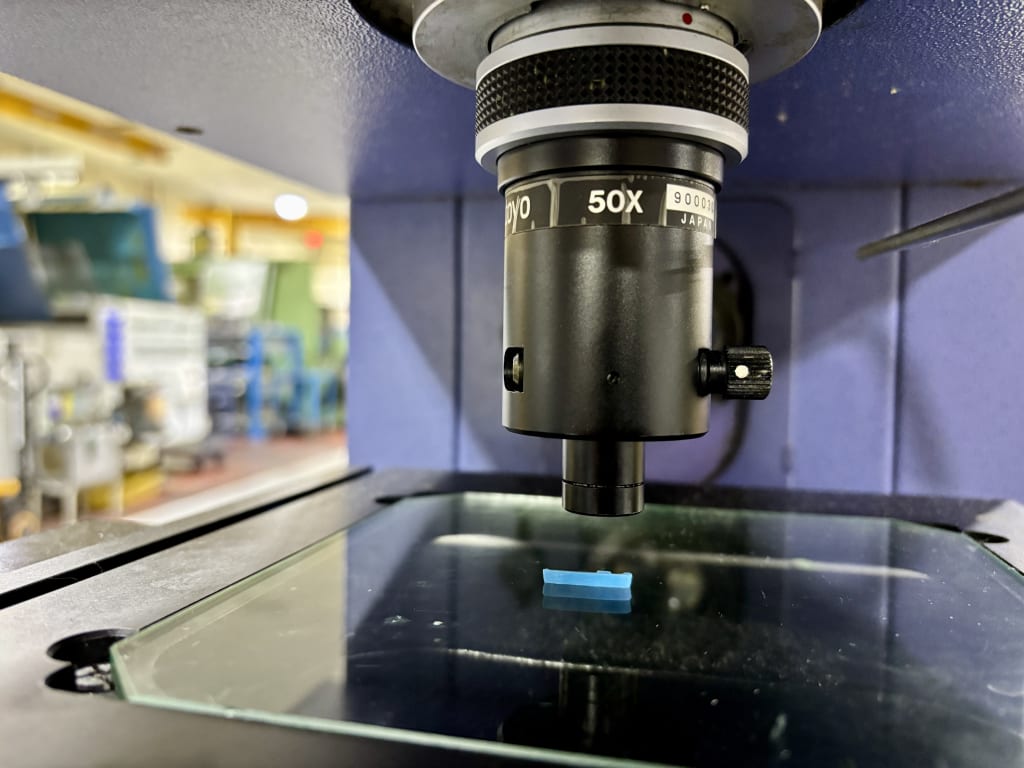

Mitutoyo PJ-A3000 Profile Projector Code 302-713E With Mitutoyo QM-Data 200 DRO
Resolution 0,001mm. Screen Ø315mm. 'XY' Stage Travel Range 50 x 50mm. 'XY' Stage Table Top Size 250 x 250mm. 'XY' Stage Effective Area 82 x 82mm. Maximum Stage Loading 10kg. With x20 & x50 Lenses. S/No. 590134. - LOT 18
![site]()

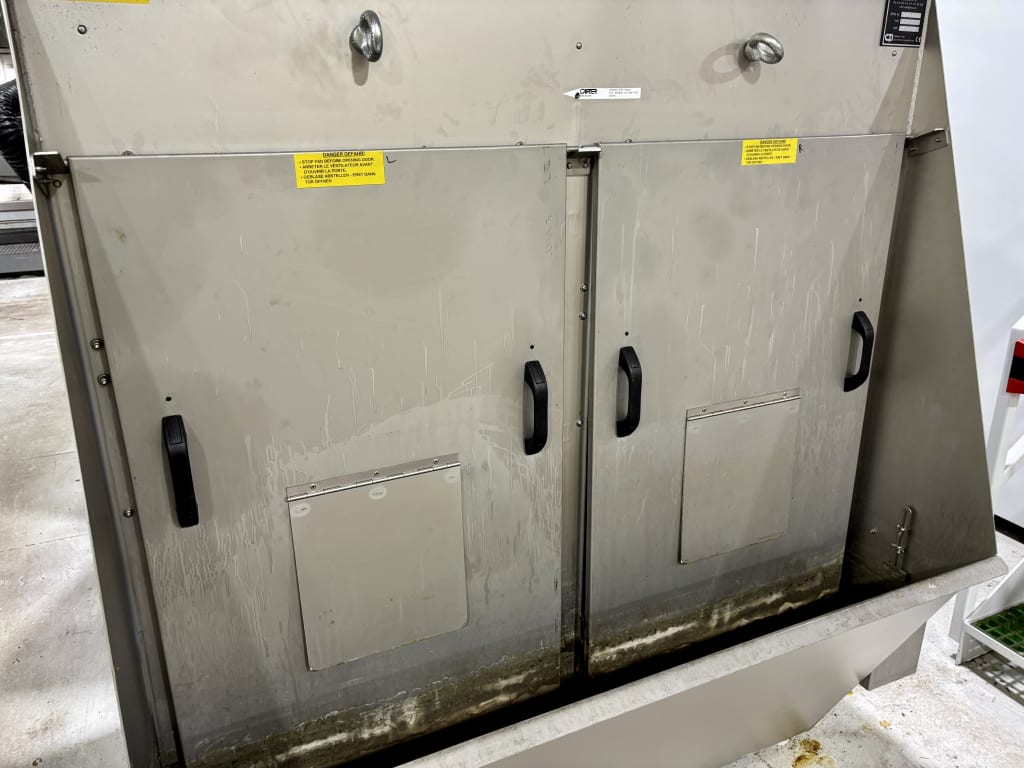

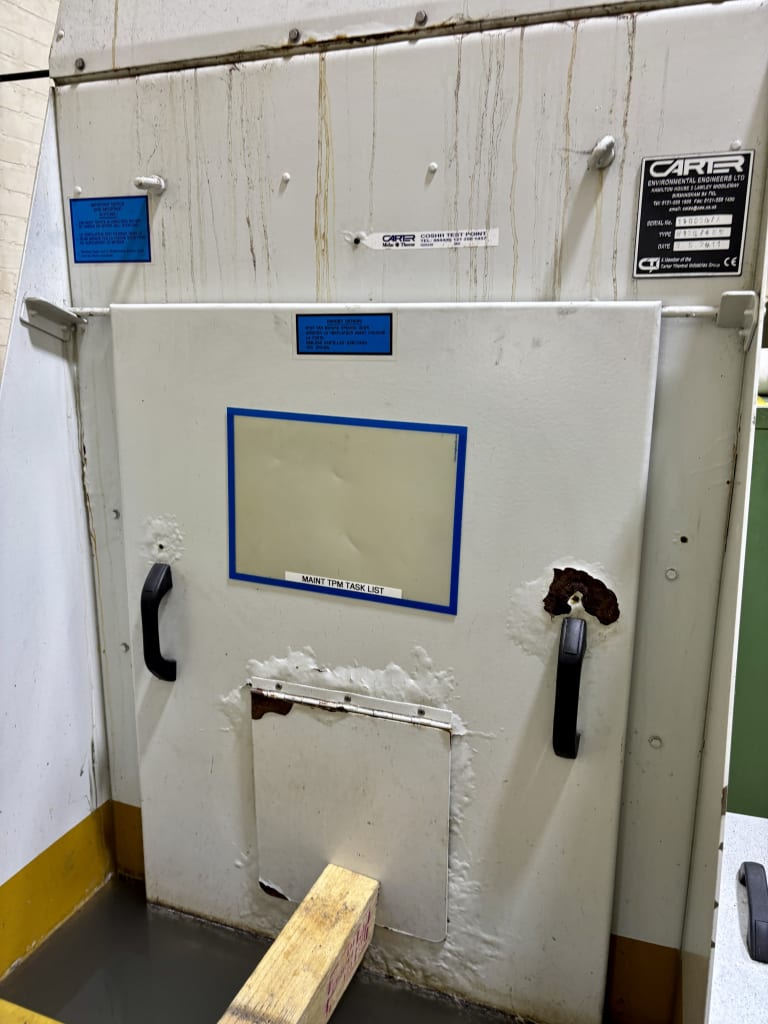

Carter W120/4kW Fume Extraction Unit With Fettling Booth
Carter Overall Dimensions W870 x D1,400 x H2,770mm. Booth Dimension W1,000 x D700 x H1,910mm. With Mag Light. - LOT 19
![site]()

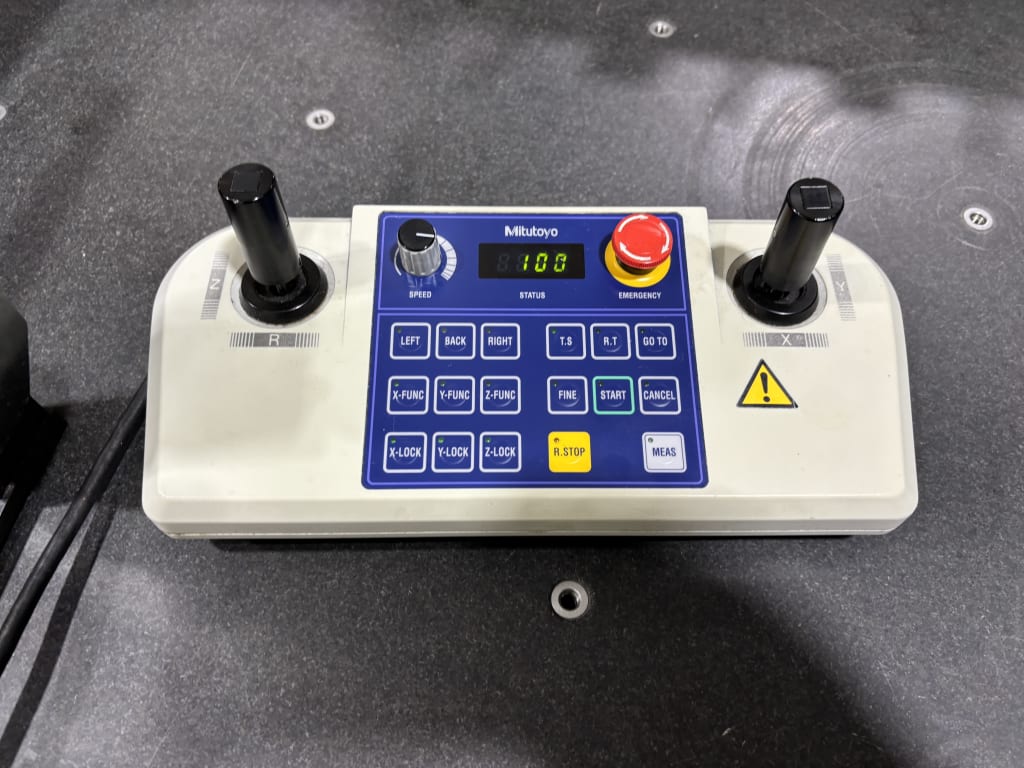

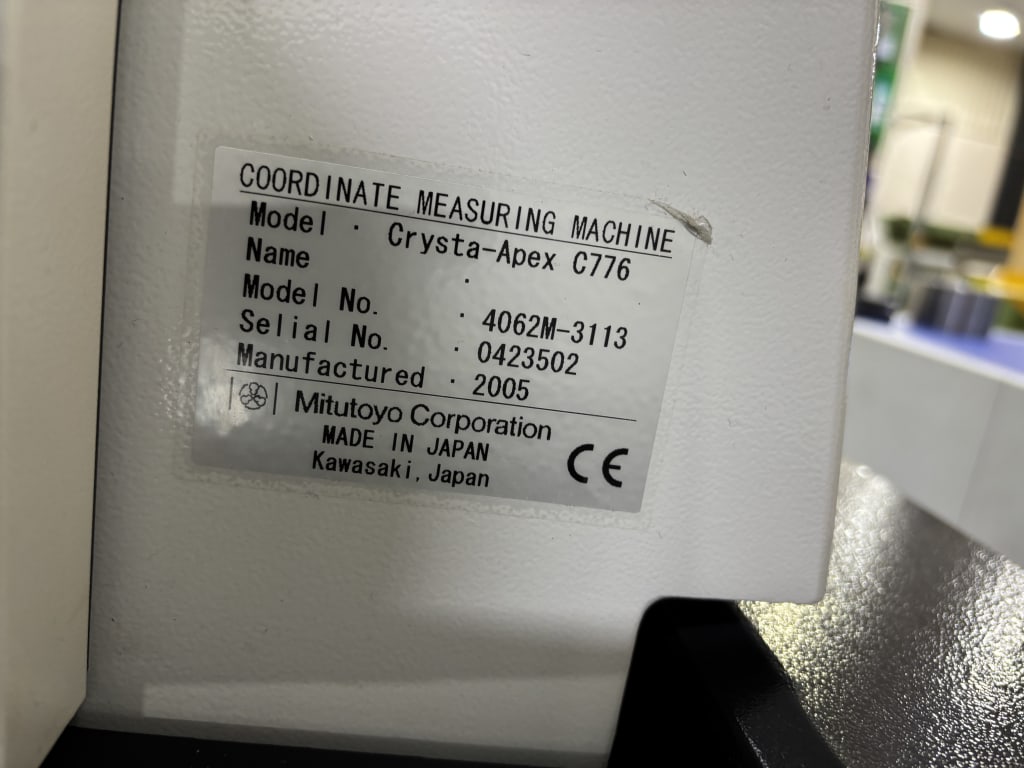

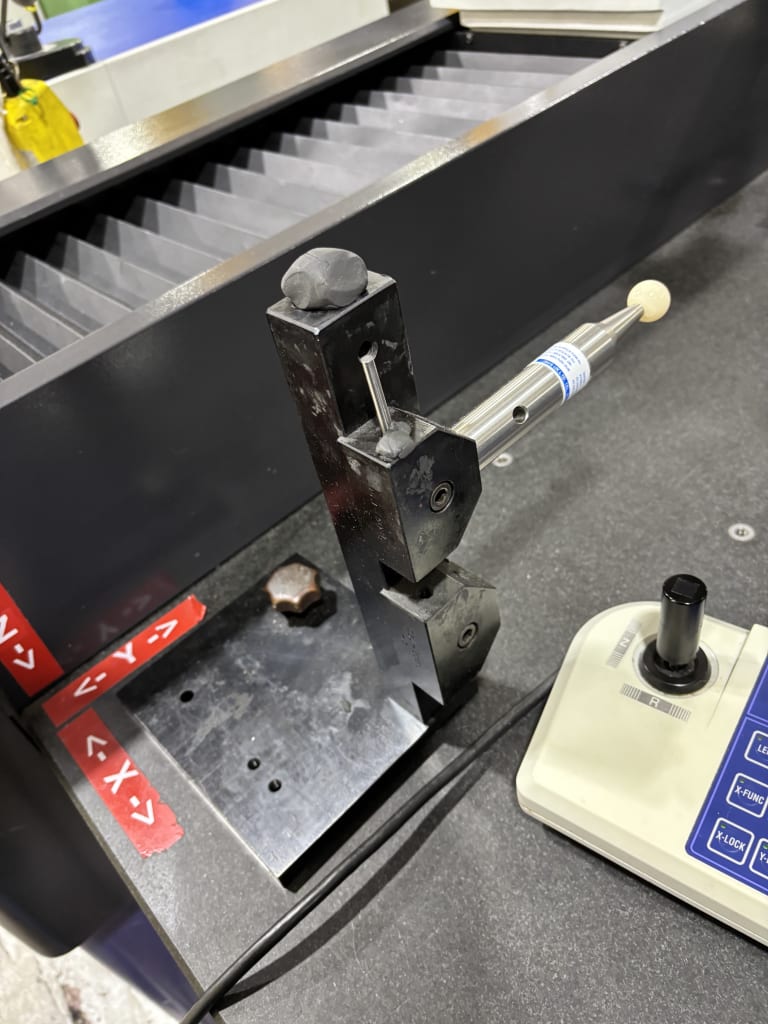

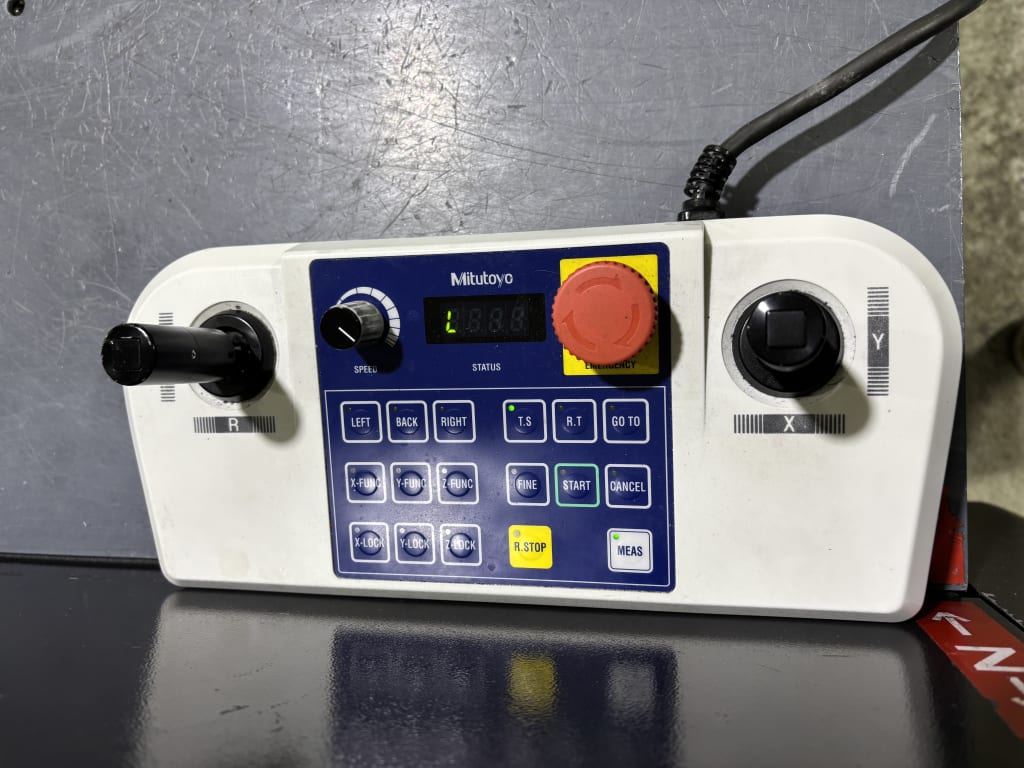

Mitutoyo Crysta- Apex C776 Co-Ordinate Measuring Machine (CMM)
Measuring Range 'X'=700mm, 'Y'=700mm, 'Z'=600mm. Resolution 0.0001mm. CNC Mode Maximum Moving Speed 519mm/s, (3D) Maximum Measuring Speed 8mm/s, CNC Mode Maximum Moving Speed 239mm/s, (3D) Maximum Measuring Speed 8mm/s. Workpiece Maximum Height 800mm. Maximum Mass 800kg. With Renishaw SP80 Renscan Probe Head. S/No. 0423502 (2005). - LOT 25
![site]()
- LOT 27A
![site]()

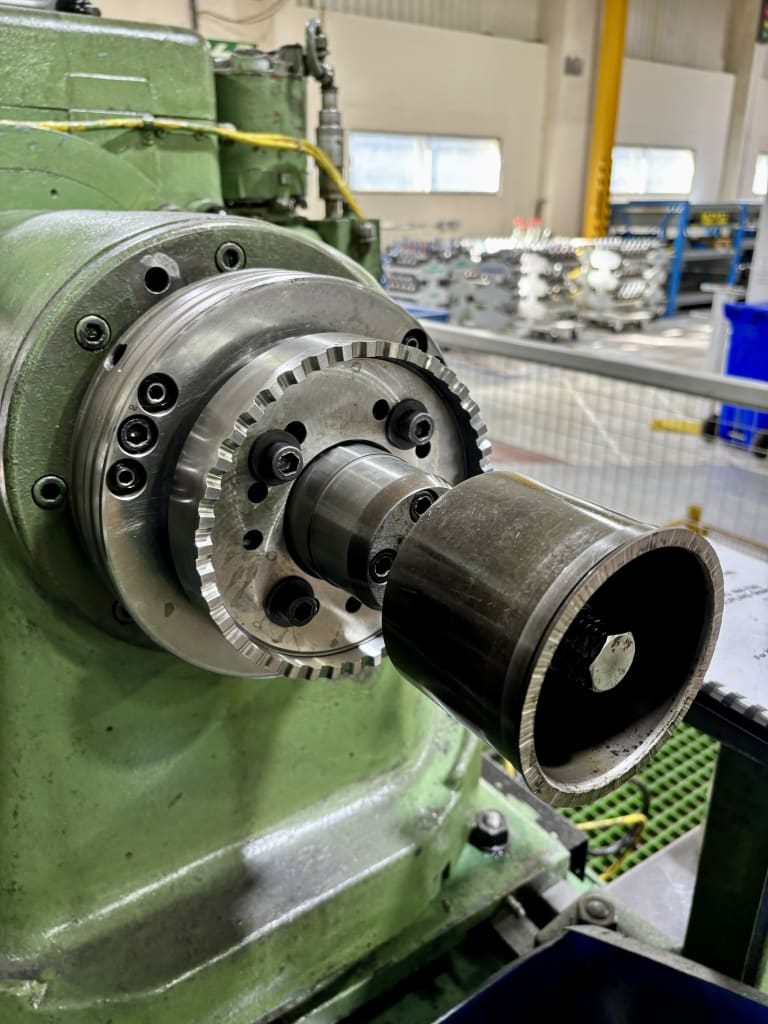

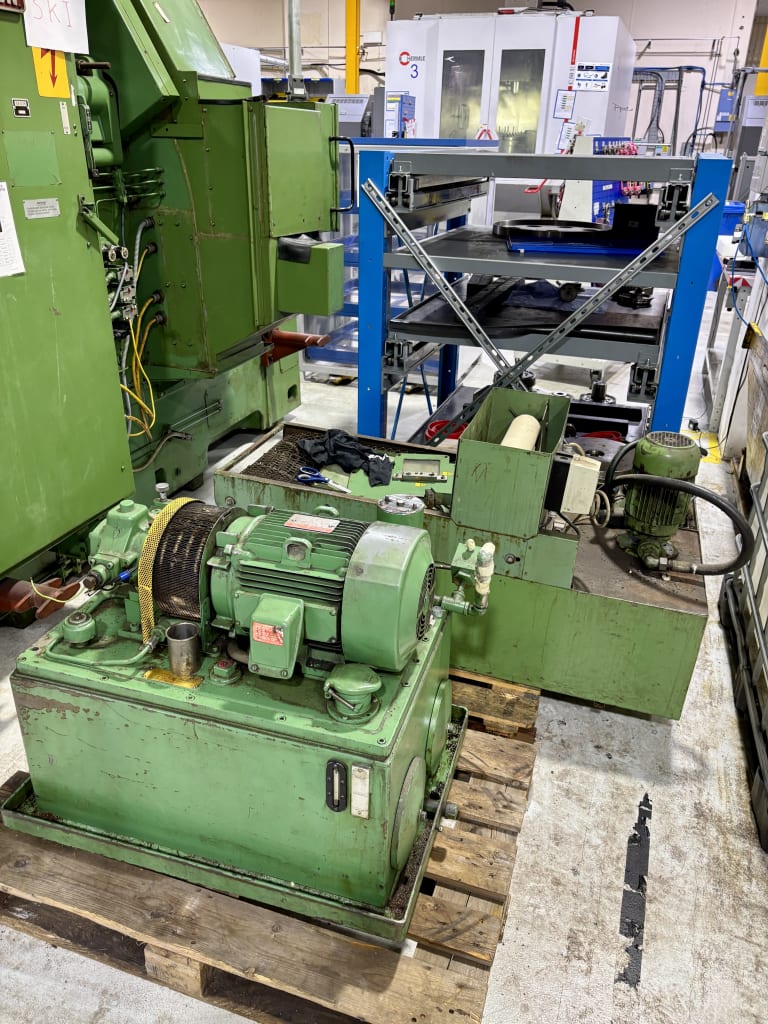

Gleason No. 120 Curvic Coupling Grinder
Note: Spares Or Repair, Machine Has Been Used As A Donor Machine For The Other Gleason No.120 Curvic Coupling Grinder. Max. Depth Of Tooth 10mm. Max. Workpiece (For Clearance) Ø 1,010mm. Max. External Of Coupling Ø610mm. Sliding Base Withdraw 216mm. Max. Distance From Grinding Wheel To Workpiece Nose 90–430mm. Max. Weight Of Workpiece, Including Clamp 500kg. No. Of Teeth 32 To 150. Grinding Wheel Approx Ø152-320mm. Grinding Wheel Speeds, Infinitely Variable 0–3,600rpm. Work Spindle Bore 60mm. S/No. 779805. - LOT 17
![site]()
Zoller SmarTcheck 450 Toolsetter Type S4R4C3-00074
Measuring Range 'Z'=450/600/800mm. Measuring Range 'X'=175mm (Ø350mm). Snap Gauge Ø35mm. Maximum Tool Weight 50kg. S/No. S4R4C3- 00074 (2015). - LOT 20
![site]()

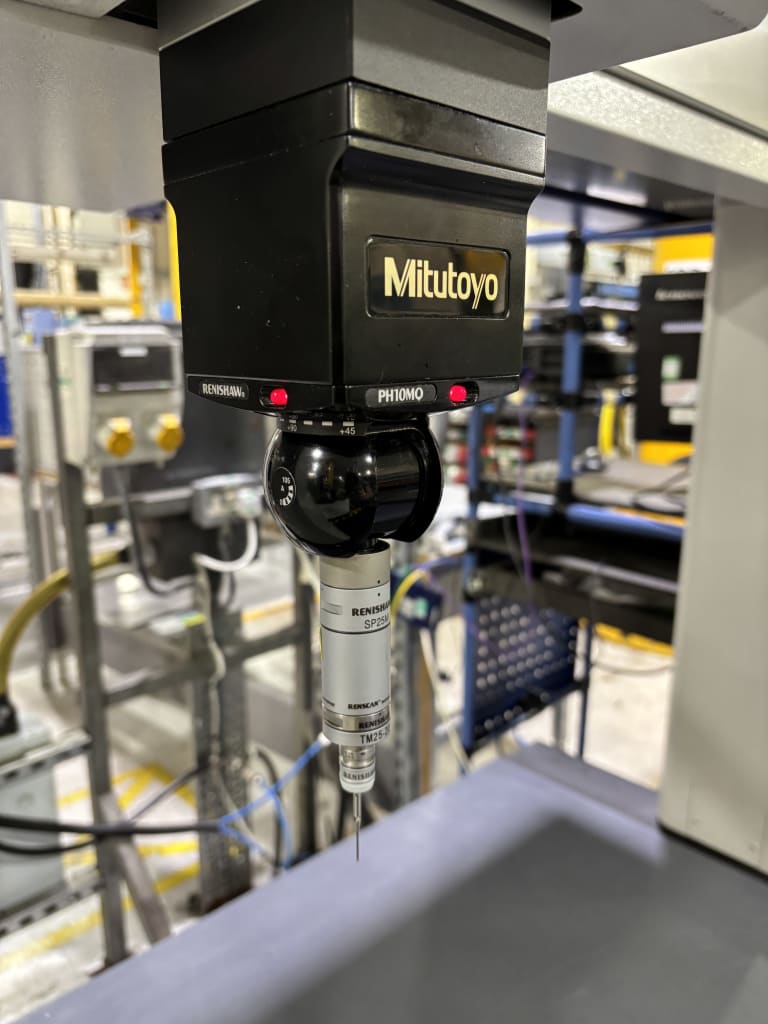

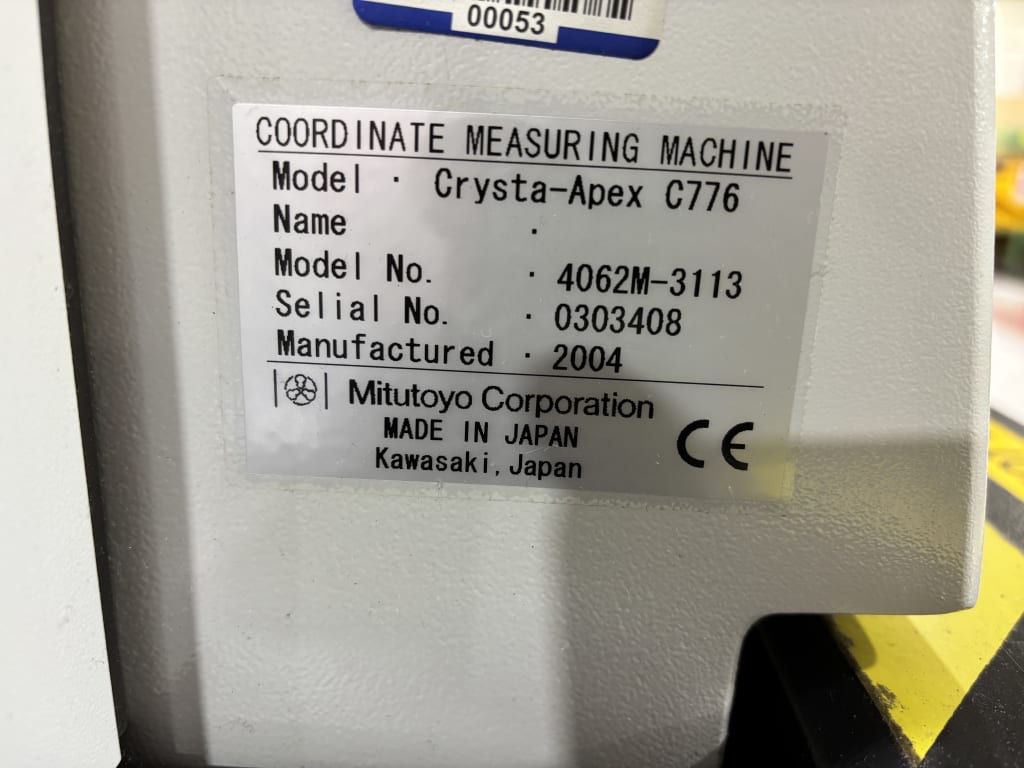

Mitutoyo Crysta- Apex C776 Co-Ordinate Measuring Machine (CMM)
Measuring Range 'X'=700mm, 'Y'=700mm, 'Z'=600mm. Resolution 0.0001mm. CNC Mode Maximum Moving Speed 519mm/s, (3D) Maximum Measuring Speed 8mm/s, CNC Mode Maximum Moving Speed 239mm/s, (3D) Maximum Measuring Speed 8mm/s. Workpiece Maximum Height 800mm. Maximum Mass 800kg. With Renishaw PH10QM Probe Head. S/No. 0303408 (2004). - LOT 21
![site]()
Turbex 1700T2 Top Loading Parts Wash Station
Ø940mm Rotary Table. Internal Dimension W1,140 x D1,140 x H600mm. - LOT 22
![site]()

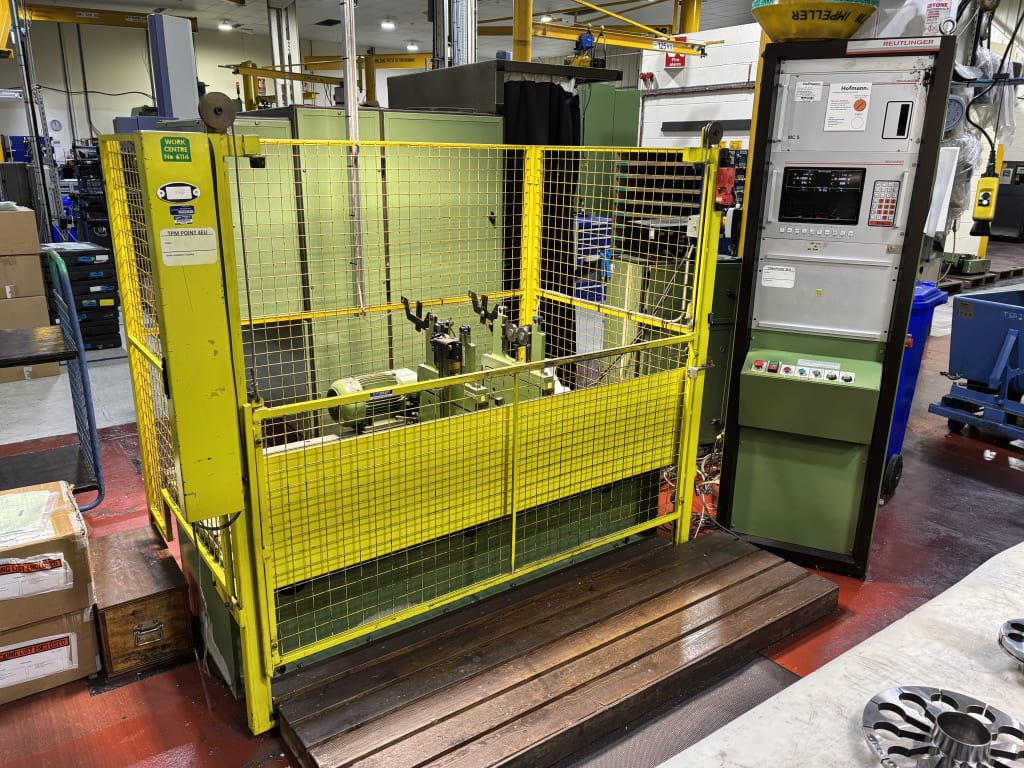

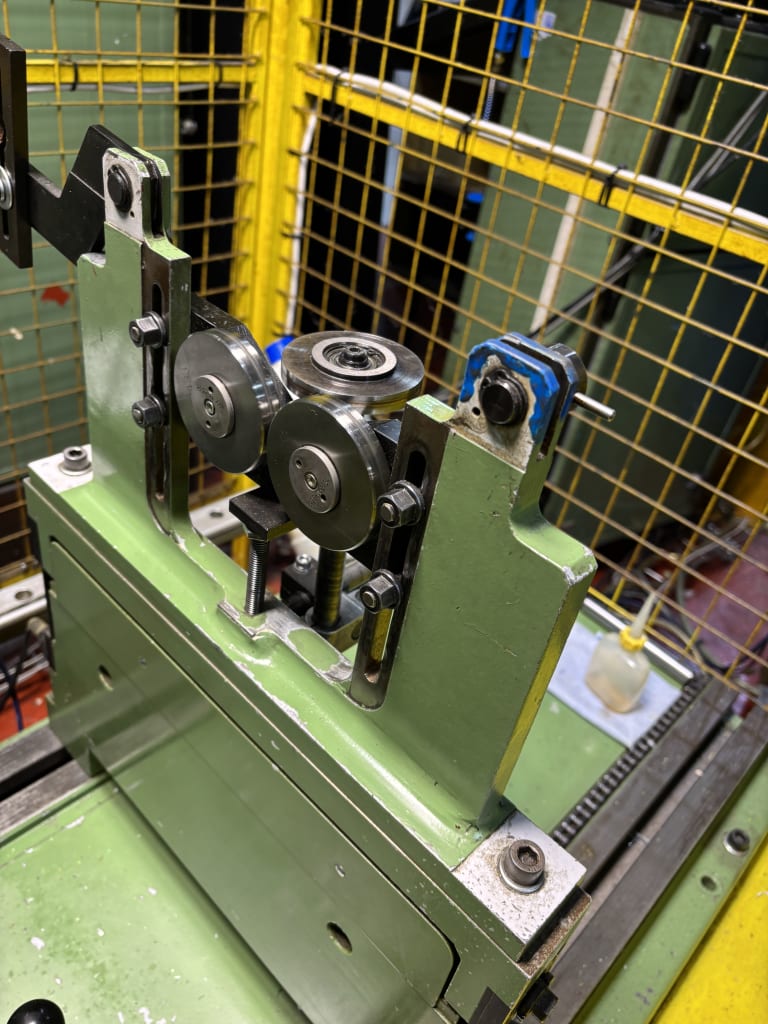

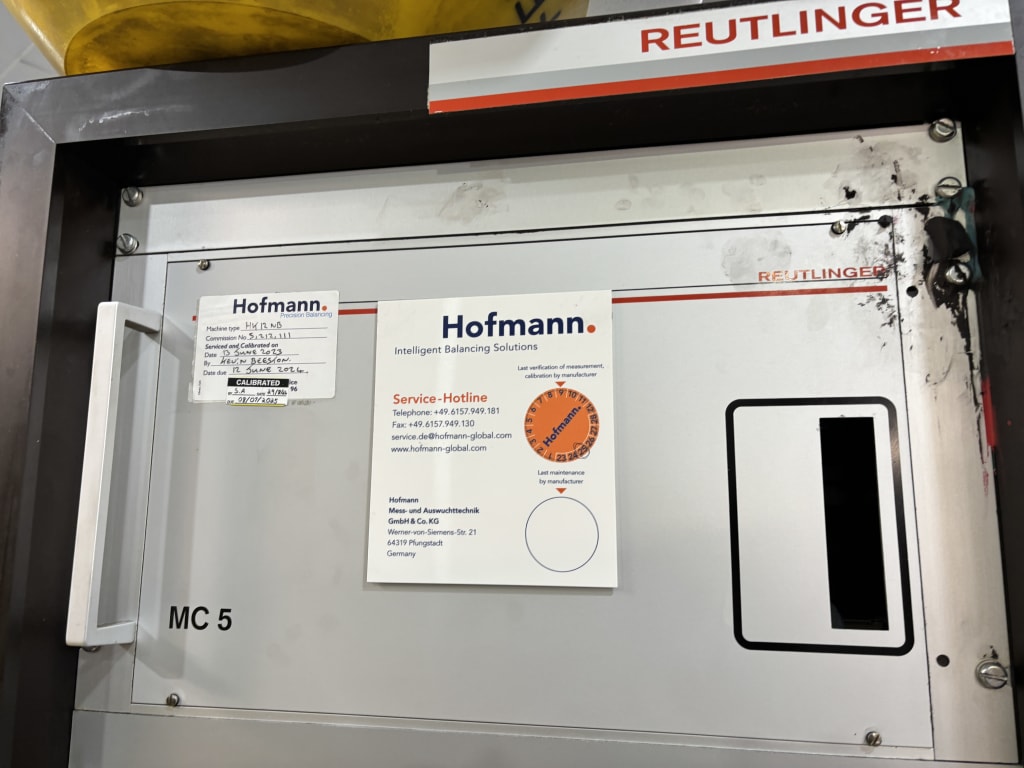

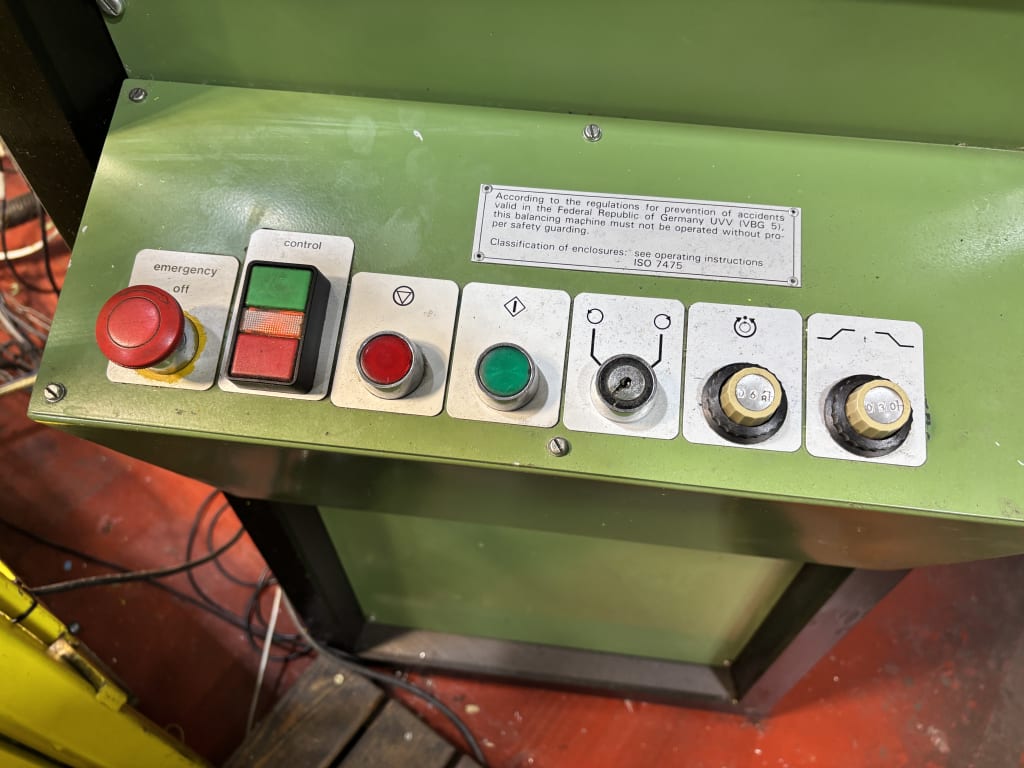

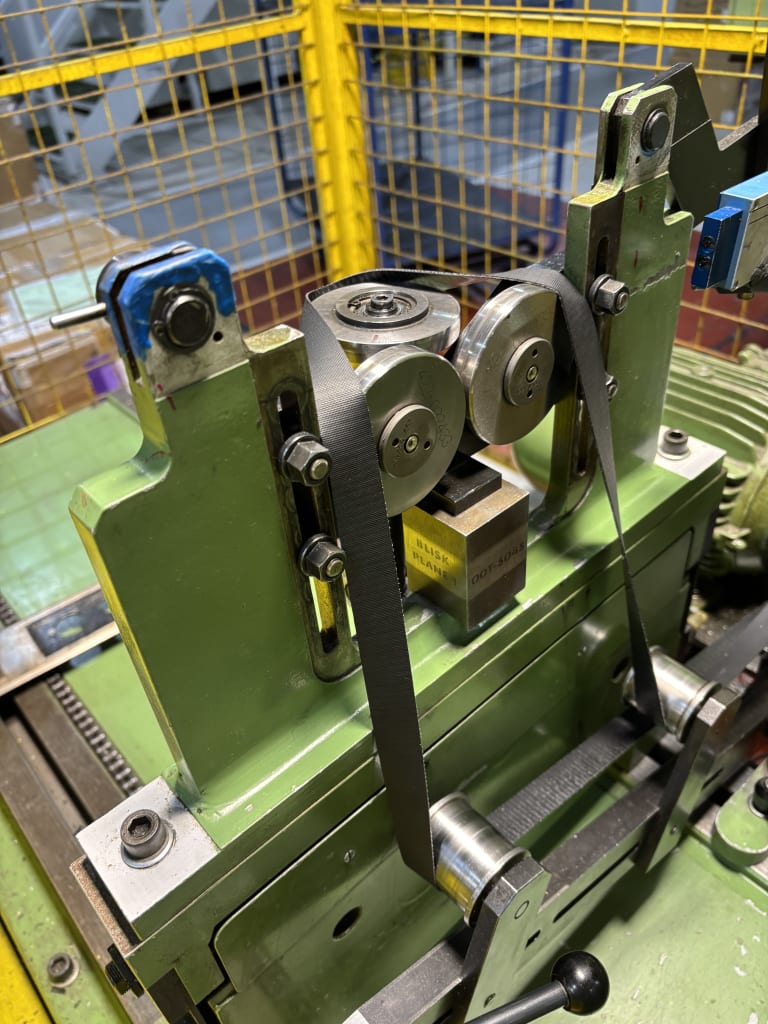

Reutlinger MCS Balancing Machine With Control
Bed Length 1,820mm. Centre Height 465mm. With Surround Guarding & 2 Roller Steadies. - LOT 23
![site]()

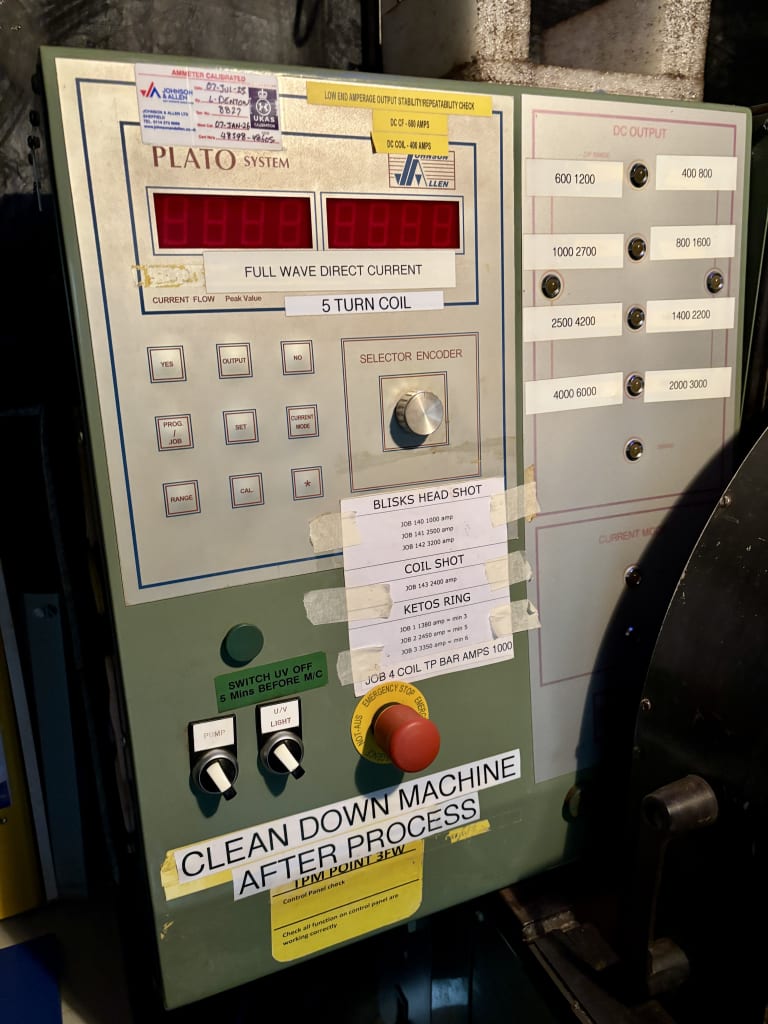

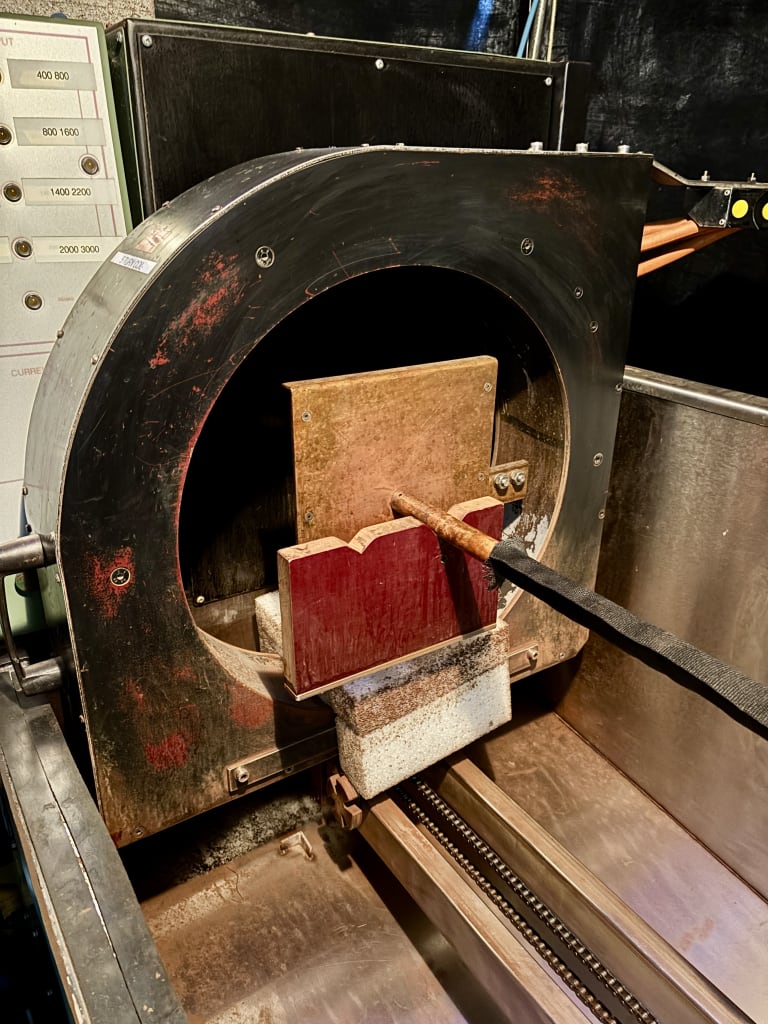

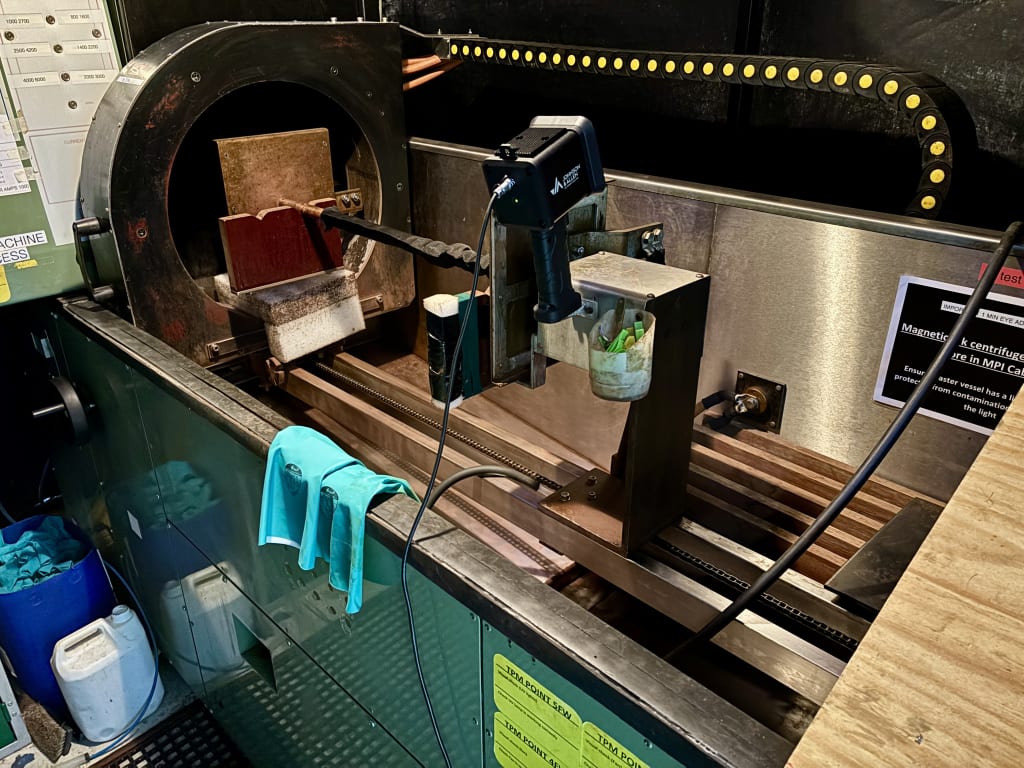

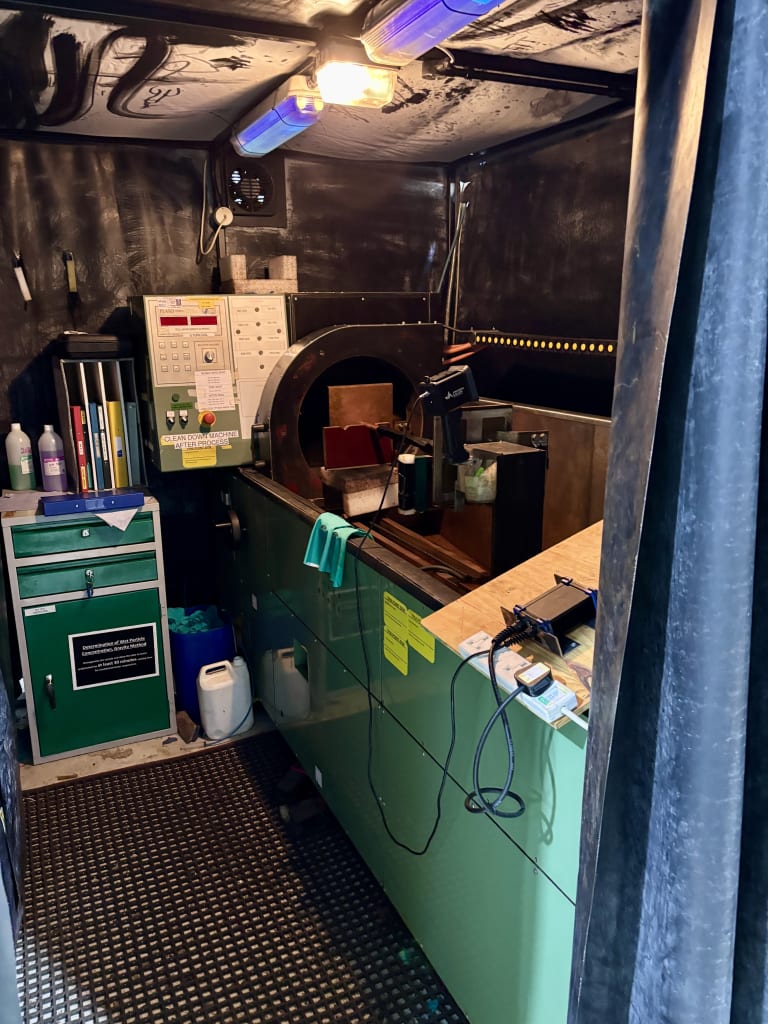

MPI Inspection Work Booth With Johnson & Allen Plato System MPI Unit
Bed Length 1,800mm. Swing Ø680mm. Overall Dimensions L2,640 x W2,130 x H2,200mm. With Extraction Fans. - LOT 24
![site]()

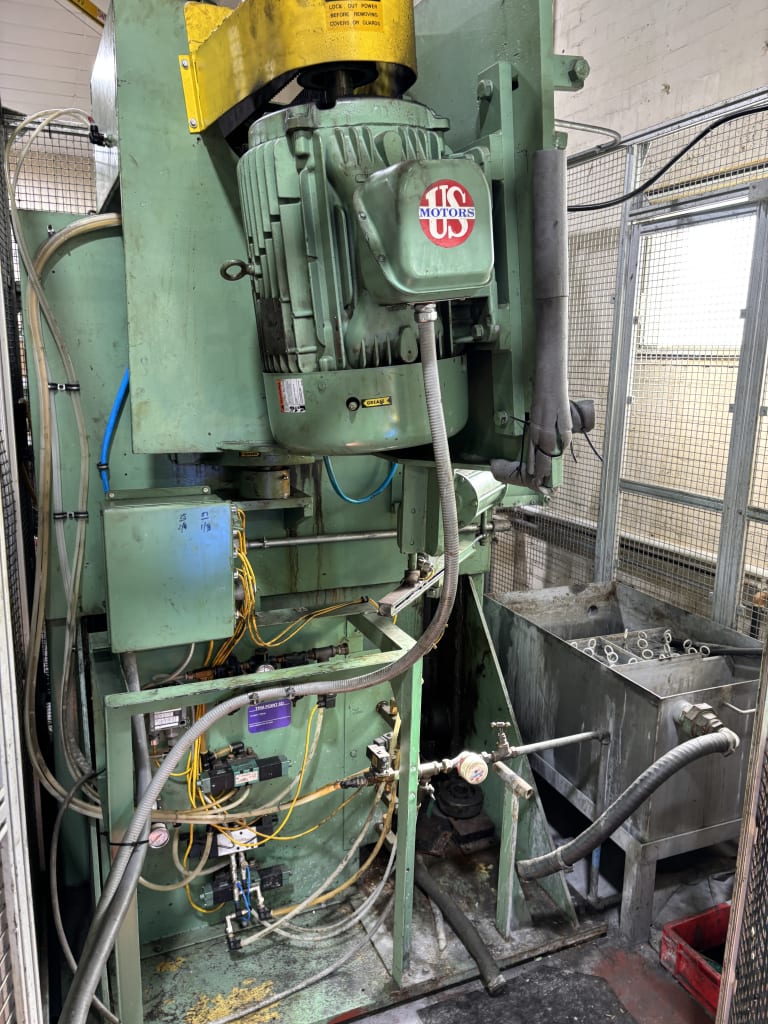

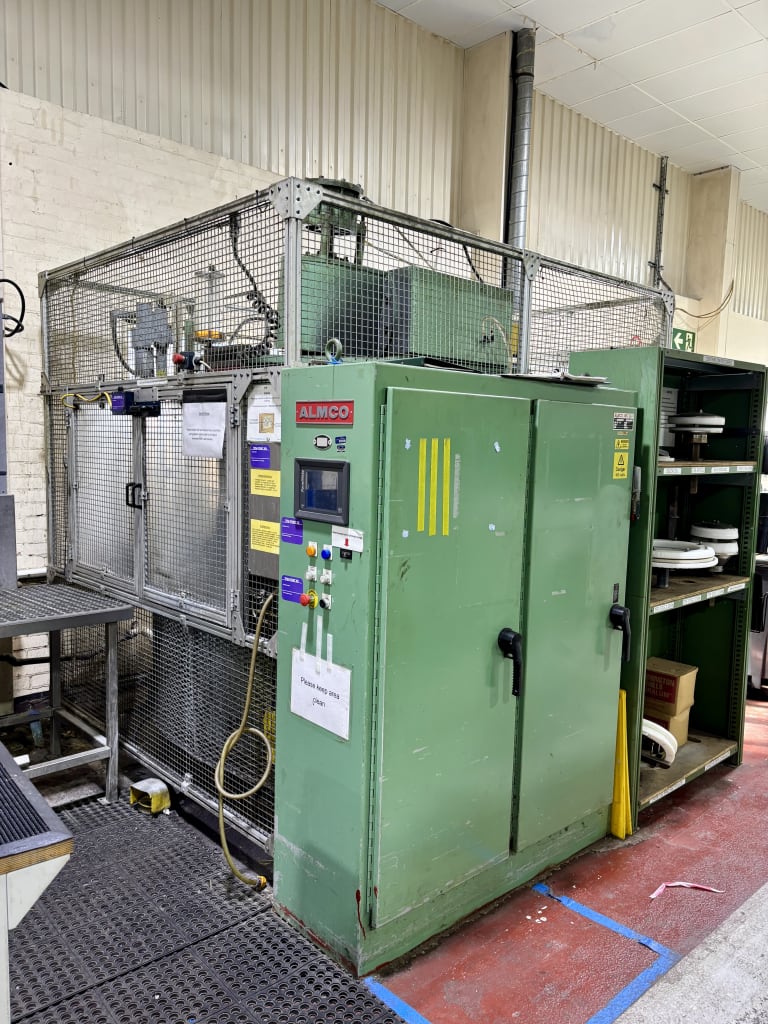

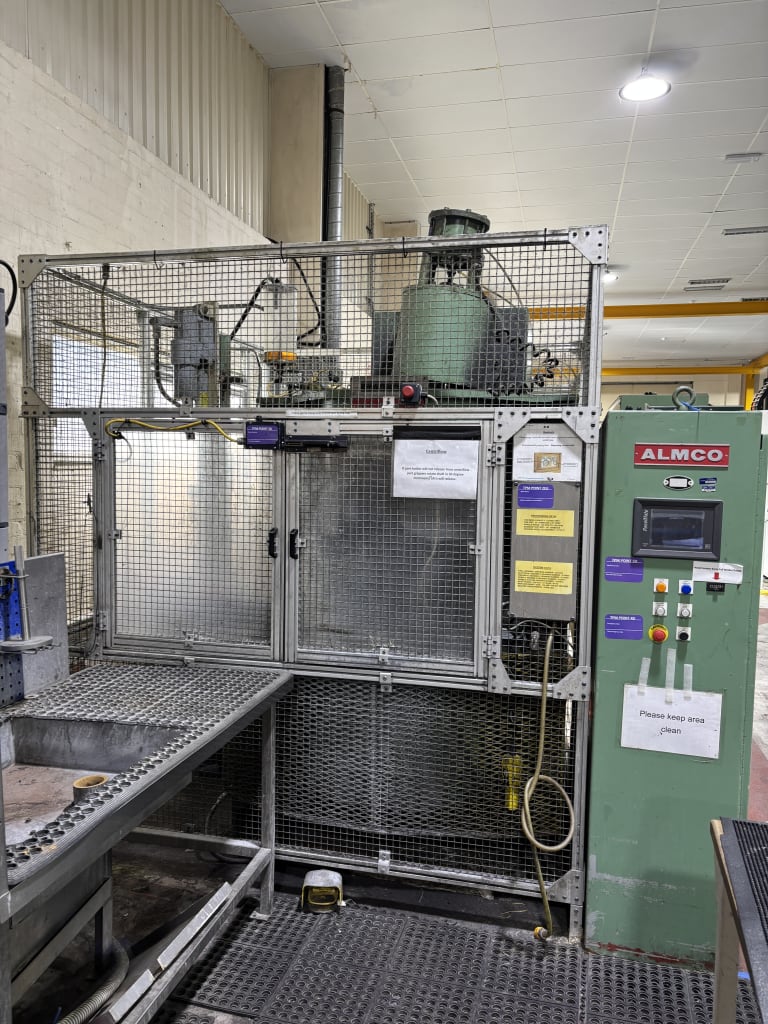

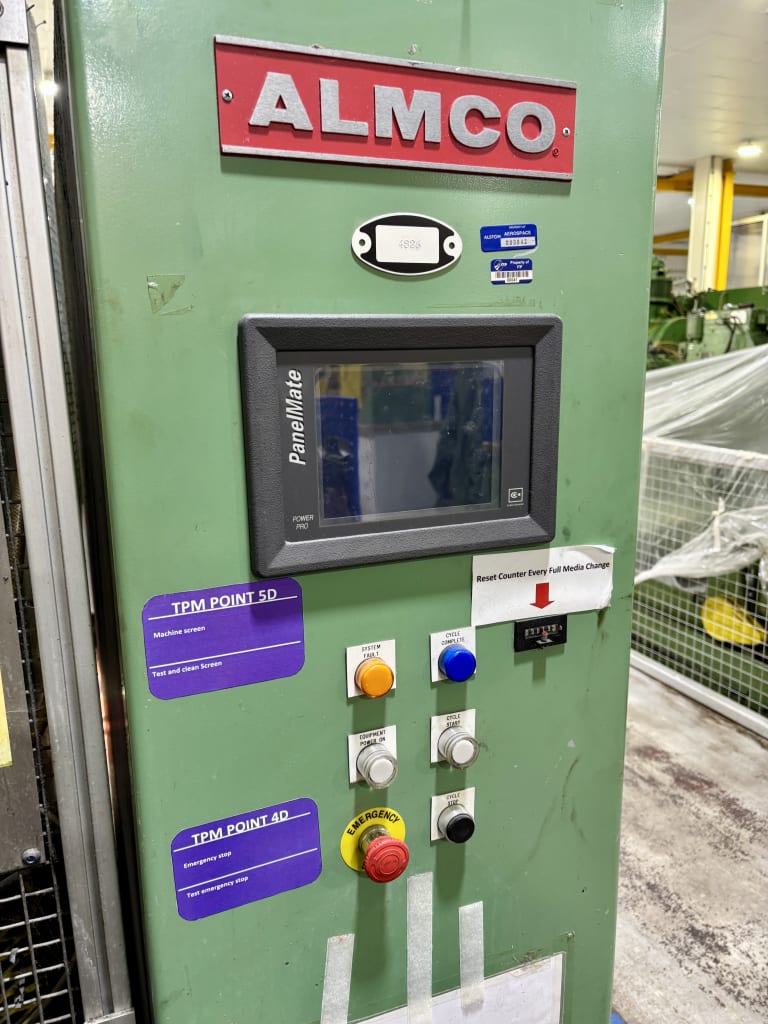

Almco CTF-2000-1 Spindle Finishing Machine With Cutler Hammer Panelmate Power Pro control
Drum Ø750 x 630mm Deep. Maximum Spindle Speed Range 150-1,400rpm (30 HP Motor). With Coolant System. S/No. 25-175 - LOT 26
![site]()

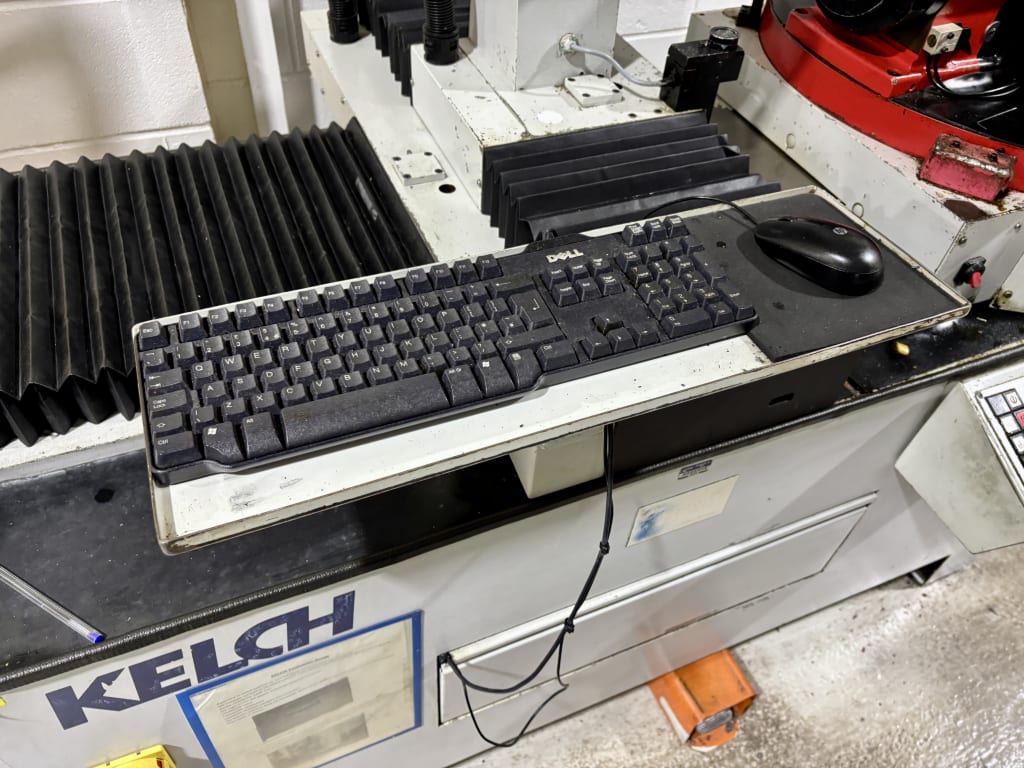

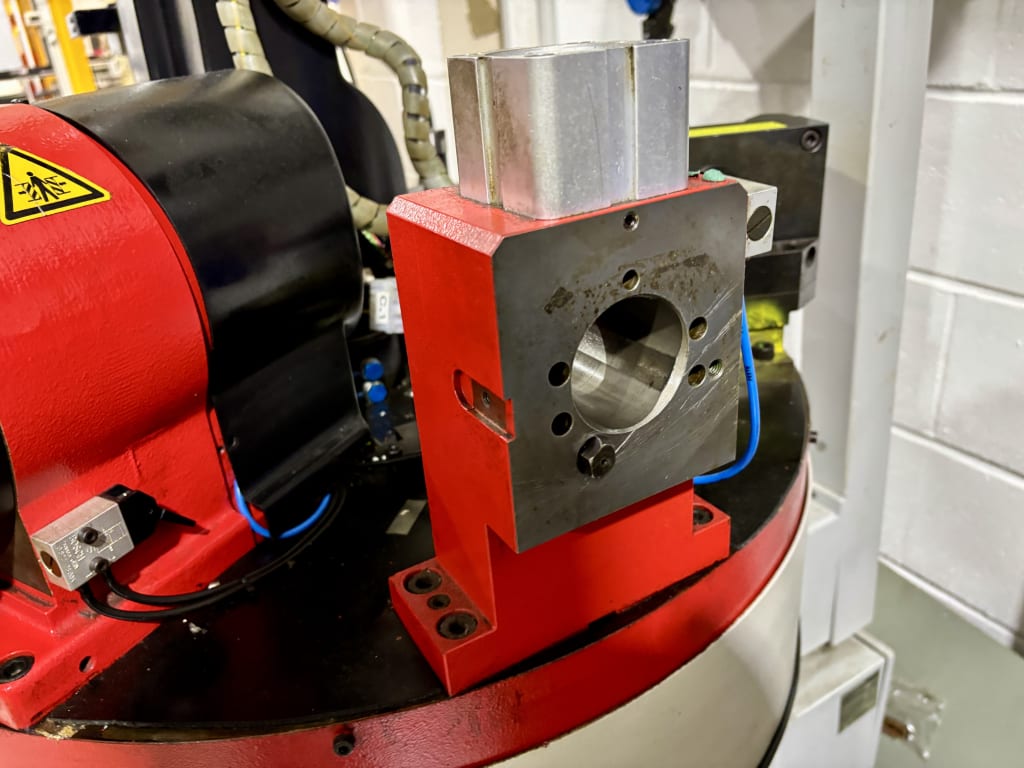

Kelch Antreibsbox Toolsetter
Ø200mm Rotary Table. Centre Height 150mm. With Monitor, Keyboard & Dymo Label Printer. S/No. 30090 (2007). - LOT 27
![site]()

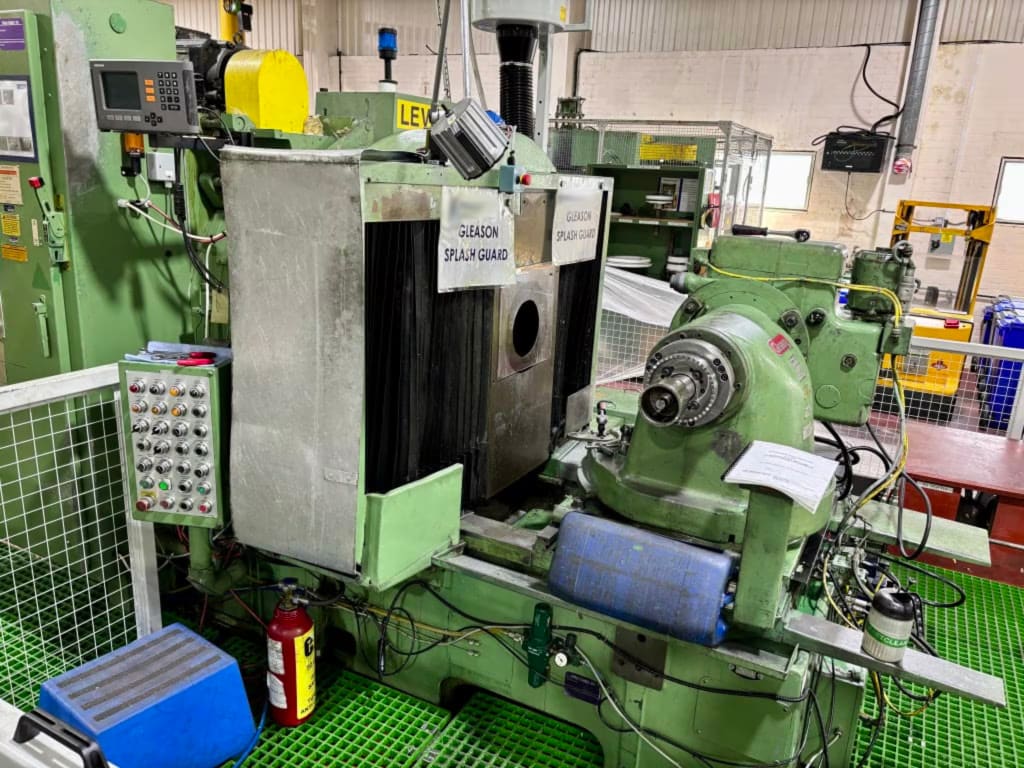

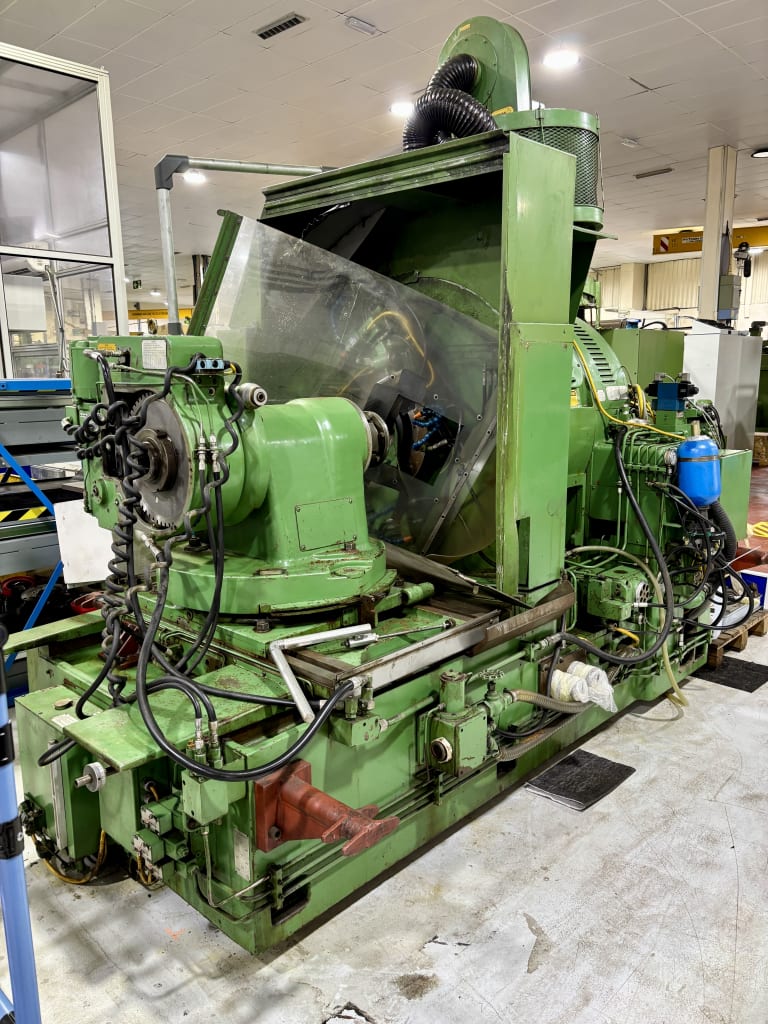

Gleason No.120 Curvic Coupling Grinder With Mitutoyo 3 Axis DRO
Max. Depth Of Tooth 10mm. Max. Workpiece (For Clearance) Ø 1,010mm. Max. External Of Coupling Ø610mm. Sliding Base Withdraw 216mm. Max. Distance From Grinding Wheel To Workpiece Nose 90–430mm. Max. Weight Of Workpiece, Including Clamp 500kg. No. Of Teeth 32 To 150. Grinding Wheel Approx Ø152-320mm. Grinding Wheel Speeds, Infinitely Variable 0–3,600rpm. Work Spindle Bore 60mm. S/No. 779805. - LOT 28
![site]()

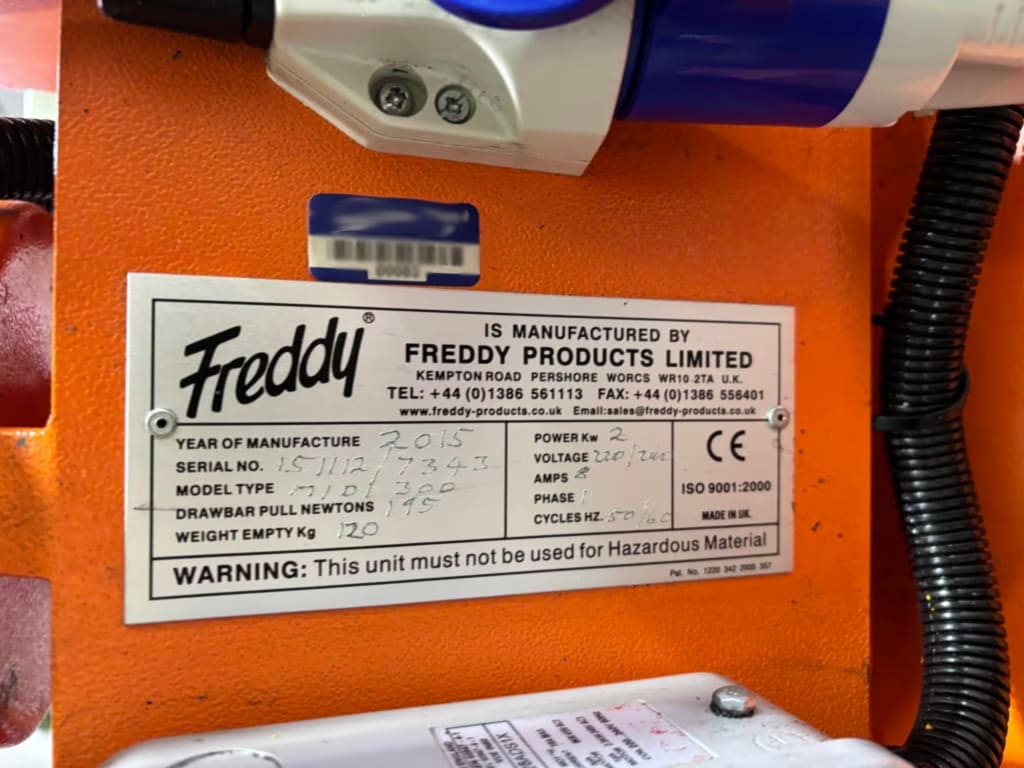

Freddy 1710/300 Wet & Dry Mobile Industrial Vacuum Cleaner
Drawbar Pull 195N. Empty Weight 120kg. Power 2kW. Voltage 240V. S/No. 15112/7343 (2015).
