2019 CMZ TX66 Y2 Twin‑Turret, Y‑Axis Lathe with FANUC 31i Model B CNC Control & Hydrafeed MSV 65 Bar Feed

Starts: 22 April 2026 at 09:00 BST
Ends: 10 June 2026 at 15:00 BST
Surplus to requirements due to site relocation plans. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Register for auctionEssential Information
Share:
Showing 1 of 1 lots
  • 0-1
    site
    LOT 1

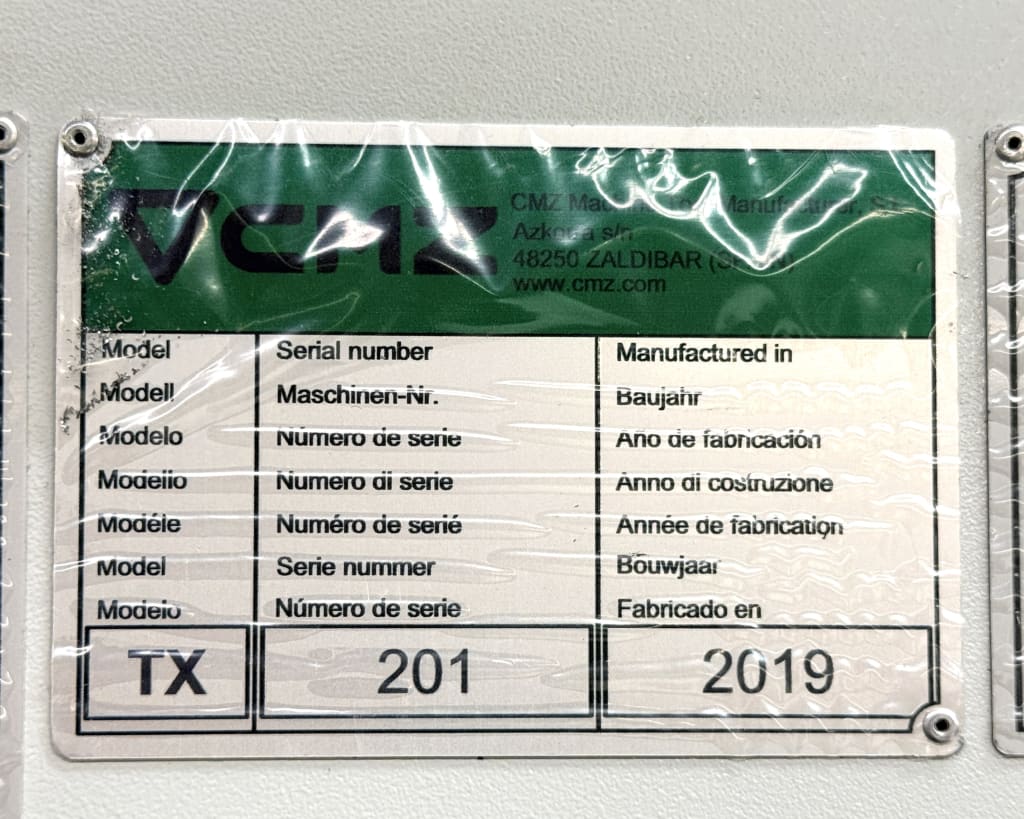

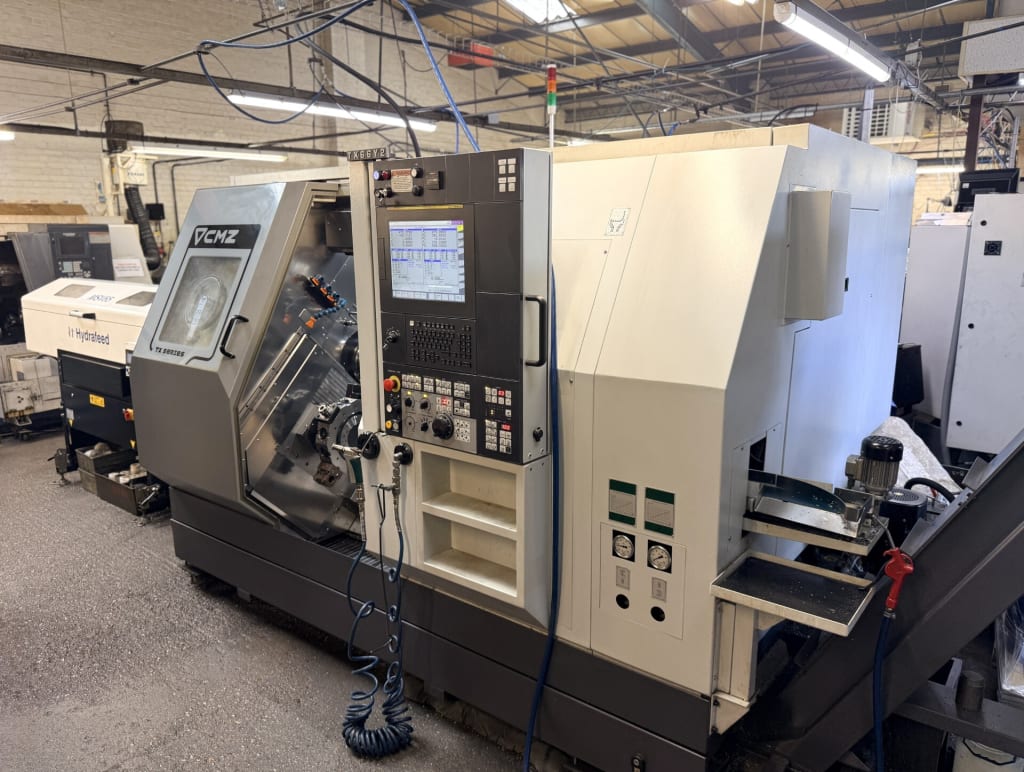

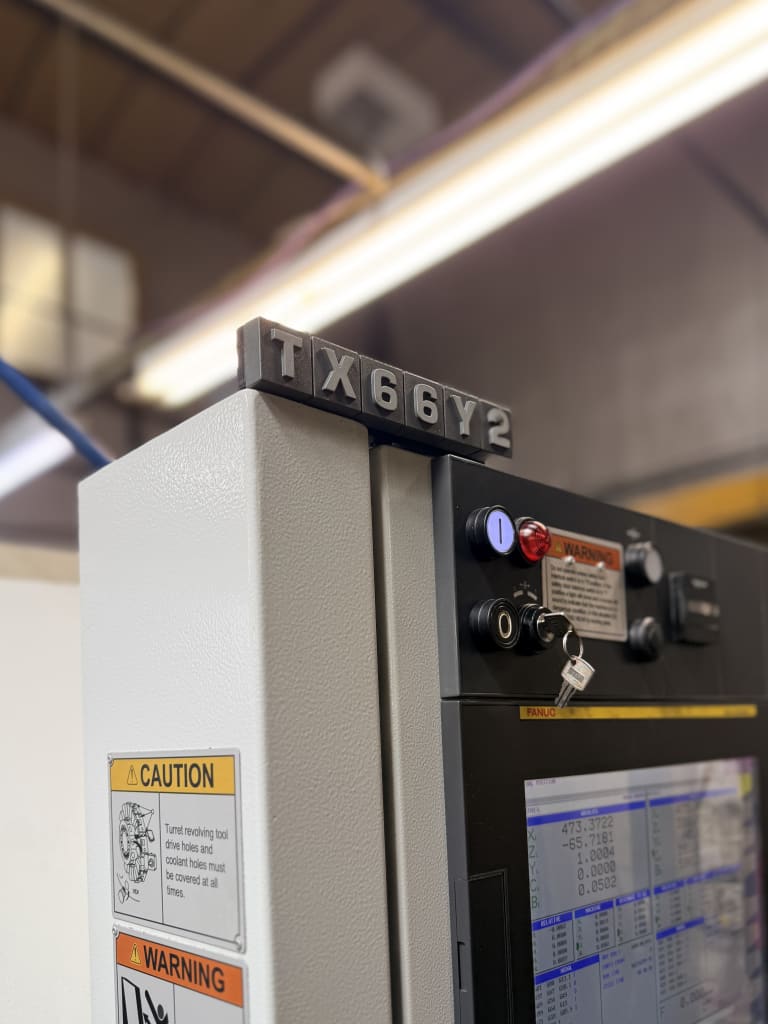

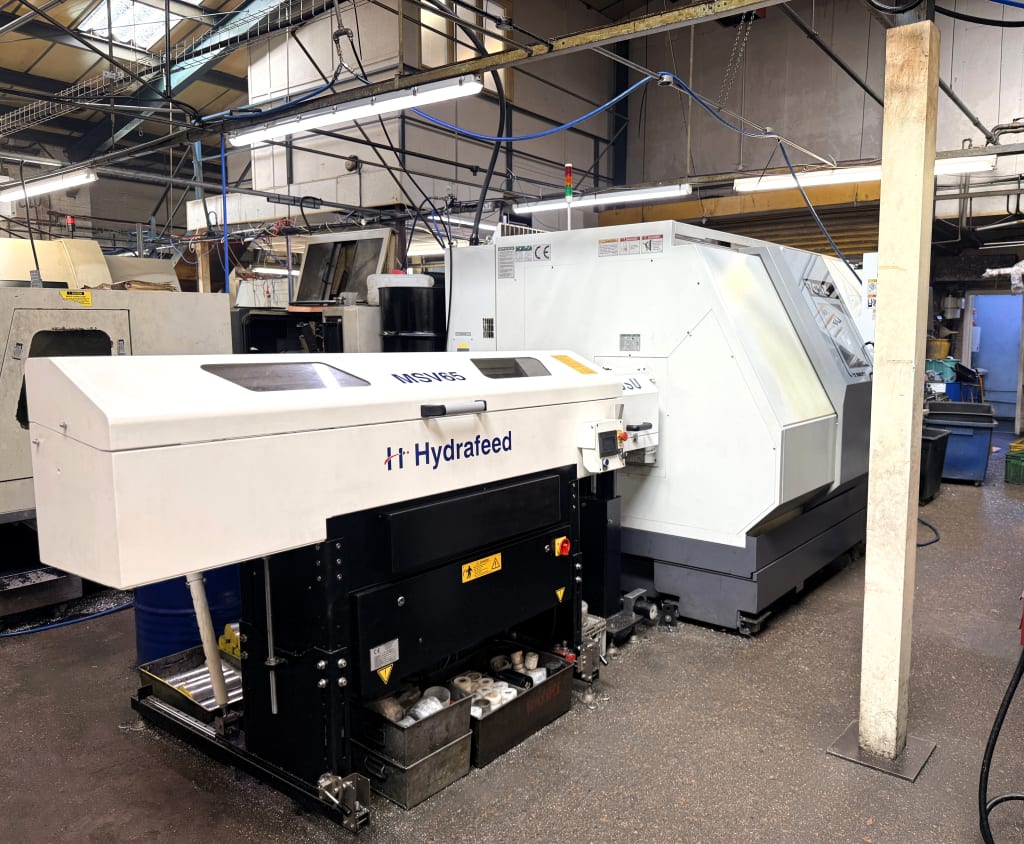

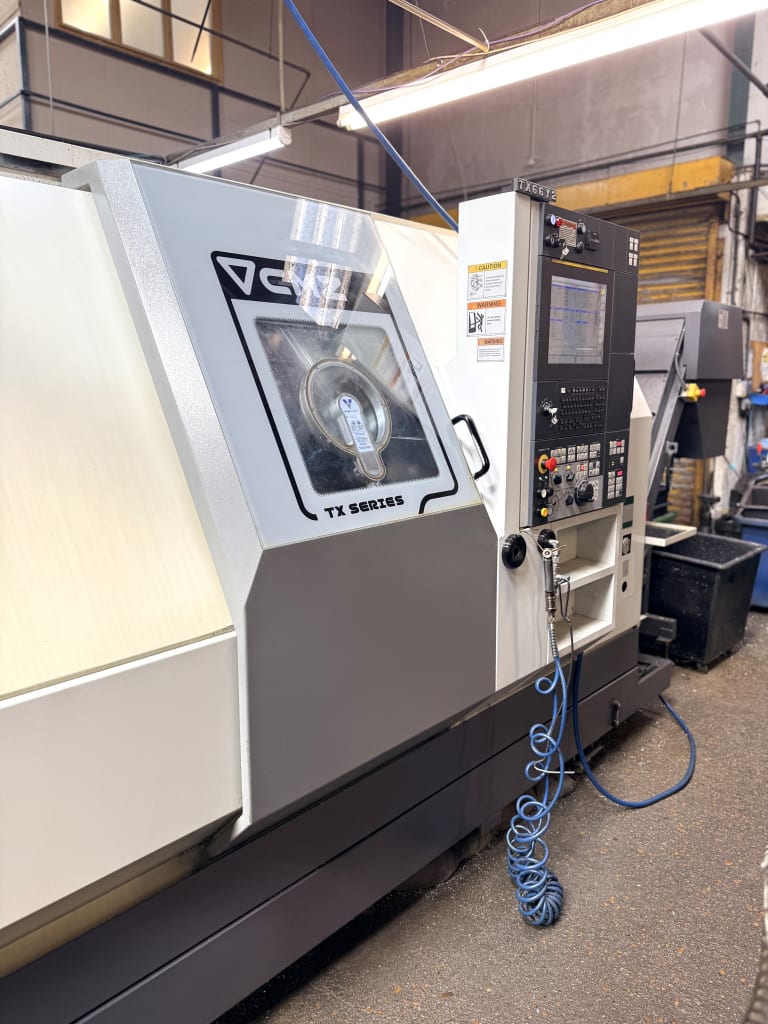

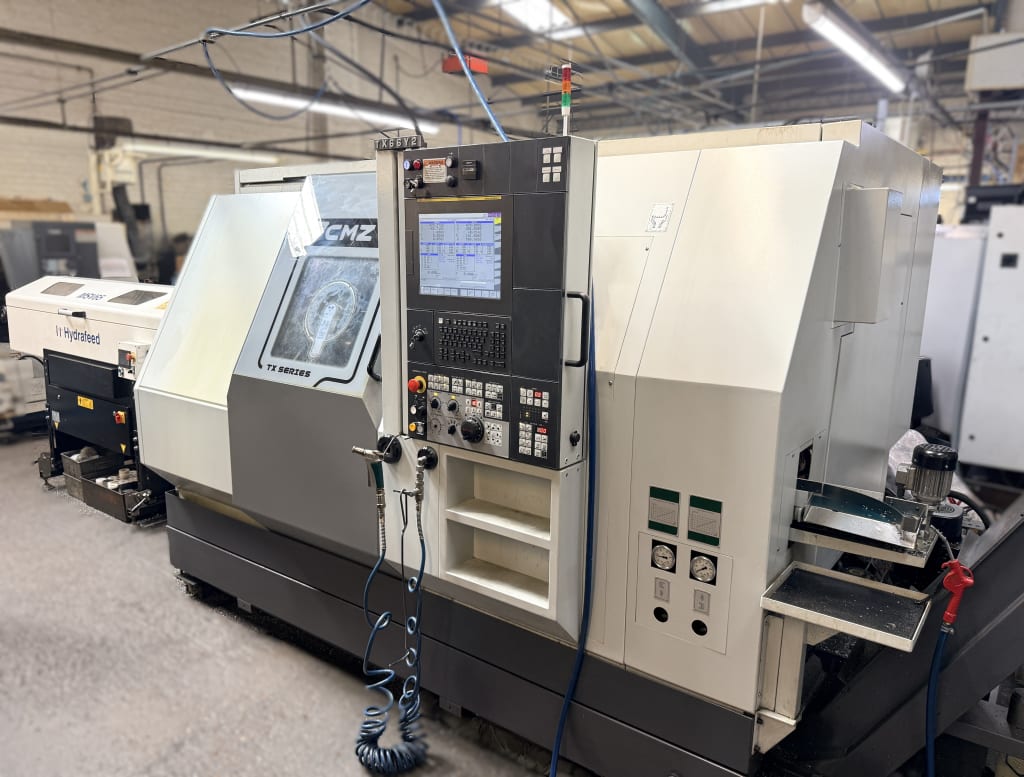

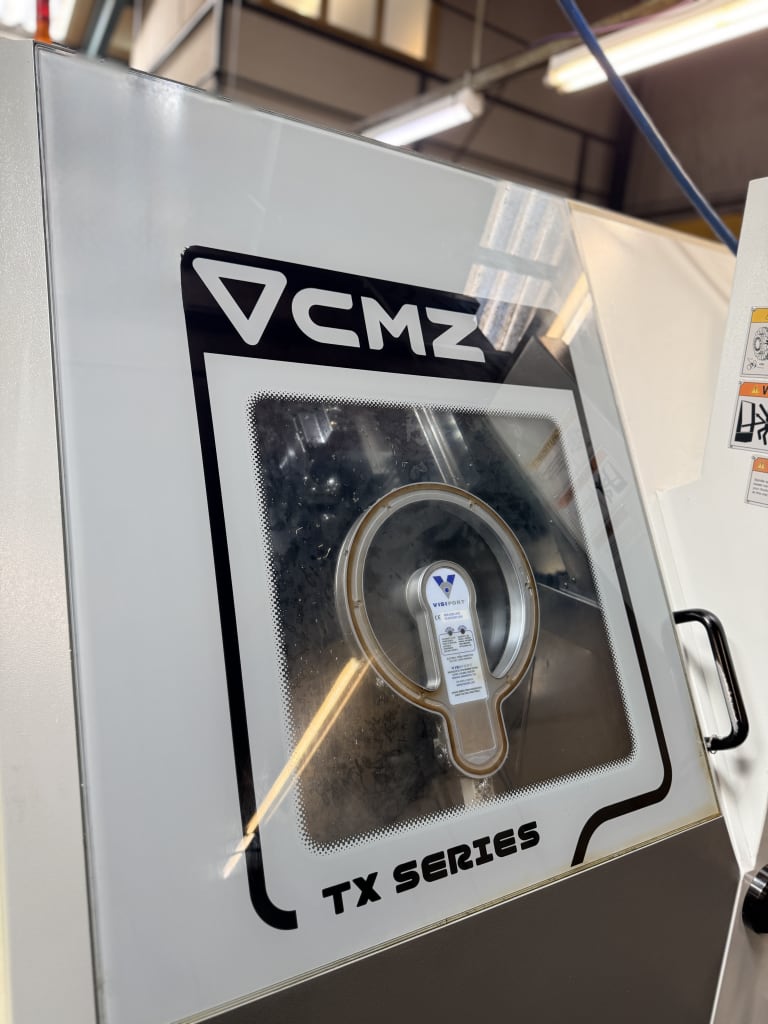

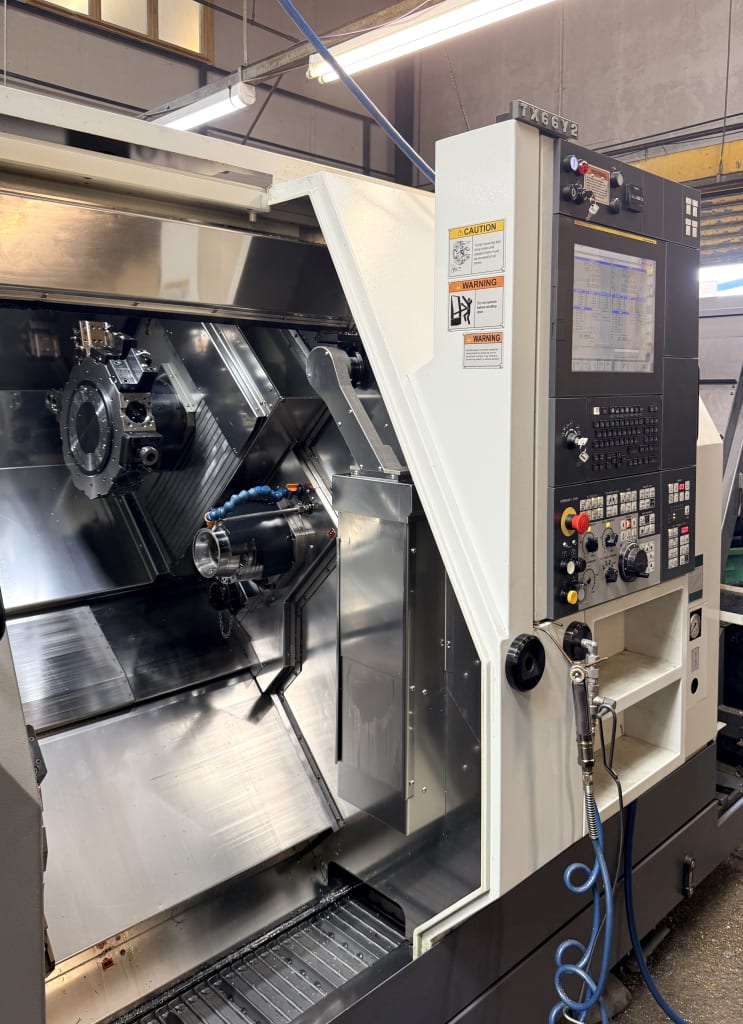

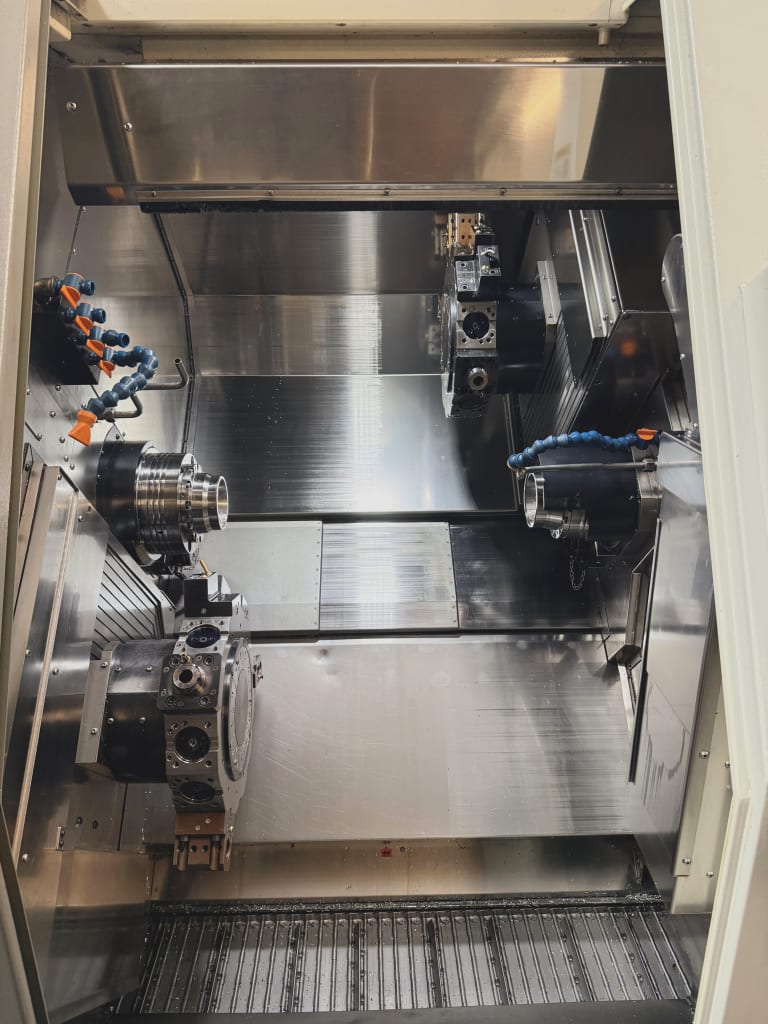

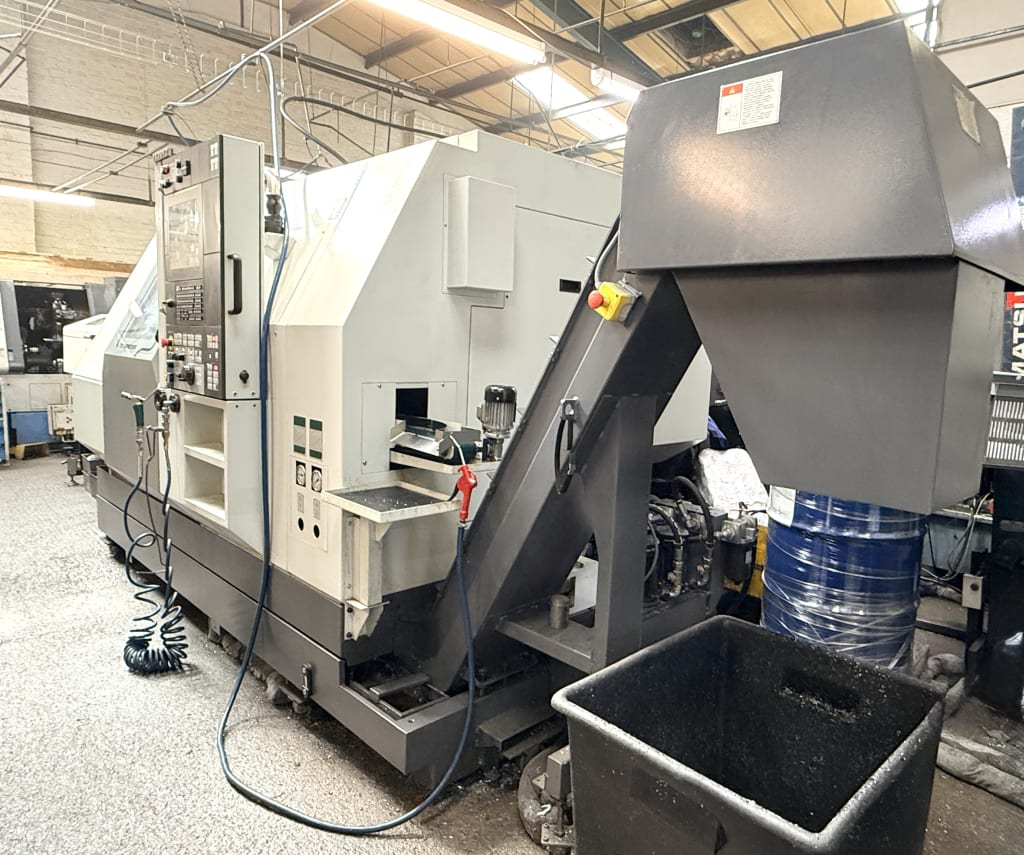

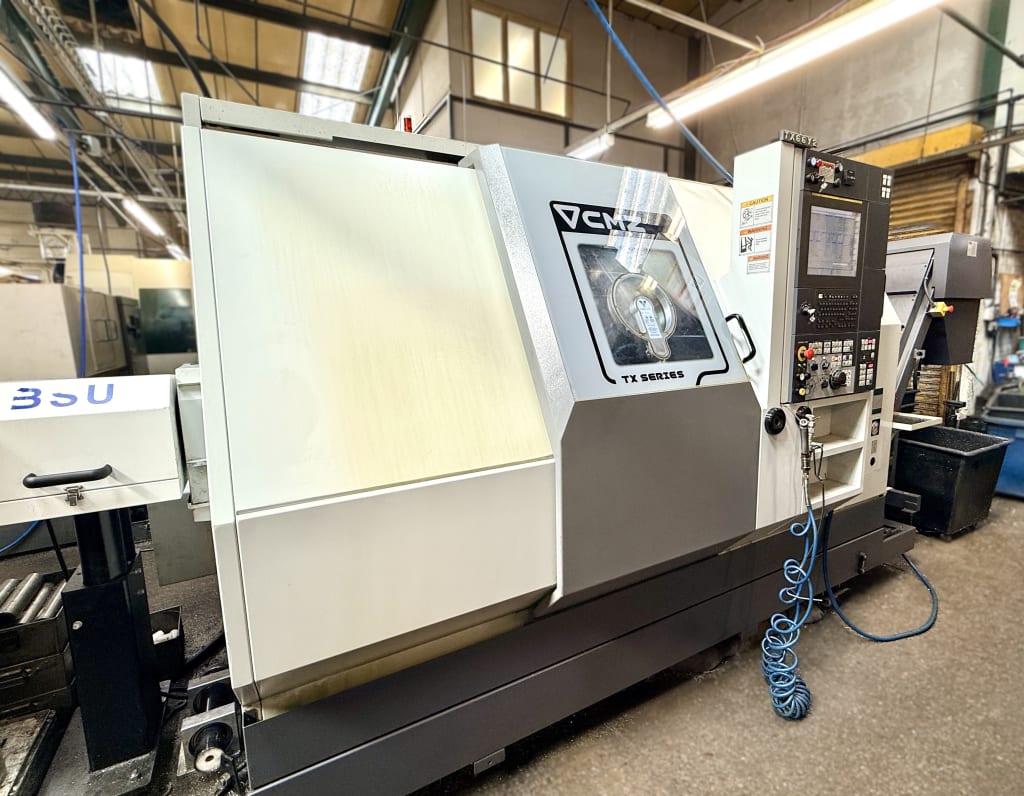

    2019 CMZ TX-66-Y2-Quattro Twin‑Turret, Y‑Axis Lathe with FANUC 31i Model B CNC Control & Hydrafeed MSV 65 Bar Feed

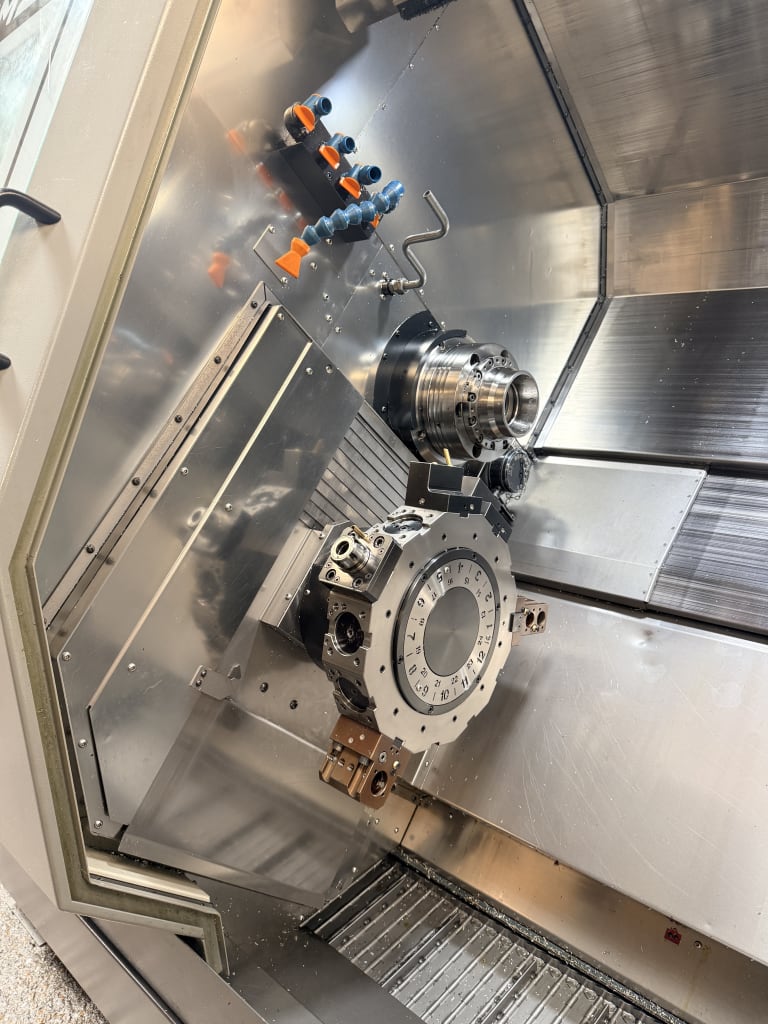

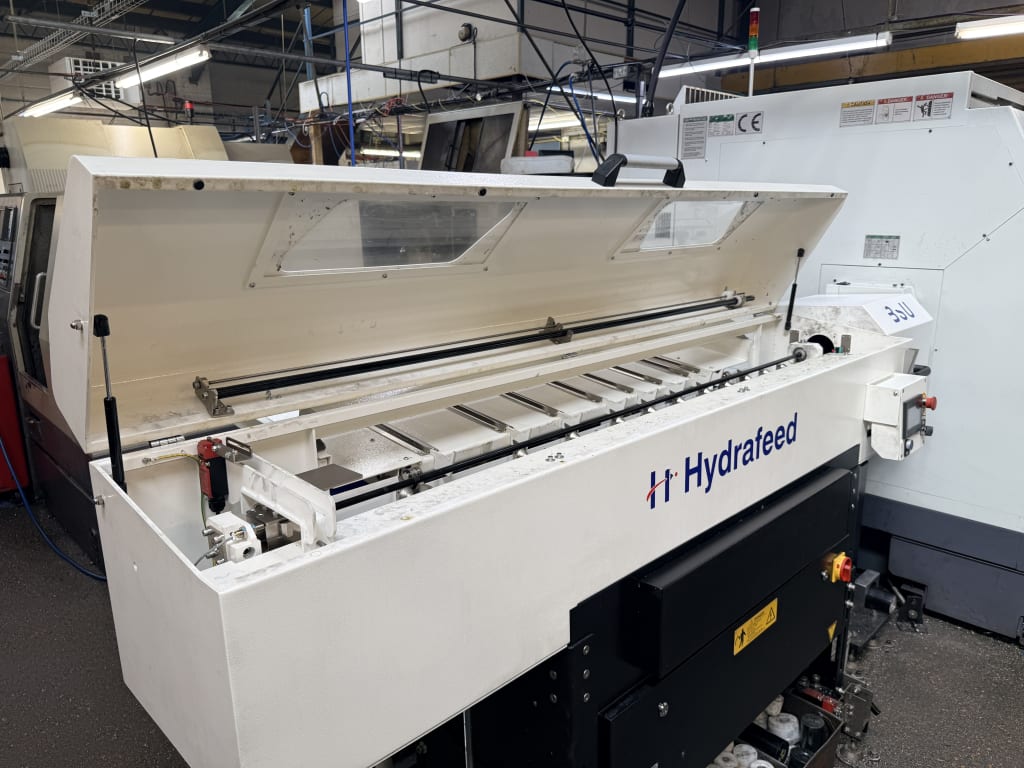

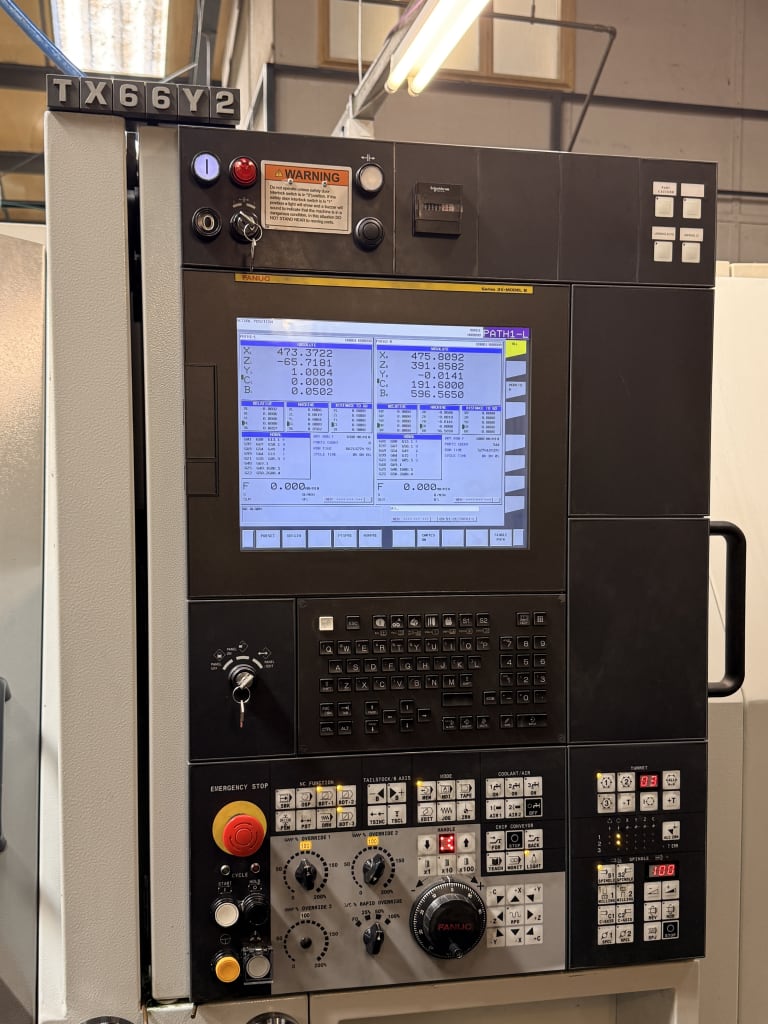

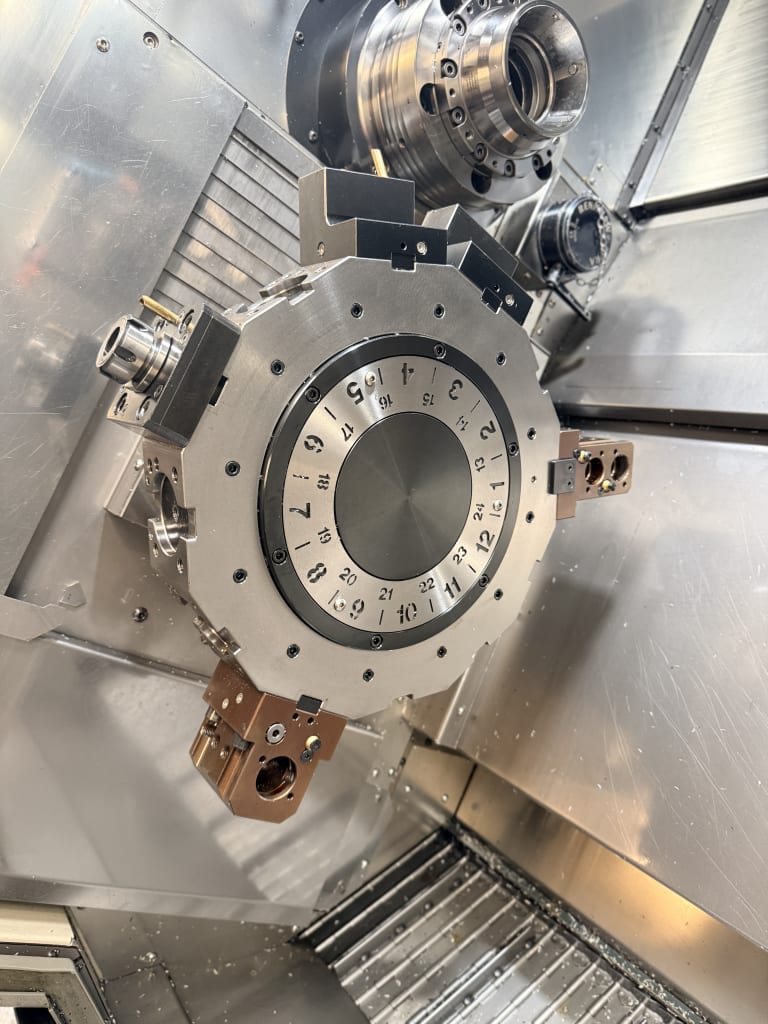

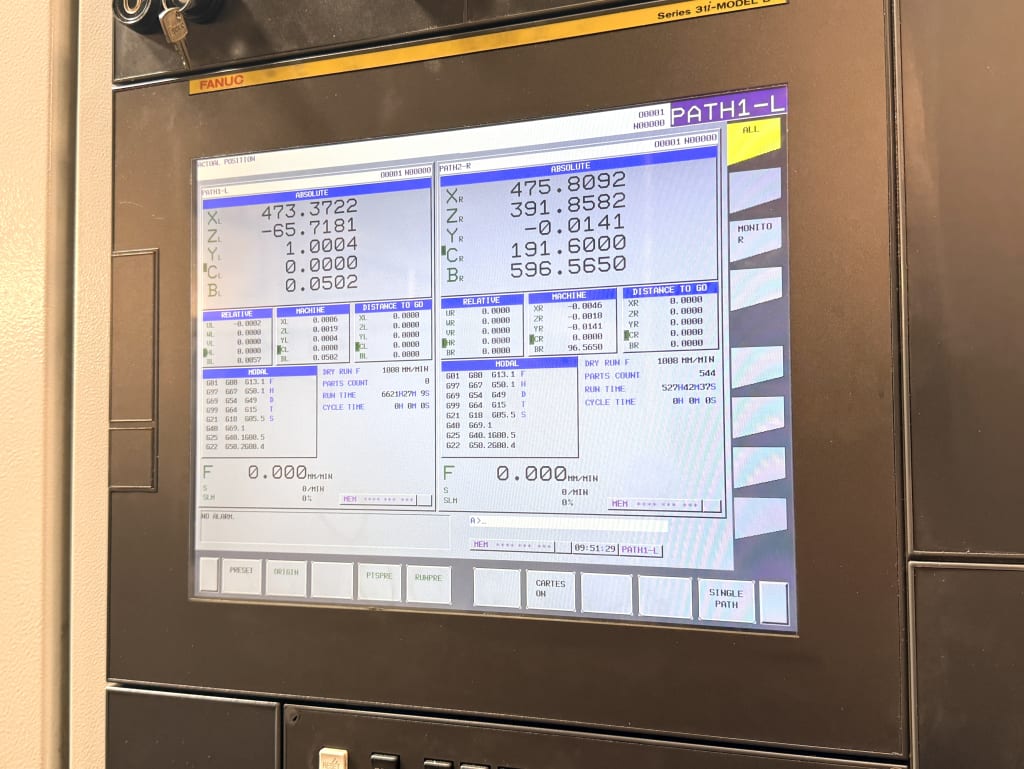

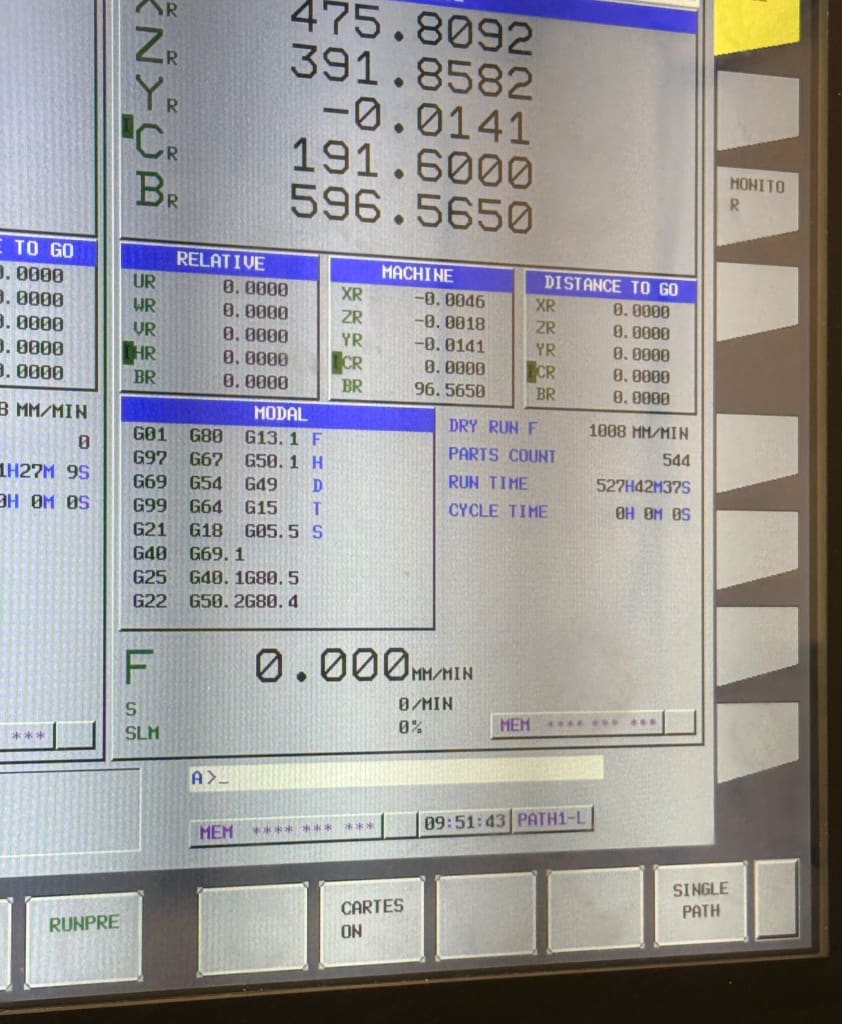

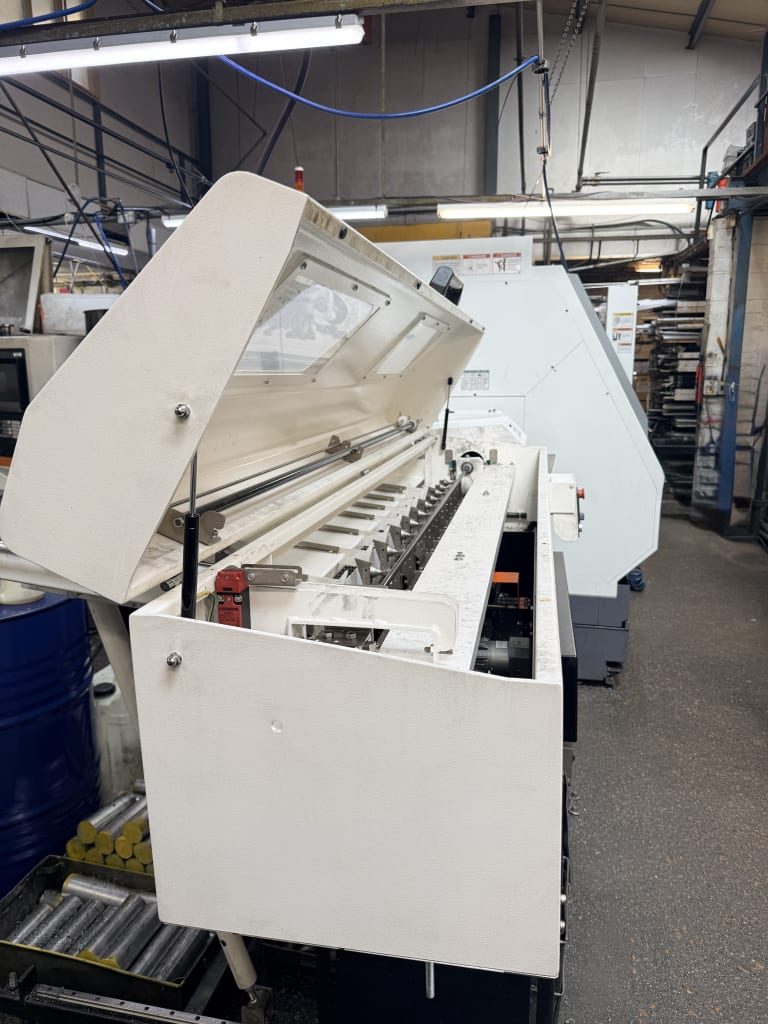

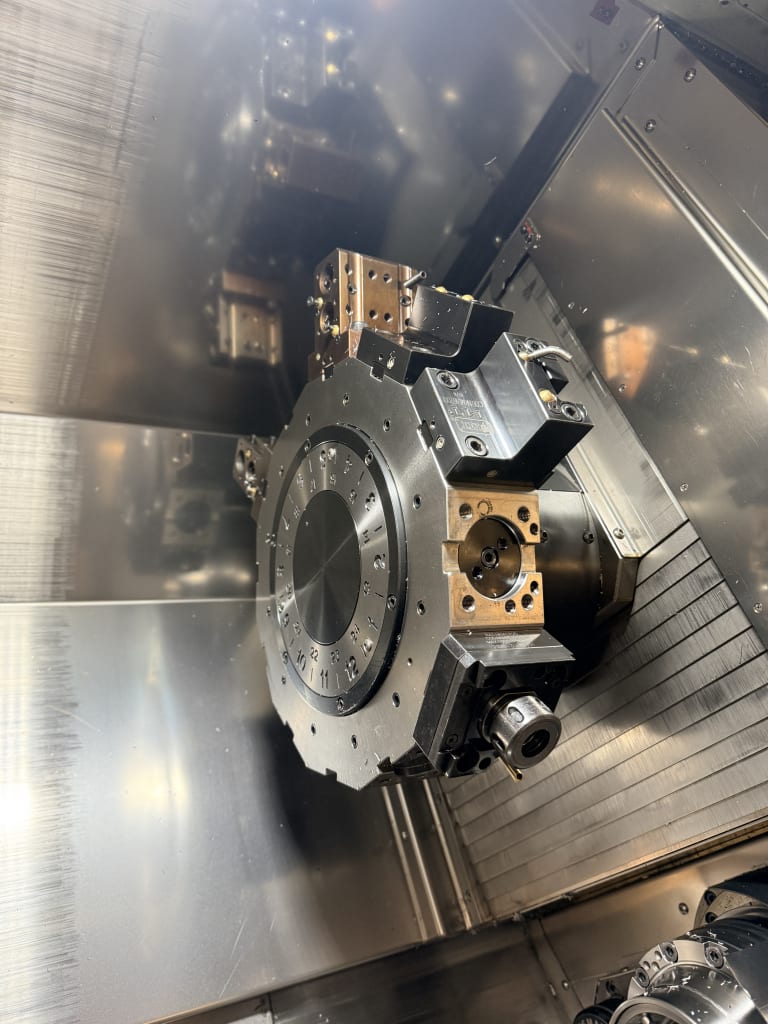

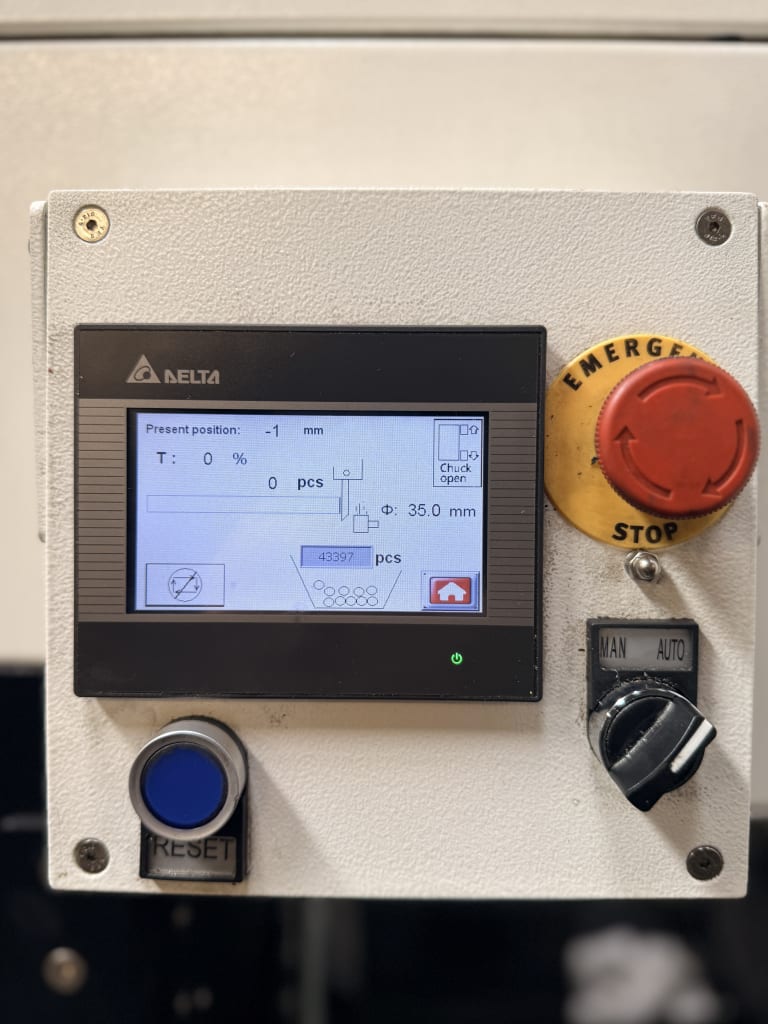

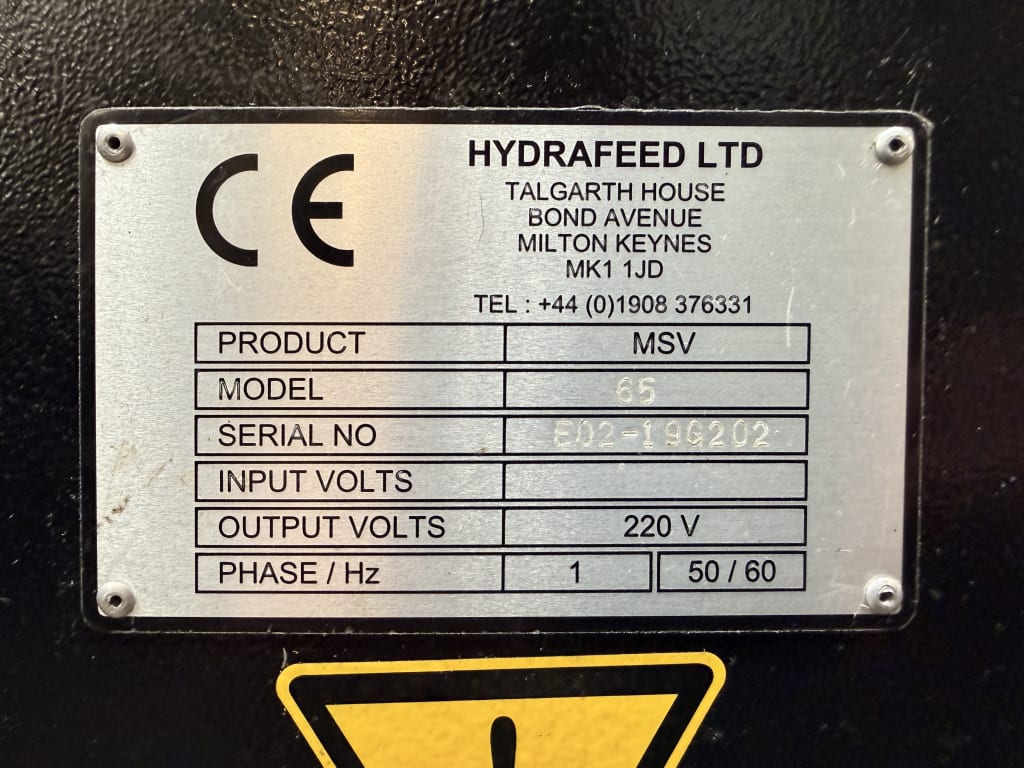

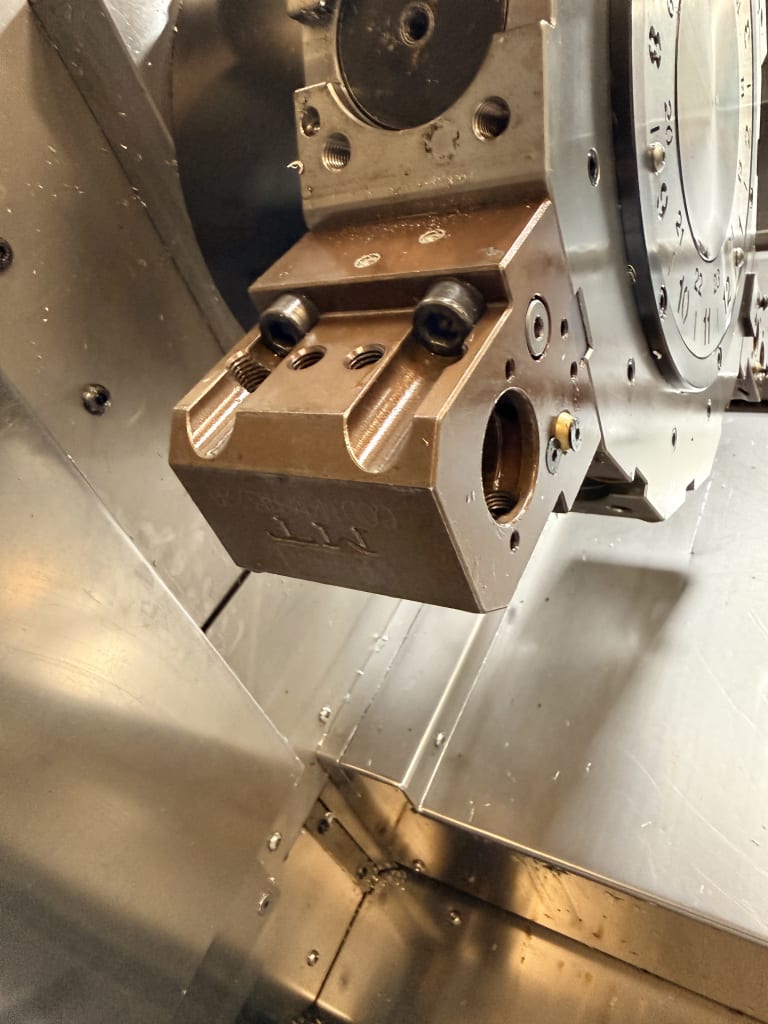

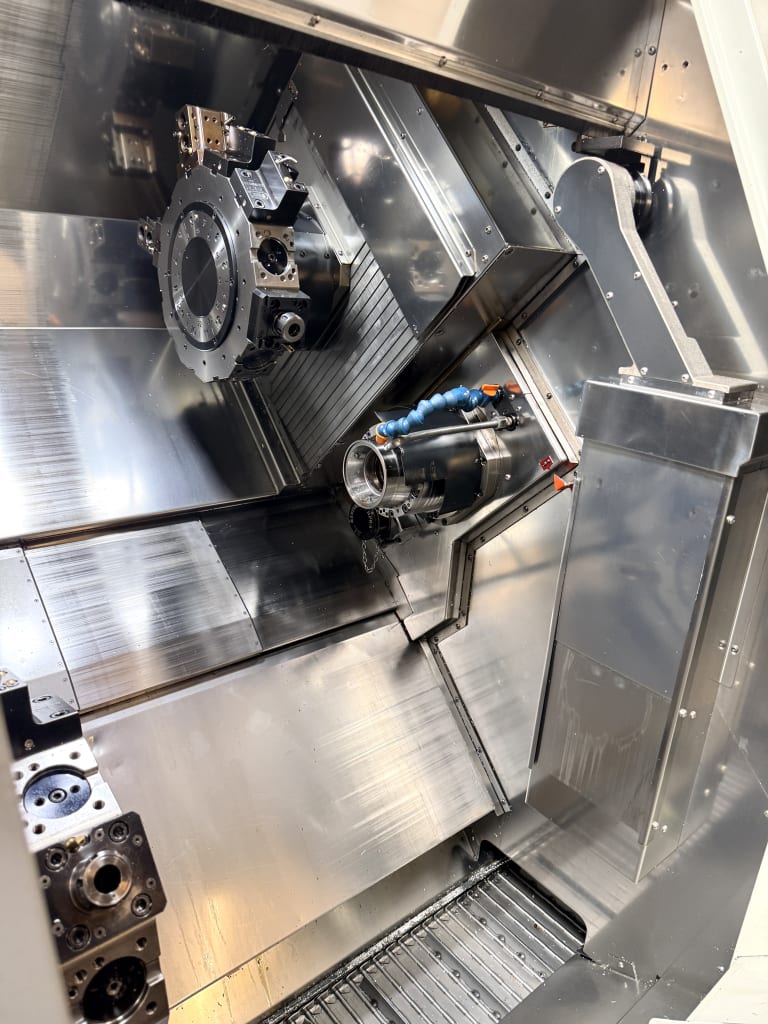

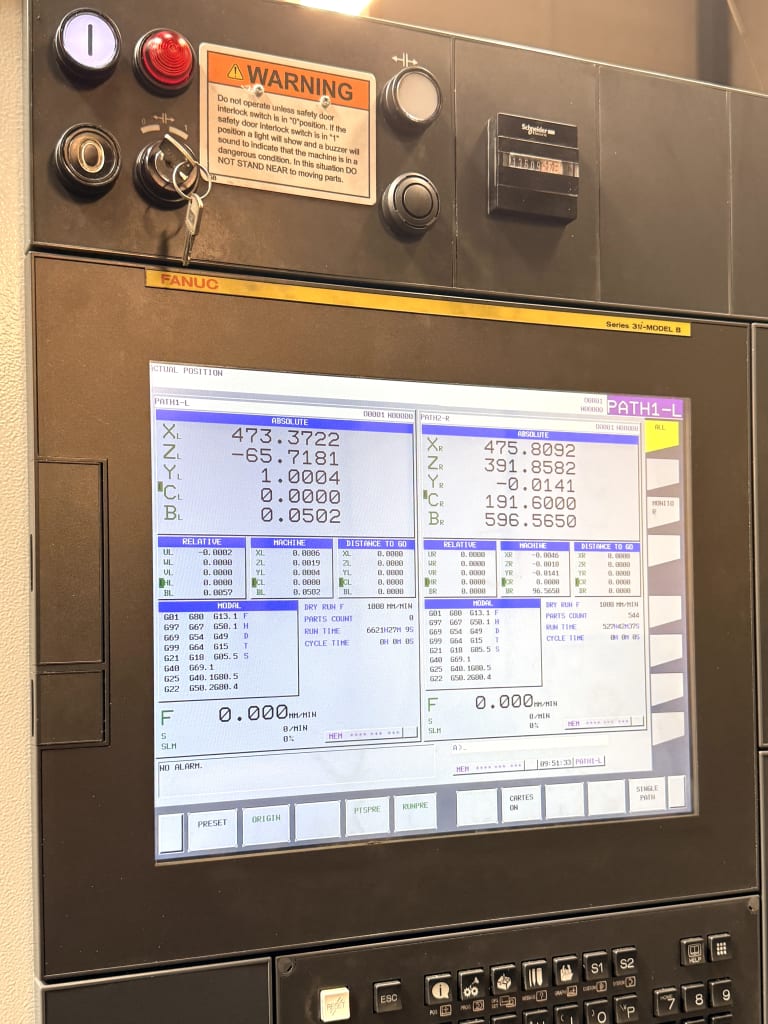

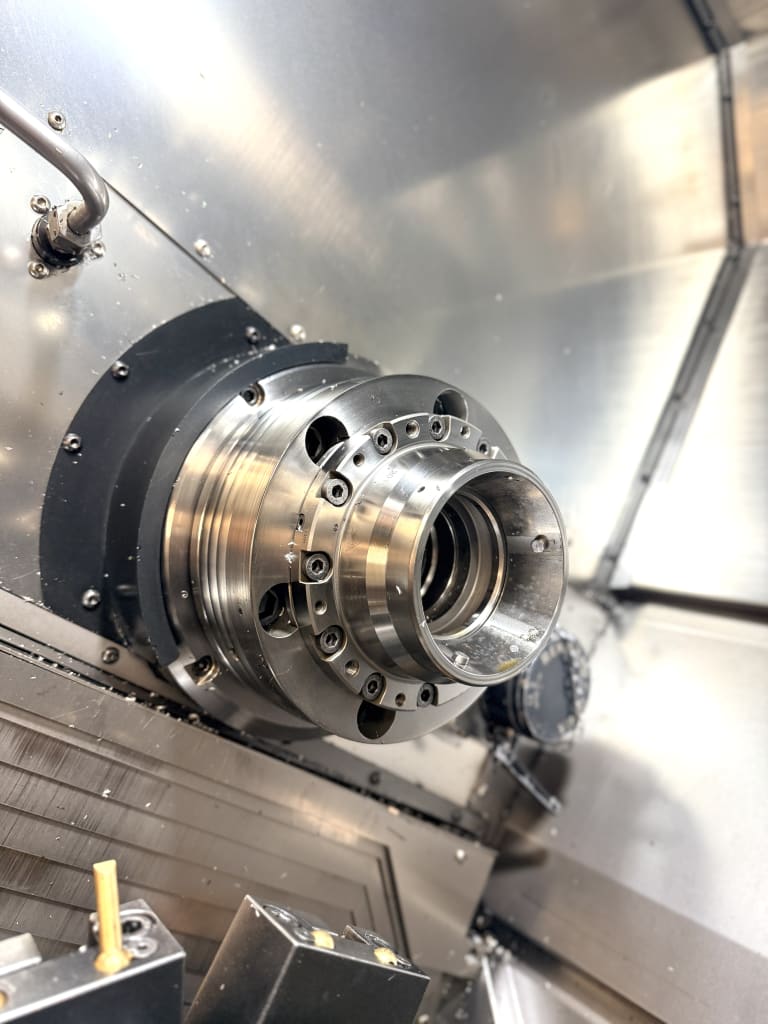

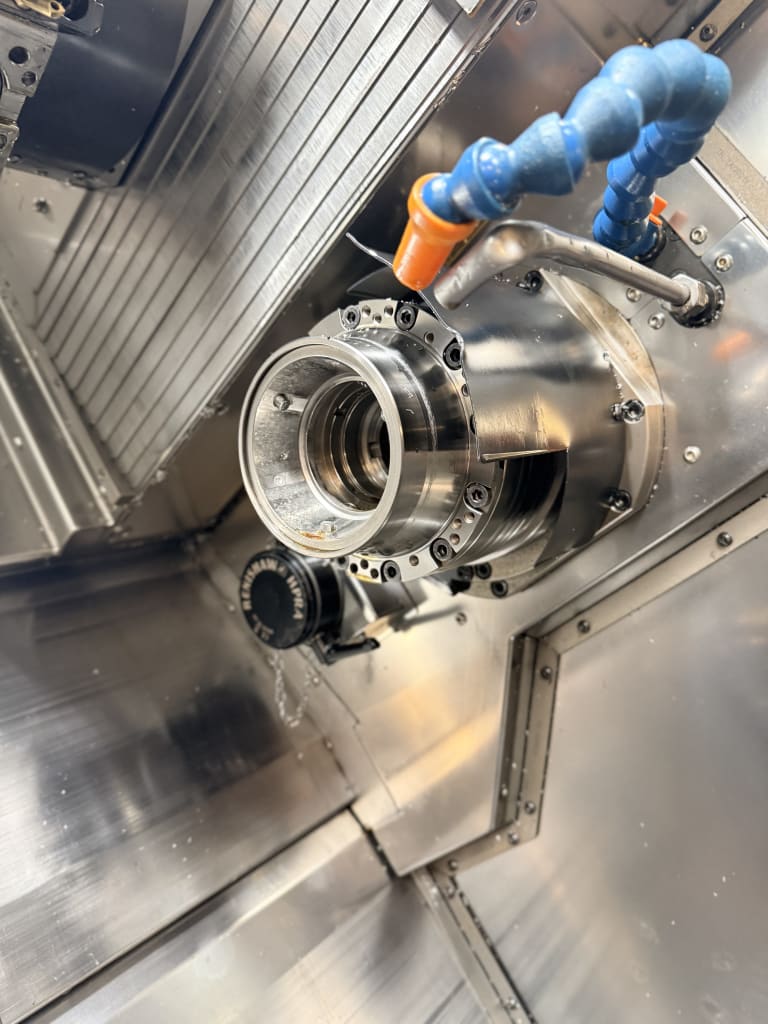

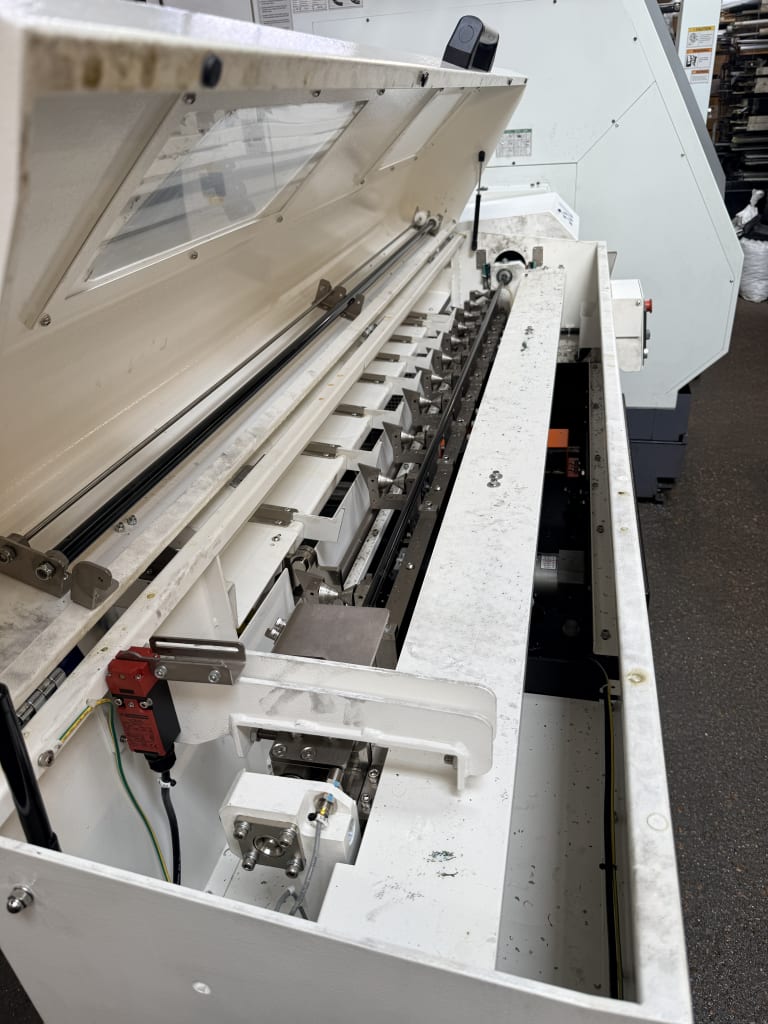

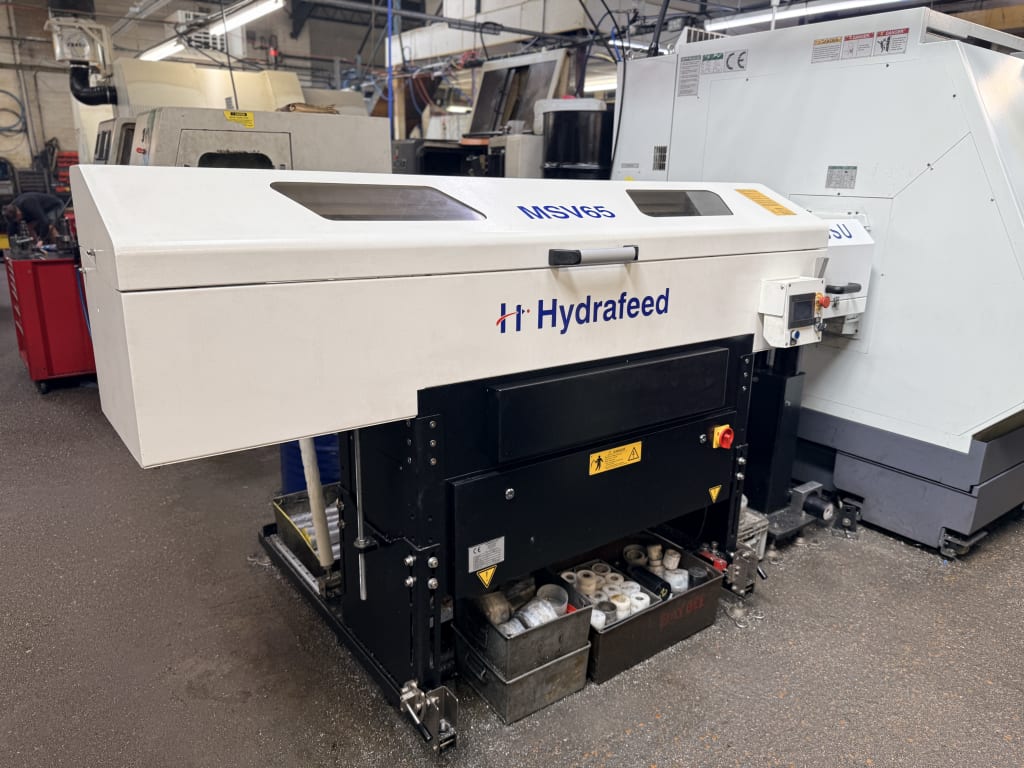

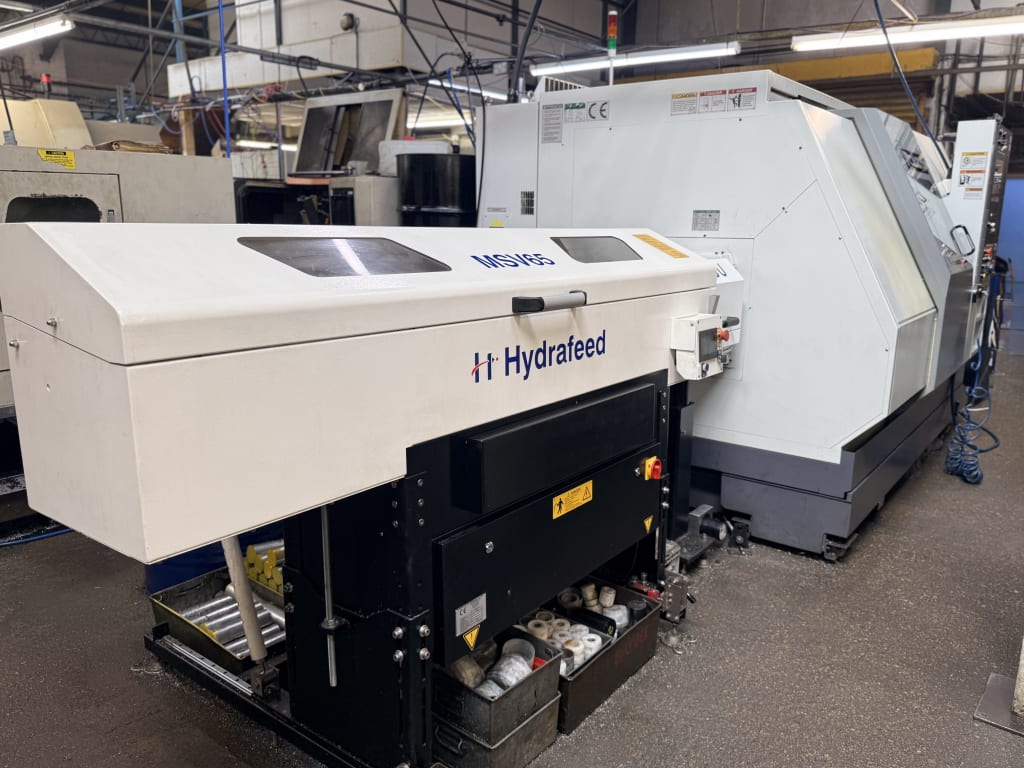

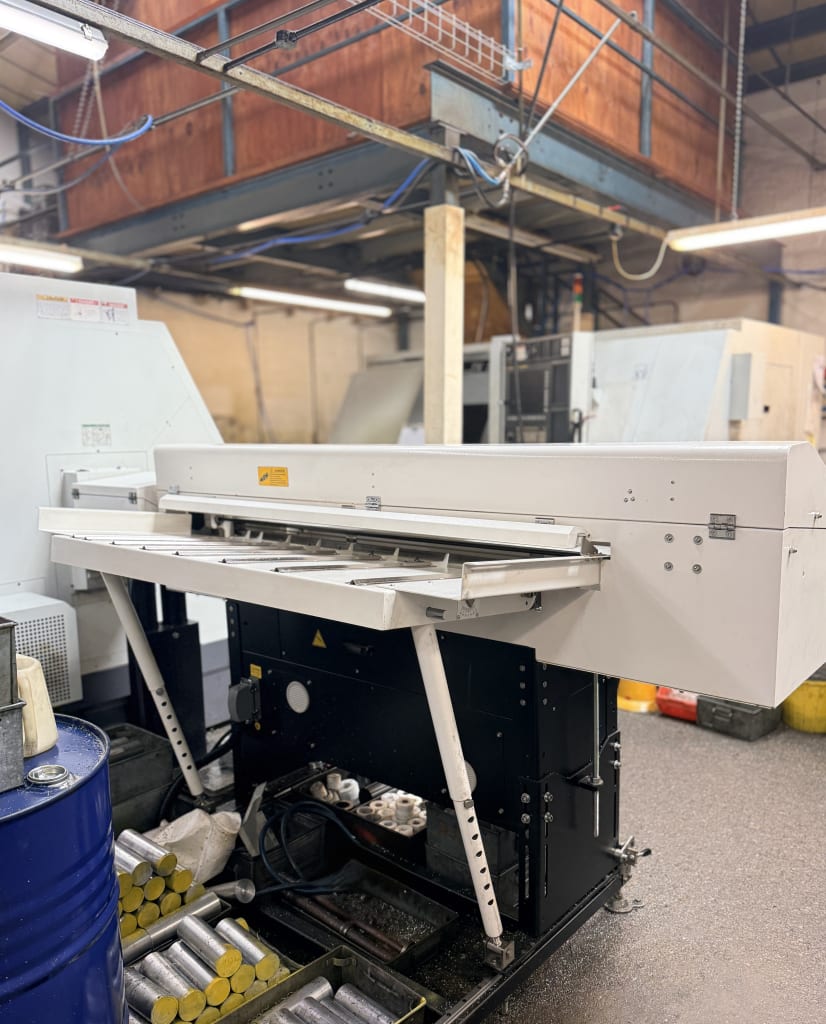

    Twin Turret Configuration For Simultaneous Machining. Full 'Y'-axis Capability On Both Turrets For Complex Part Geometries. FANUC 31i Model B CNC Control For Reliable, High-Precision Control. Integrated Hydrafeed MSV 65 Bar Feed For Automated Bar Loading. High-Speed, High-Precision Spindles. Distance Between Spindles 639mm. Maximum Turning Ø255mm. Maximum Swing Over Carriage Ø270mm. Main Spindle Side (Turret 1) XL Travel 190mm. ZL Travel 500mm. YL Travel ±40mm. Sub-Spindle Side (Turret 2) XR Travel 190mm. ZR Travel 500mm. YR Travel ±40mm. Sub Spindle Travel 635mm. Rapid Traverse Rates X-Axis 16,000 mm/min, Z-Axis 20,000 mm/min, Y-Axis 12,000 mm/min, Sub Spindle 30,000mm/min. Axis Acceleration 1g. Main Spindle: Spindle Nose: ASA 8" A2. Maximum Bar Capacity Ø66mm. Spindle Bore Ø77mm. Maximum Speed 4,000rpm. Power 15kW. Torque 135 Nm. Sub-Spindle: Spindle Nose: ASA 6" A2. Maximum Bar Capacity Ø52mm. Spindle Bore Ø61mm. Stroke 635mm. Maximum Speed 5,000rpm. Power 7.5kW. Torque 67 Nm. Turret 1 - No. Of Positions 12, No. Of Index Positions 24, 12 Driven Stations, Maximum Driven Tool Speed 6,000 rpm. Turret 2 - No. Of Positions 12, No. Of Index Positions 24, 12 Driven Stations, Maximum Driven Tool Speed 6,000 rpm. Turret Indexing Time 0.1 Sec/Position. Driven Tooling Power 18kW. Installed Power 65 kVA. Supply Voltage 400V. S/No.201 (2019).
    View Item
